Intel H510 Series Motherboards

The H510 boards here are the MSI PRO H510M-B II, MSI H510M PLUS II, Gigabyte H510M H V2 and Gigabyte H510M K V2. All four are Micro-ATX boards on the LGA1200 socket. Each has two DDR4 slots for up to 64 GB, one M.2 slot and no built-in Wi-Fi. The Gigabyte H510M K V2 has two SATA ports, while the other three have four. MSI covers the PRO H510M-B II with a 3 year warranty.

Start with the processor. H510 takes LGA1200 Intel Core chips from the Comet Lake and Rocket Lake families, plus LGA1200 Pentium and Celeron models. It cannot overclock, so a K-series chip runs only at stock speeds. F-series chips have no integrated graphics, so they need a separate graphics card. Storage is the main difference among these boards. Pick a four-SATA model for more than two hard drives, SATA SSDs or an optical drive. Wireless networking needs a USB or PCIe Wi-Fi adapter. The Gigabyte H510 and MSI H510 boards also have pages of their own.

Frequently asked questions

Do H510 boards work with newer Intel processors on LGA1700? No. LGA1700 processors need an LGA1700 board, and H510 boards take only LGA1200 chips.

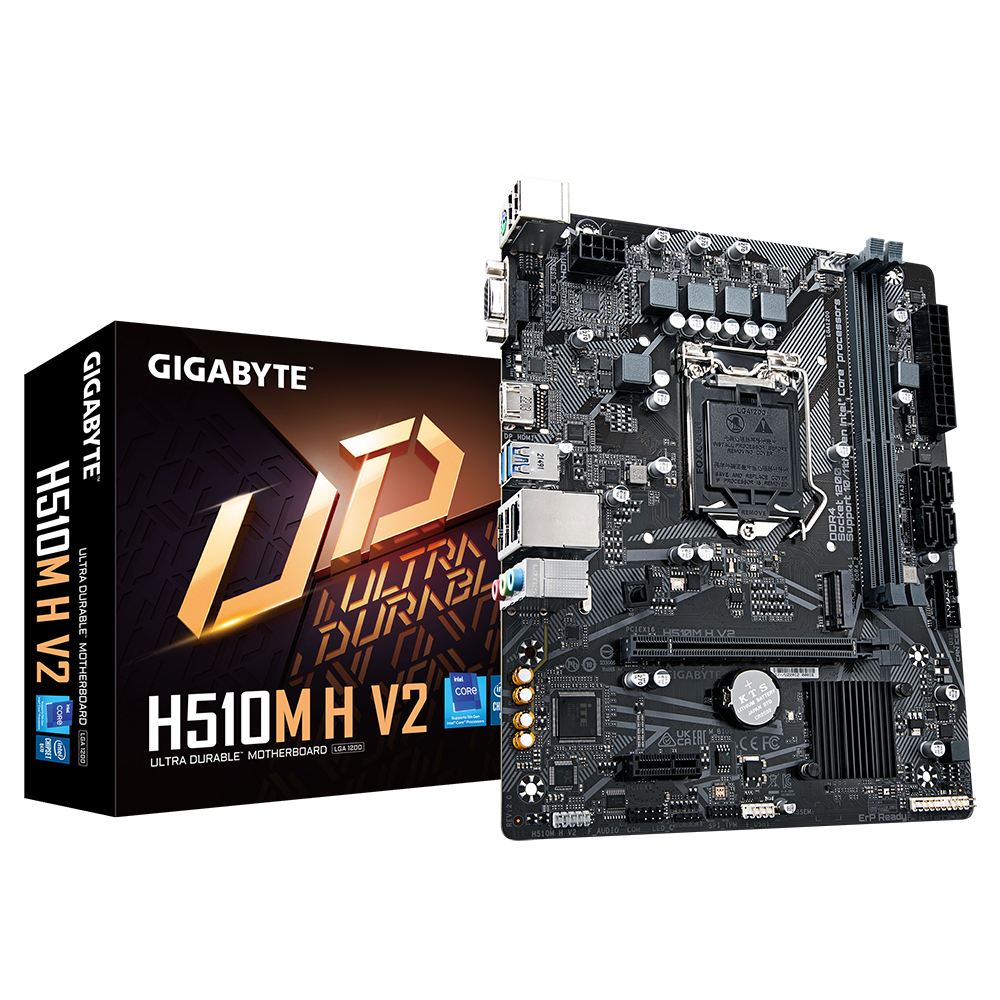

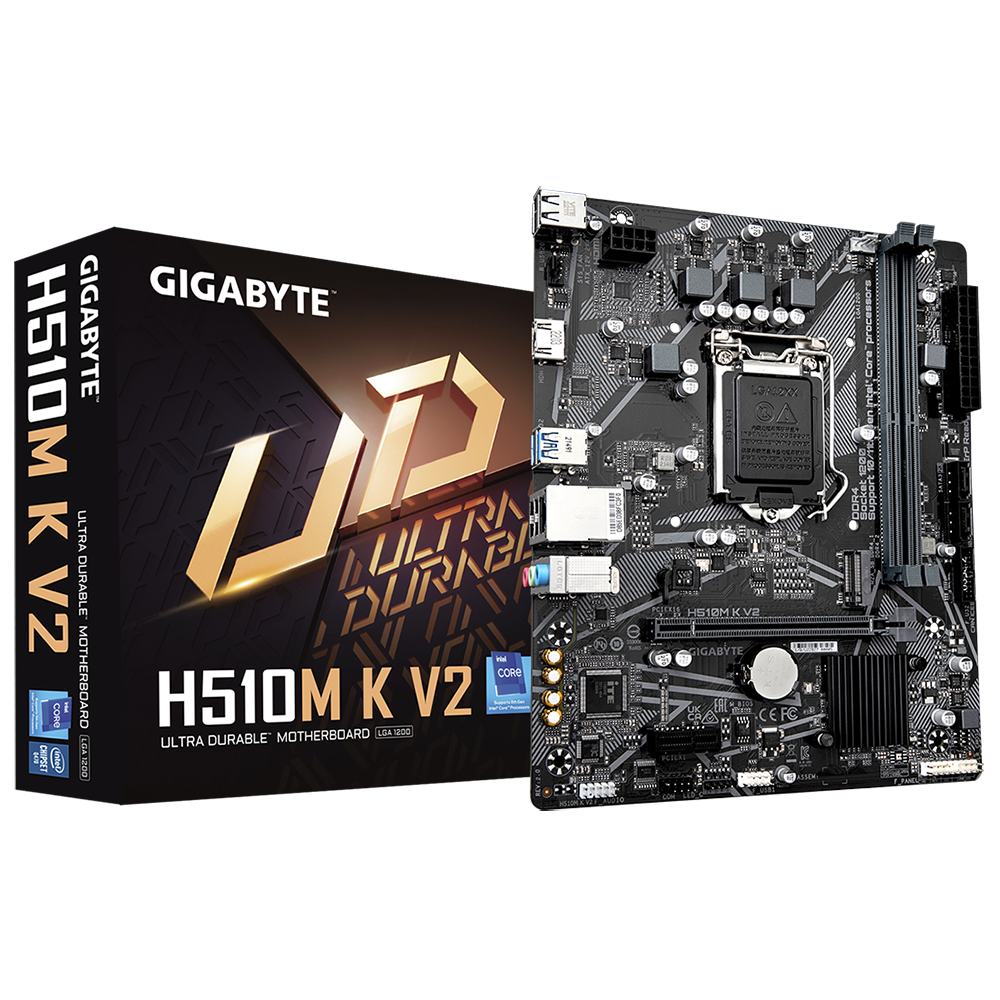

What is the difference between the Gigabyte H510M H V2 and H510M K V2? Both are Micro-ATX boards with two DDR4 slots and one M.2 slot. The H V2 has four SATA ports, while the K V2 has two.

Can I use DDR5 RAM on an H510 board? No. Every board on this page takes DDR4 memory only, across two slots.
