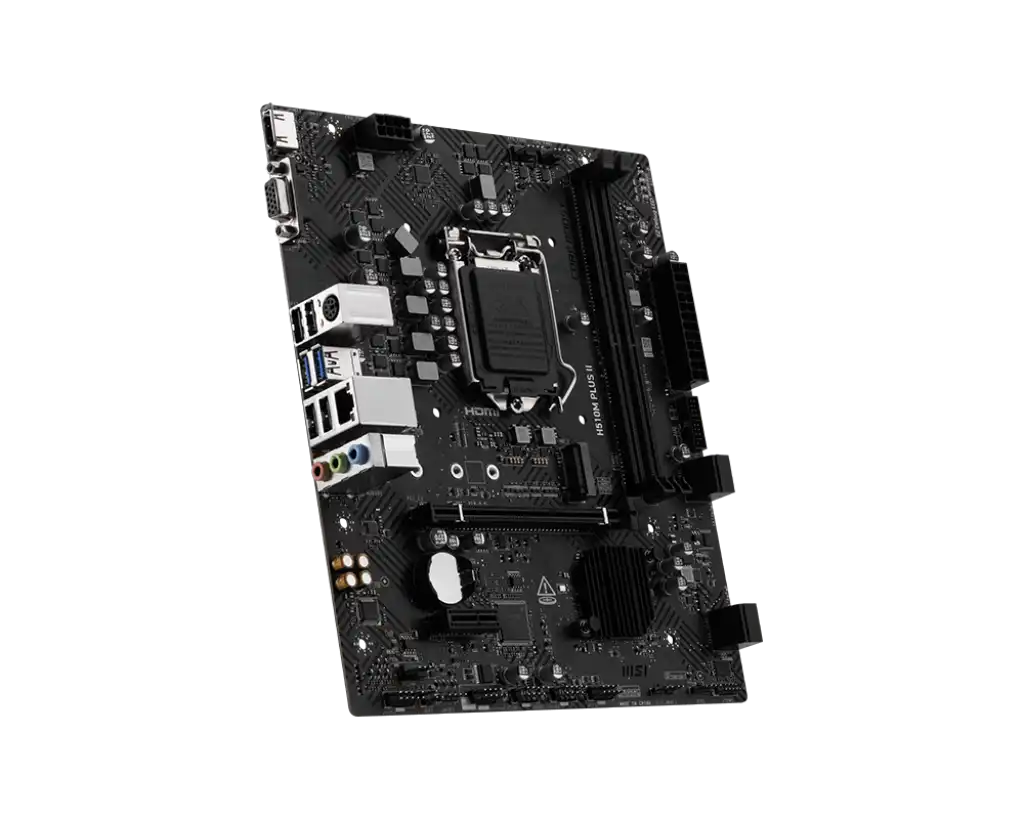

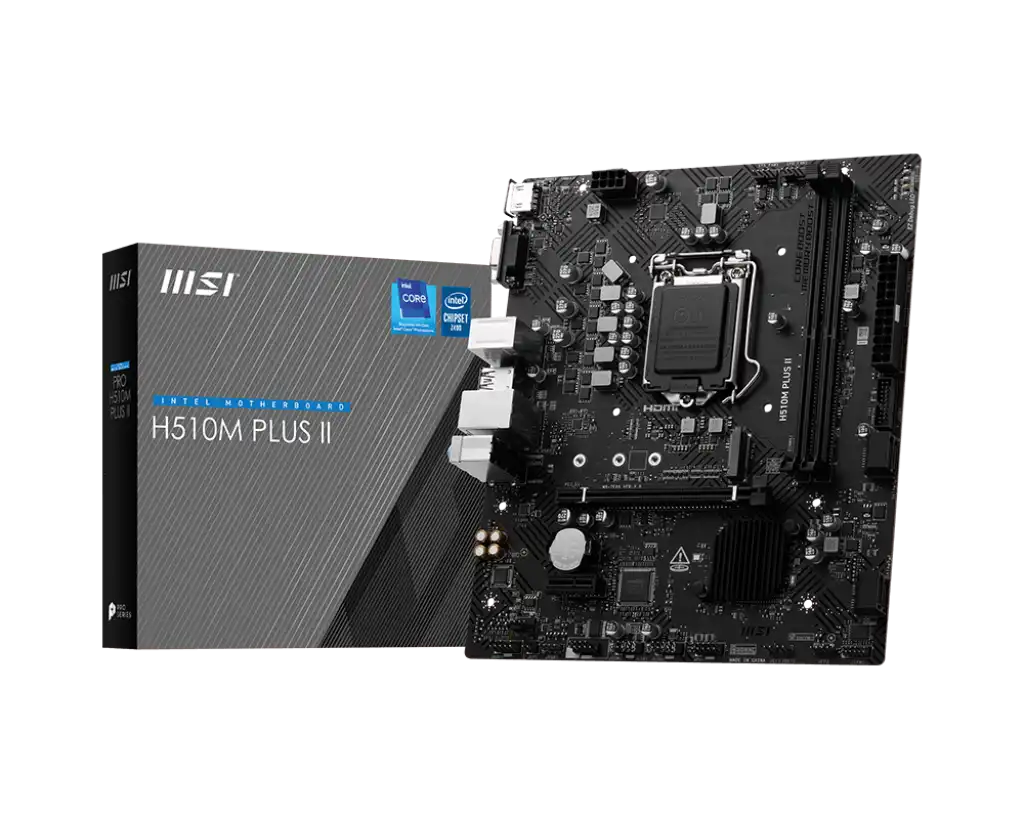

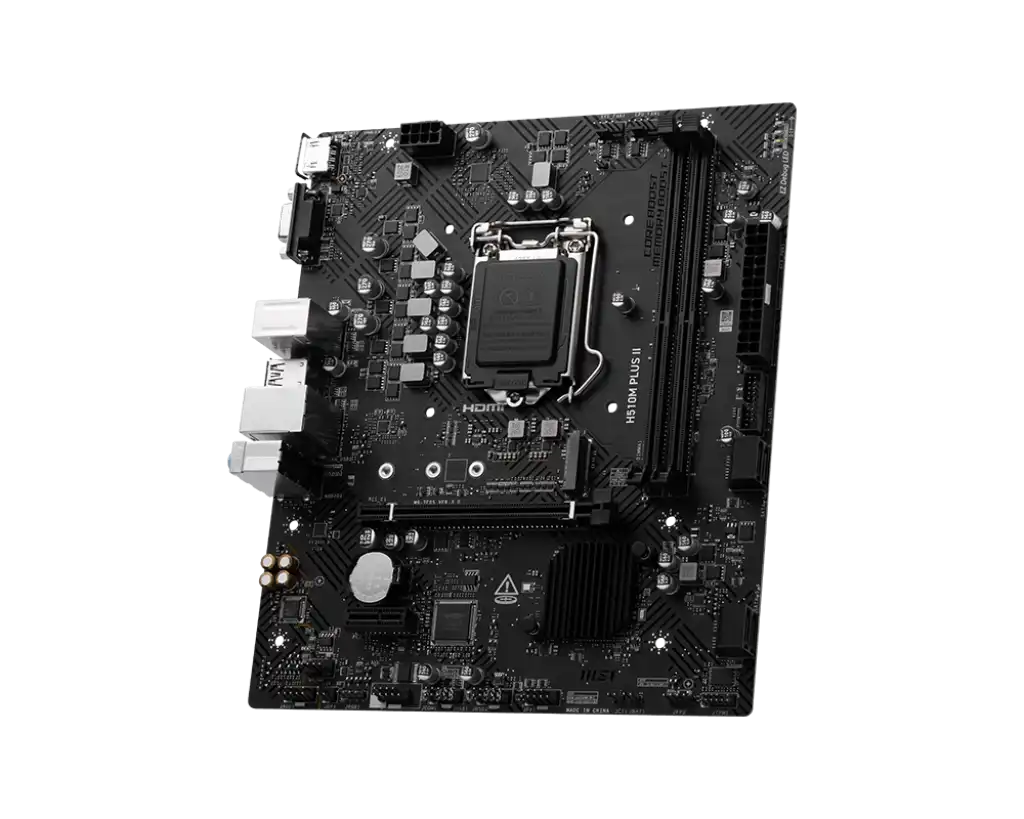

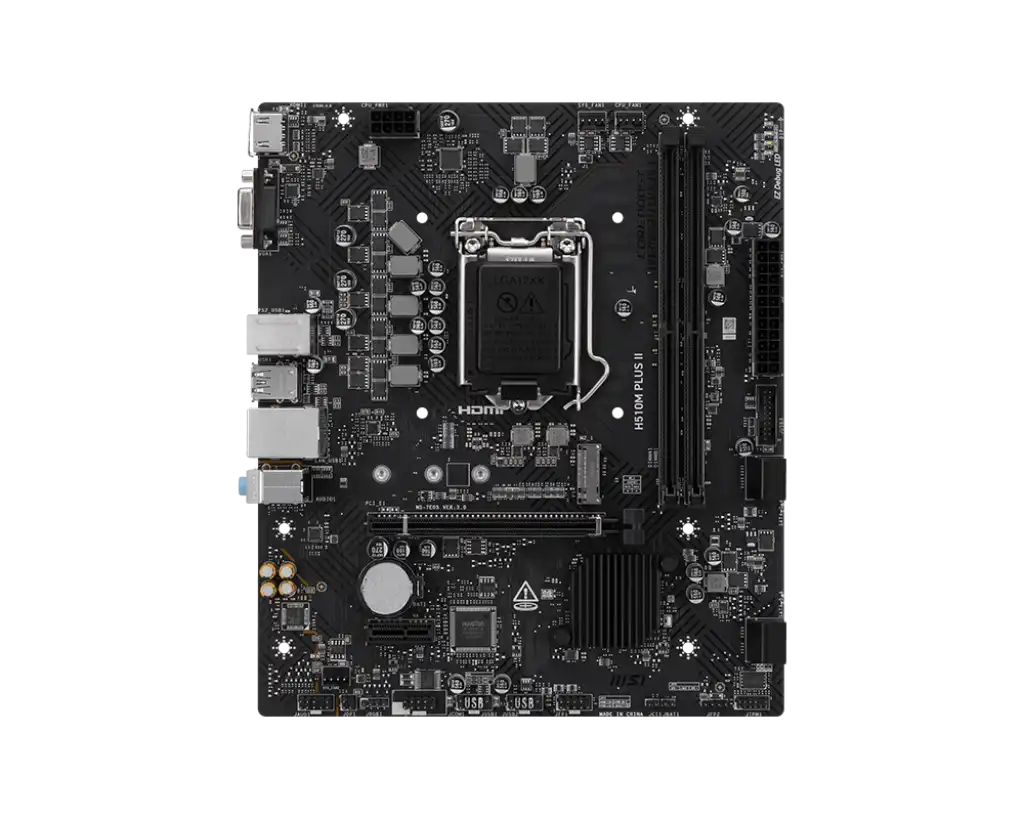

MSI H510M PLUS II Motherboard
  • Model:H510M PLUS II
  • Supports 10th & 11th Gen Intel Core CPUs
  • Intel H510 chipset, LGA 1200 socket, Micro-ATX
  • DDR4 Memory support up to 2933 MT/s
  • Features Core Boost, Audio Boost, Steel Armor
  • 3 Years Warranty from MSI
₹ 5,650
On Order
1
Chipset
INTEL H510
CPU
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Memory
2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN
Realtek® 8111H Gigabit LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
1. HDMI™ 2. VGA 3. Keyboard / Mouse 4. USB 5Gbps Type-A 5. LAN port 6. Audio Connectors 7. USB 2.0 8. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX 202mmx236mm
