- Model:PRO Z890-S WIFI6E
- Intel Z890 chipset, LGA 1851 socket
- DDR5 memory support up to 8800+ MT/s
- PCIe 5.0 M.2 and Wi-Fi 6E connectivity
- 12+1+1+1 power phases with dual 8-pin connectors
- 3 Years Warranty from MSI
Overview

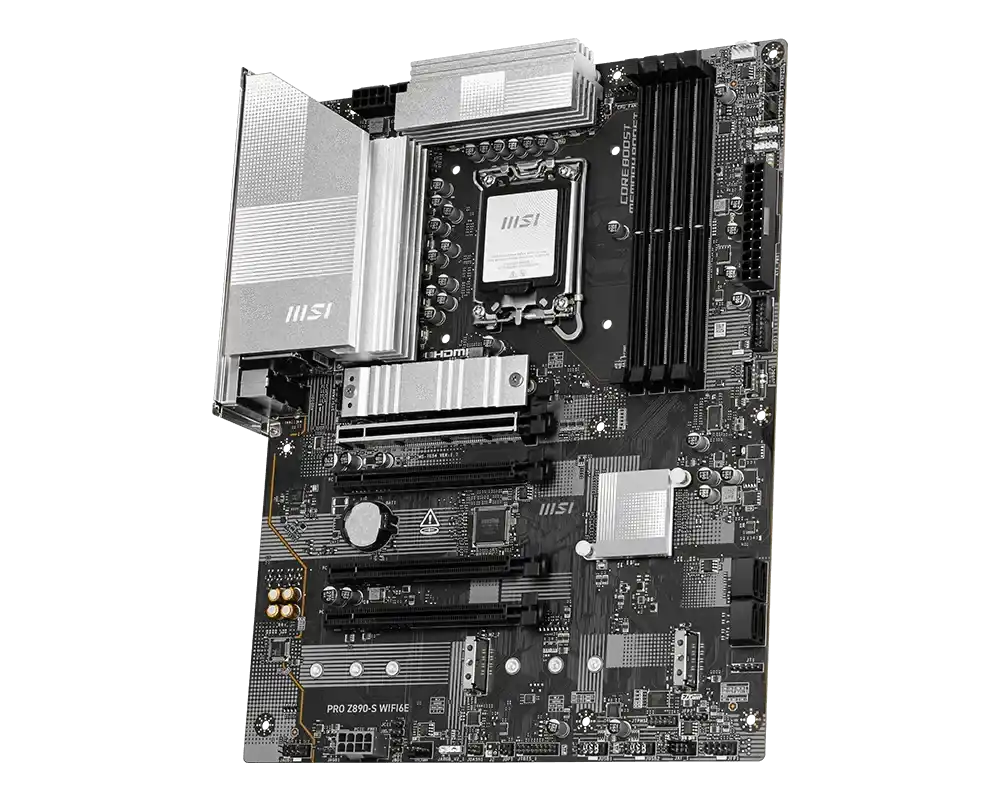

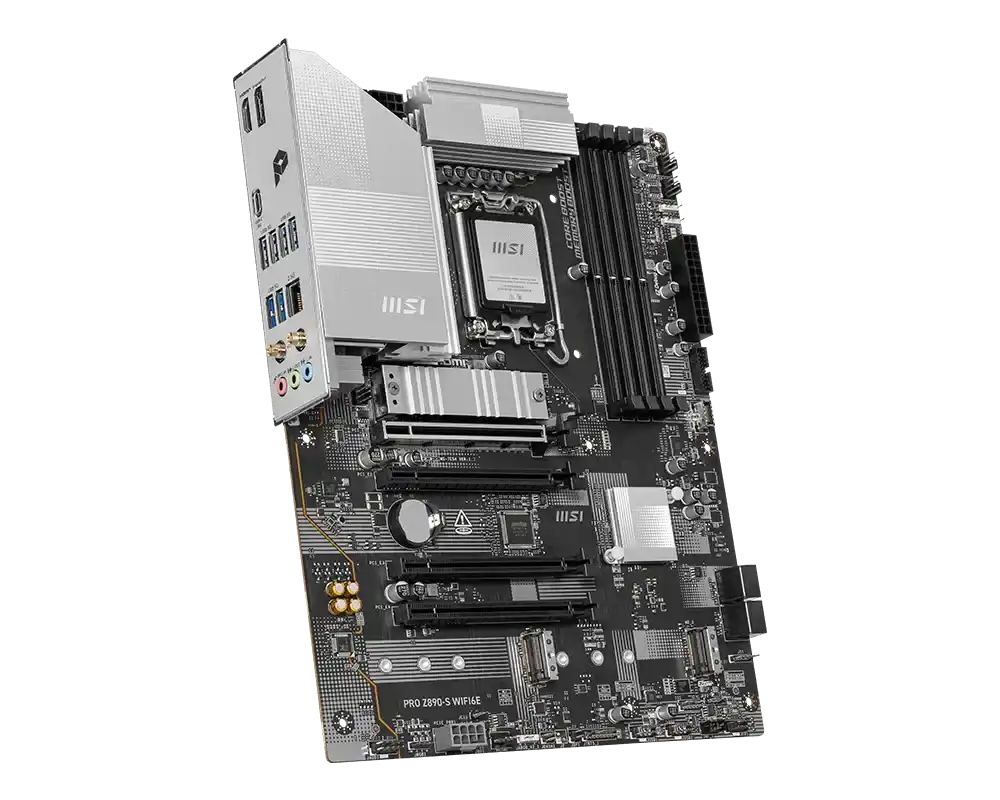

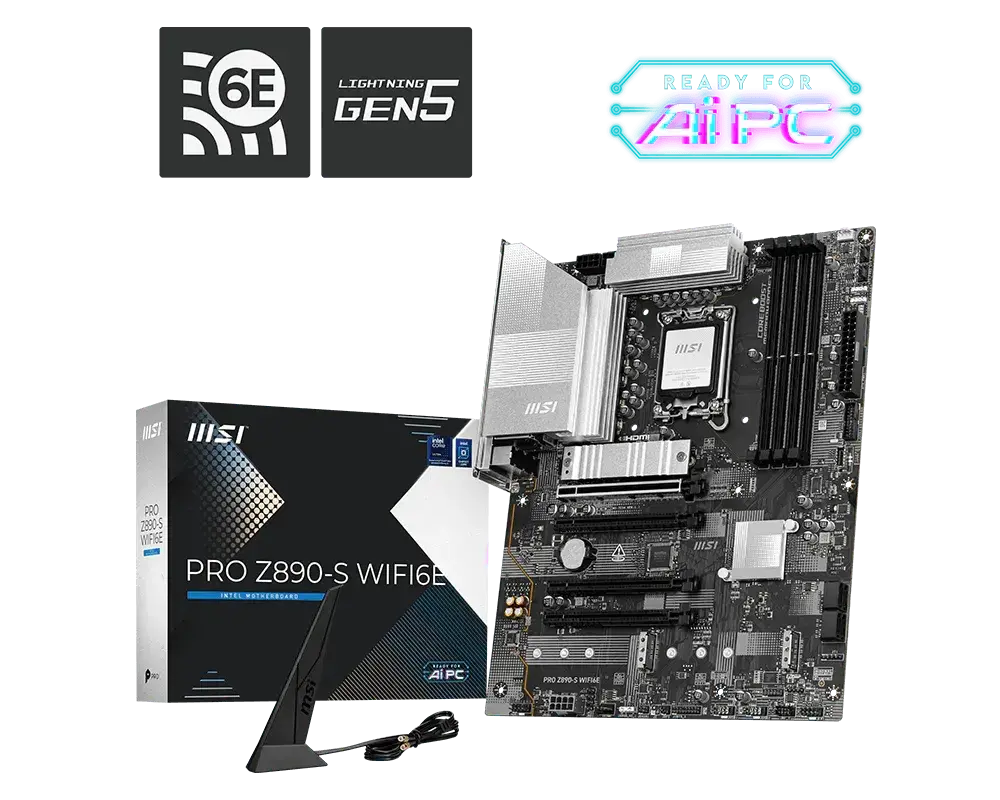

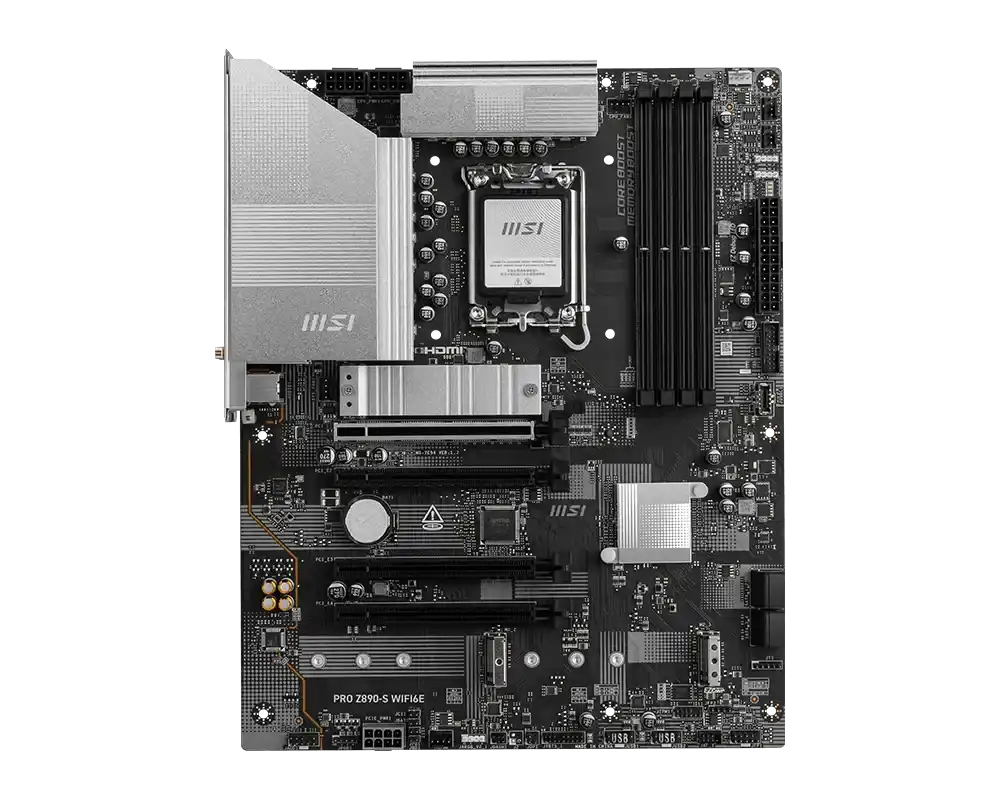

The MSI PRO Z890-S WIFI6E is a professional-grade ATX motherboard engineered for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It combines business elegance with high performance, featuring a harmonious silver color scheme that complements both white and black PC builds.
This motherboard delivers exceptional connectivity with Wi-Fi 6E, 2.5G LAN, and USB 20Gbps Type-C ports. The enhanced power design includes a 12+1+1+1 Duet Rail Power System with dual 8-pin CPU power connectors, supporting demanding processors with stable performance. Storage options include one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots for lightning-fast data transfer.
The Frozr Guard thermal solution features extended heatsinks, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr to maintain optimal temperatures during intensive workloads. EZ DIY features like the EZ PCIe Clip II, EZ Conn-Design, and EZ Antenna simplify system building and upgrades.
With DDR5 support up to 8800+ MT/s (OC), Click BIOS X with AI-powered features, and comprehensive software utilities including MSI Center, this motherboard is ready for AI computing, gaming, and professional multitasking.
- Intel Z890 chipset with LGA 1851 socket for Core Ultra Series 2 processors
- DDR5 memory support: 4 DIMM slots, up to 256GB, 8800+ MT/s (OC)
- PCIe 5.0 x16 slot with Steel Armor reinforcement
- 1x PCIe 5.0 M.2 (128 Gbps) and 2x PCIe 4.0 M.2 (64 Gbps each)
- Wi-Fi 6E with 2.4Gbps speed and Bluetooth 5.3
- 2.5G LAN with AI LAN Manager for optimized networking
- 12+1+1+1 power phases with dual 8-pin CPU power connectors
- Extended Heatsink and M.2 Shield Frozr thermal design
- 7W/mK MOSFET thermal pads for superior heat dissipation
- USB 20Gbps Type-C (rear and front) and 6x USB 5Gbps Type-A
- Realtek ALC897 7.1-channel audio with Audio Boost
- EZ DIY features: EZ PCIe Clip II, EZ Antenna, EZ Conn-Design
- Click BIOS X with Creation Boost, AI Boost, and XMP support
- MSI Center software with AI Engine, Mystic Light, and Cooling Wizard
- Pre-installed I/O Shield for hassle-free mounting
- ATX form factor: 243.84mm x 304.8mm
Specifications
- Chipset
- INTEL Z890
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
- LAN
- Realtek® 8125D 2.5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED

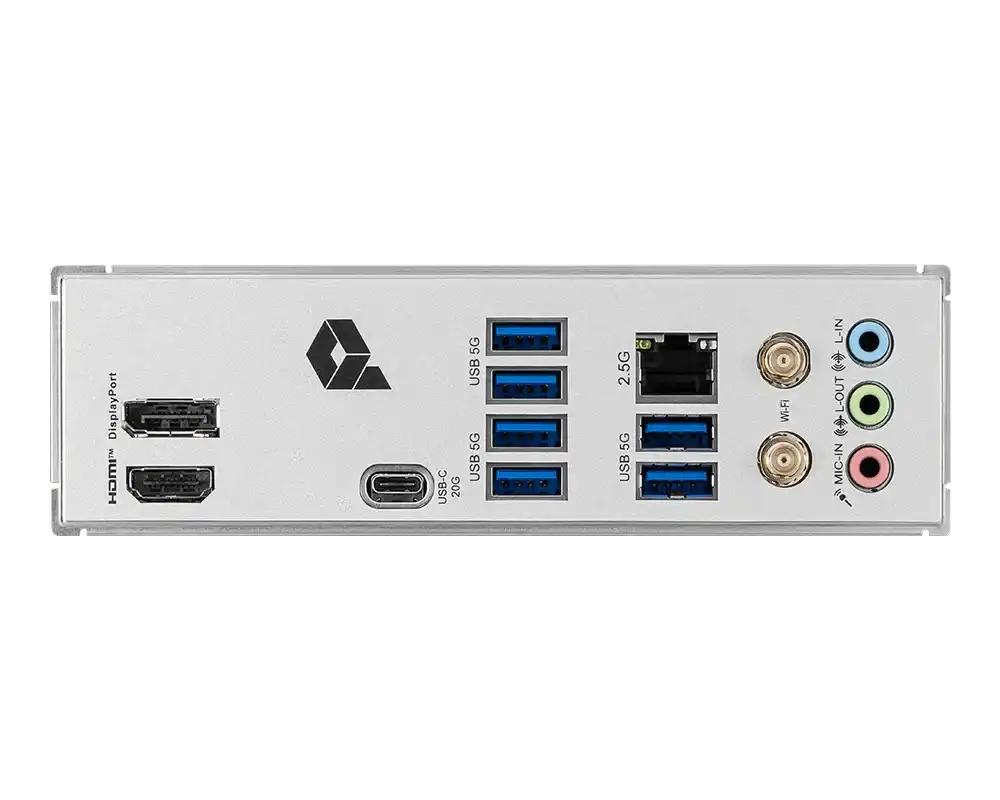

- BACK PANEL PORTS
- 1. DisplayPort 2. USB 5Gbps Type-A 3. 2.5G LAN 4. Wi-Fi / Bluetooth 5. Audio Connectors 6. HDMI™ 7. USB 20Gbps Type-C 8. USB 5Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
