- Model:MAG A500N-H
500W 80 Plus Standard Certified
ATX Form Factor PSU
Non-Modular Cables
Active PFC & Single Rail Design
- 3 Years Warranty from MSI
Overview

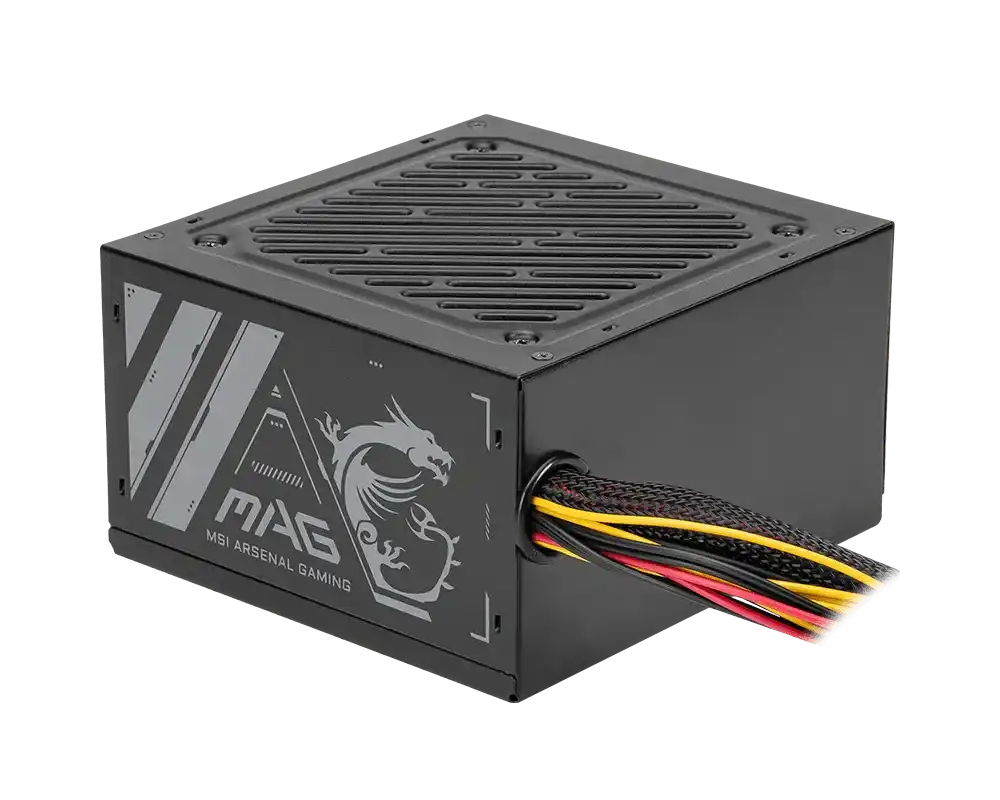

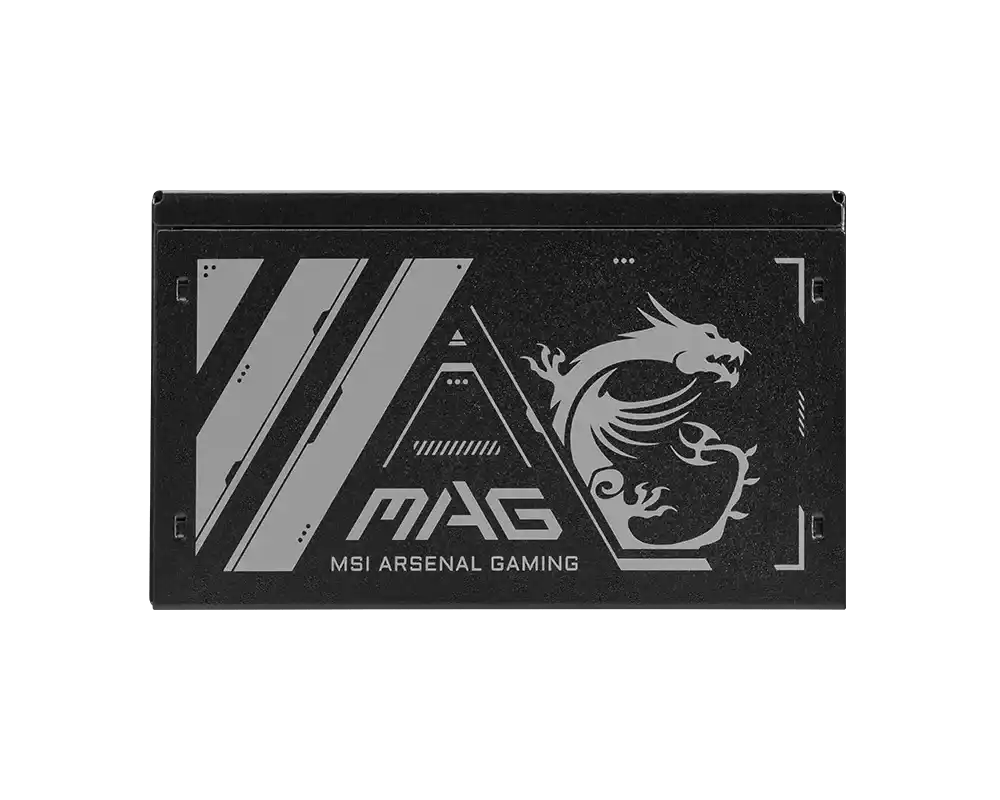

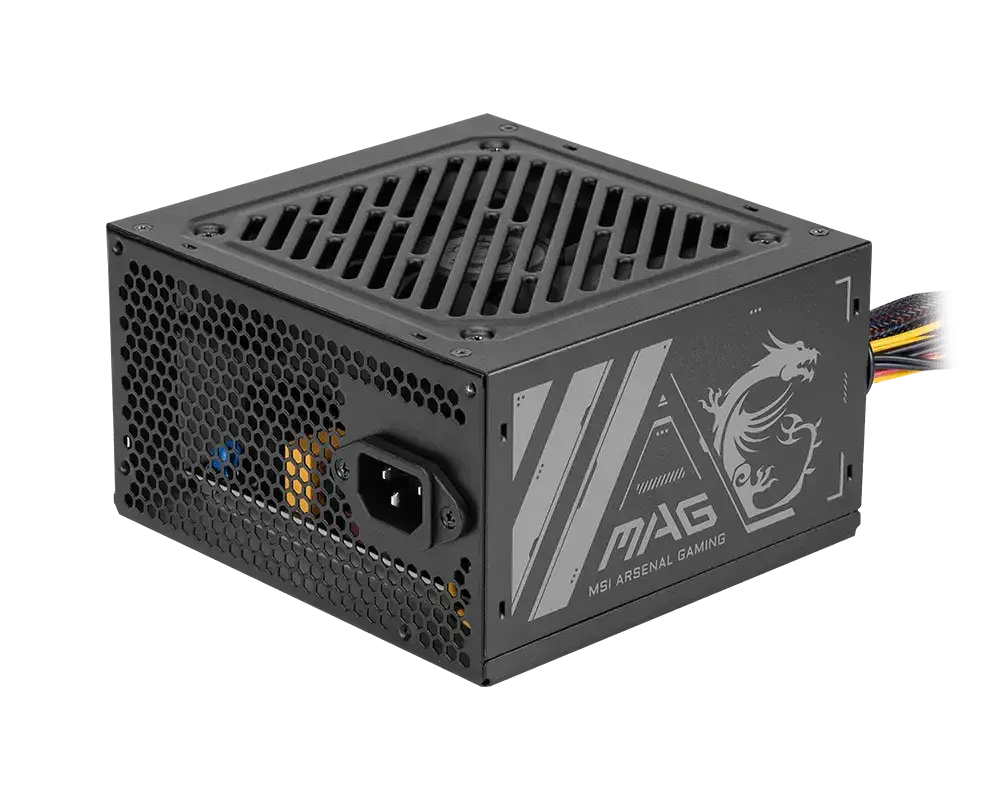

The MSI MAG A500N-H is a 500W power supply unit designed for gaming and general computing applications. Part of the ARSENAL GAMING (MAG) series, it combines rugged durability with reliable performance, inspired by military-grade equipment standards.
This non-modular PSU features Active PFC technology for improved power stability and energy efficiency, along with a single-rail design that properly delivers the power you need. The 120mm hydraulic bearing fan reduces noise while maintaining excellent heat dissipation.
Protection mechanisms include OCP, OPP, SCP, and UVP to safeguard your system. With standard connectors including 1x ATX 24-pin, 2x EPS 4+4 pin, 2x PCI-E 6+2 pin, 3x SATA, 2x MOLEX, and 1x FDD connector, it supports a wide range of components.
- 500W Power Output
- 80 Plus Standard Efficiency
- Active PFC Technology
- Single Rail Design

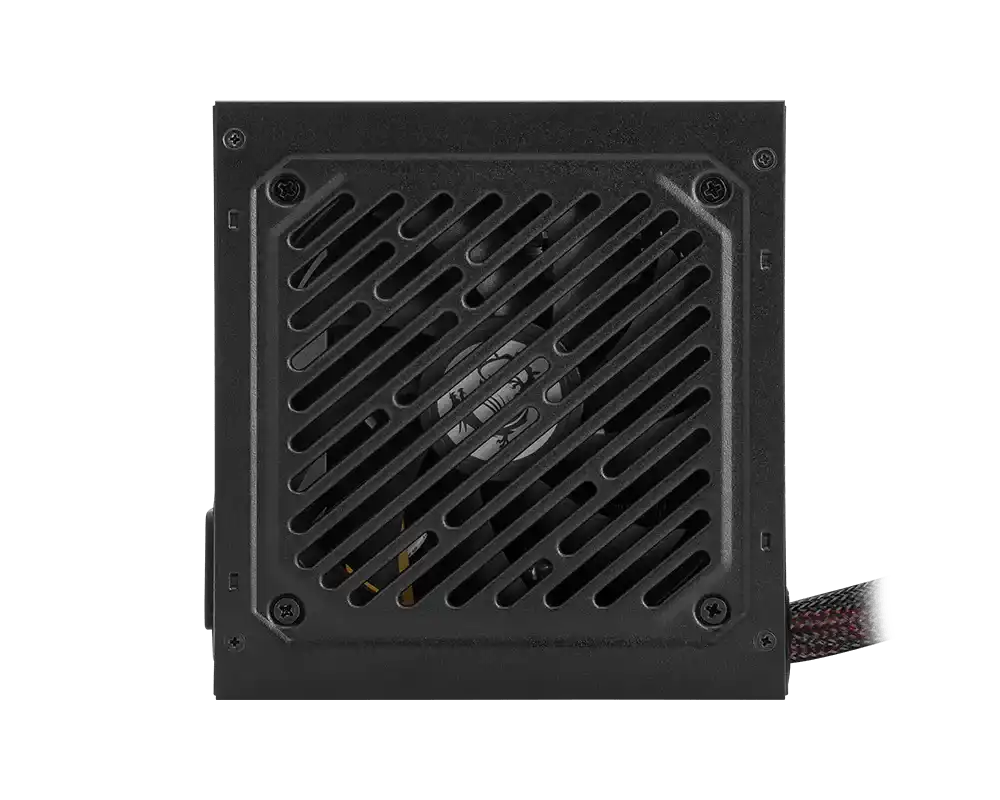

- 120mm Hydraulic Bearing Fan
- Non-Modular Cable Management
- Industrial Level Protection (OCP, OPP, SCP, UVP)
- ATX Form Factor
Specifications
- Power Watt
- 500W
- Modular
- Non-Modular
- Fan Size
- 120 mm
- Fan Bearing
- Hydraulic Bearing
- Dimensions (DxWxH)
- 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
- PFC Type
- Active PFC
- Input Voltage
- 200-240~
- Input Frequency Range
- 50~60Hz
- Protection
- OCP, OPP, SCP, UVP
- ATX (24 pin)
- 1
- EPS (4+4 pin)
- 2
- PCI-E (6+2 pin)
- 1
- SATA (15 pin)
- 3
- MOLEX (4 pin)
- 2
- FDD (4 pin)
- 1
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
