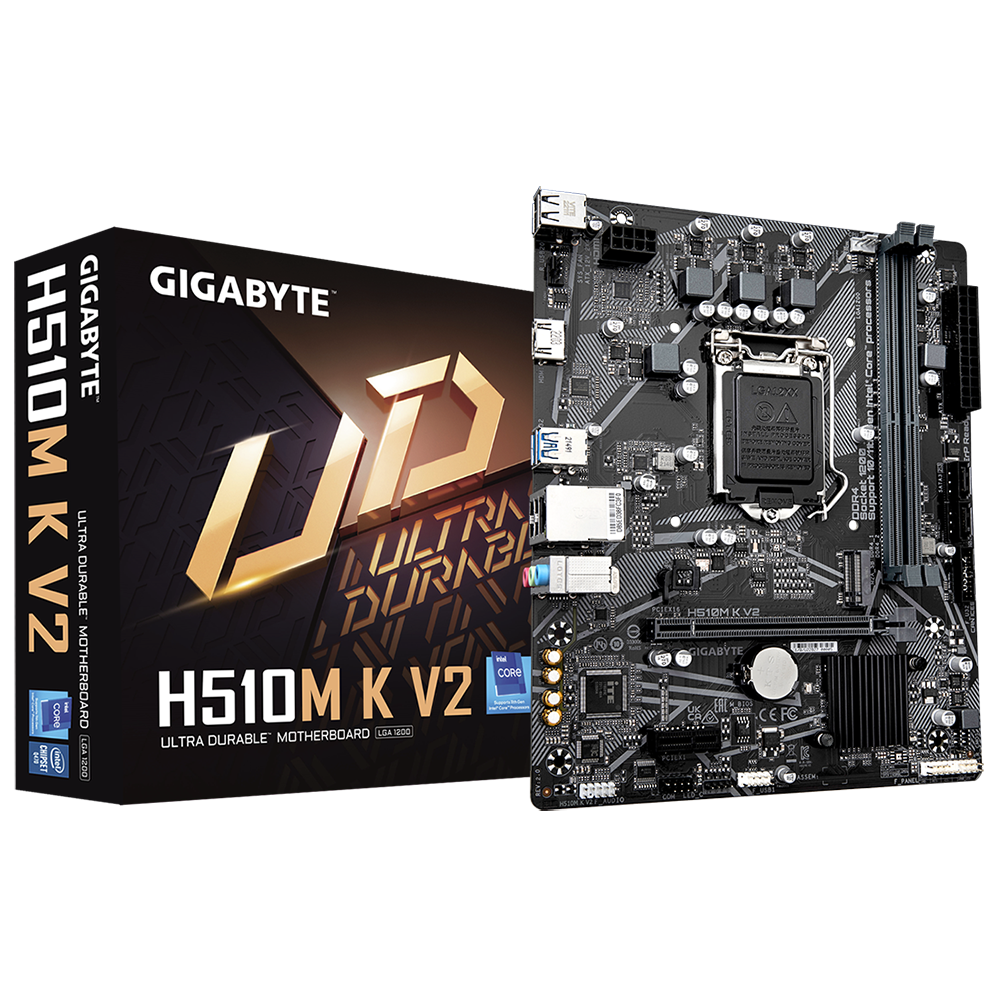

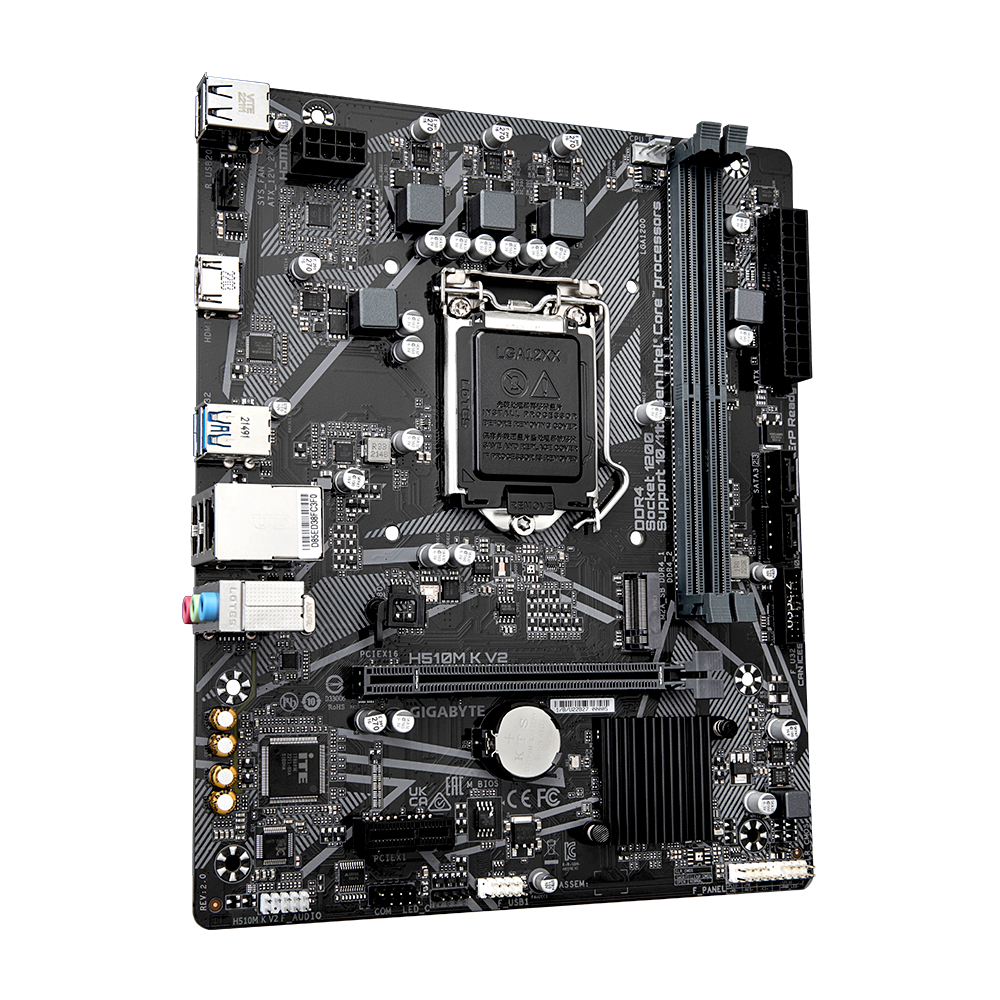

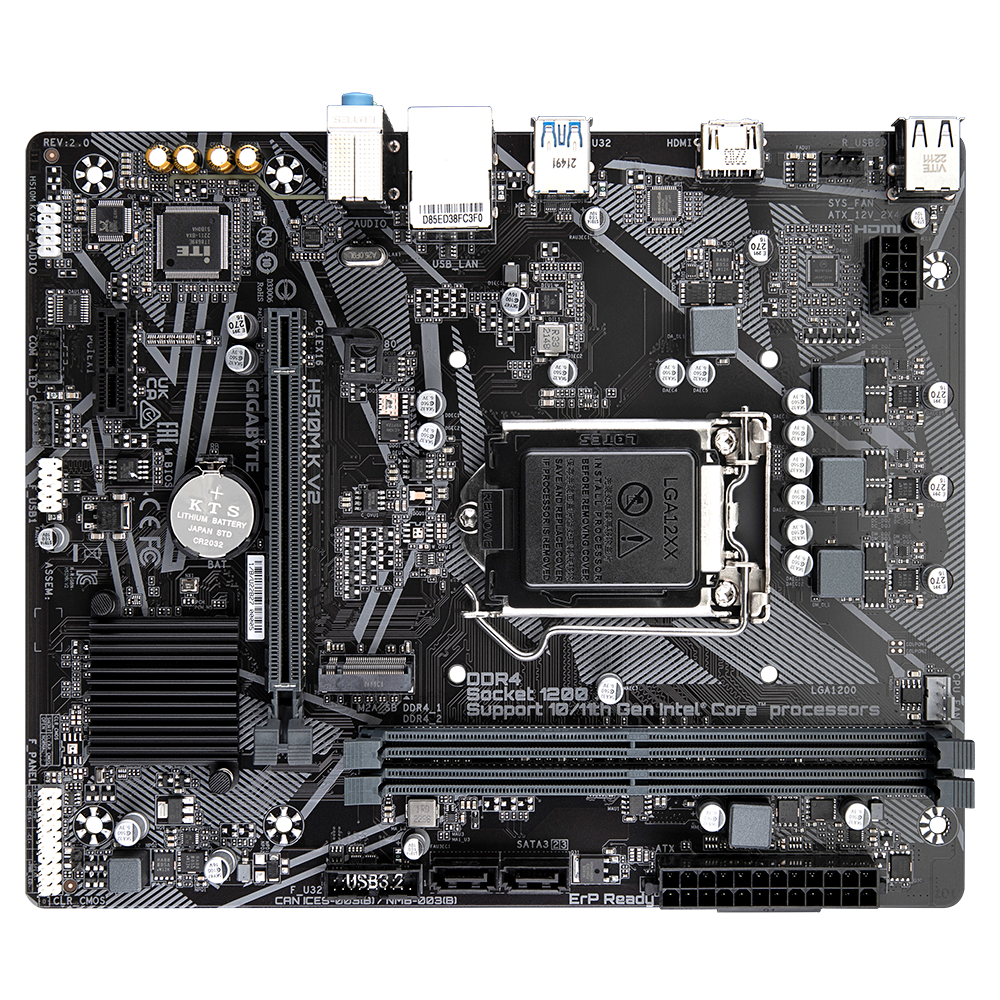

Gigabyte H510M K V2 Motherboard
  • Model:H510M K V2
  • Supports Intel 11th/10th Gen Core CPUs
  • Intel H510, LGA 1200, Micro-ATX form factor
  • Dual Channel DDR4 memory support
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • 3 Years Warranty from Gigabyte
₹ 5,700
Next Day Dispatch
1
CPU
LGA1200 package: 1. 11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors 2. 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors 3. L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset
1. Intel® Q470 Express Chipset
Memory
1. 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2. 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MT/s memory modules 4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 5. Dual channel memory architecture 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 8. Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek® Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2. 2 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices * Supported with an additional PCIe to M.2 NVMe SSD adapter card RAID 0, RAID 1, and RAID5 support for SATA storage devices
USB
Chipset: 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
01. 1 x 24-pin ATX main power connector 02. 1 x 8-pin ATX 12V power connector 03. 1 x CPU fan header 04. 1 x system fan header 05. 1 x RGB LED strip header 06. 1 x M.2 Socket 3 connector 07. 2 x SATA 6Gb/s connectors 08. 1 x front panel header 09. 1 x front panel audio header 10. 1 x USB 3.2 Gen 1 header 11. 1 x USB 2.0/1.1 header 12. 1 x serial port header 13. 1 x Clear CMOS jumper

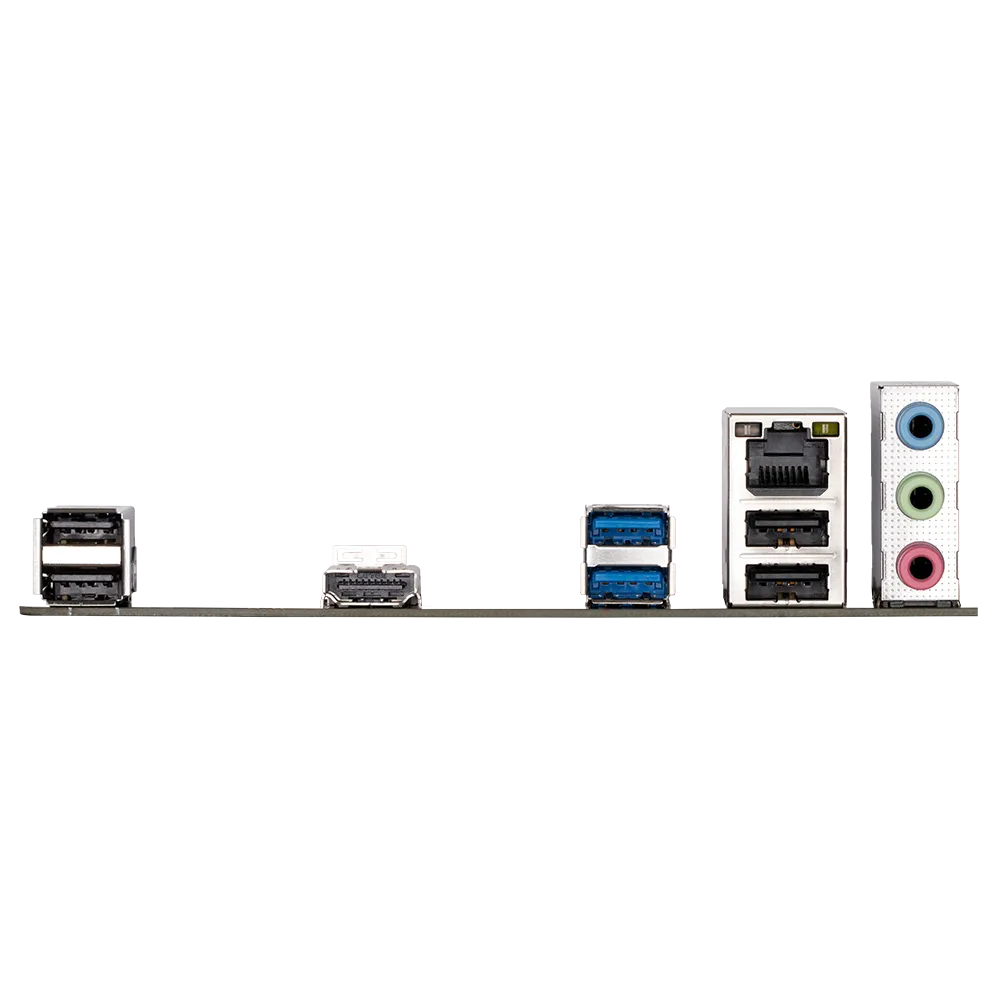

Back Panel Connectors
1. 1 x HDMI port 2. 2 x USB 3.2 Gen 1 ports 3. 4 x USB 2.0/1.1 ports 4. 1 x RJ-45 port 5. 3 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Fan fail warning 5. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer 2. Support for Q-Flash
Bundled Software
1. Norton® Internet Security (OEM version) 2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit 2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
