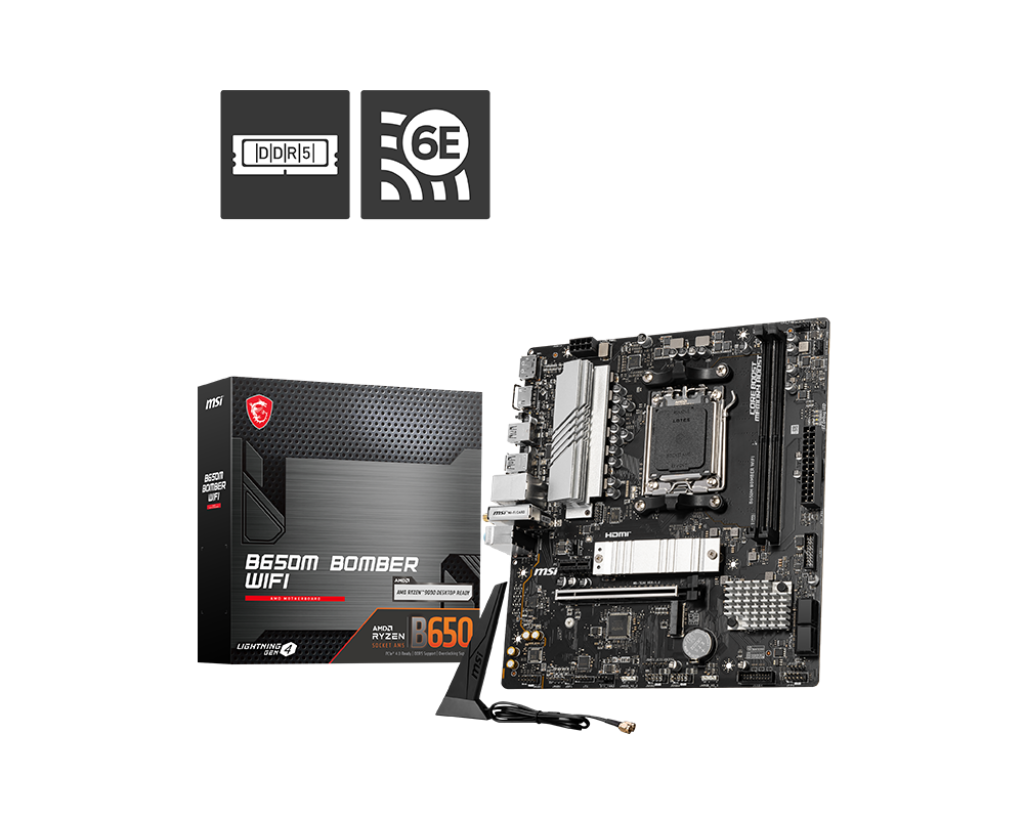

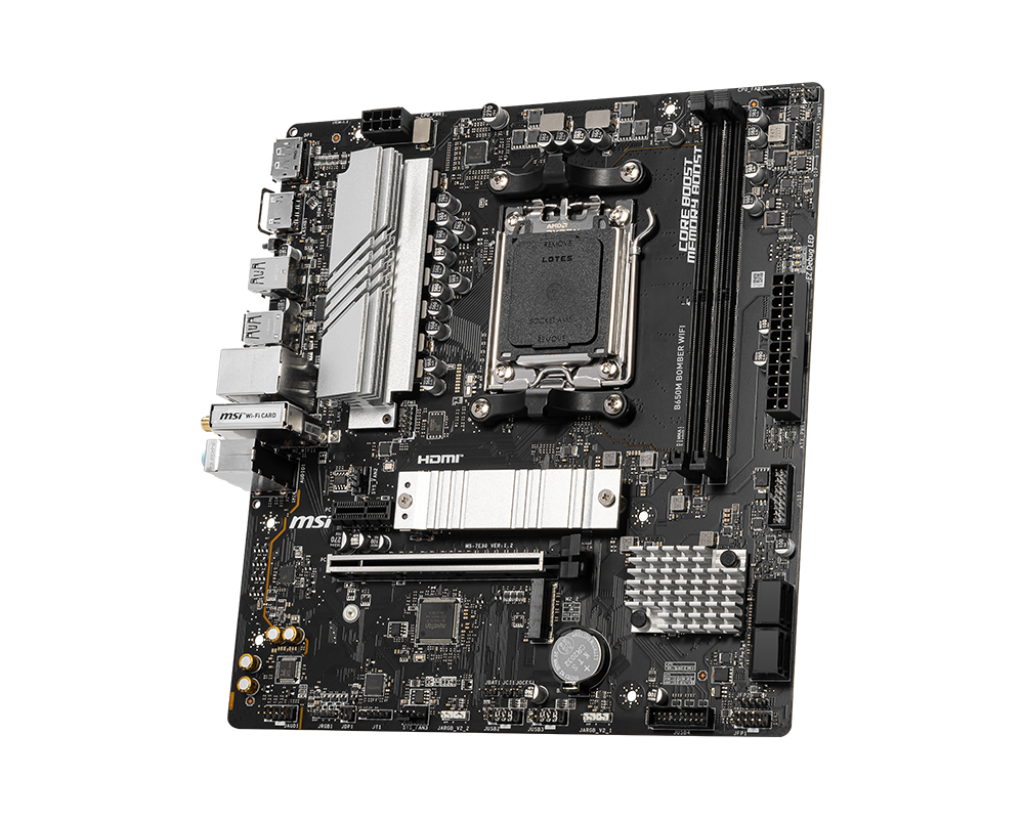

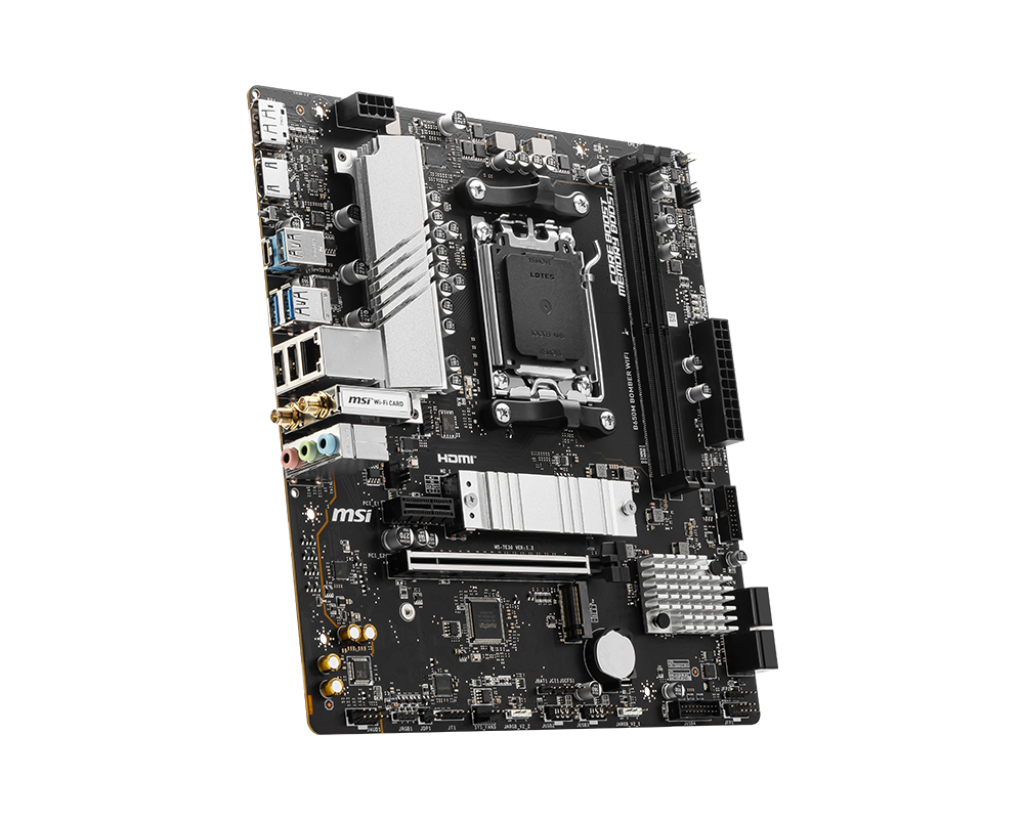

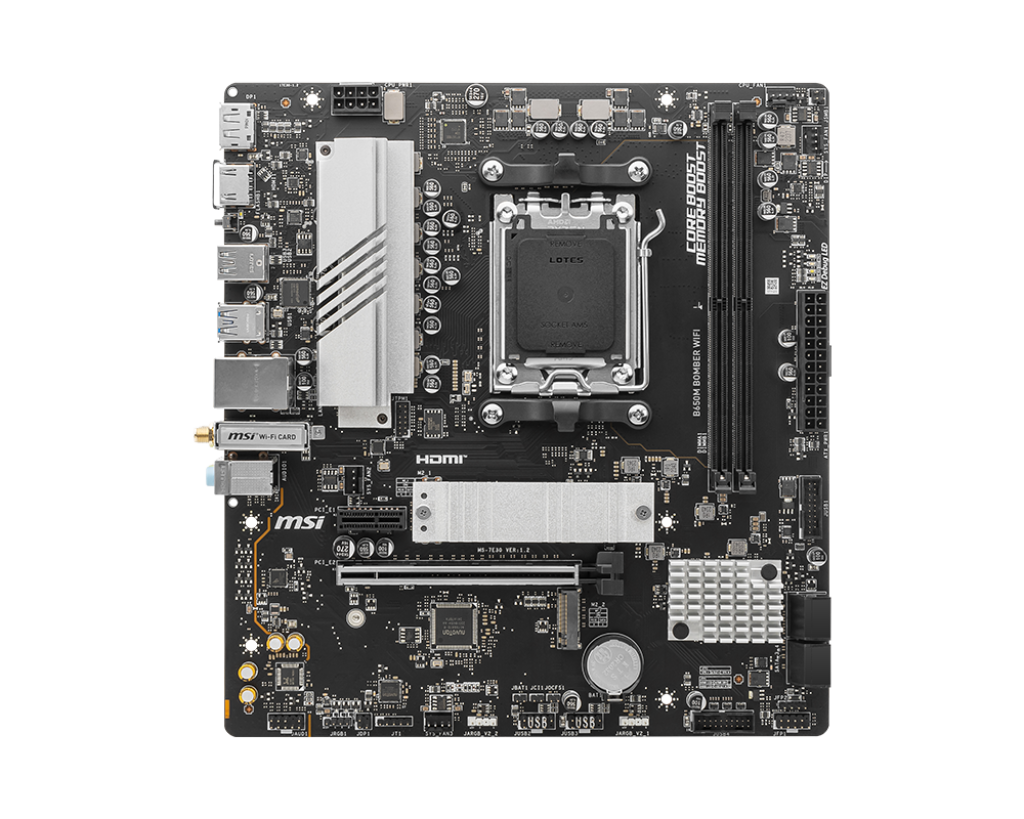

MSI B650M BOMBER WIFI Motherboard
  • Model:B650M BOMBER WIFI
  • Supports Ryzen 9000/8000/7000
  • B650 chipset, DDR5 7800MHz
  • PCIe 4.0, 2.5G LAN
  • AUDIO BOOST, Steel Armor
  • 3 Years Warranty from MSI
₹ 10,200
Next Day Dispatch
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot Supports x16/x1 • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G •The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8125BG 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED

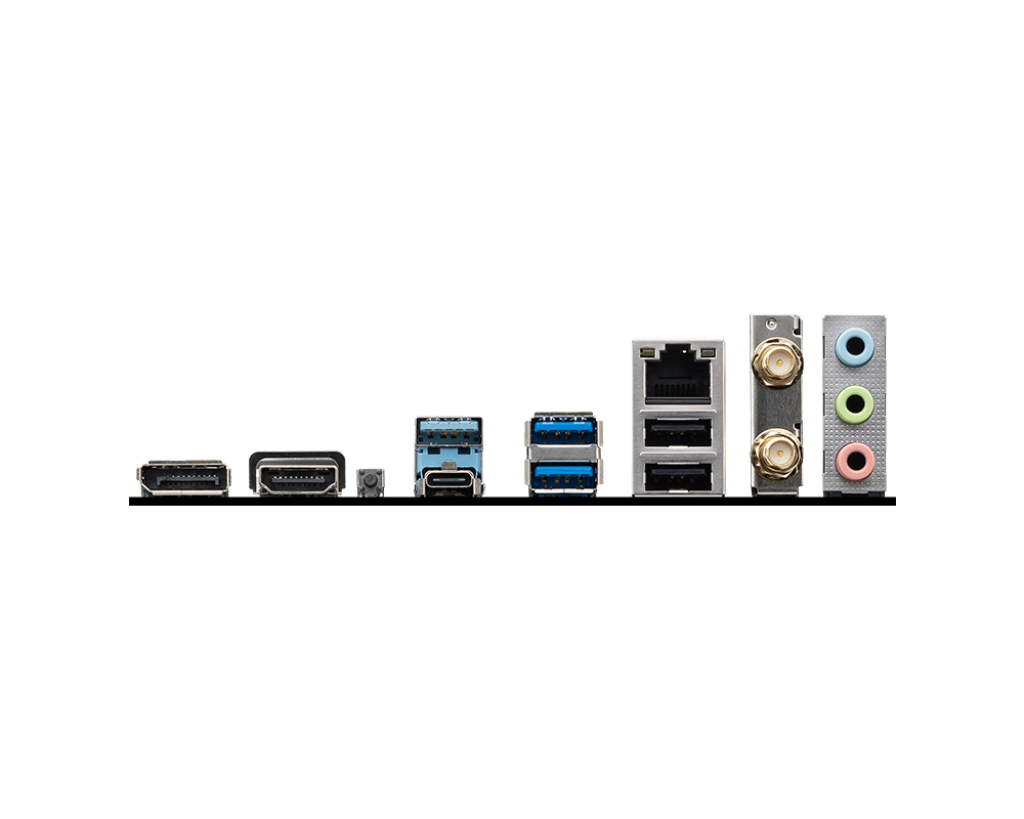

BACK PANEL PORTS
01. DisplayPort 02. HDMI™ 03. USB 3.2 Gen 1 5Gbps (Type-A) 04. 2.5G LAN 05. Wi-Fi / Bluetooth 06. Audio connectors 07. Flash BIOS Button 08. USB 3.2 Gen 1 5Gbps (Type-C) 09. USB 3.2 Gen 1 5Gbps (Type-A) 10. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX 226mmx243.84mm
