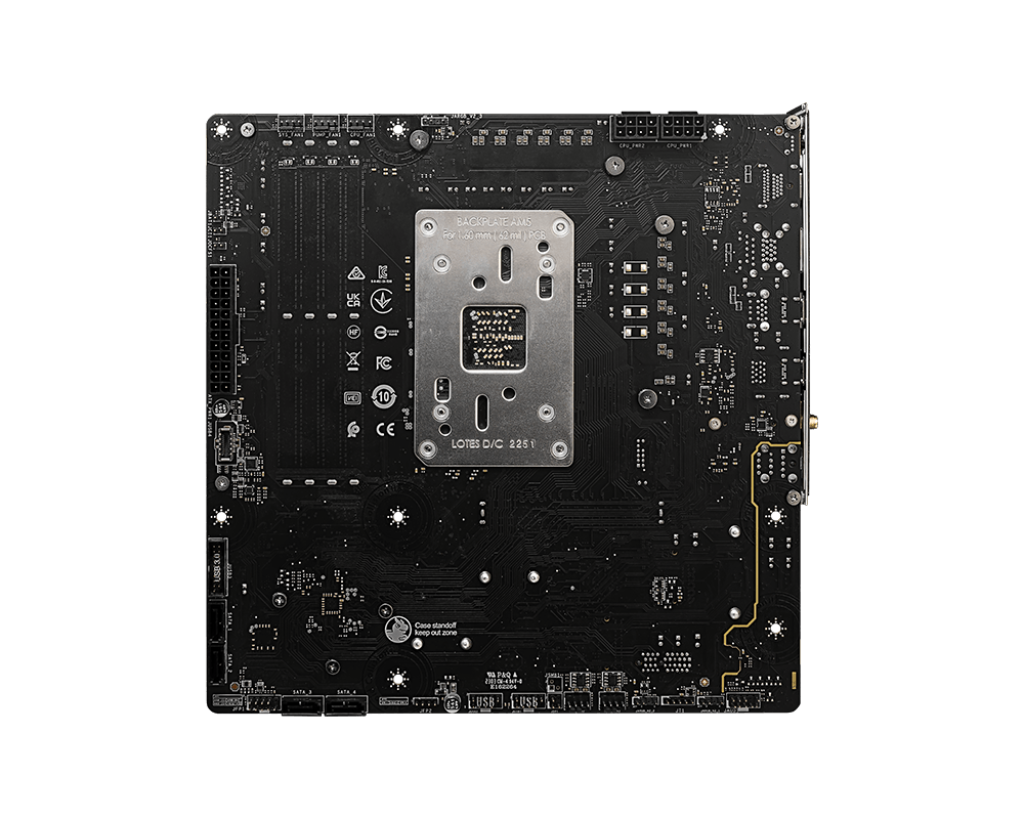

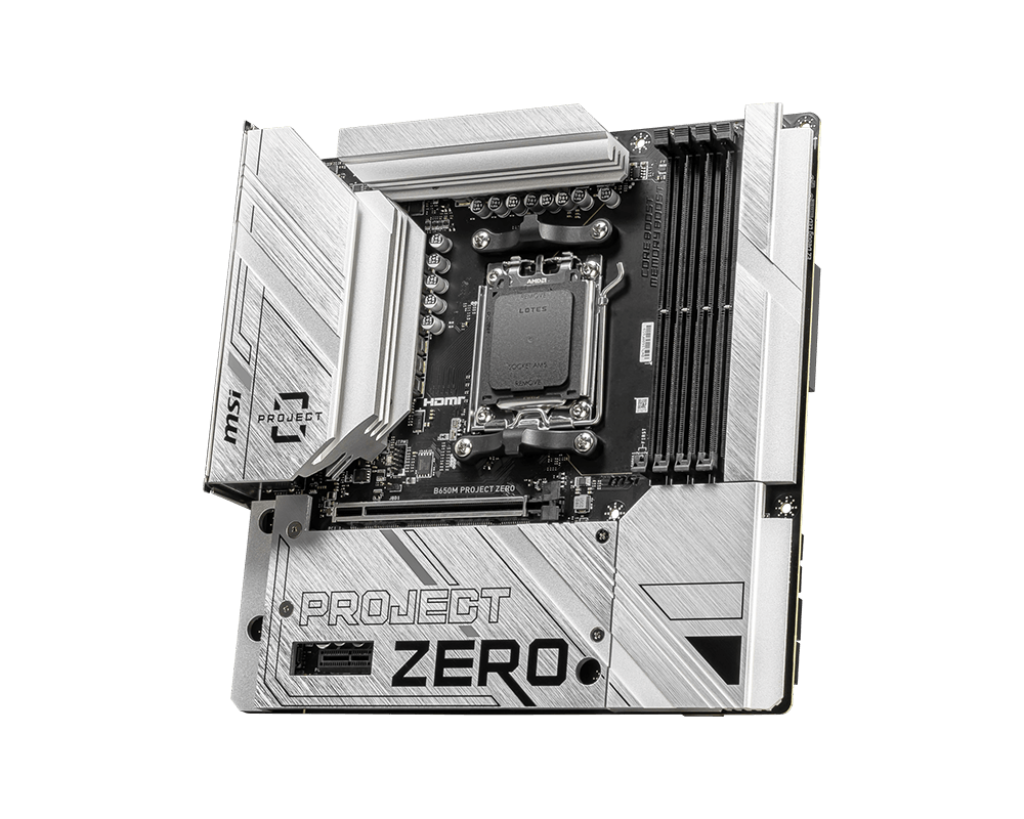

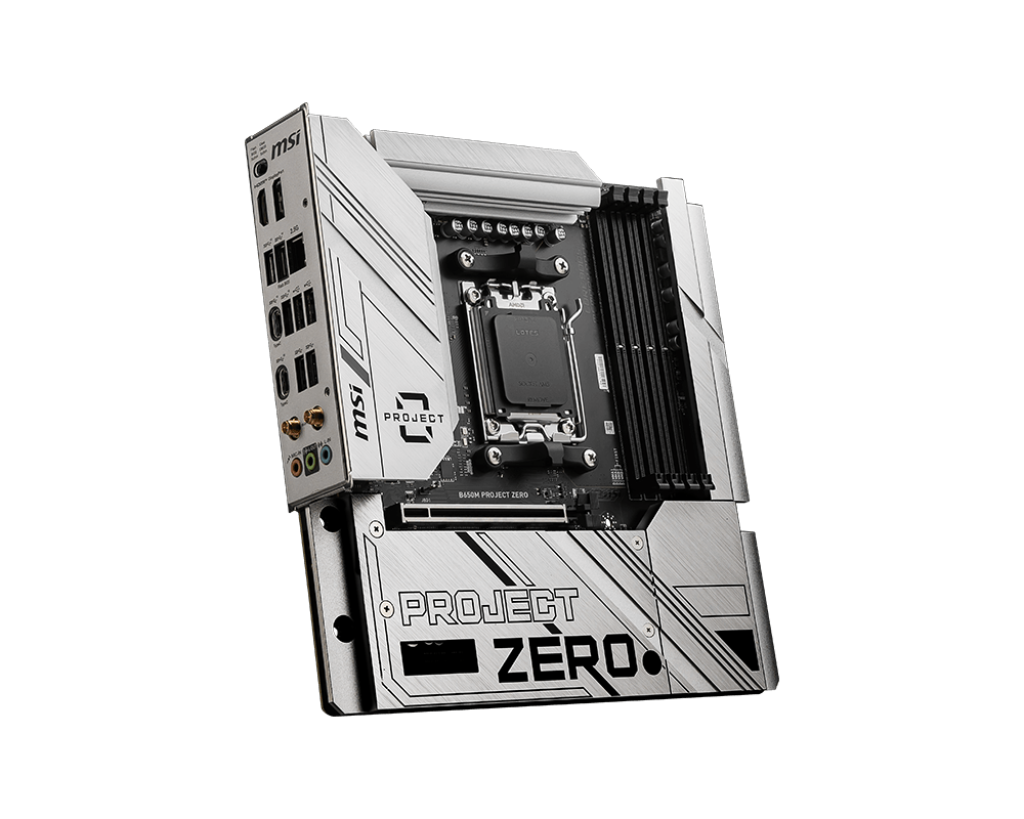

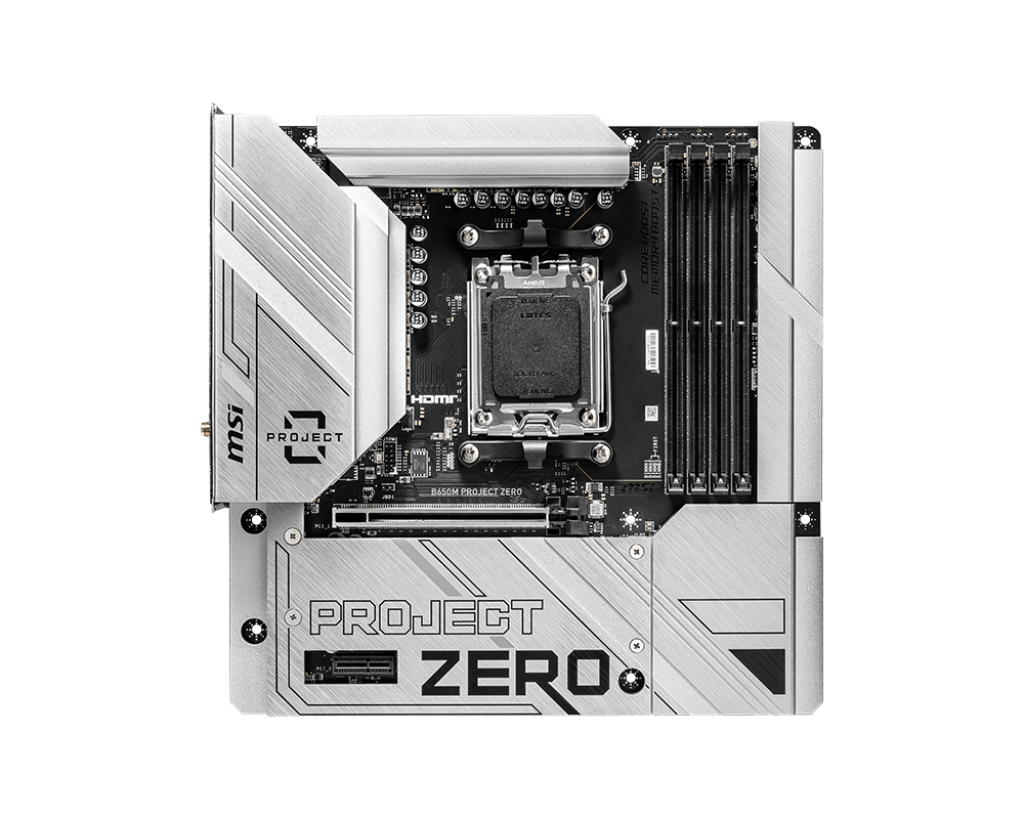

MSI B650M PROJECT ZERO Motherboard
  • Model:B650M PROJECT ZERO
  • AMD Ryzen 7000 Series compatibility
  • B650 chipset, MATX form factor
  • Supports up to 7600+(OC) MHz DDR5
  • Wi-Fi 6E and 2.5G LAN enabled
  • 3 Years Warranty from MSI
₹ 23,650
Next Day Dispatch
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7600+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics
1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition AudioSupports up to 32-Bit/384 kHz playback on front panel
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices* SATA_A1_A2 do not support RAID function.
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® RTL8125BG 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED

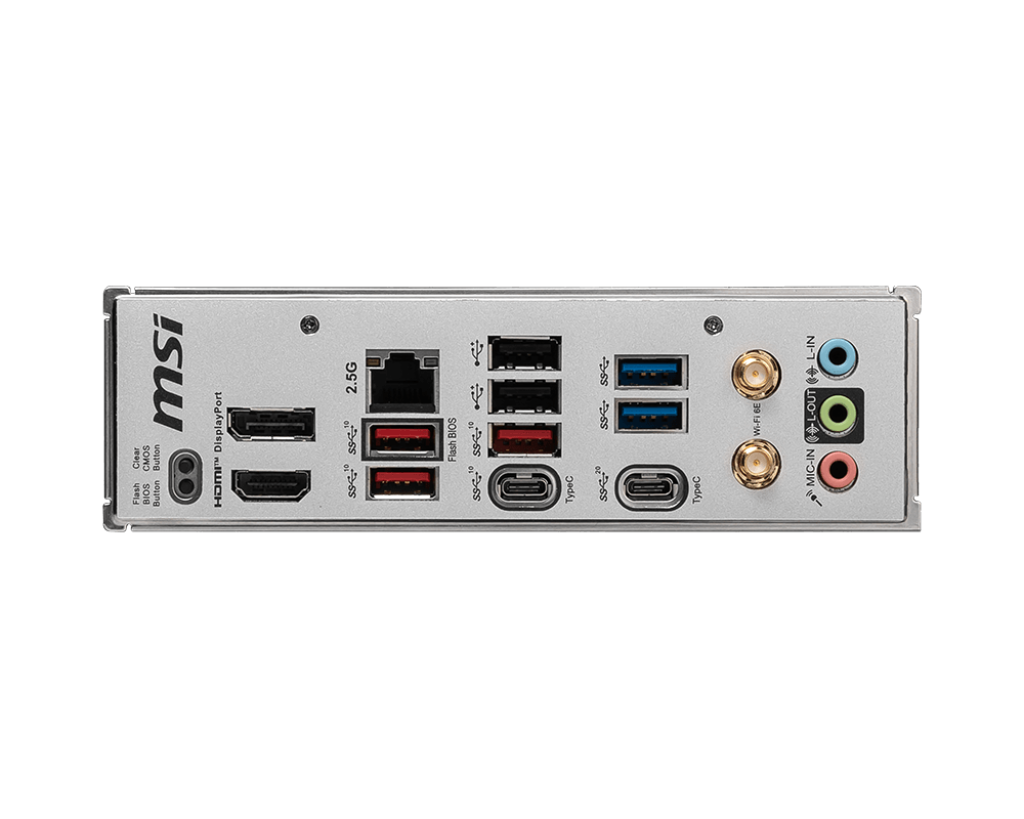

BACK PANEL PORTS
01. DisplayPort02. 2.5G LAN03. USB 2.004. USB 5Gbps (Type-A)05. Wi-Fi / Bluetooth06. Audio connectors07. Flash BIOS Button08. Clear CMOS Button09. HDMI™10. USB 10Gbps (Type-A)11. USB 10Gbps (Type-C)12. USB 20Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX243.84mmx243.84mm
