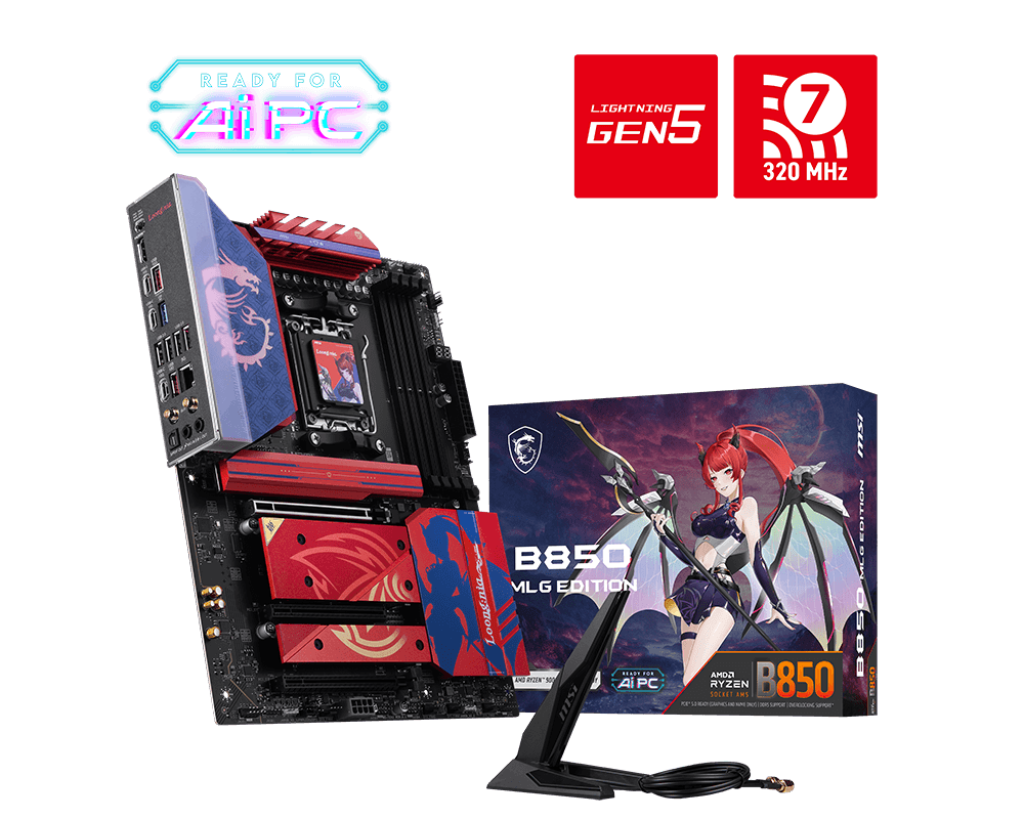

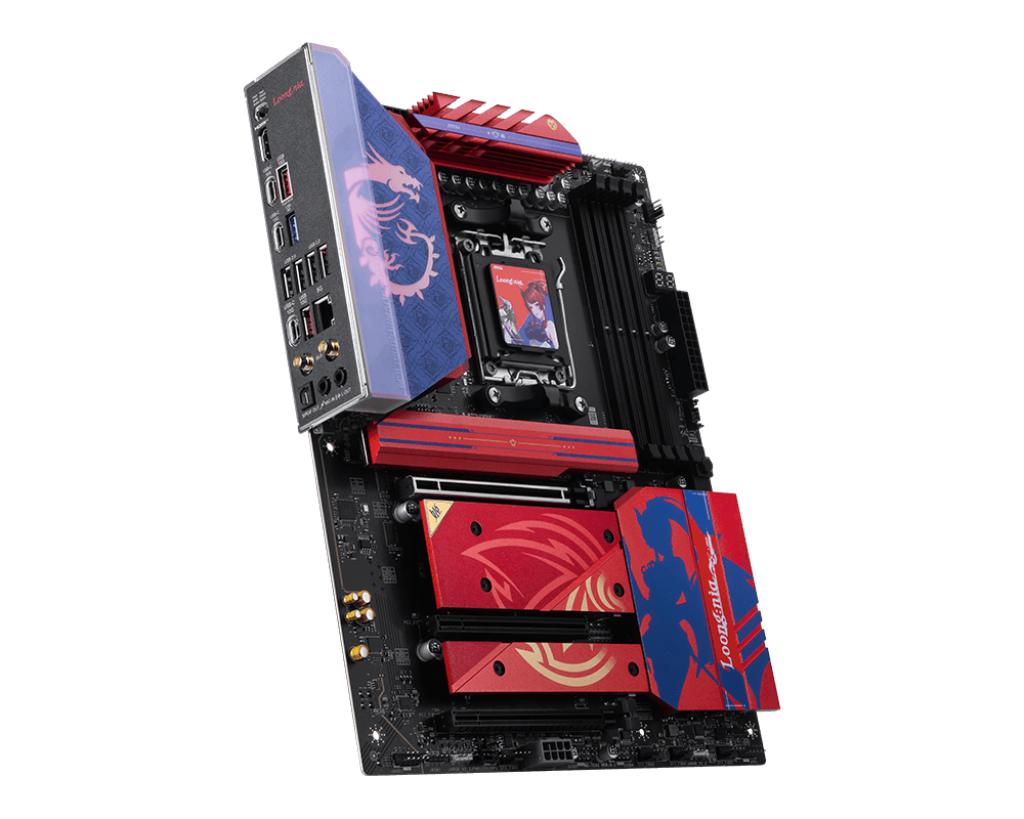

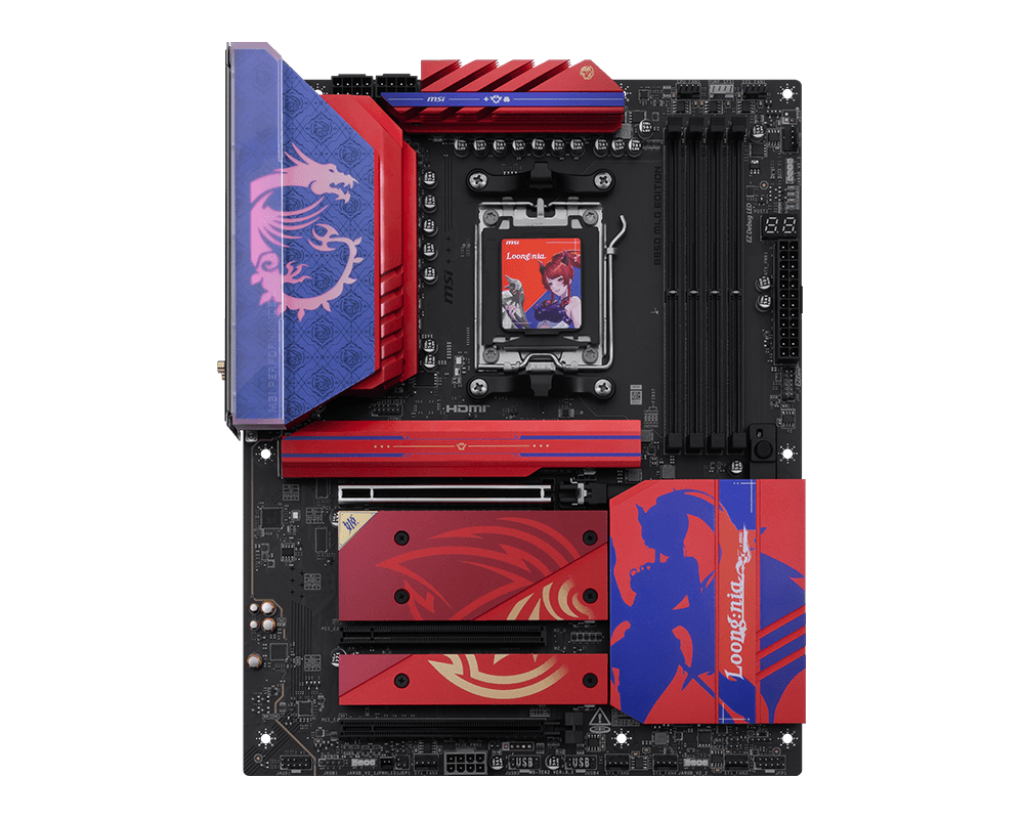

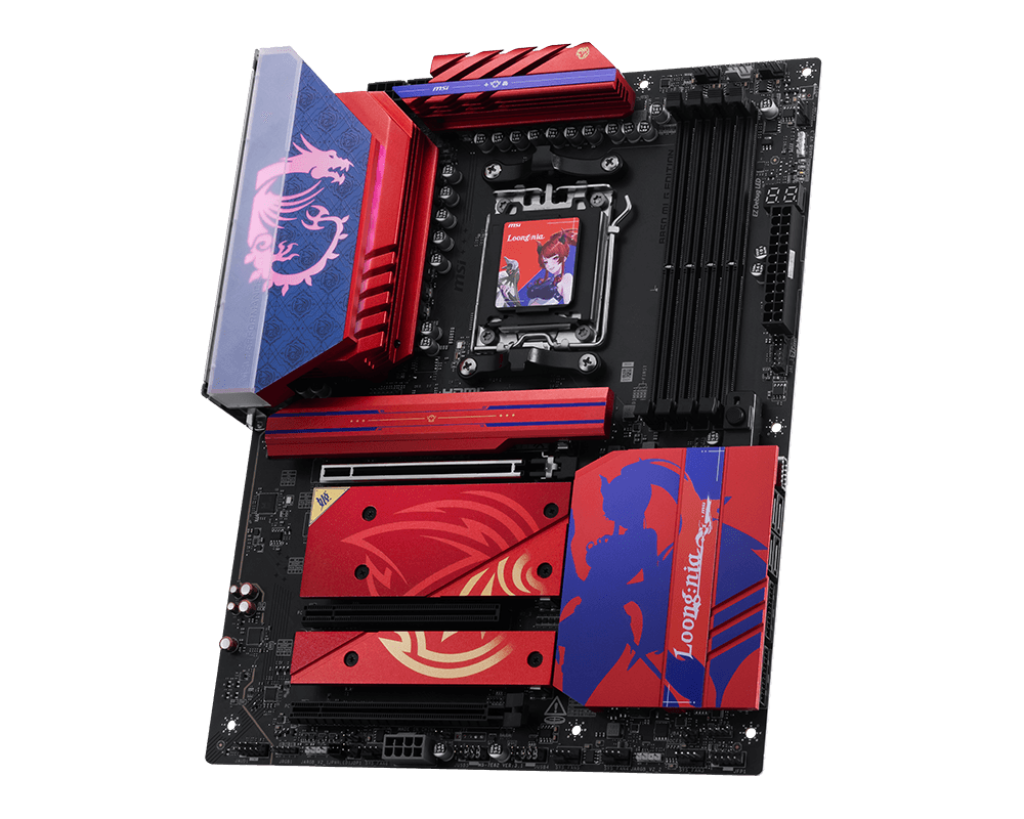

MSI B850 MLG EDITION Motherboard
  • Model:B850 MLG EDITION
  • Supports AMD Ryzen 9000/8000/7000 Series CPUs
  • AMD B850 chipset, AM5 socket, ATX form factor
  • Supports DDR5 dual channel 8400+ MT/s memory
  • Features PCIe 5.0 slots, WiFi 7, 5G LAN connectivity
  • 3 Years Warranty from MSI
₹ 28,150
In Stock
1
Chipset
AMD B850
CPU
Socket AM5
Memory
4x DDR5 UDIMMRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6400+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*_\* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.__• The DIMM slots on this motherboard only have single-sided latche.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*_*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
3x PCI-E x16 slotPCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
Audio
Realtek® ALC4080 Codec7.1-Channel USB High-Performance AudioSupports up to 32-Bit/384 kHz playback on front panelSupports S/PDIF output
Storage
4x M.2M.2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices_*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU_
LAN
1x Realtek® 8126 5G LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)
WIRELESS LAN & BLUETOOTH
Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM_\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.__\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2._
LED FEATURE
4x EZ Debug LED1x EZ Digit Debug LED1x EZ Memory Detection LED

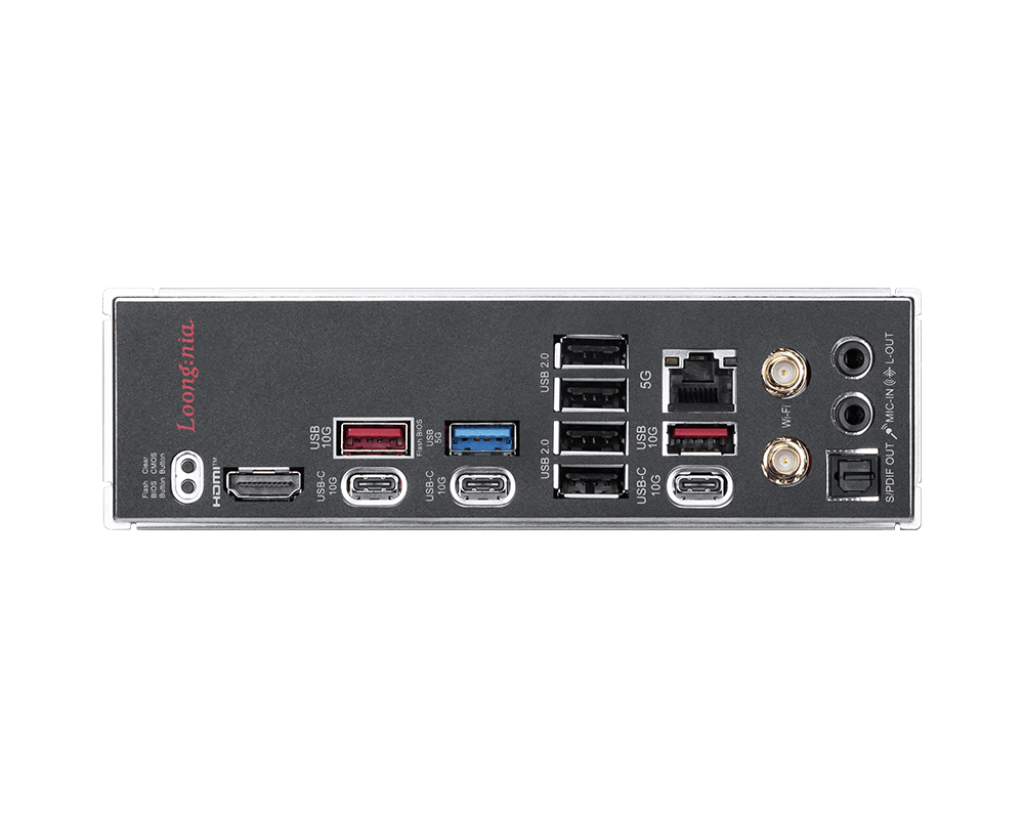

BACK PANEL PORTS
01. Clear CMOS Button02. USB 10Gbps Type-A03. USB 5Gbps Type-A04. USB 2.005. 5G LAN06. Wi-Fi / Bluetooth07. Audio Connectors08. Flash BIOS Button09. HDMI™10. USB 10Gbps Type-C11. USB 10Gbps Type-A12. USB 10Gbps Type-C13. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
304.8mmx243.84mm
