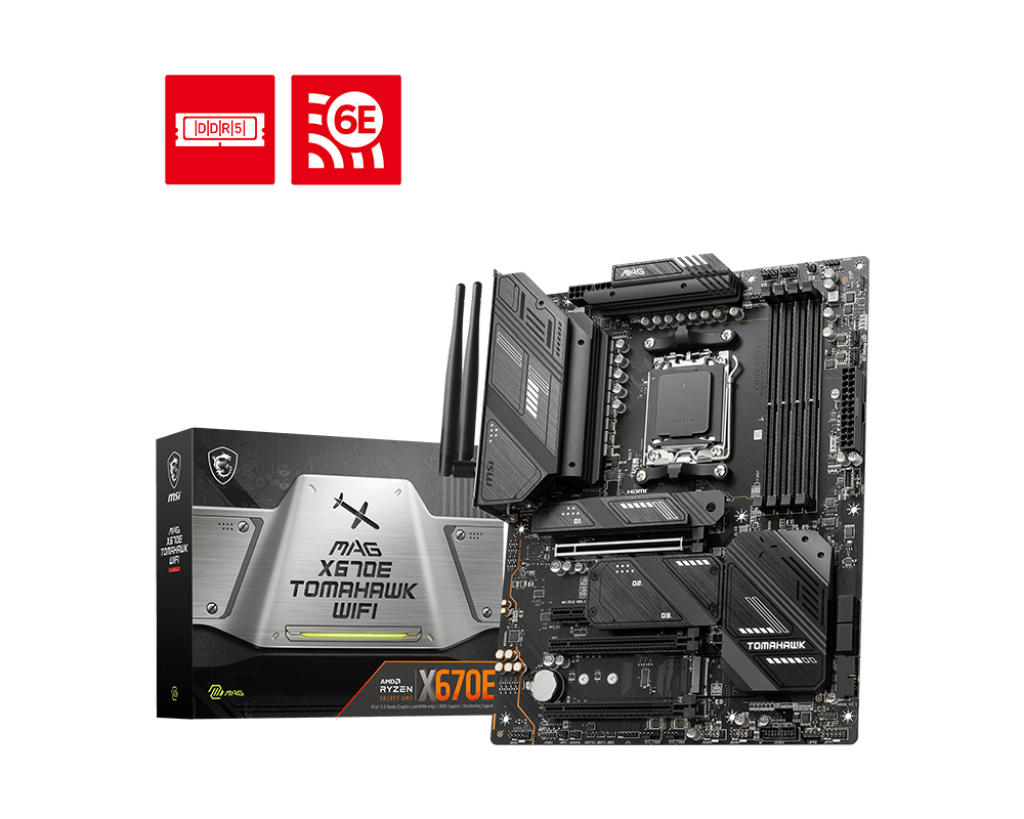

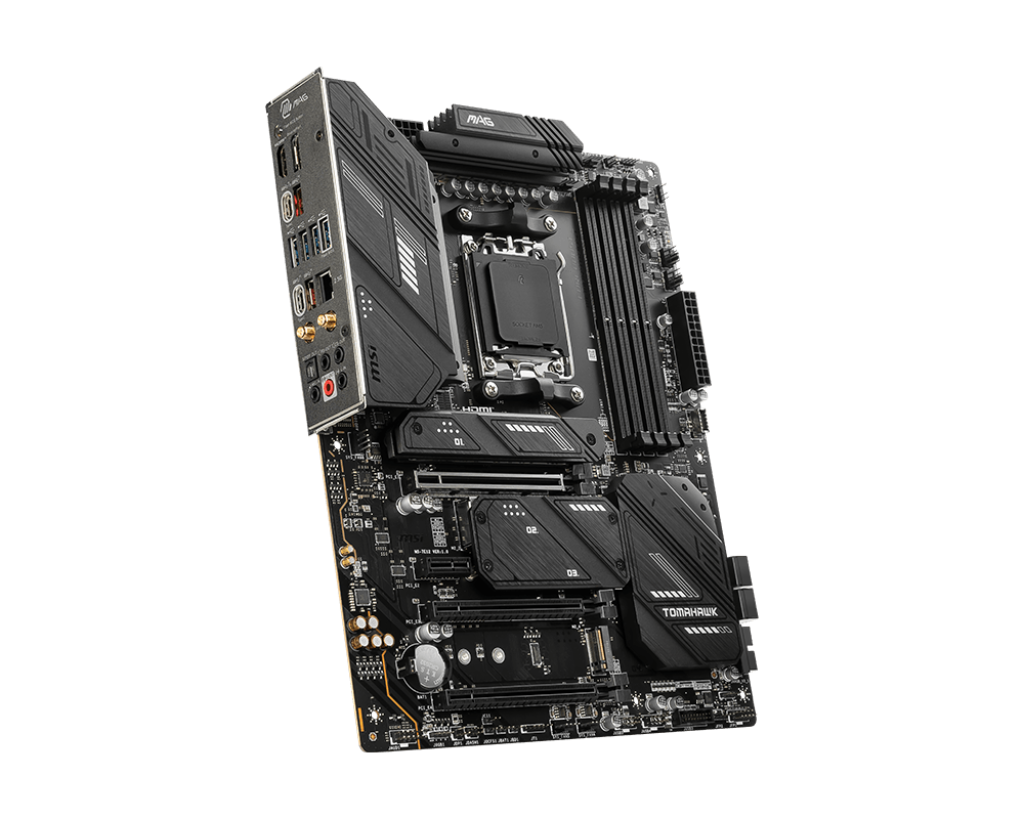

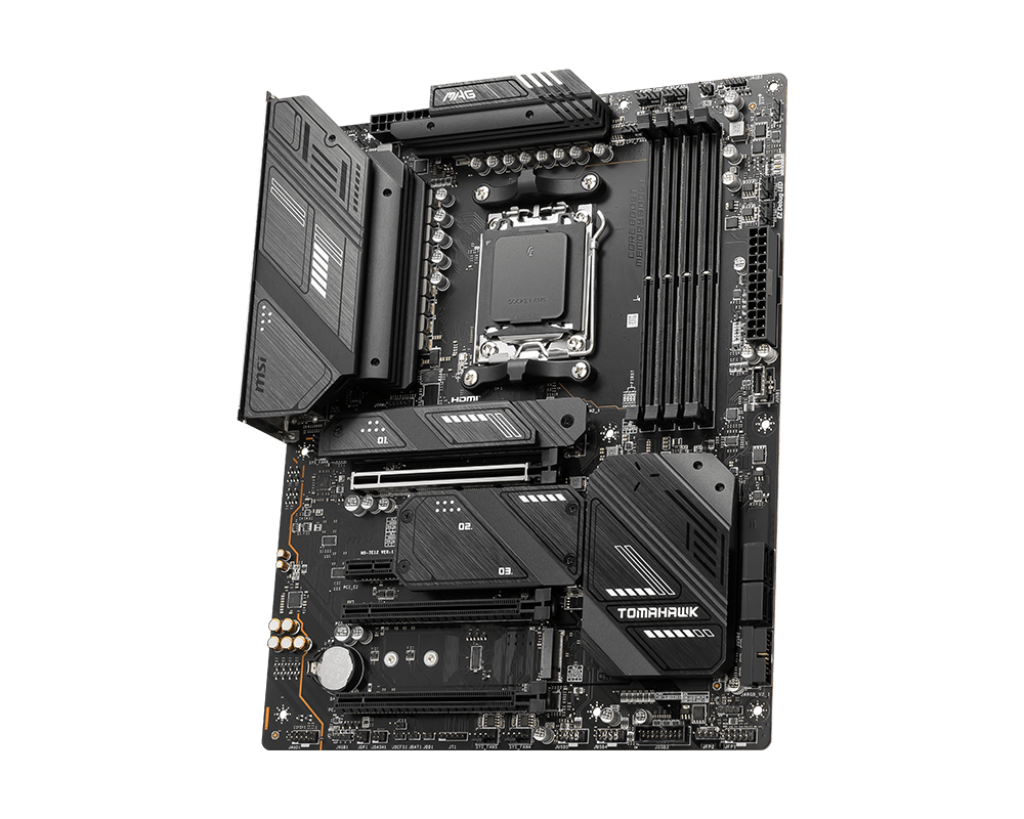

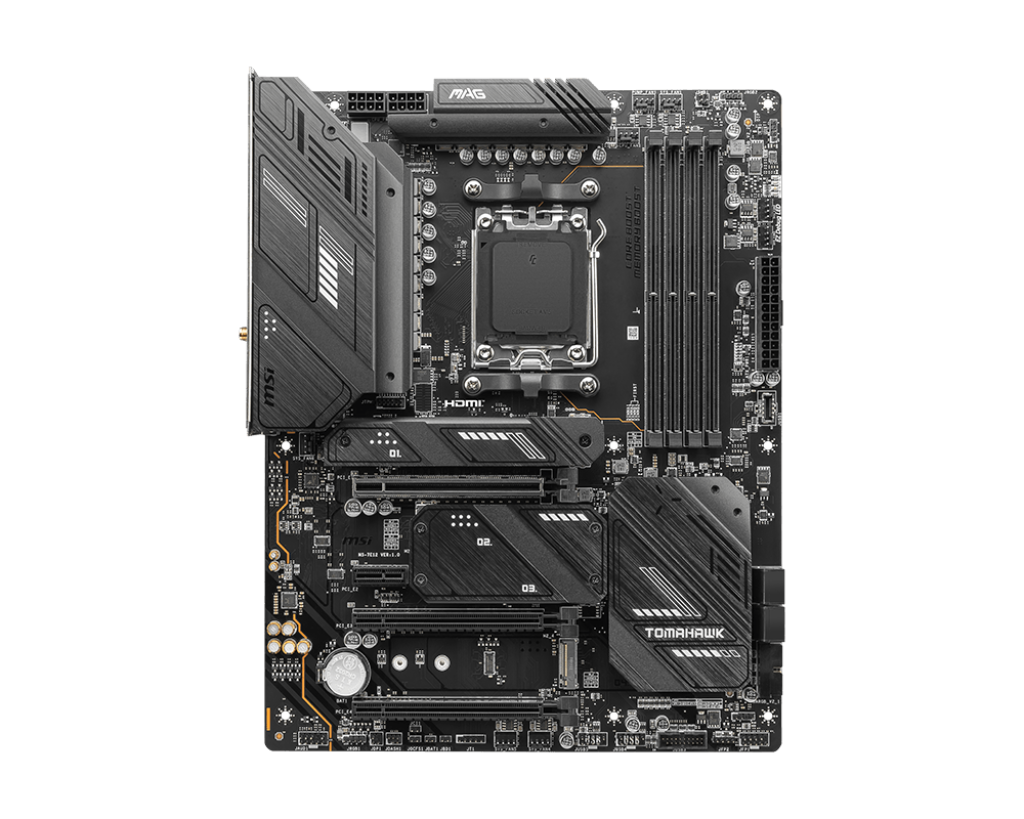

MSI MAG X670E TOMAHAWK WIFI Motherboard
  • Model:MAG X670E TOMAHAWK WIFI
  • AMD Ryzen 9000/8000/7000
  • X670 chipset, AM5 socket
  • Supports DDR5 7800+(OC) MHz
  • PCIe 5.0, USB 3.2 Gen 2x2
  • 3 Years Warranty from MSI
₹ 32,550
Next Day Dispatch
1
Chipset
AMD X670
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™
Onboard Graphics
1x HDMI™Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortSupports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot• Supports x16/x4/x2 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8/x4/x2(For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4/x2/x2 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
Audio
Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output
Storage
4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
RAID
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen™ 9000 series processors. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® RTL8125BG 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED

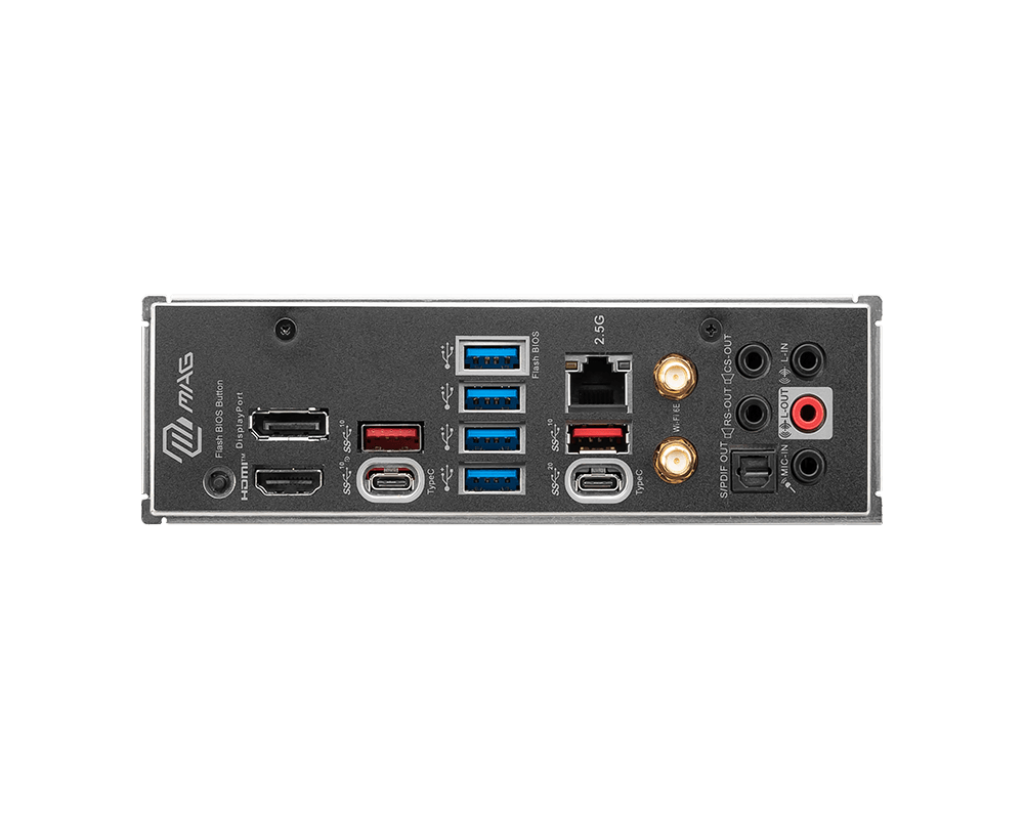

BACK PANEL PORTS
01. DisplayPort02. USB 3.2 Gen 2 10Gbps (Type-A)03. USB 3.2 Gen 2 5Gbps (Type-A)04. 2.5G LAN05. Wi-Fi / Bluetooth06. Audio Connectors07. Flash BIOS Button08. HDMI™09. USB 3.2 Gen 2 10Gbps (Type-C Display port)10. USB 3.2 Gen 2x2 20Gbps (Type-C)11. S/PDIF-Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX243.84mmx304.8mm
