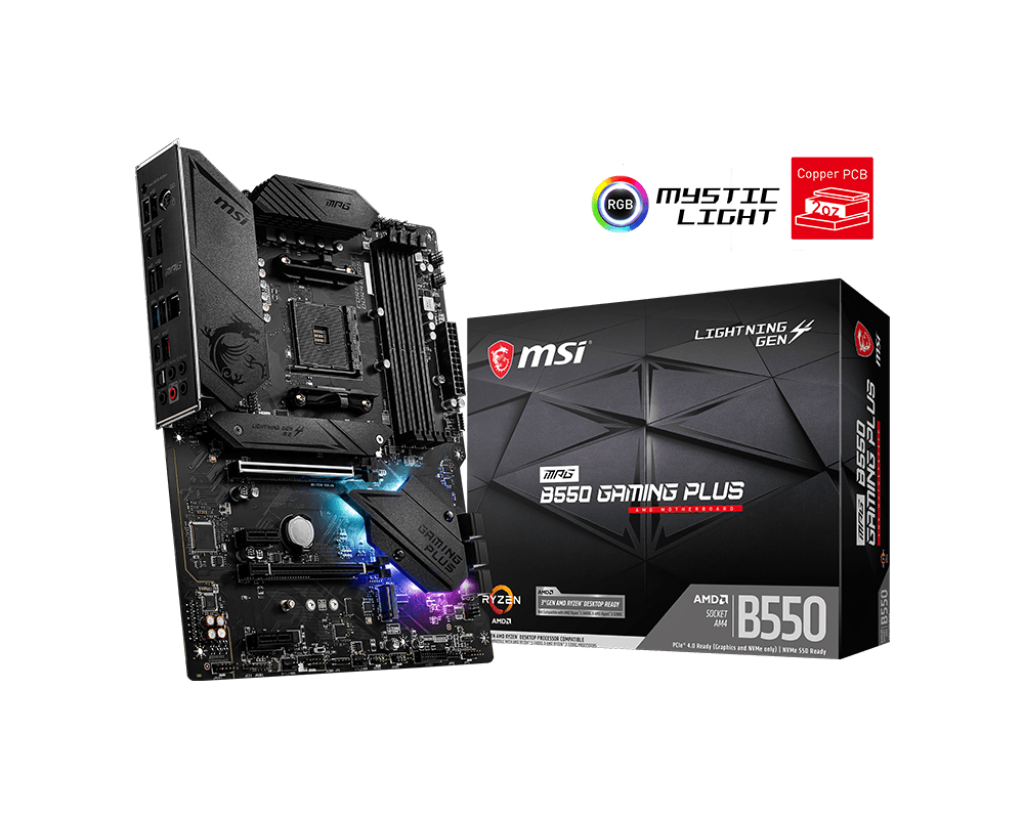

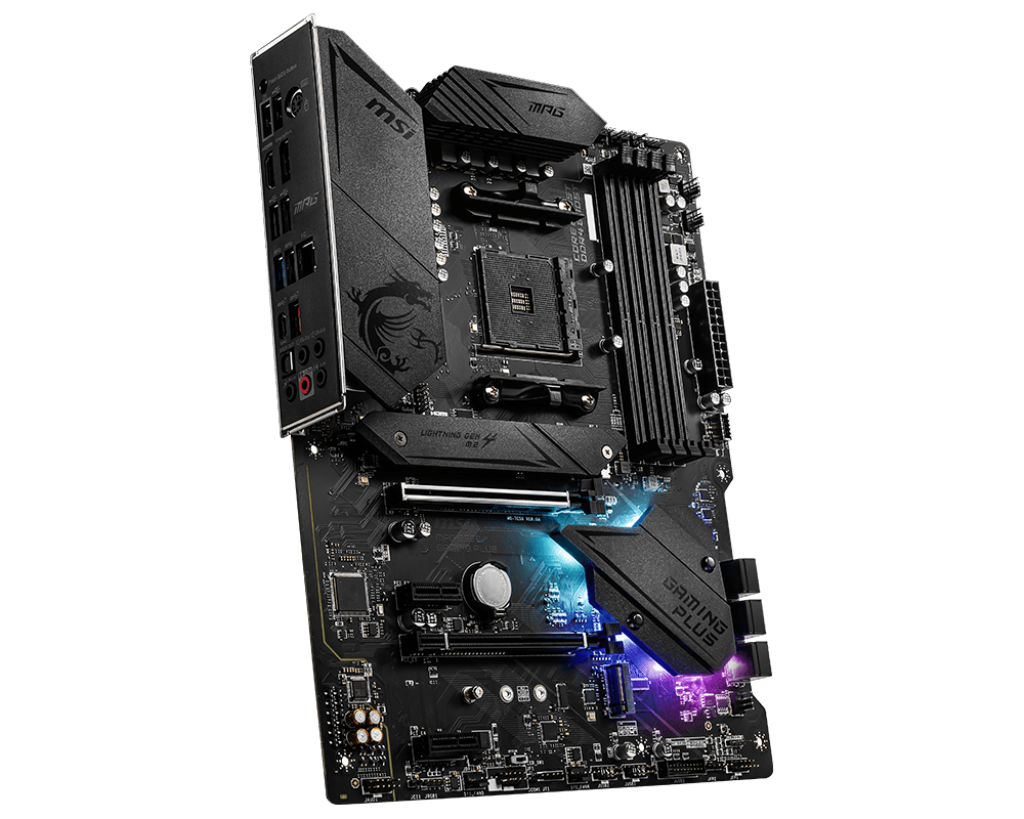

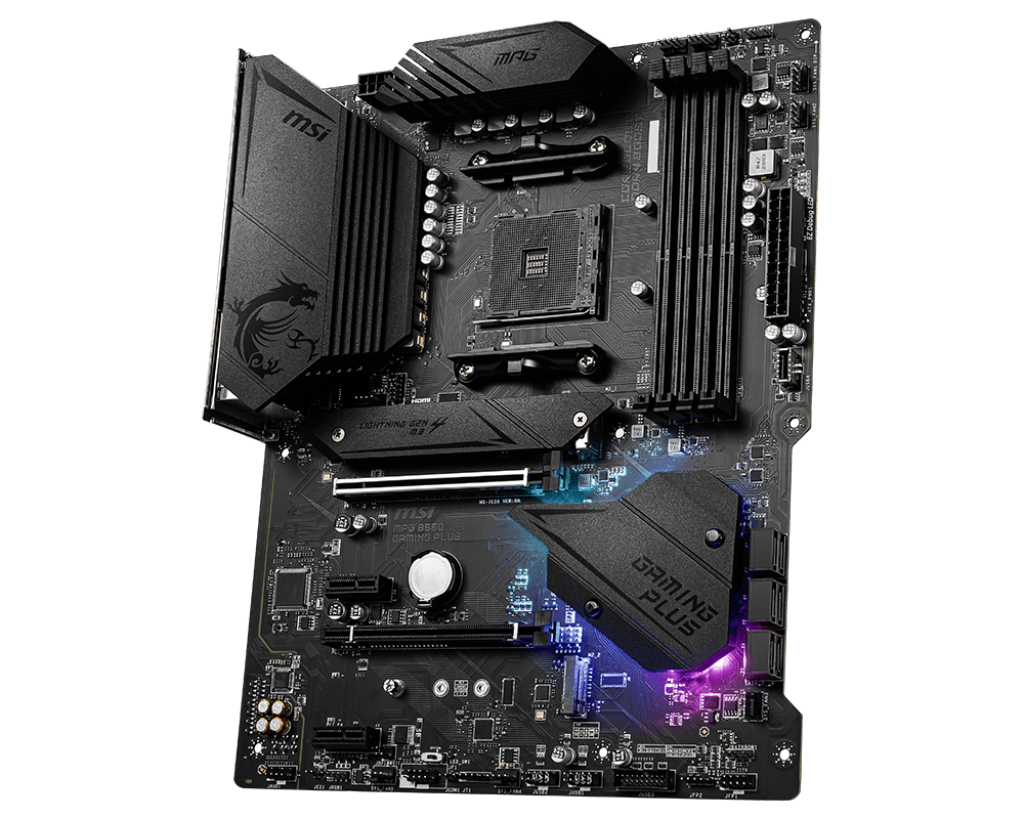

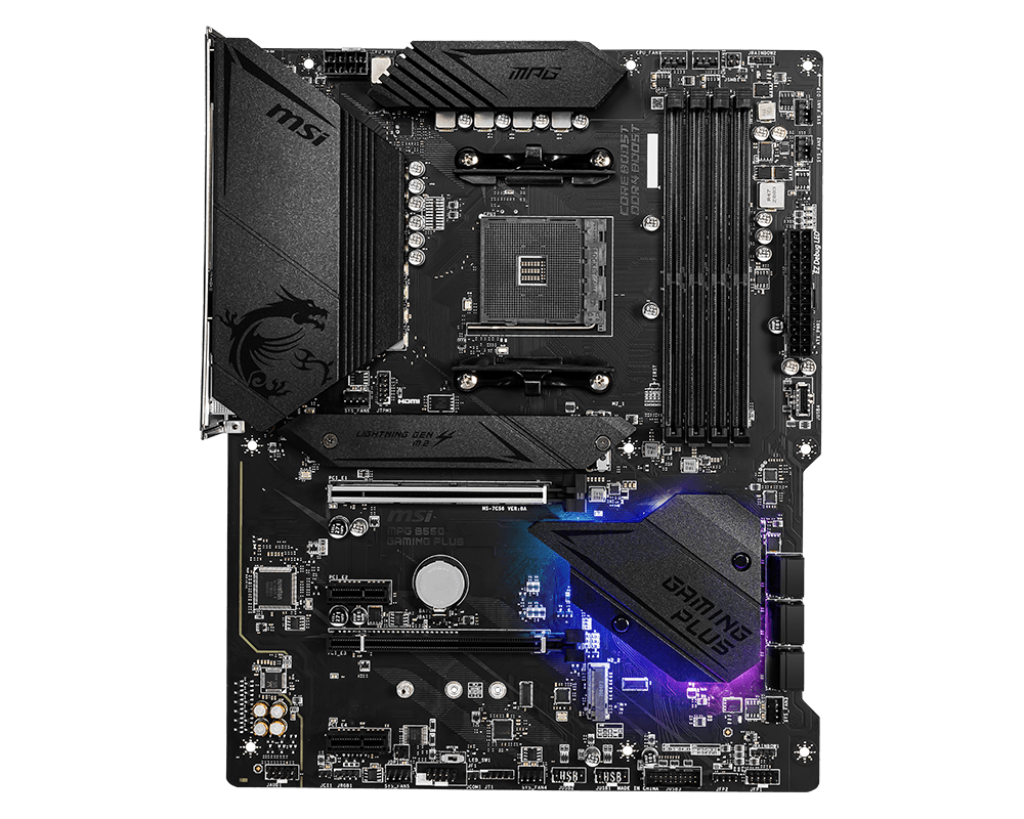

MSI MPG B550 GAMING PLUS Motherboard
  • Model:MPG B550 GAMING PLUS
  • Supports AMD Ryzen 3000/4000
  • B550 chipset, ATX form
  • Up to 4400MHz DDR4
  • PCIe 4.0, USB 3.2 Gen 2
  • 3 Years Warranty from MSI
₹ 13,650
Next Day Dispatch
1
Socket
AM4
Chipset
AMD B550 Chipset
Memory Channel
Dual
DIMM Slots
4
Max Memory (GB)
128
PCI-E x16
2
PCI-E x1
2
SATAIII
6
M.2 Slot
2
RAID
0/1/10
TPM (header)
1
USB 3.2 ports (Front)
1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear)
1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 ports (Front)
4
USB 2.0 ports (Rear)
4
Audio ports (Rear)
Realtek® ALC892/ALC897 Codec
DisplayPort
1
HDMI
1
DirectX
12
CrossFire
Y
CPU Support
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Form Factor
ATX
Expansion Slots
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 1x PCIe 3.0 x16 slot (PCI_E3, supports x4 speed), 2x PCIe 3.0 x1 slots
Onboard Graphics
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Multi-GPU
Supports 2-Way AMD CrossFire™ Technology
Storage
6x SATA 6Gb/s ports, 2x M.2 slots (Key M)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports through the internal USB 3.2 Gen 1 5Gbps connector), 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD Processor: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel), 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
LAN
1x Realtek® 8111H Gigabit LAN controller
Internal connectors
1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 1xTPM module connector, 1x Clear CMOS jumper

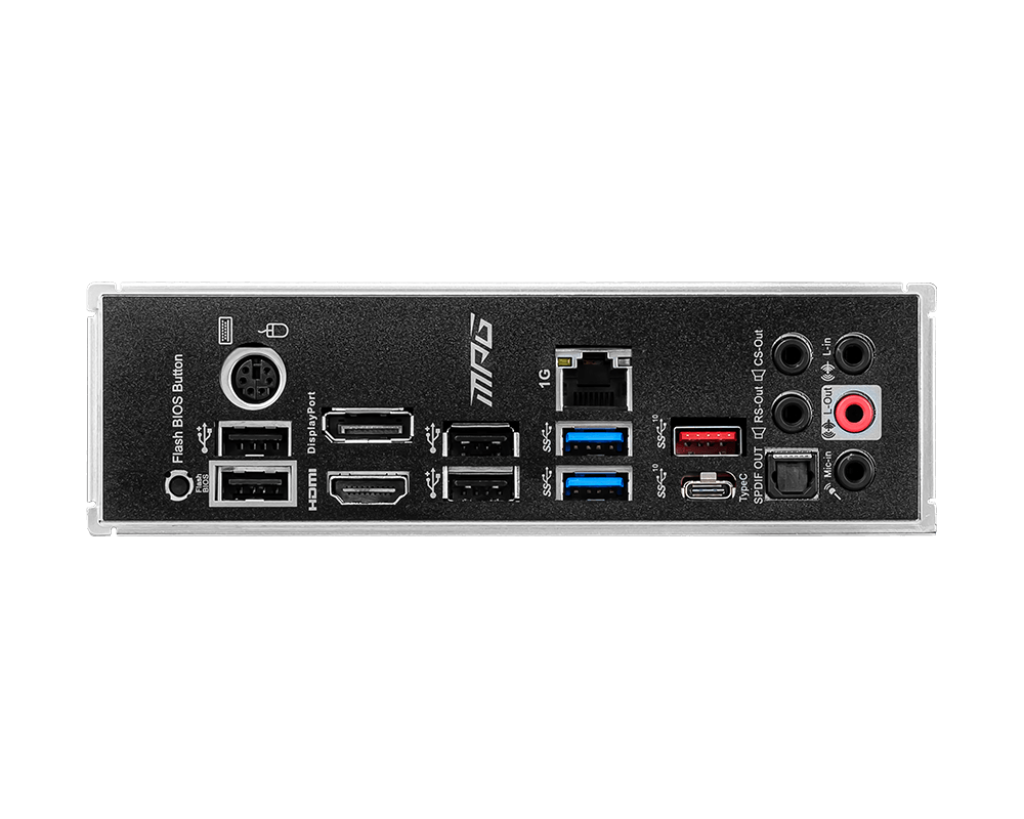

Back panel ports
01. PS/2 Combo Port, 02. DisplayPort, 03. LAN Port, 04. USB 3.2 Gen 2 10Gbps (Type-A), 05. HD Audio Connectors, 06. Flash BIOS Button, 07. USB 2.0, 08. HDMI™, 09. USB 2.0, 10. USB 3.2 Gen 1 5Gbps (Type-A), 11. USB 3.2 Gen 2 10Gbps (Type-C), 12. Optical S/PDIF OUT
LED Features
1x EZ LED Control switch, 4x EZ Debug LED
I/O Controller
NUVOTON NCT6687-R Controller Chip
Hardware Monitor
CPU/ System/ Chipset temperature detection, CPU/ System/ Pump fan speed detection, CPU/ System/ Pump fan speed control
Dimensions
ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting
9 mounting holes
