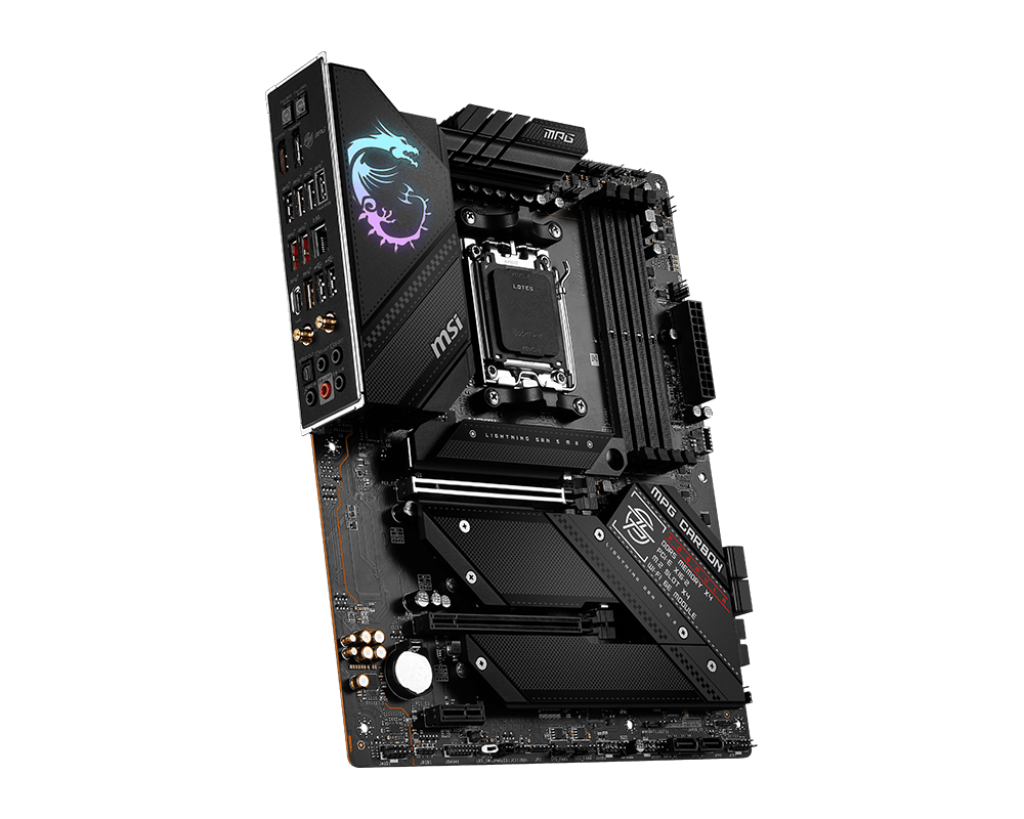

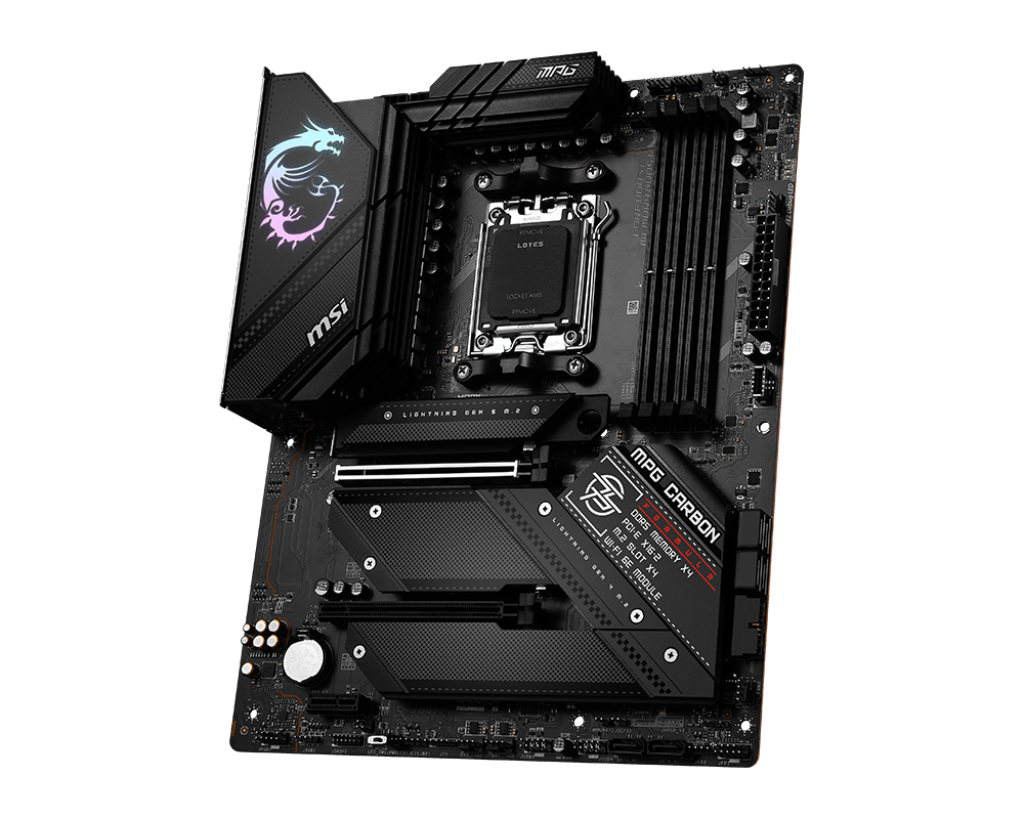

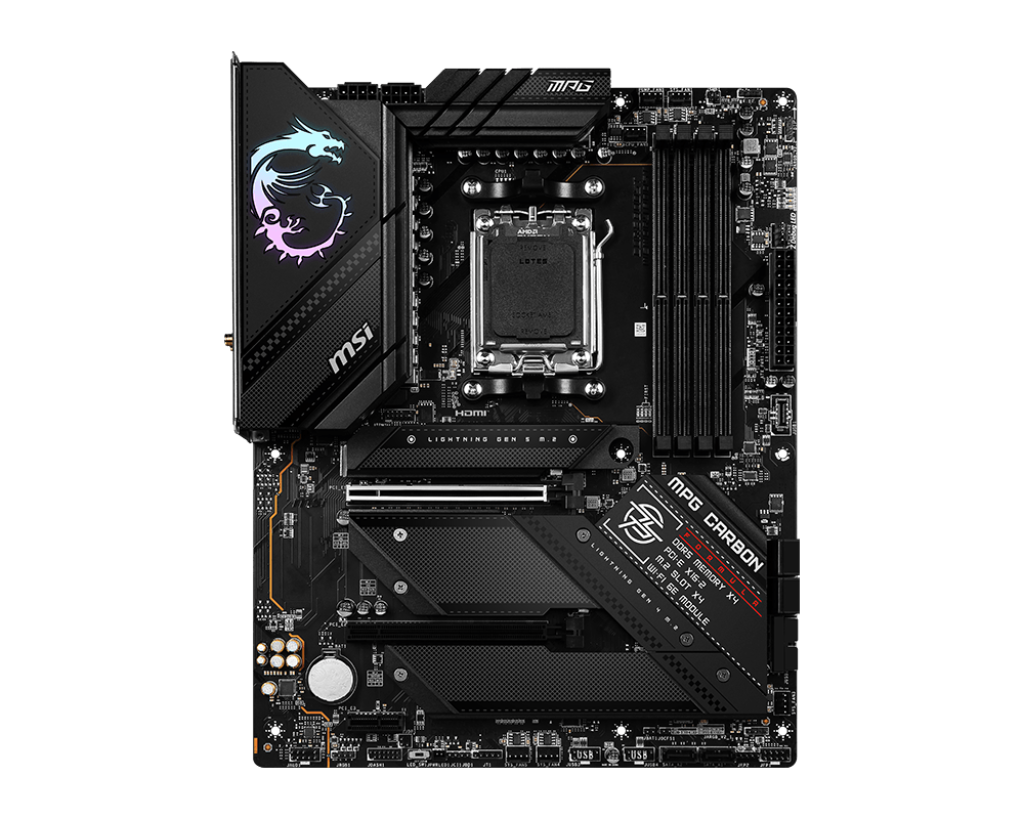

MSI MPG B650 CARBON WIFI Motherboard
  • Model:MPG B650 CARBON WIFI
  • AMD Ryzen 9000/8000/7000 series compatible
  • B650 chipset, AM5 socket
  • Supports DDR5 up to 7800+(OC) MHz
  • PCIe 4.0, Lightning M.2, USB 3.2 Gen 2x2
  • 3 Years Warranty from MSI
₹ 34,900
Next Day Dispatch
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™
Onboard Graphics
1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E1, M2_2 & M2_3 share the bandwidth. PCI_E1 will run at x8 speed when installing devices in M2_2 or M2_3 slots. Please see manual for more details.
Audio
Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel
Storage
4x M.2M2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_3 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 6x SATA 6G• M2_2 & M2_3 slots will not be available when installing Ryzen™ 8000 Series Desktop Processors
Multi-GPU
AMD MULTI-GPU Support
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* SATA_A1~A2 do not support RAID function.
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Front)7x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® RTL8125 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED1x EZ LED Control switch

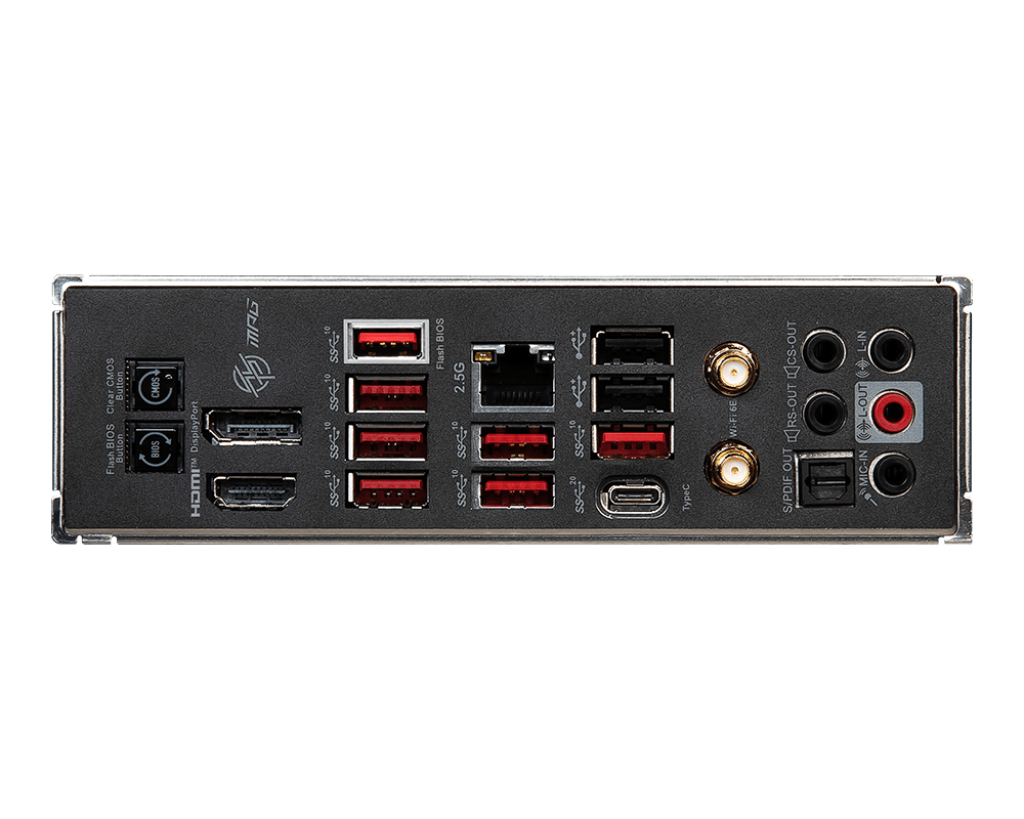

BACK PANEL PORTS
01. Clear CMOS / Flash BIOS02. Display Port03. 2.5G LAN04. USB 2.0 (Type-A)05. Audio Connectors06. HDMI™07. USB 10Gbps (Type-A)08. USB 10Gbps (Type-A)09. USB 20Gbps (Type-C)10. Wi-Fi / Bluetooth11. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX243.84mmx304.8mm
