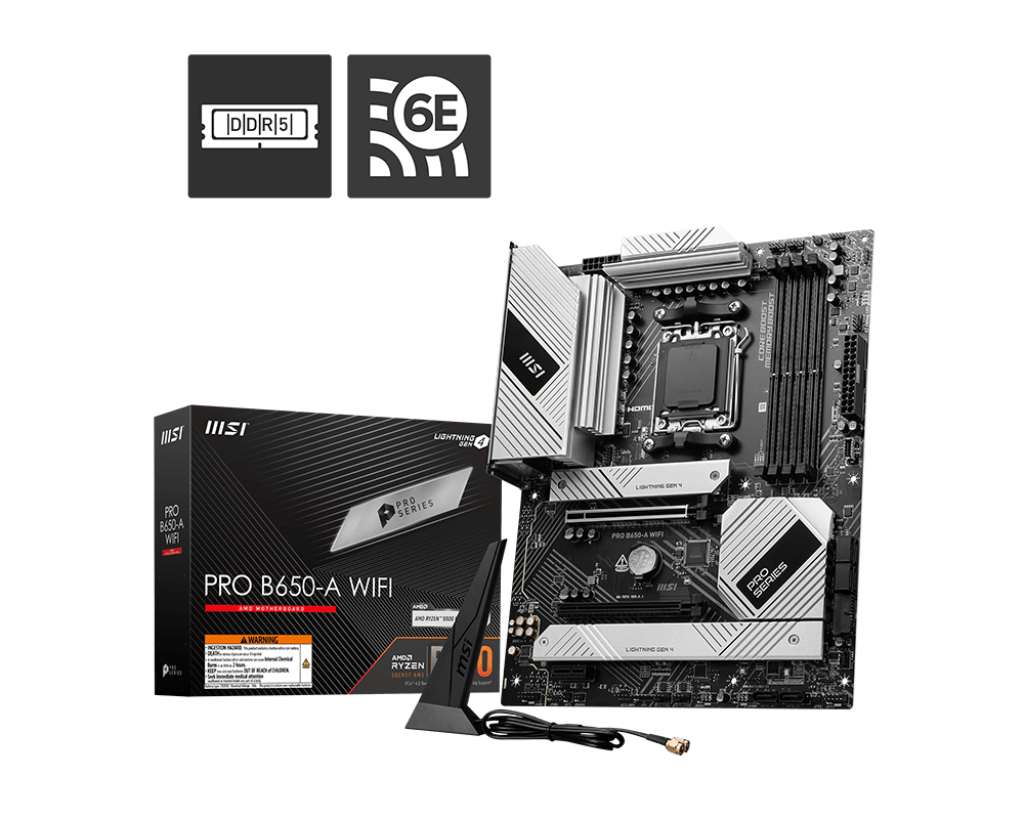

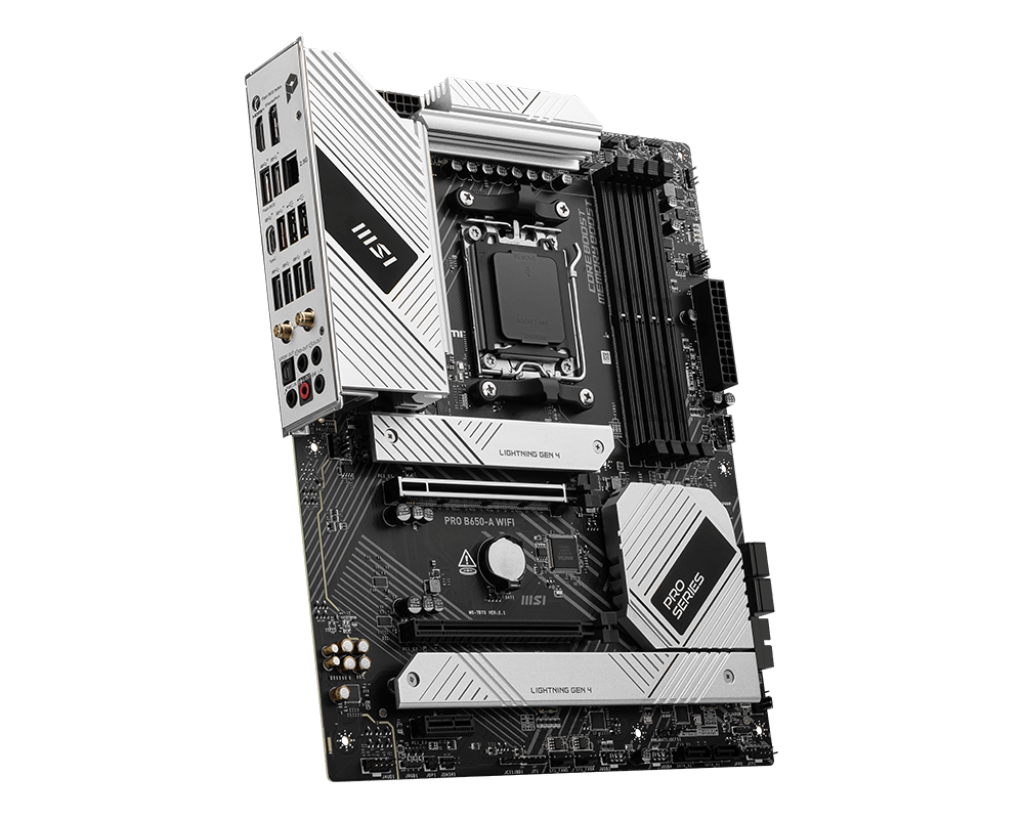

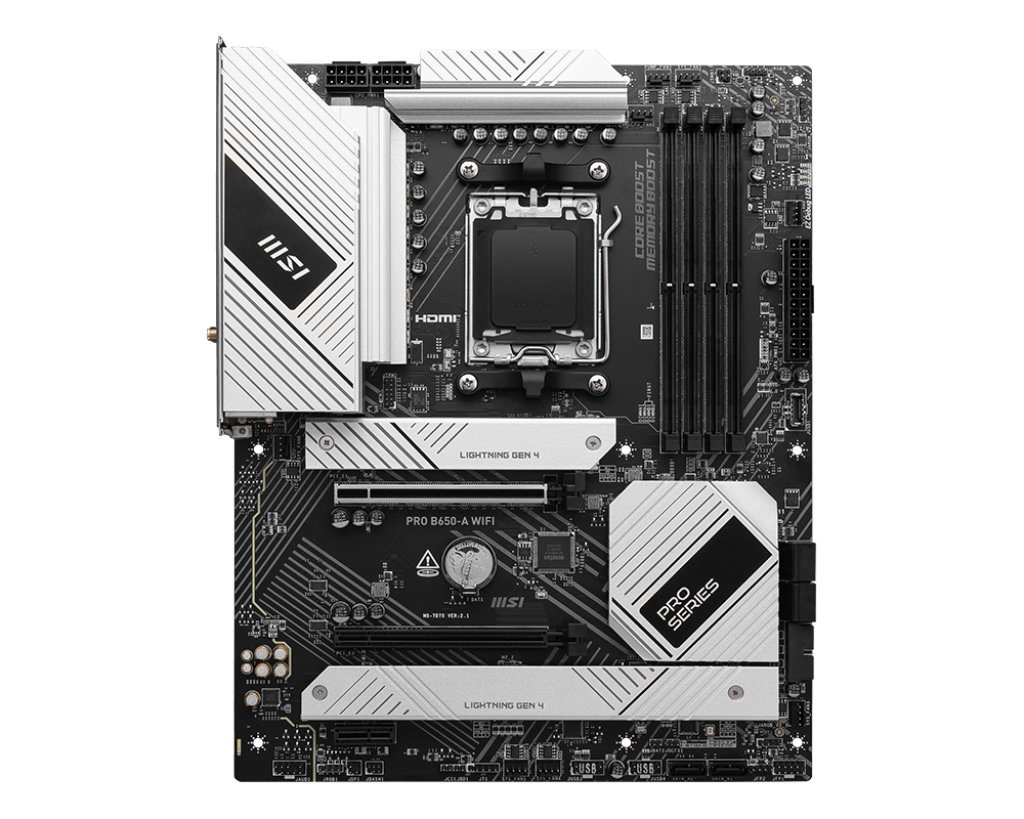

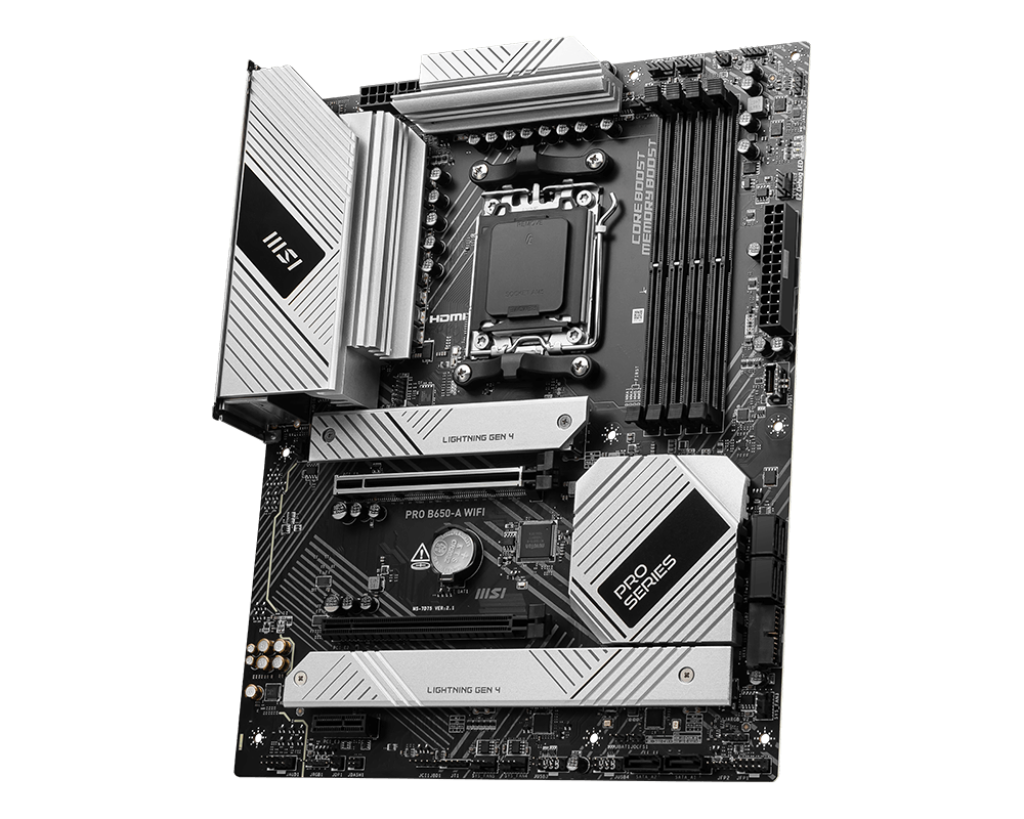

MSI PRO B650-A WIFI Motherboard

  • Model:PRO B650-A WIFI
  • Supports AMD Ryzen 7000 CPUs
  • B650 chipset, ATX form factor
  • DDR5 7600+ MHz (OC) support
  • PCIe 4.0, WiFi 6E
  • 3 Years Warranty from MSI
₹ 18,150
In Stock
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7600+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
Onboard Graphics
1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4 port with HBR3, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.
Audio
Realtek® ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
Storage
3x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* SATA_A1 & SATA_A2 do not support RAID function.
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® RTL8125B 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
LED FEATURE
4x EZ Debug LED

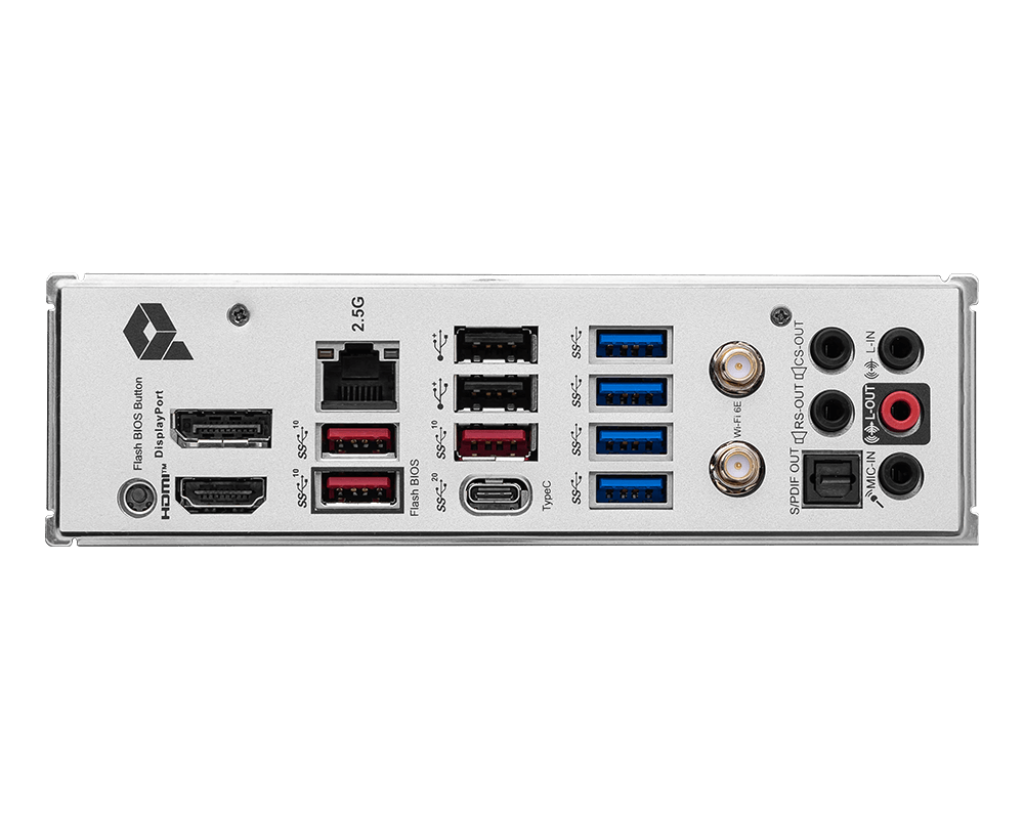

BACK PANEL PORTS
01. DisplayPort02. 2.5G LAN03. USB 2.004. USB 5Gbps Type-A05. Wi-Fi / Bluetooth06. Audio Connectors07. Flash BIOS Button08. HDMI™09. USB 10Gbps Type-A10. USB 20Gbps Type-C11. Optical S/PDIF OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX243.84mmx304.8mm
