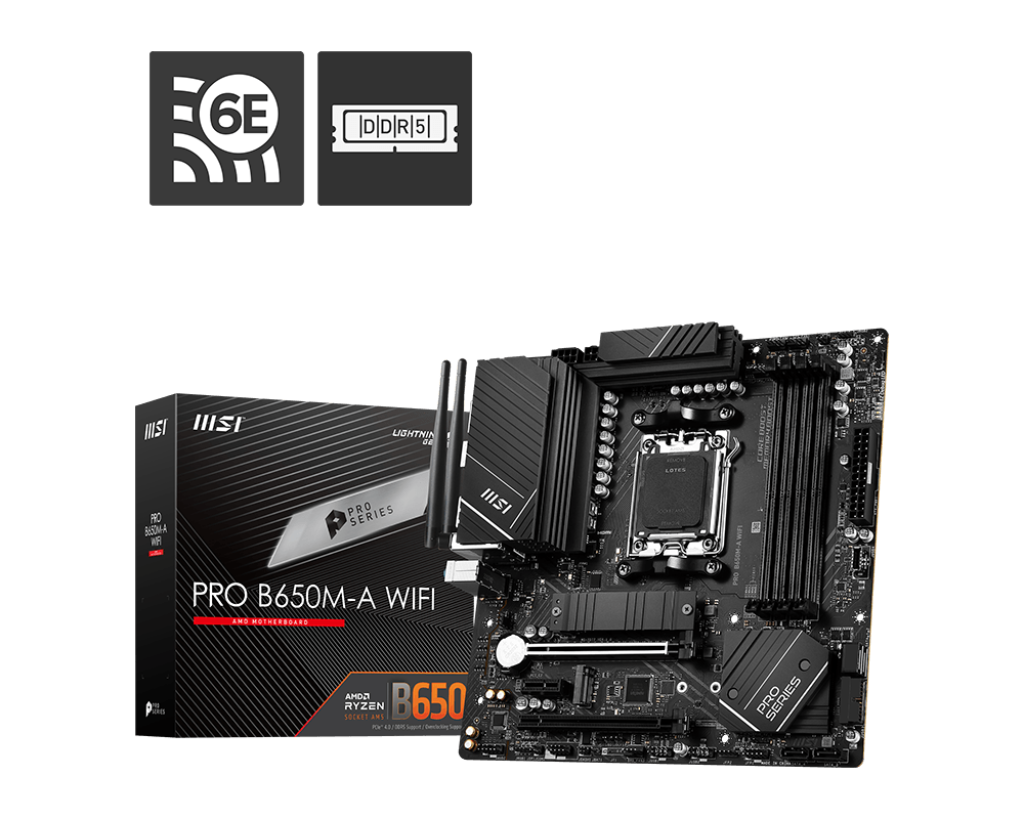

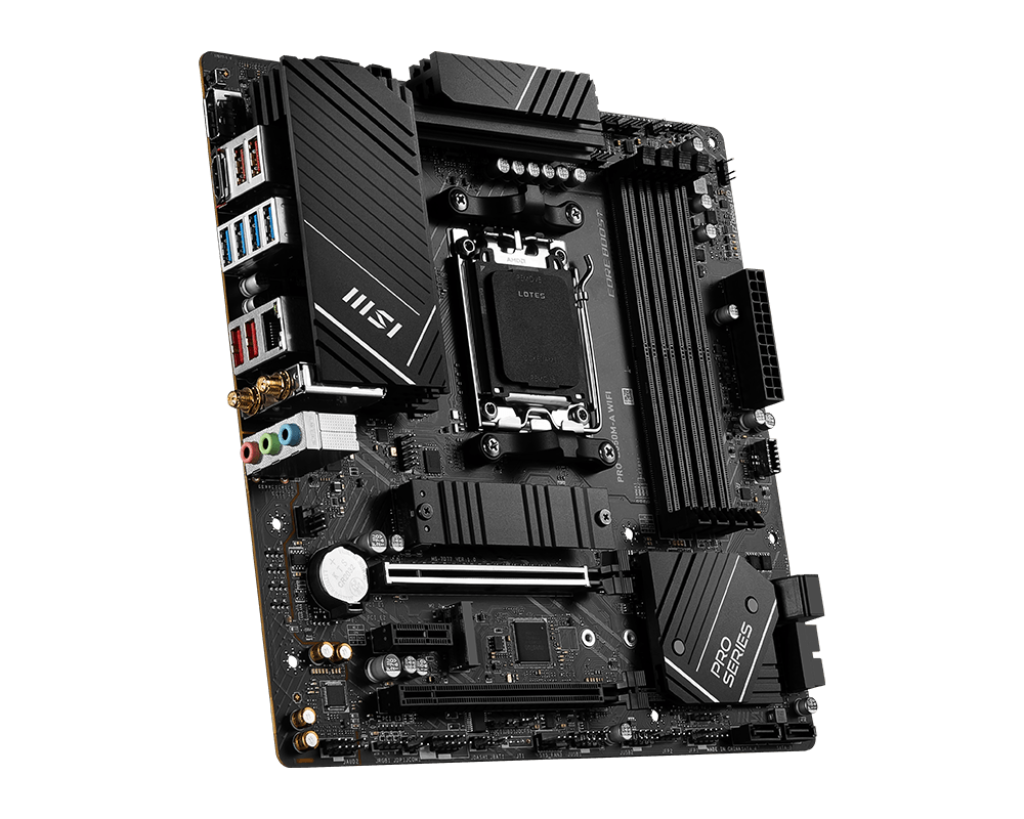

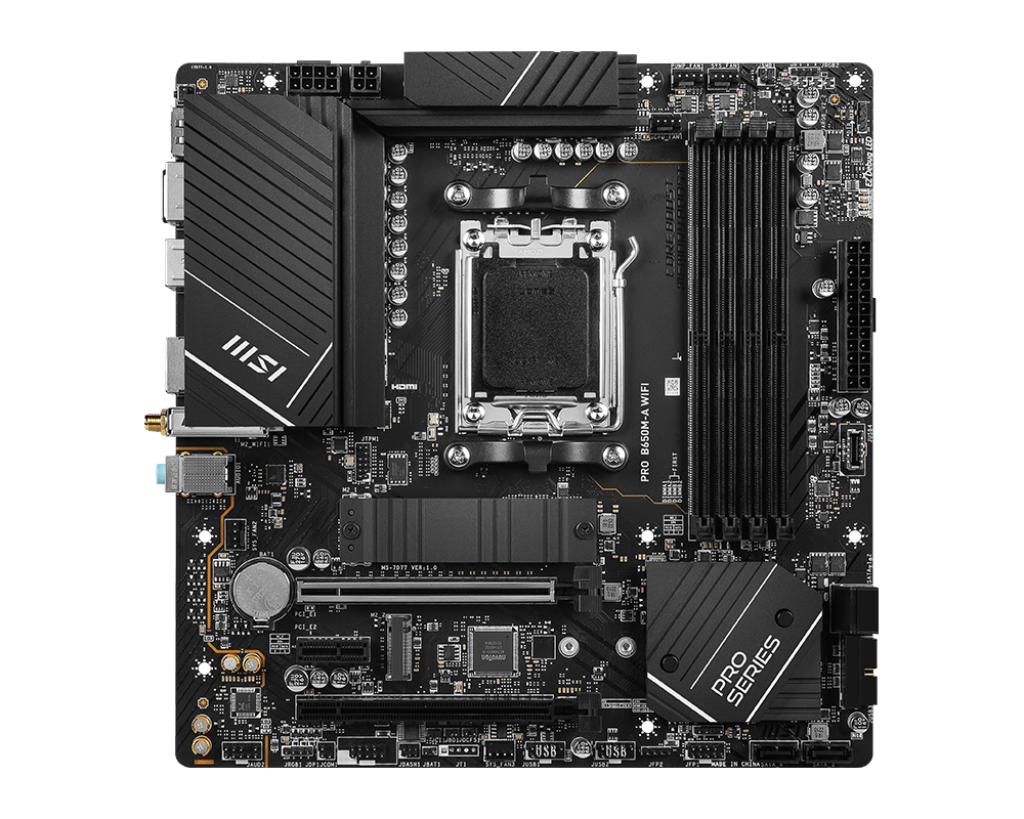

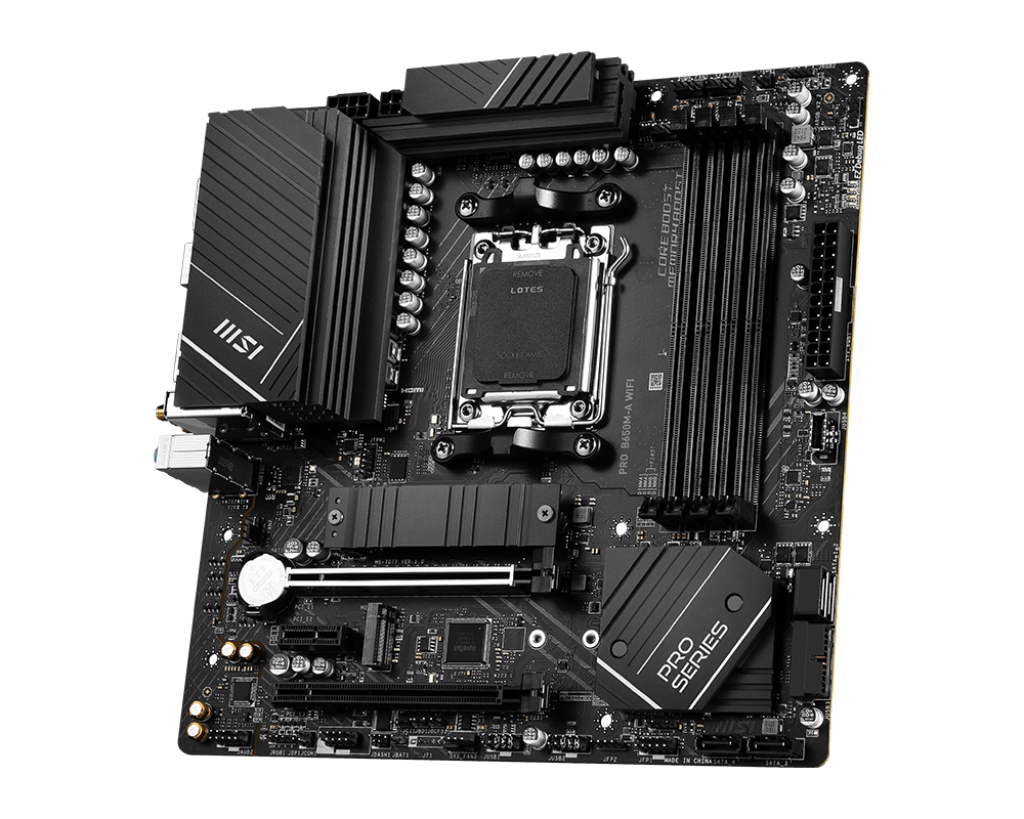

MSI PRO B650M-A WIFI Motherboard
  • Model:PRO B650M-A WIFI
  • Supports AMD Ryzen Series
  • B650 chipset, AM5 socket
  • DDR5 7200+MHz (OC)
  • PCIe 4.0, Wi-Fi 6E
  • 3 Years Warranty from MSI
₹ 15,850
Next Day Dispatch
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
Onboard Graphics
1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz1x DisplayPortSupports DP1.4, maximum resolution of 4K 60Hz_\*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
2x PCI-E x16 slot• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI\_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI\_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI\_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
2x M.2M.2\_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2\_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G• The M2\_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)4x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)
LAN
Realtek® 8125BG 2.5G LAN
Internal IO
1x Power Connector(ATX\_PWR)2x Power Connector(CPU\_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB\_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz\* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3\*\*_\* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.__\*\* Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11._
LED FEATURE
4x EZ Debug LED

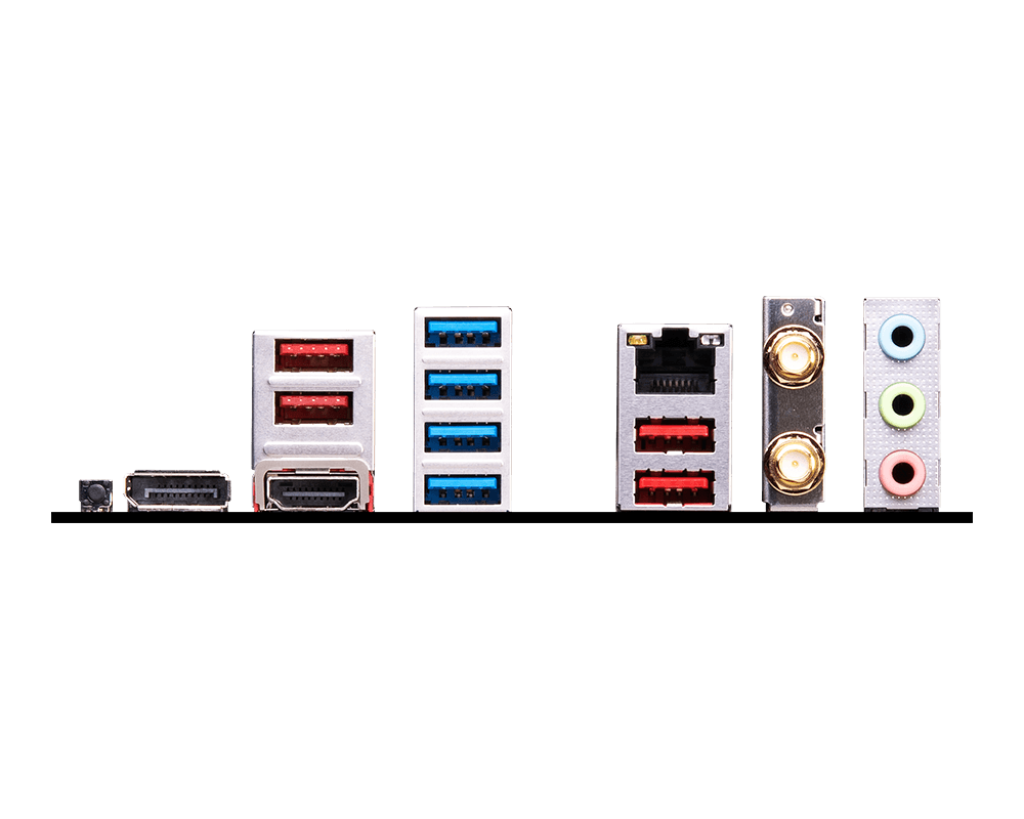

BACK PANEL PORTS
1. USB 3.2 Gen 2 10Gbps (Type-A)2. USB 3.2 Gen 1 5Gbps (Type-A)3. 2.5G LAN4. Wi-Fi / Bluetooth5. Audio connectors6. Flash BIOS Button7. DisplayPort8. HDMI™9. USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX243.84mmx243.84mm
