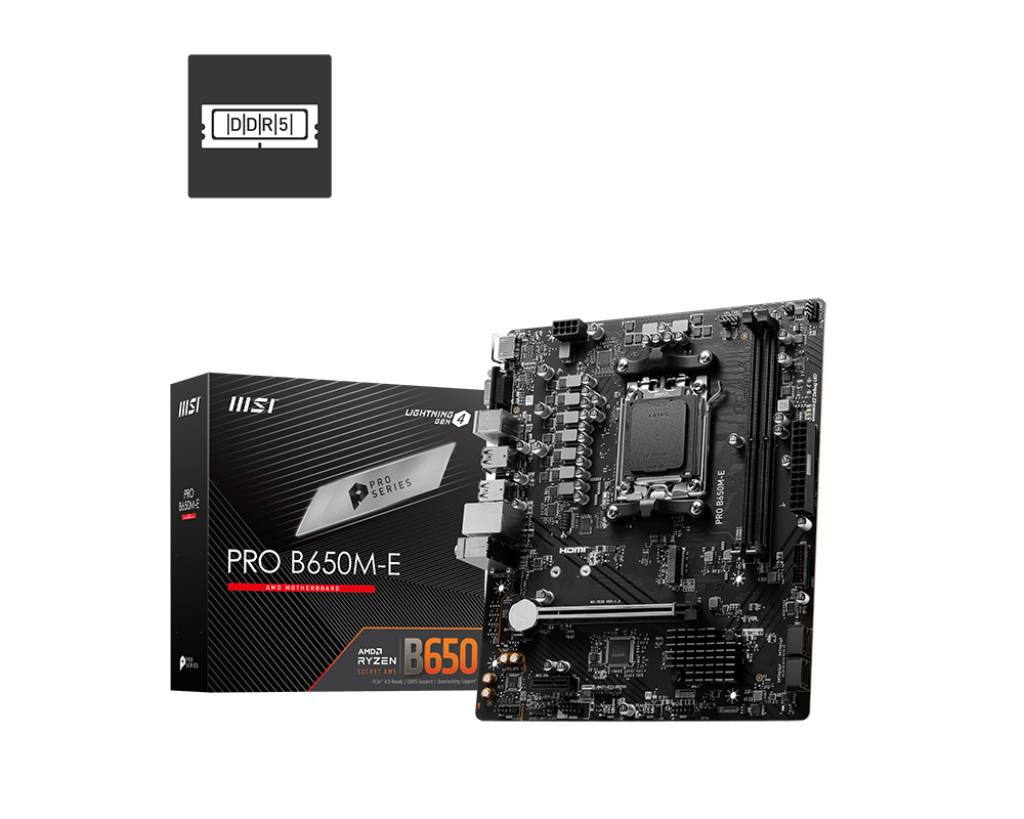

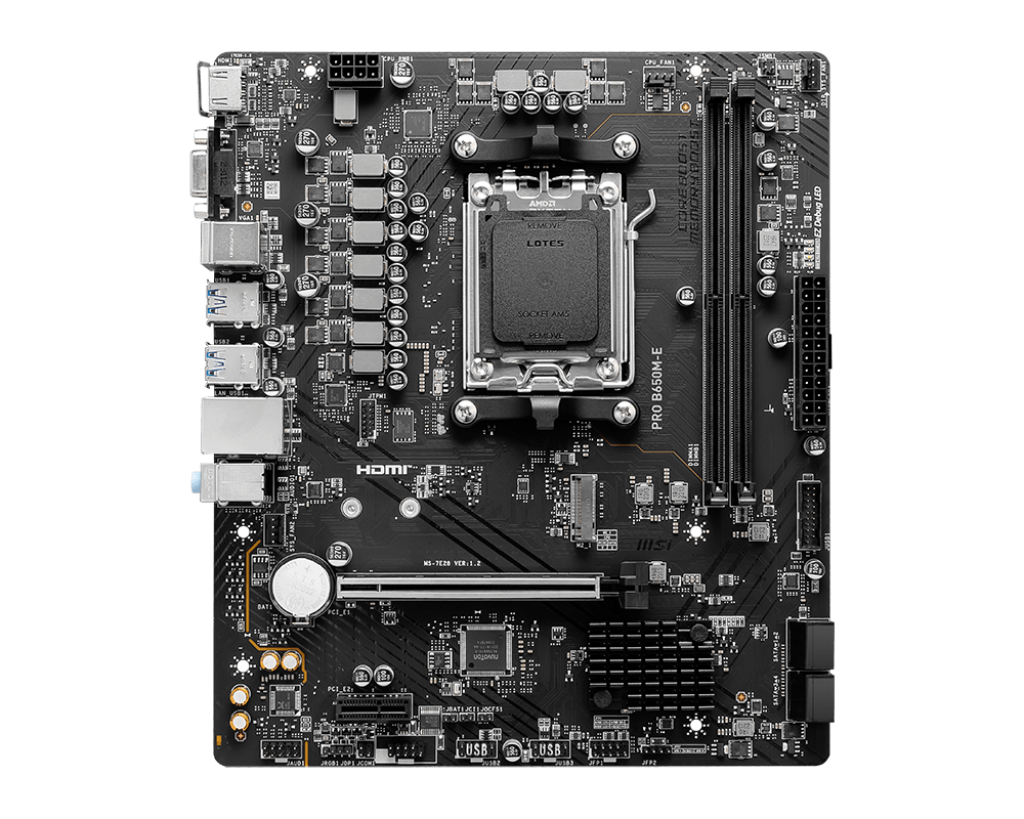

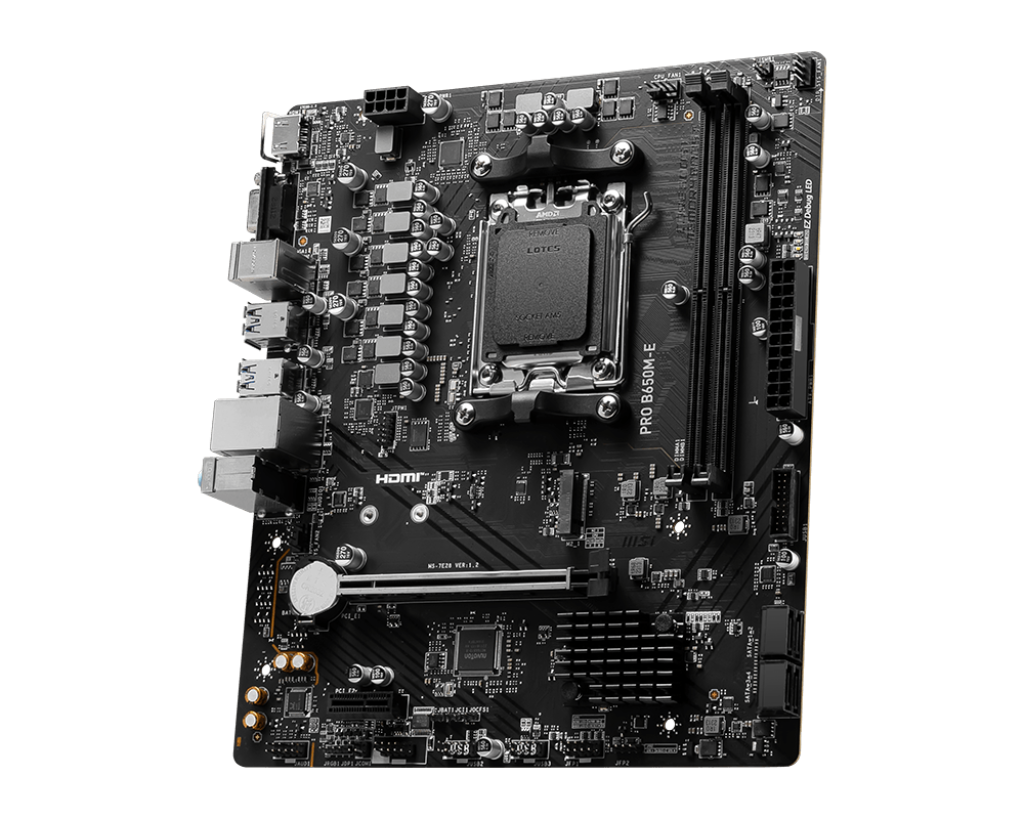

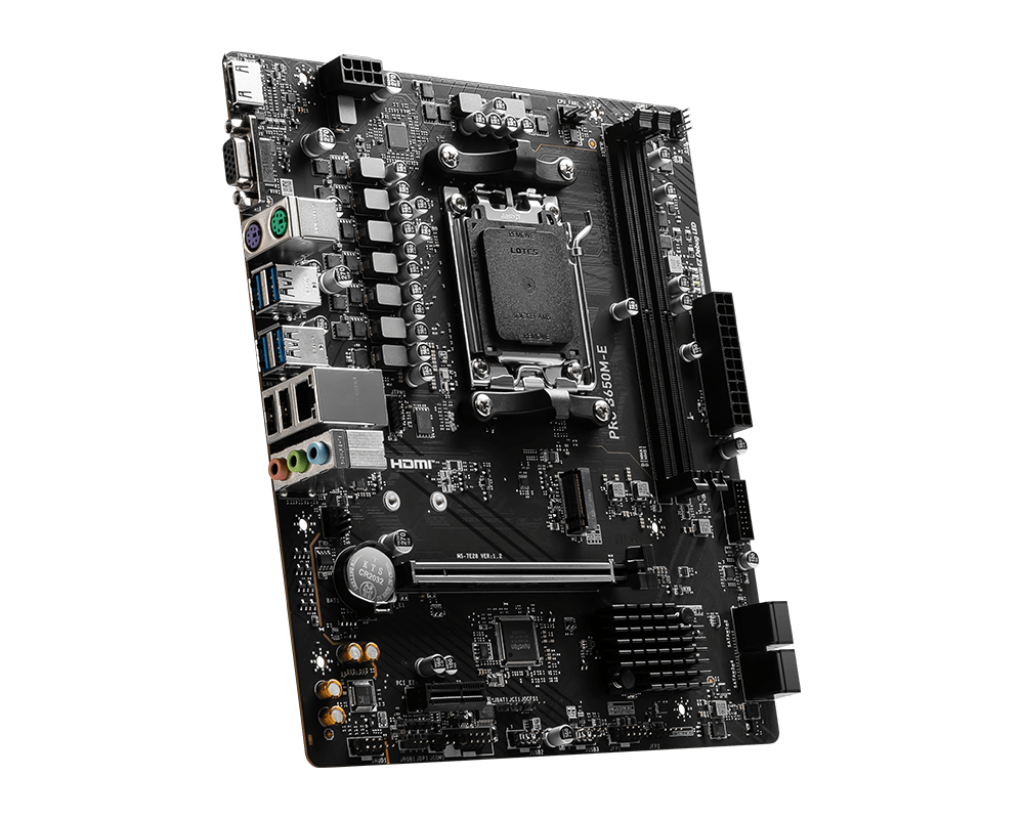

MSI PRO B650M-E Motherboard
  • Model:PRO B650M-E
  • Supports AMD Ryzen 7000 Series
  • B650 chipset, Micro ATX form
  • Supports up to DDR5 6800+MHz (OC)
  • PCIe 4.0, Audio Boost, Steel Armor
  • 3 Years Warranty from MSI
₹ 8,600
In Stock
1
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
Onboard Graphics
1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
1x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports
LED FEATURE
4x EZ Debug LED

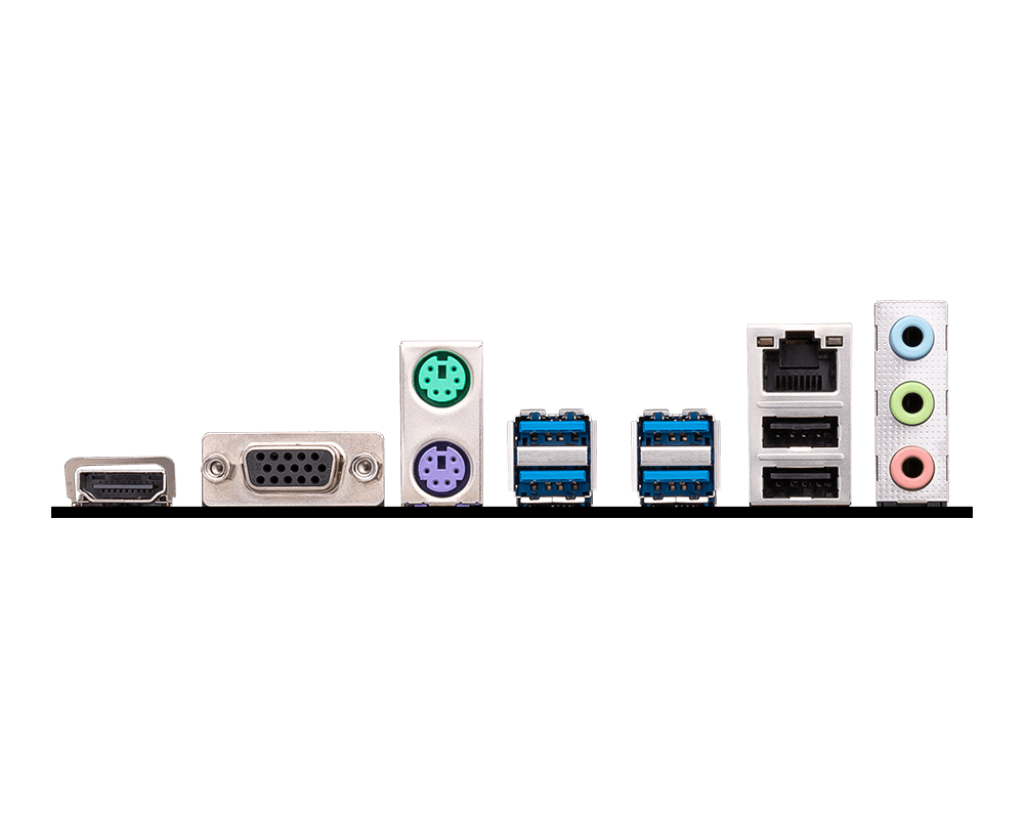

BACK PANEL PORTS
1. HDMI™2. VGA3. Keyboard/Mouse4. USB 3.2 Gen 1 5Gbps (Type-A)5. LAN port6. Audio connectors7. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX211mmx243.84mm
