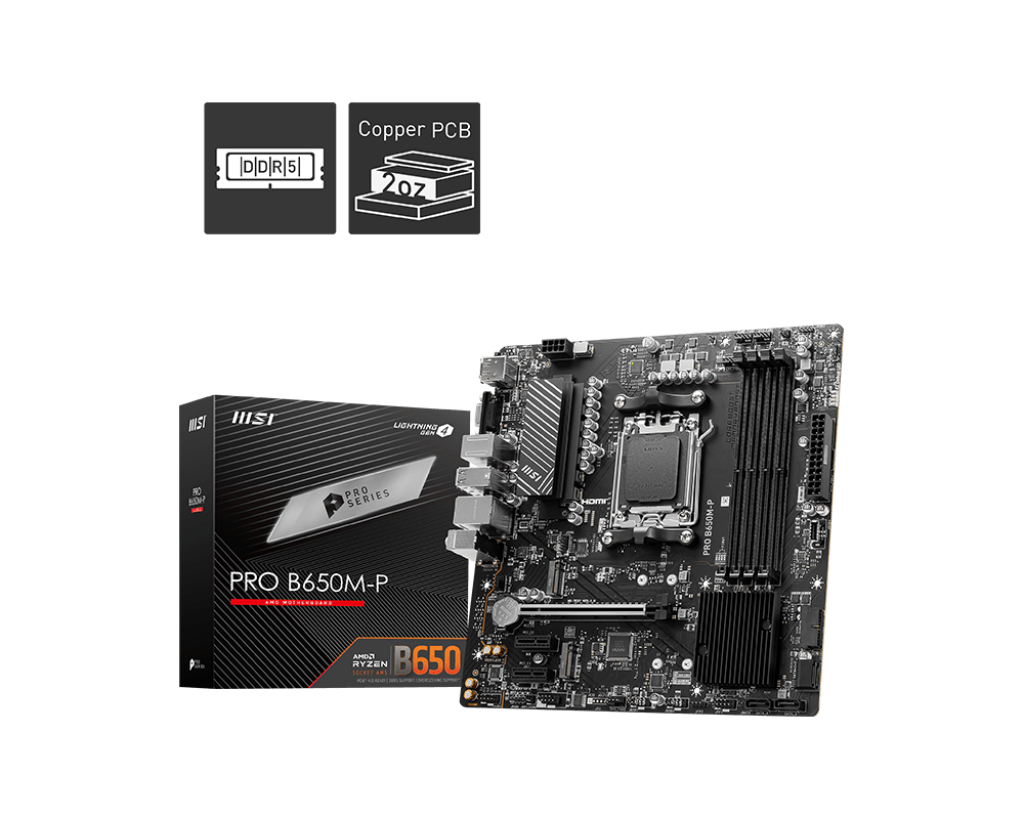

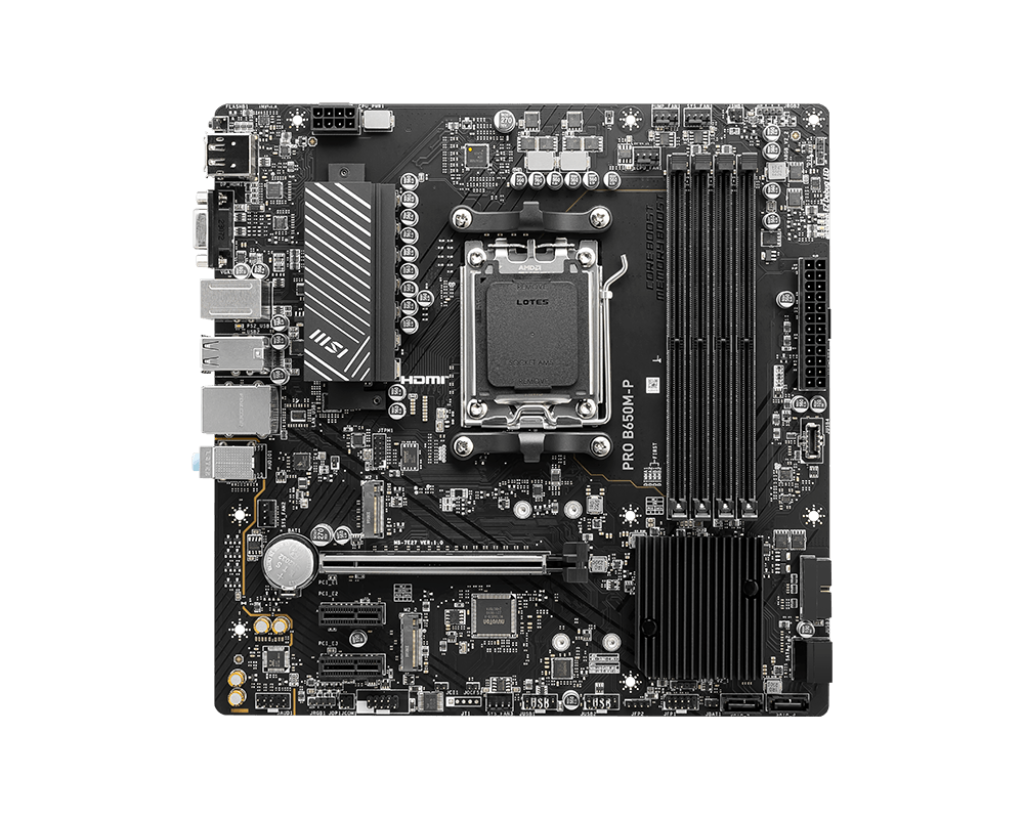

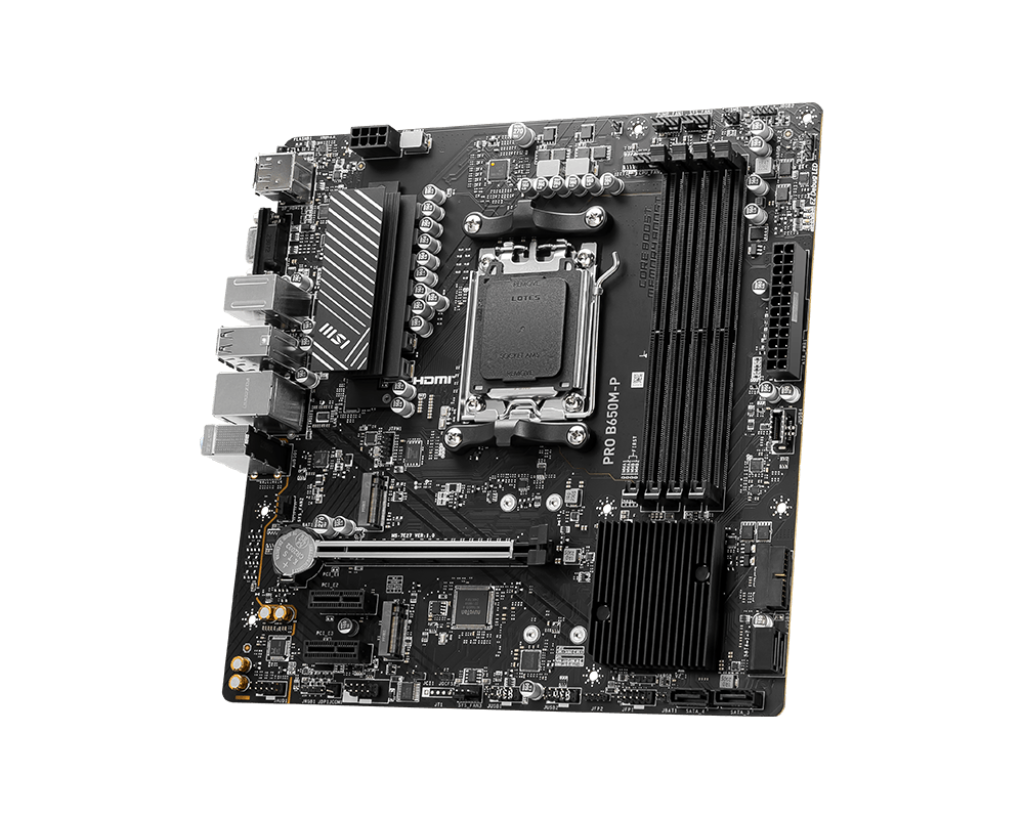

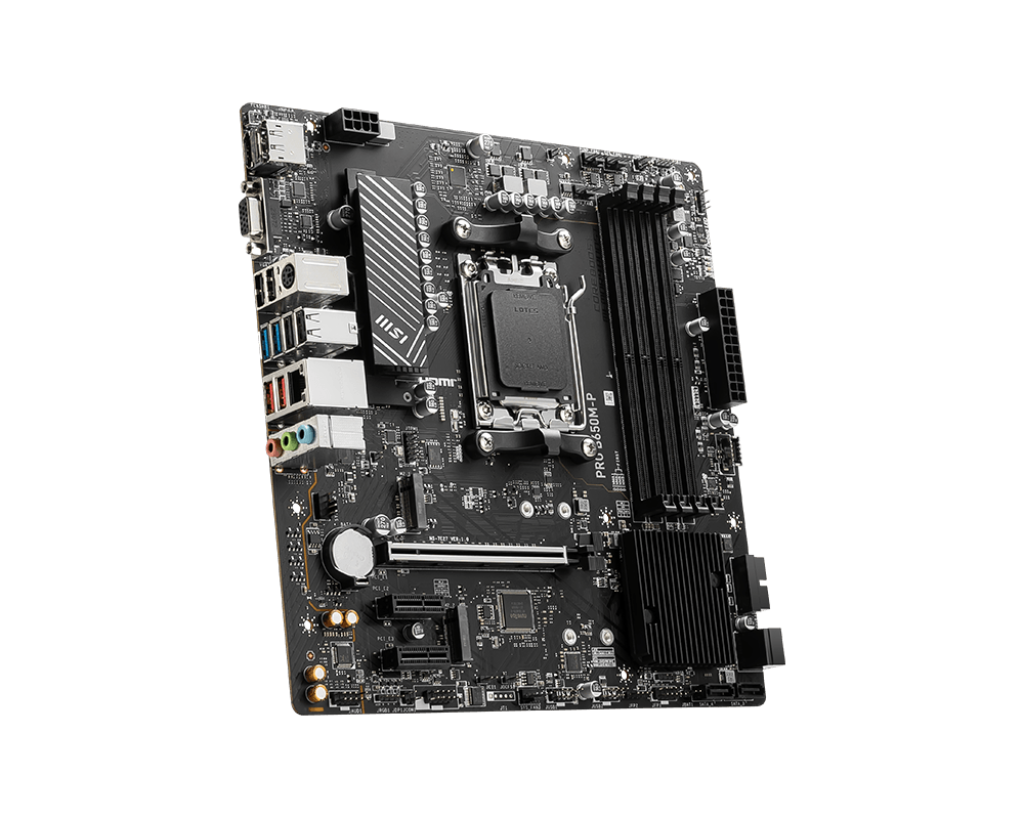

MSI PRO B650M-P Motherboard
- Model:PRO B650M-P
- AMD Ryzen 7000 Series
- B650 chipset, AM5 socket
- Supports DDR5 7200+MHz (OC)
- PCIe 4.0 slots, 2.5G LAN
- 3 Years Warranty from MSI
₹ 10,900
In StockFree Delivery
1
Related Products
Best Match Products
MSI PRO B650M-P Motherboard
- Model:PRO B650M-P
- AMD Ryzen 7000 Series
- B650 chipset, AM5 socket
- Supports DDR5 7200+MHz (OC)
- PCIe 4.0 slots, 2.5G LAN
- 3 Years Warranty from MSI
₹ 10,900
In StockFree Delivery
1
₹ 10,900
In Stock
1
- Chipset
- AMD B650
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
- Memory
- 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
- Onboard Graphics
- 1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupports DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 1920x1200 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio
- Realtek® ALC897 Codec7.1-Channel High Definition Audio
- Storage
- 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)
- LAN
- Realtek® 8125BG 2.5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
- LED FEATURE
- 4x EZ Debug LED

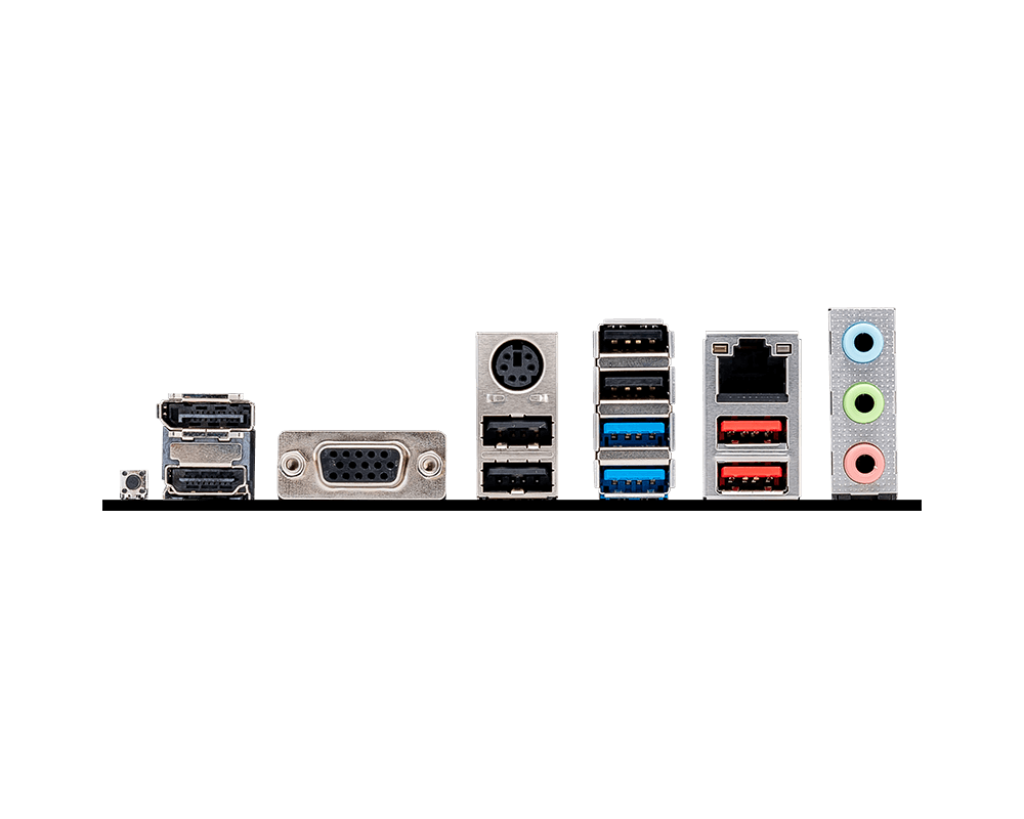

- BACK PANEL PORTS
- 01. DisplayPort02. VGA03. Keyboard / Mouse04. USB 2.005. 2.5G LAN06. Audio connectors07. Flash BIOS Button08. HDMI™09. USB 2.010. USB 3.2 Gen 1 5Gbps (Type-A)11. USB 3.2 Gen 2 10Gbps (Type-A)
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX243.84mmx243.84mm
