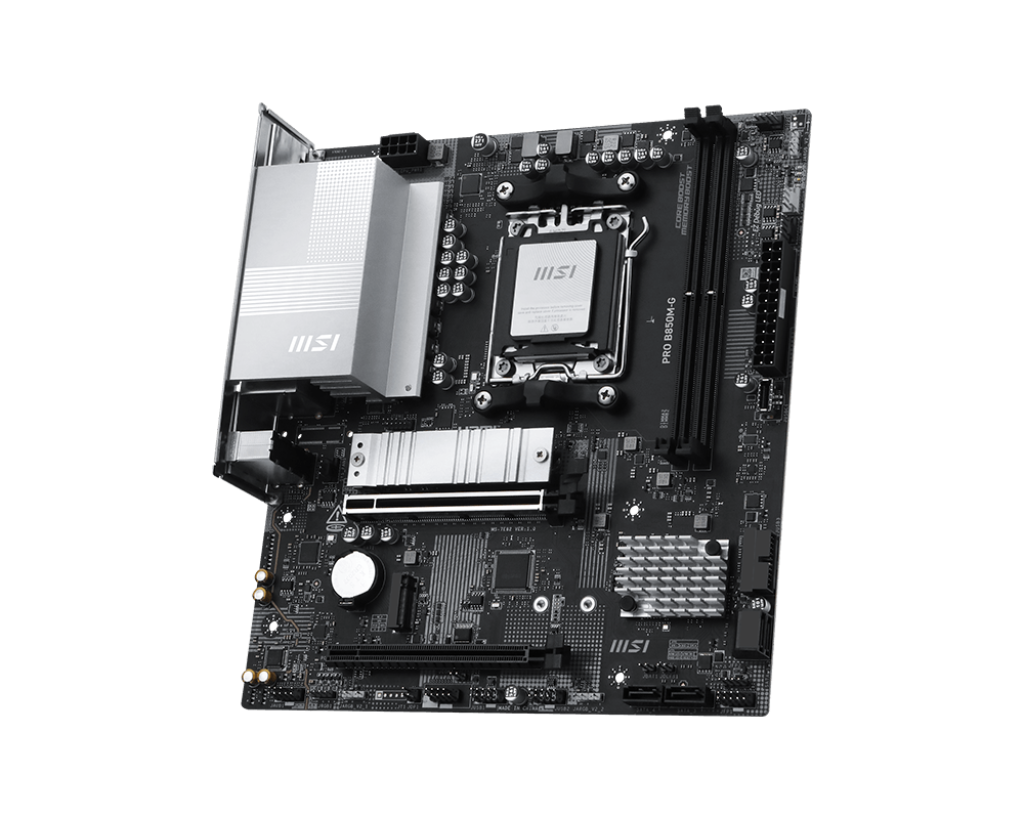

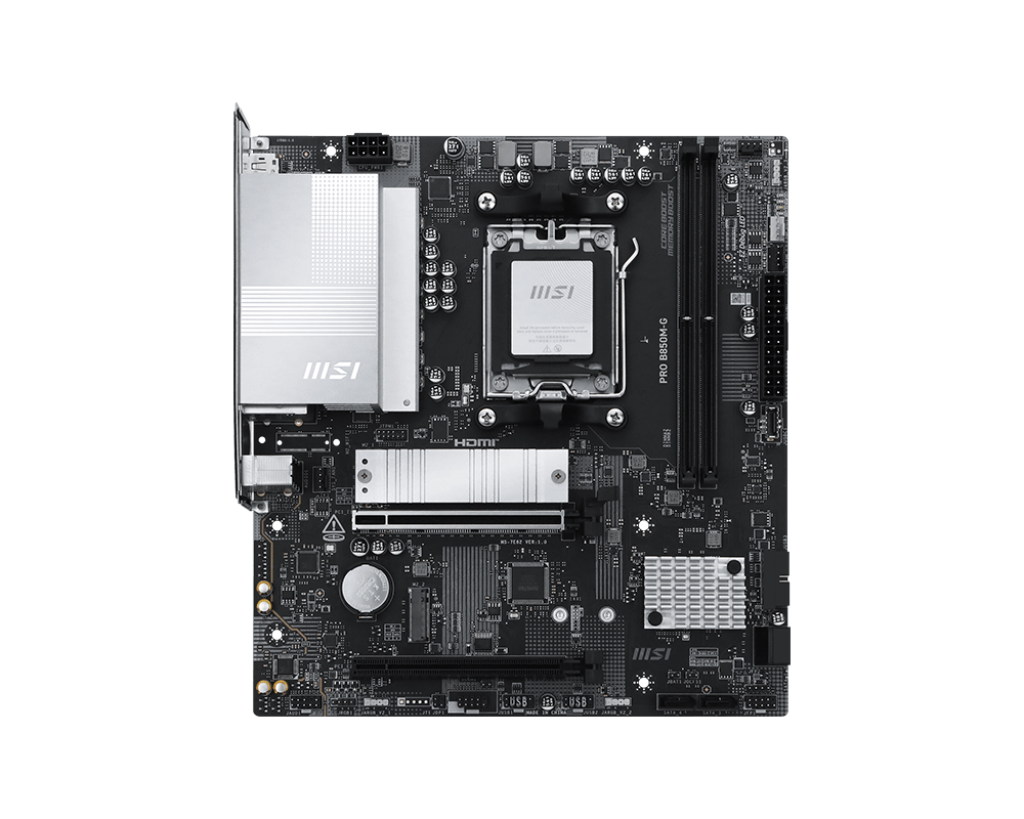

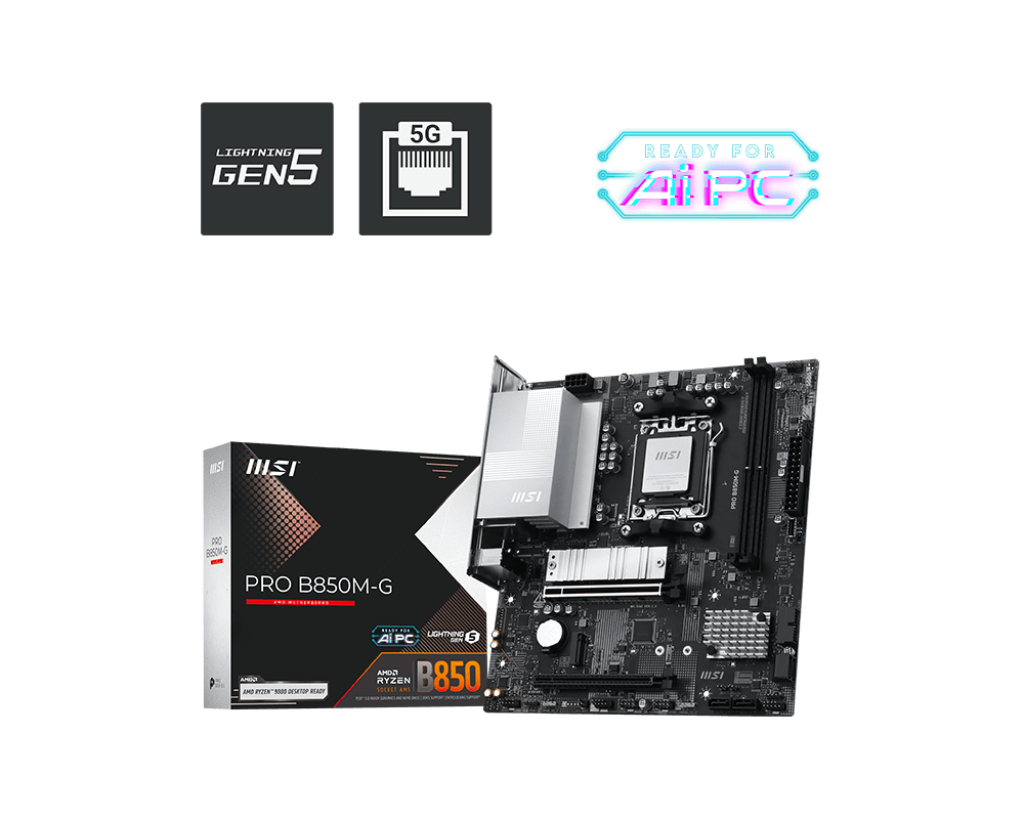

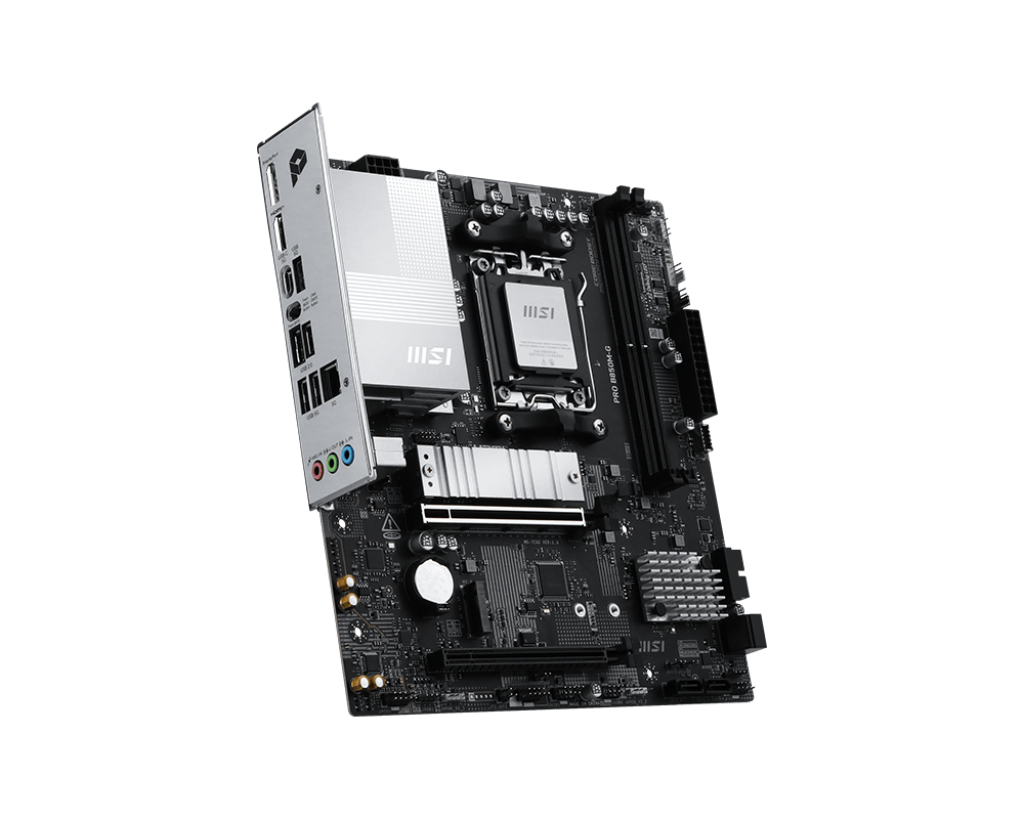

MSI PRO B850M-G Motherboard
  • Model:PRO B850M-G
  • Supports AMD Ryzen 9000 Series processors
  • B850 chipset, AM5 socket, Micro-ATX form factor
  • Dual Channel DDR5 8200+ MT/s (OC) memory support
  • PCIe 5.0 slot, 5G LAN networking, M.2 Shield Frozr
  • 3 Years Warranty from MSI
₹ 12,550
In Stock
1
Chipset
AMD B850
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 8000+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*• The DIMM slots on this motherboard have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.\* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
Onboard Graphics
1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio
Realtek® ALC8977.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M2_2 slot• Supports up to PCIe 4.0 x4• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)
LAN
Realtek® 8126VB 5G LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED

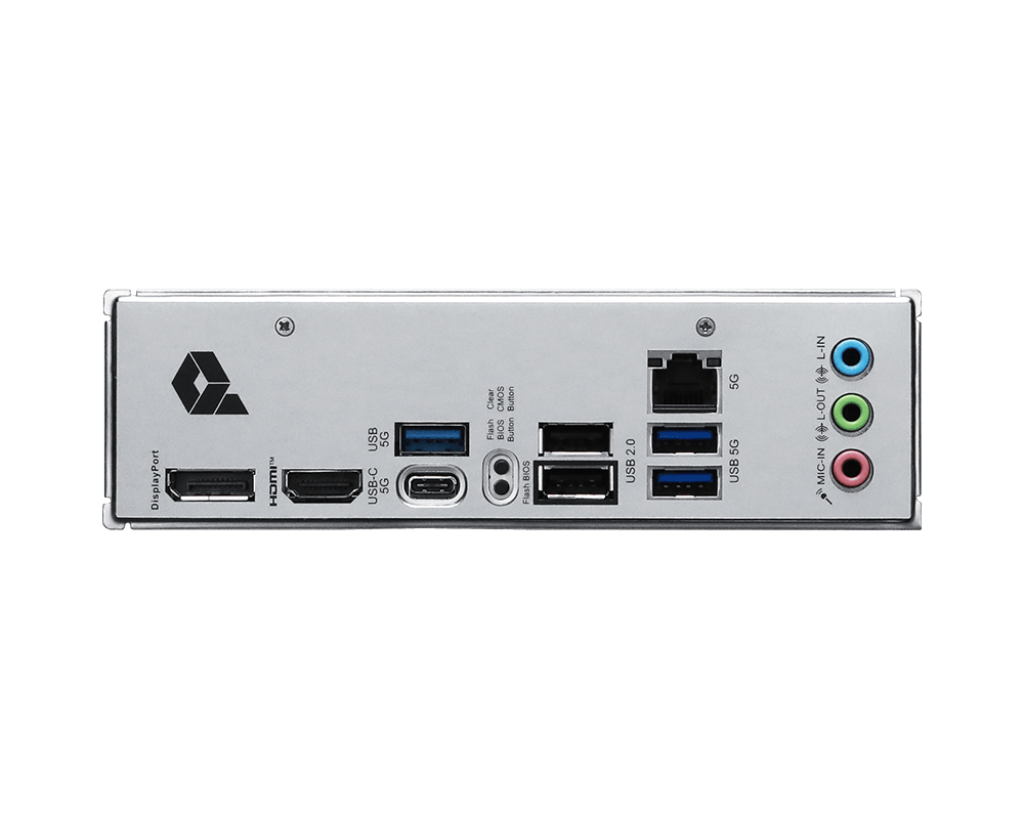

BACK PANEL PORTS
![](https://storage-asset.msi.com/global/picture/images/mb/IO/msi-pro_b850m-x-io-hero.png)01. DisplayPort02. HDMI™03. USB 5Gbps Type-A04. Clear CMOS Button05. USB 2.006. 5G LAN07. Audio connectors08. USB 5Gbps Type-C09. Flash BIOS Button10. USB 5Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit
BOX CONTENT
![](https://storage-asset.msi.com/global/picture/image/feature/mb/PRO-B850M/PRO-B850M-G/accessory.png)
PCB Info
mATX226mmx243.84mm
