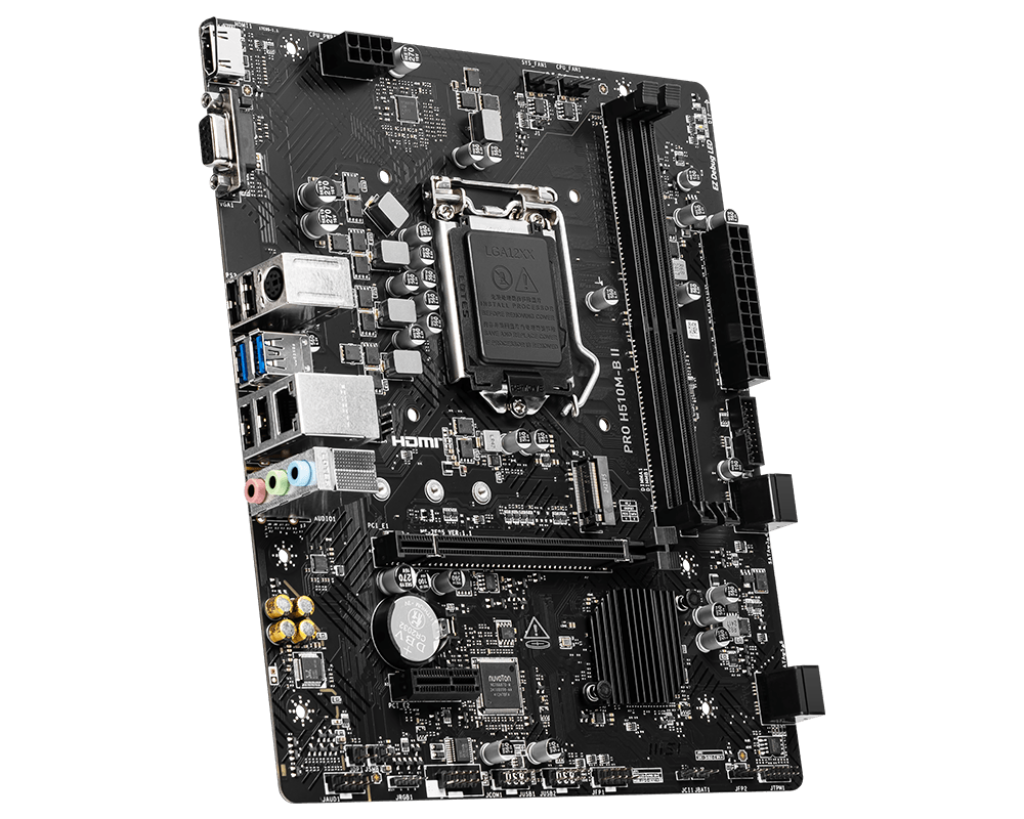

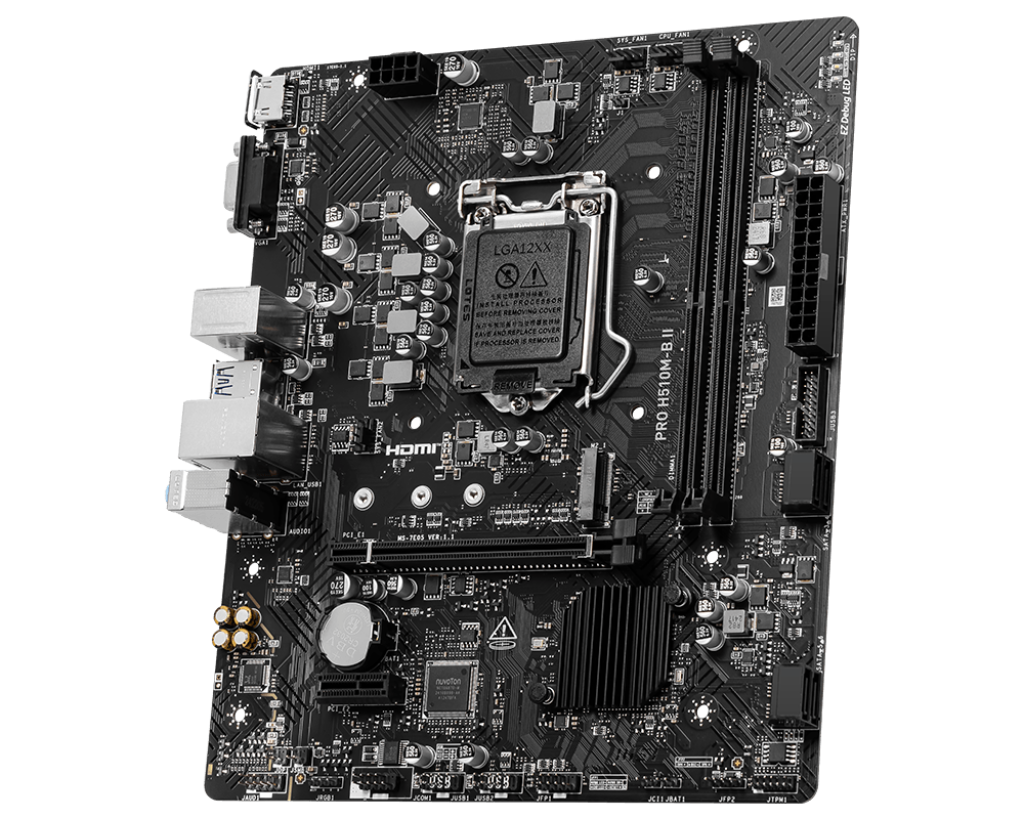

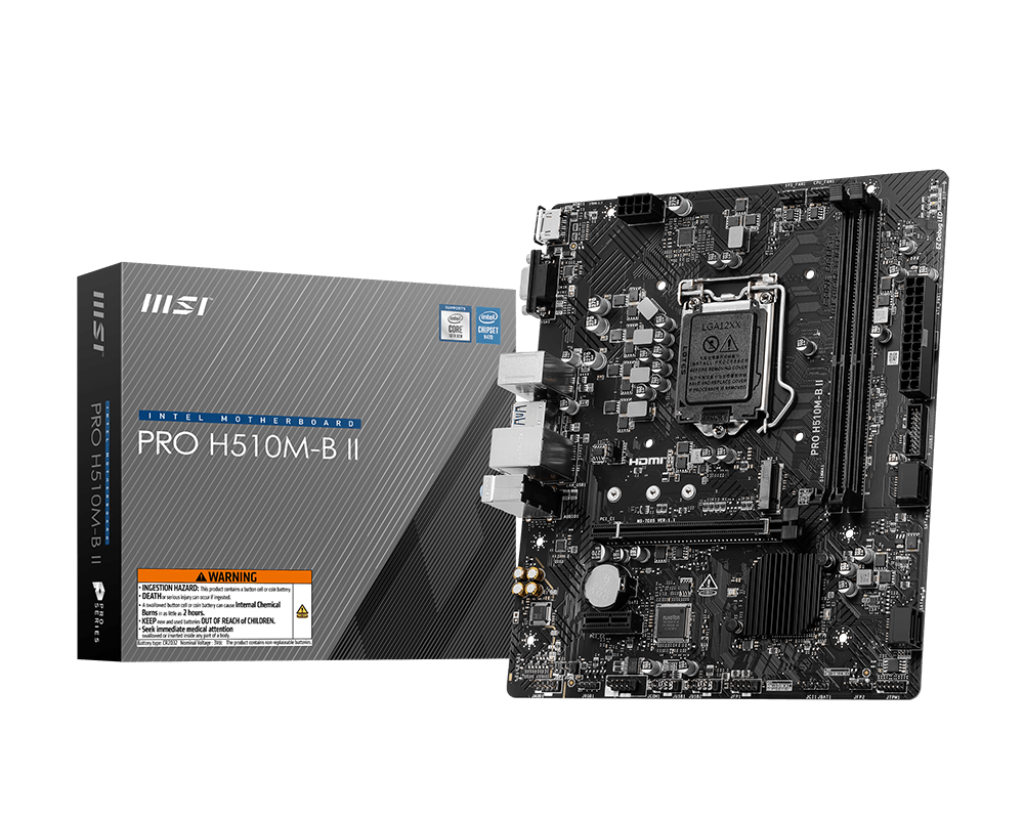

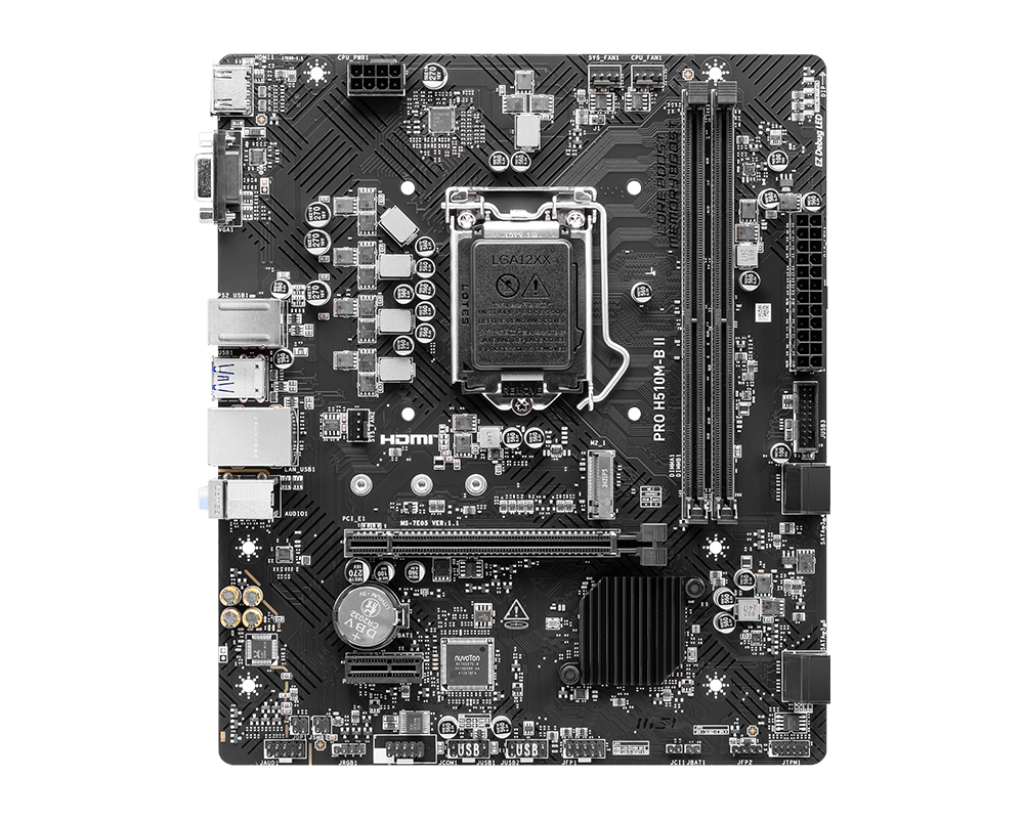

MSI PRO H510M-B II Motherboard
  • Model:PRO H510M-B II
  • LGA 1200 socket
  • H510 chipset
  • Supports DDR4 memory
  • Enhanced audio quality
  • 3 Years Warranty from MSI
₹ 5,300
Next Day Dispatch
1
Chipset
INTEL H510
CPU
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Memory
2x DDR4, Maximum Memory Capacity 64GBMemory Support 2933/ 2666/ 2400/ 2133 MHzSupports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPUSupports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPUSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
1x HDMI™Support HDMI™ 1.4, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
LAN
Realtek® 8111H Gigabit LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports
LED FEATURE
4x EZ Debug LED

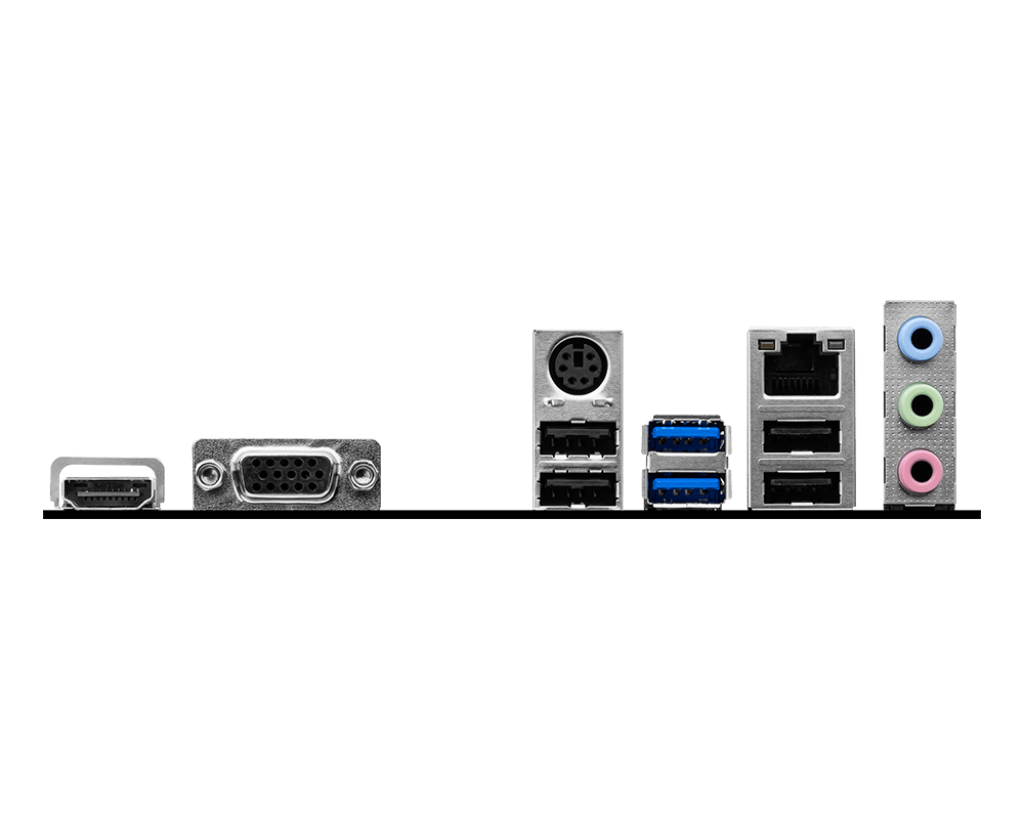

BACK PANEL PORTS
1. HDMI™2. VGA3. Keyboard / Mouse4. USB 5Gbps Type-A5. LAN port6. Audio Connectors7. USB 2.08. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX202mmx236mm
