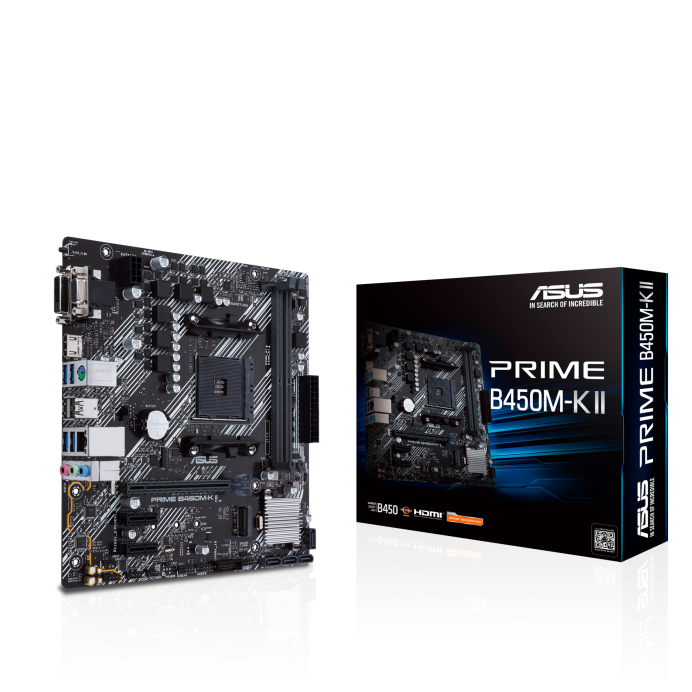

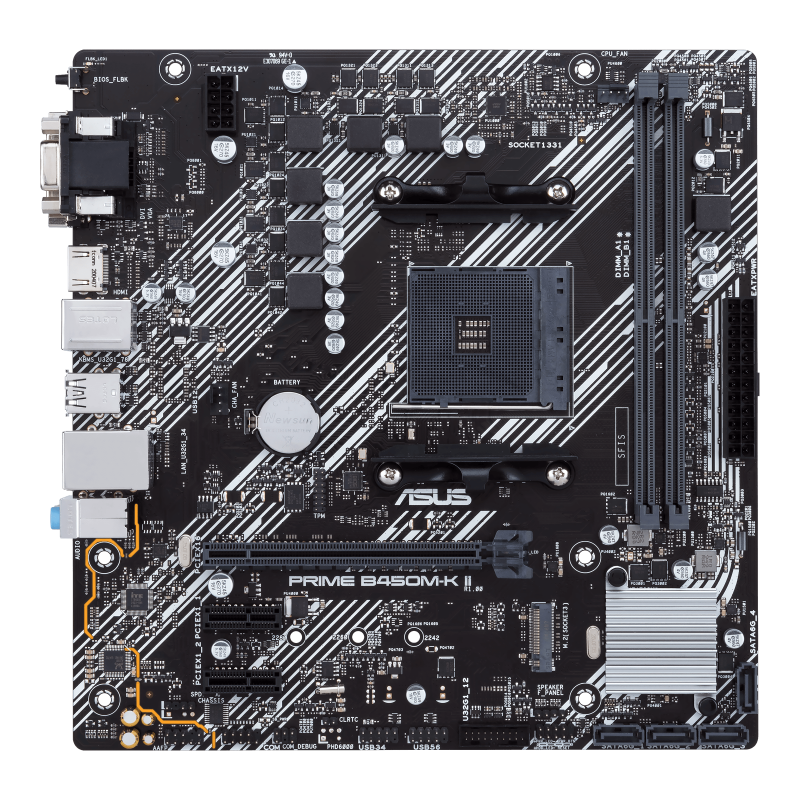

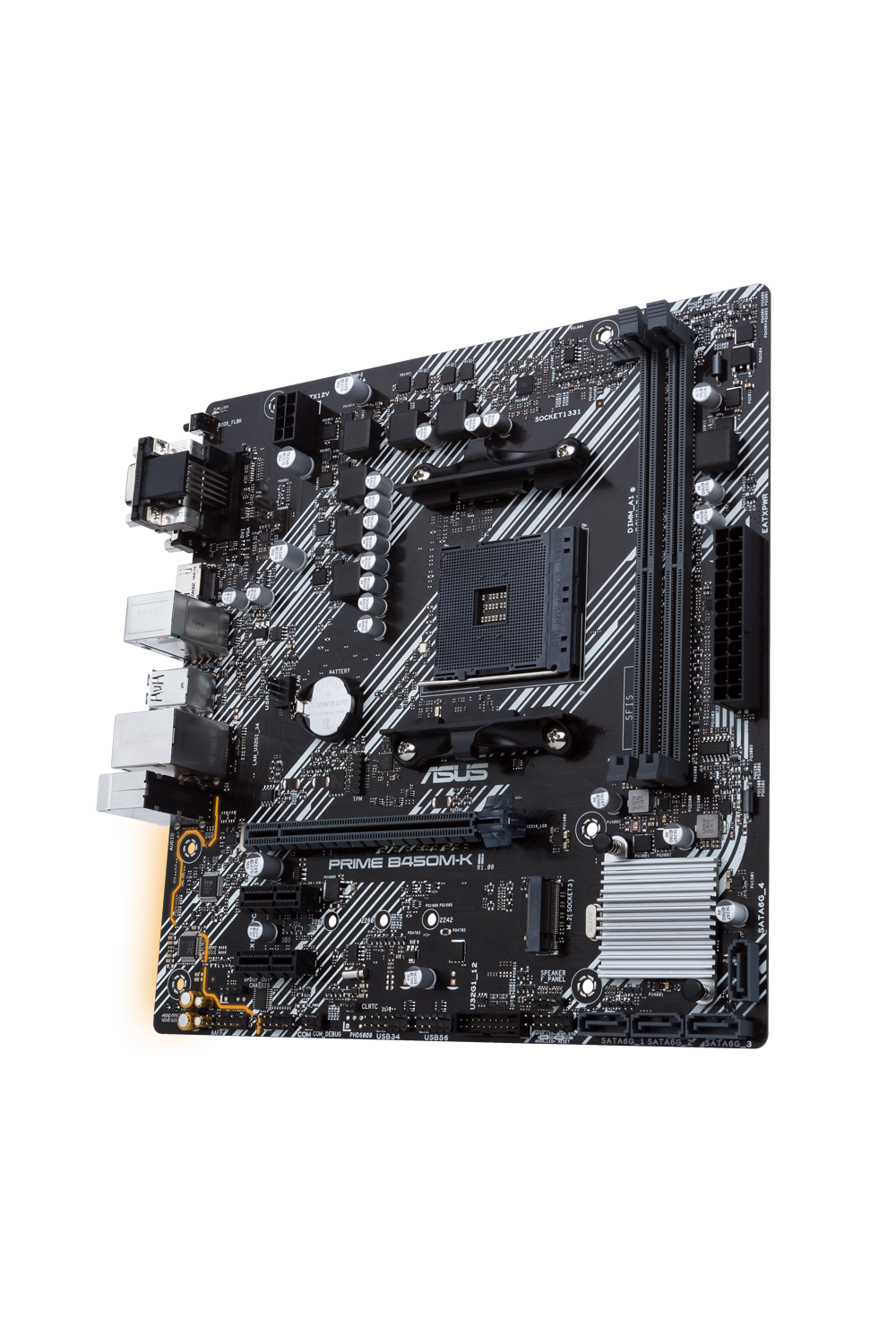

ASUS PRIME B450M-K II Motherboard

  • Model:PRIME B450M-K II
  • Compatible with AMD Ryzen AM4 processors
  • AMD B450 chipset, Micro ATX form factor
  • Supports DDR4 memory and M.2 SSDs
  • Includes USB 3.2 Gen1, HDMI, DVI-D ports
  • 3 Years Warranty from ASUS
₹ 5,300
Next Day Dispatch
1
Model
PRIME B450M-K II
CPU
* Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset
AMD B450
Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *, **3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors**,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.
Graphic
1 x HDMI™ port,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *,*Graphics specifications may vary between CPU types.
Expansion Slots
**3rd/2nd/1st Gen AMD Ryzen™ Processors**,1 x PCIe 3.0 x16 (x4 mode), **AMD B450 chipset**,1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), **AMD Athlon™ with Radeon™ Vega Graphics Processors**,2 x PCIe 2.0 x1
Storage
**Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports**, **Athlon™ with Radeon™ Vega Graphics Processors :**, **3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :**, **AMD B450 chipset :**,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode),4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN
ASUS LANGuard,Realtek® RTL8111H
Audio
Realtek ALC887/8977.1-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, **Audio Feature :**,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
**Front USB Port** ( Total 6 ), **Rear USB Port** ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s)
Software Features
ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance and Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan XpertPC Cleaner- EZ update- System InformationASUS CPU-ZAI ChargerASUS EZ InstallerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRAR
UEFI BIOS
ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button- BIOS FlashBack™ LED

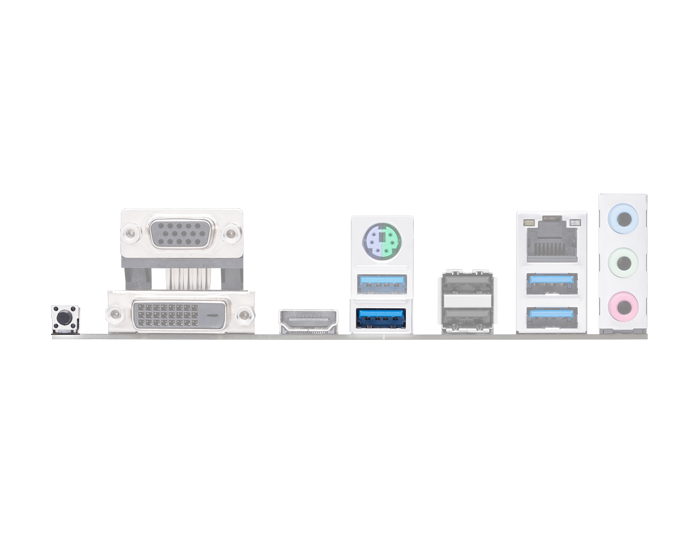

Back I/O Ports
1 x BIOS FlashBack™ Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports
1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),1 x CPU Fan connector(s) (1 x 4-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x Speaker connector,1 x Chassis Fan connector(s) (1 x 4-pin)
Accessories
2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Anchor,1 x Supporting DVD,2 x SATA 6Gb/s cable(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows® 7 64-bit *,Windows® 10 64-bit
Form Factor
mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Note
*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
