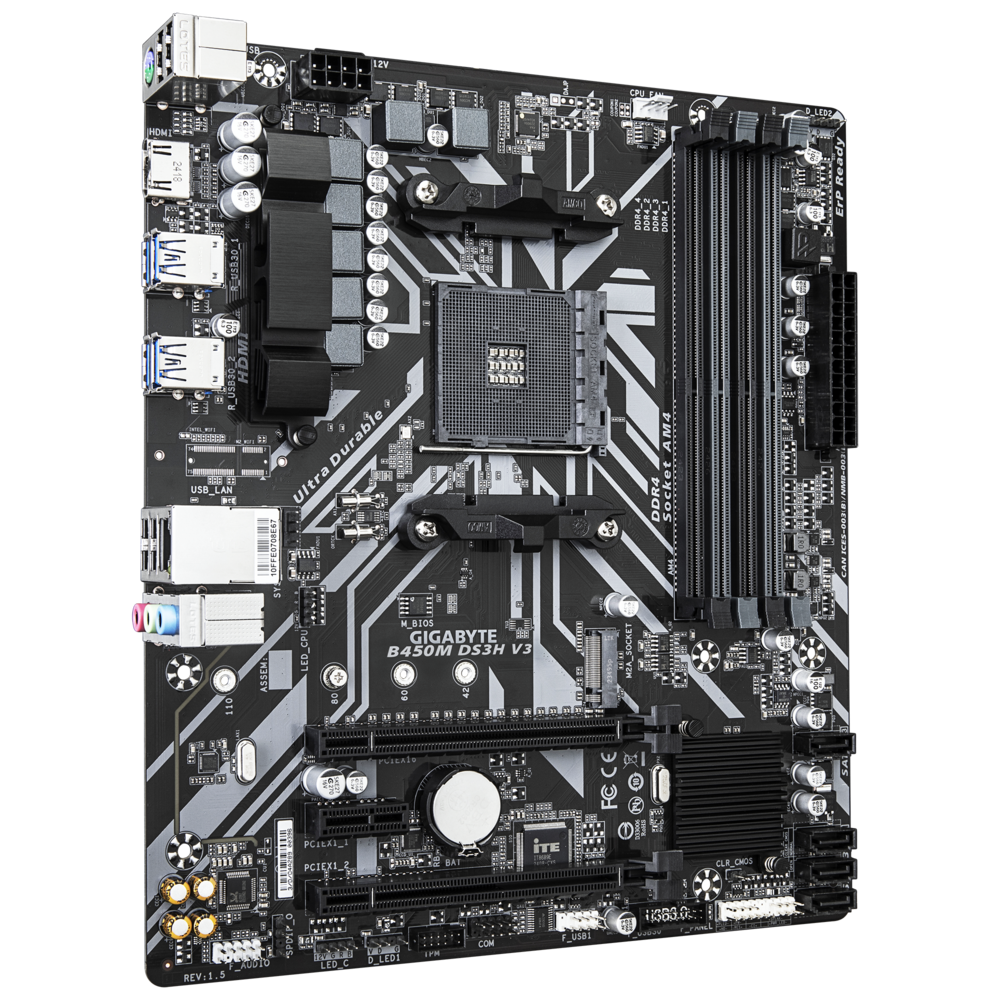

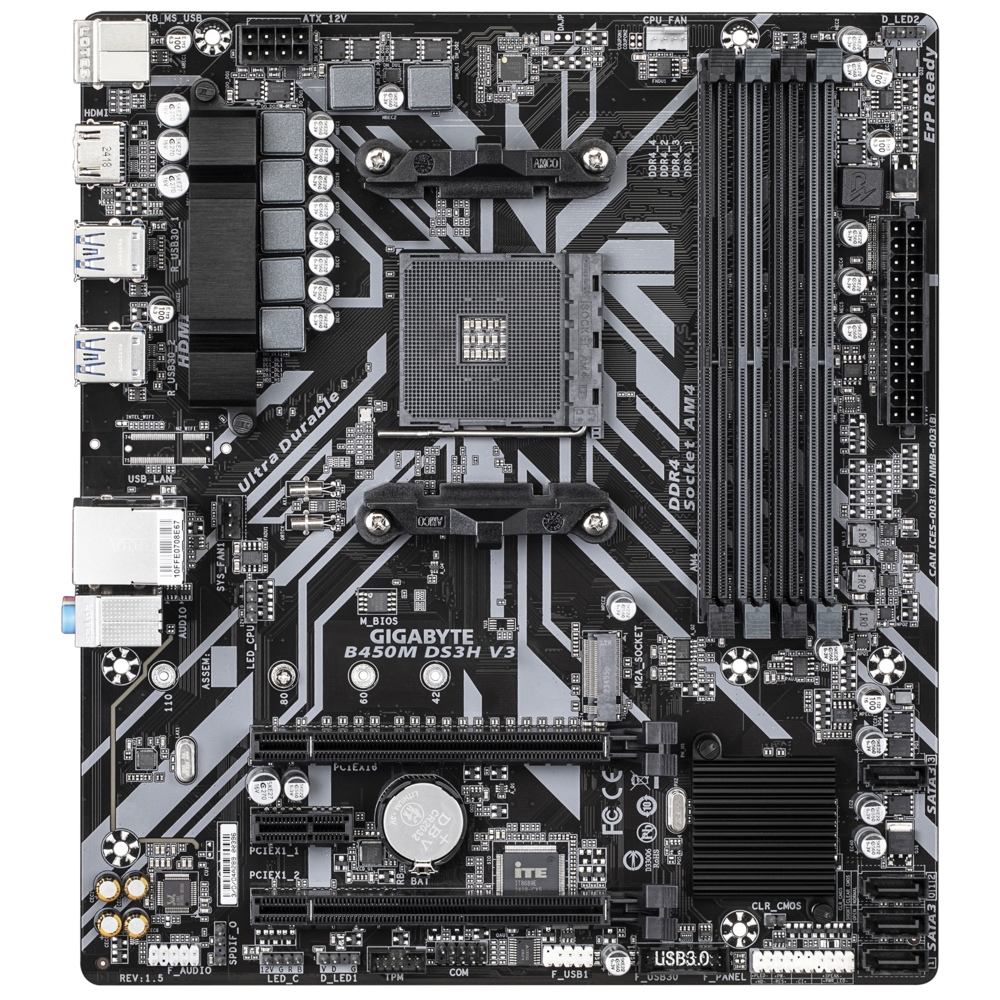

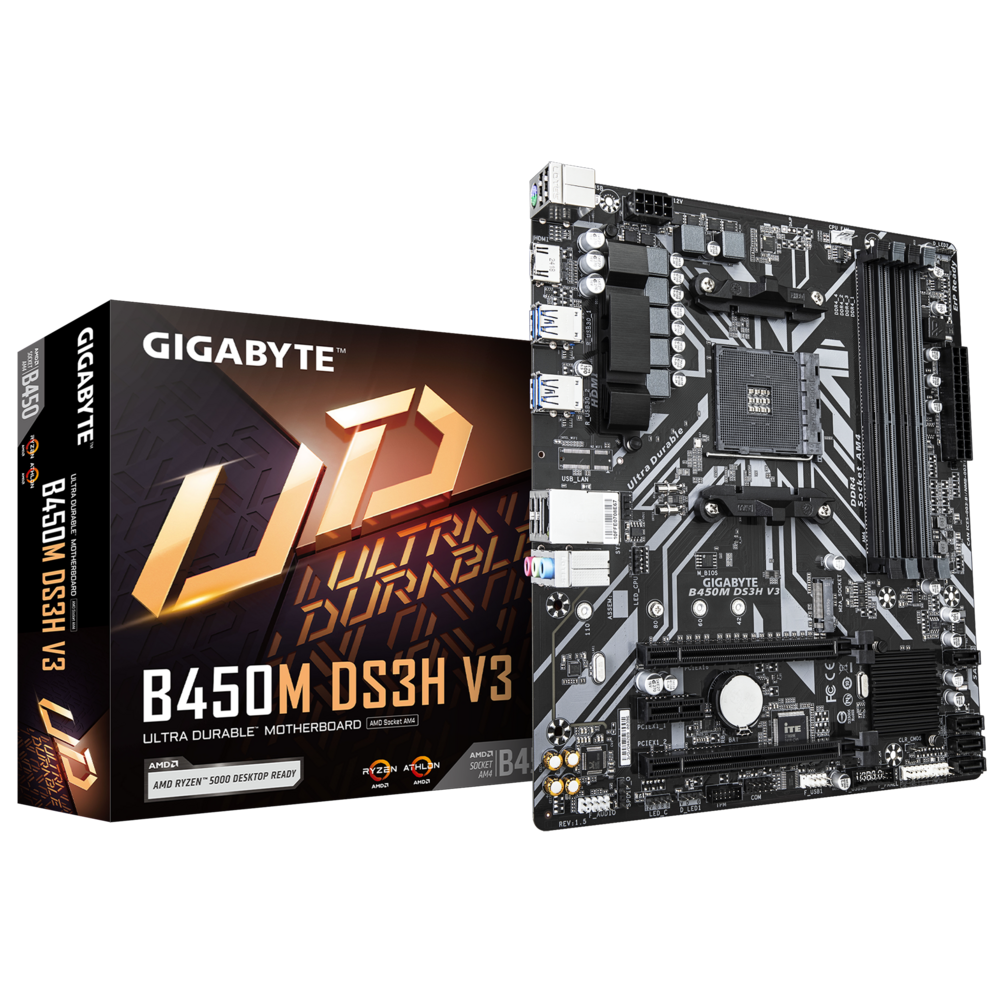

Gigabyte B450M DS3H V3 Motherboard
  • Model:B450M DS3H V3
  • Supports AMD Ryzen 5000/3000/2000 CPUs
  • AMD B450 chipset, AM4 socket, Micro-ATX
  • Dual channel DDR4, 4 DIMMs supported
  • PCIe Gen3, M.2, RGB Fusion 2.0, USB 3.1
  • 3 Years Warranty from Gigabyte
₹ 6,650
Next Day Dispatch
1
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory (continued)
Dual channel memory architecture
Memory (continued)
Support for DDR4 2933/2667/2400/2133 MT/s memory modules
Memory (continued)
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory (continued)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory (continued)
Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Note) * Support for HDMI 2.1 version and HDCP 2.2. (Note) Maximum shared memory of 16 GB (Note) Actual support may vary by CPU.
Audio
Realtek® Audio codec
Audio (continued)
High Definition Audio
Audio (continued)
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio (continued)
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Expansion Slots (continued)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
Expansion Slots (continued)
1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU.
Storage Interface
1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) * Actual support may vary by CPU.
Storage Interface (continued)
4 x SATA 6Gb/s connectors
Storage Interface (continued)
Support for RAID 0, RAID 1, and RAID 10
USB (Chipset)
2 x USB 3.1 Gen 1 ports available through the internal USB header
USB (Chipset)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
USB (CPU)
4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors (continued)
1 x 8-pin ATX 12V power connector
Internal I/O Connectors (continued)
1 x CPU fan header
Internal I/O Connectors (continued)
1 x system fan header
Internal I/O Connectors (continued)
1 x CPU cooler LED strip/RGB LED strip header
Internal I/O Connectors (continued)
1 x RGB LED strip header
Internal I/O Connectors (continued)
2 x addressable LED strip headers
Internal I/O Connectors (continued)
1 x M.2 Socket 3 connector
Internal I/O Connectors (continued)
4 x SATA 6Gb/s connectors
Internal I/O Connectors (continued)
1 x front panel header
Internal I/O Connectors (continued)
1 x front panel audio header
Internal I/O Connectors (continued)
1 x S/PDIF Out header
Internal I/O Connectors (continued)
1 x USB 3.1 Gen 1 header
Internal I/O Connectors (continued)
1 x USB 2.0/1.1 header
Internal I/O Connectors (continued)
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Internal I/O Connectors (continued)
1 x serial port header
Internal I/O Connectors (continued)
1 x Clear CMOS jumper

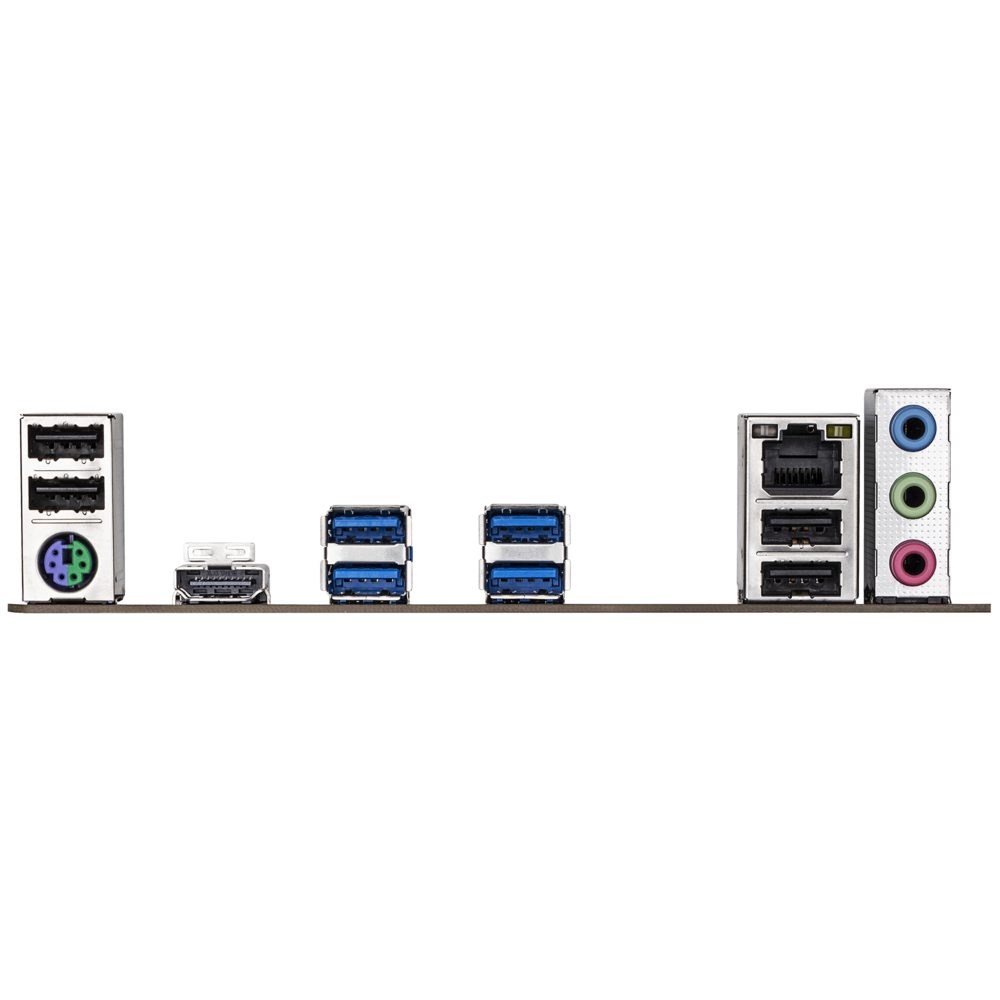

Back Panel Connectors
1 x PS/2 keyboard/mouse port
Back Panel Connectors (continued)
1 x HDMI port
Back Panel Connectors (continued)
4 x USB 3.1 Gen 1 ports
Back Panel Connectors (continued)
4 x USB 2.0/1.1 ports
Back Panel Connectors (continued)
1 x RJ-45 port
Back Panel Connectors (continued)
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring (continued)
Temperature detection
H/W Monitoring (continued)
Fan speed detection
H/W Monitoring (continued)
Overheating warning
H/W Monitoring (continued)
Fan fail warning
H/W Monitoring (continued)
Fan speed control *Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
BIOS (continued)
Use of licensed AMI UEFI BIOS
BIOS (continued)
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot RGB Fusion Smart Backup System Information Viewer
Unique Features (continued)
Support for Q-Flash
Unique Features (continued)
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software (continued)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System (continued)
Support for Windows 10 64-bit
Operating System (continued)
Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark (continued)
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
