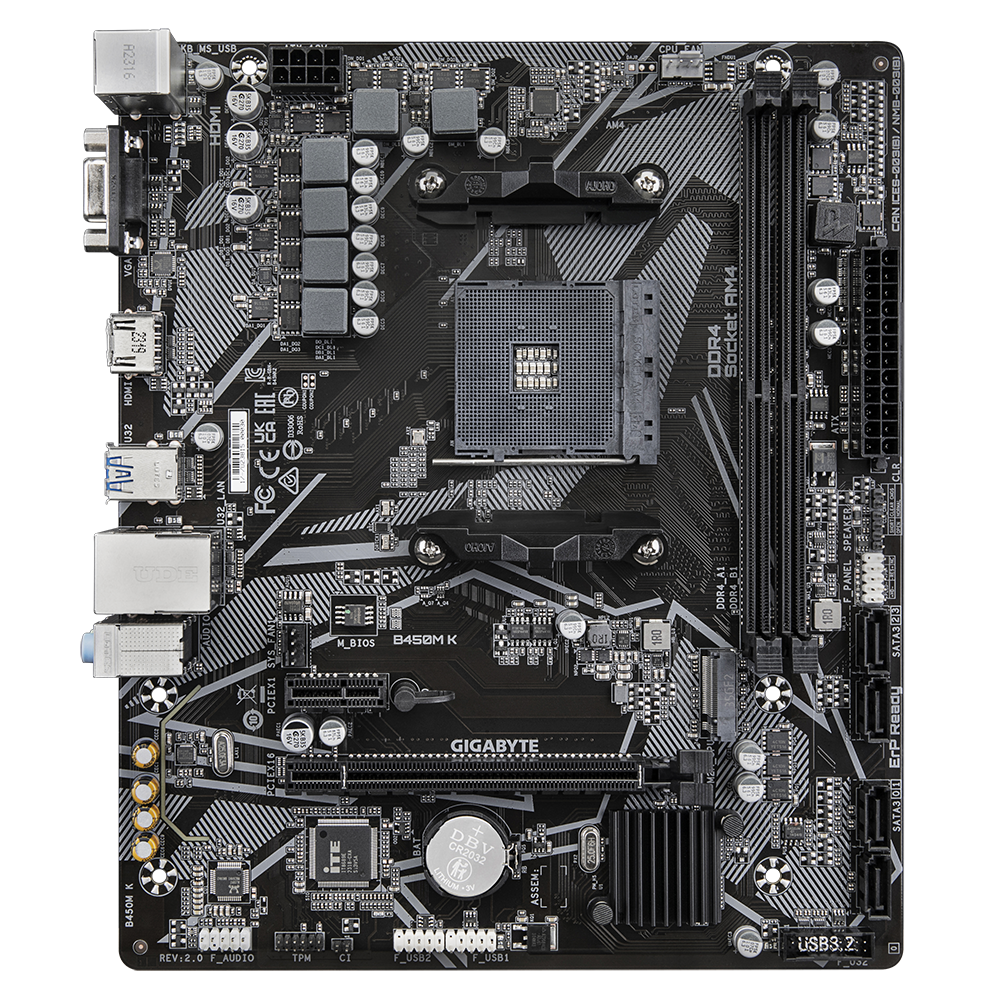

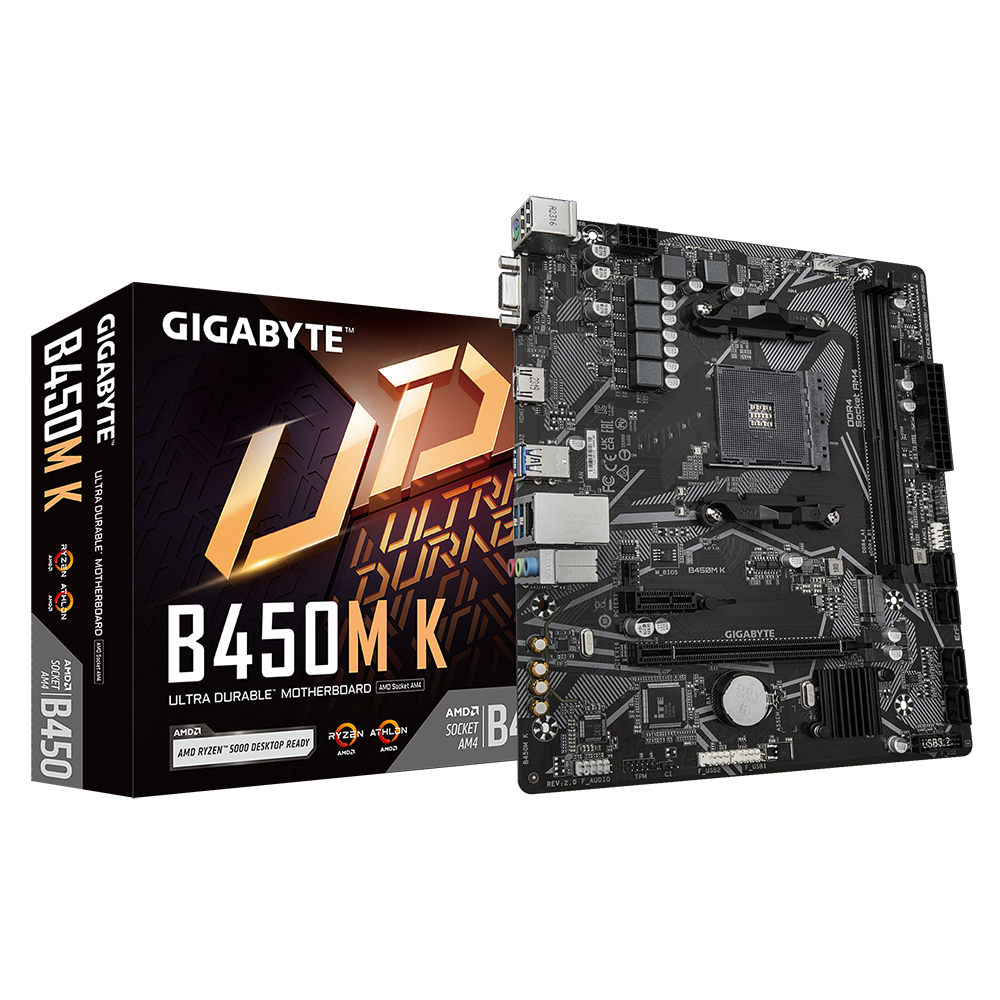

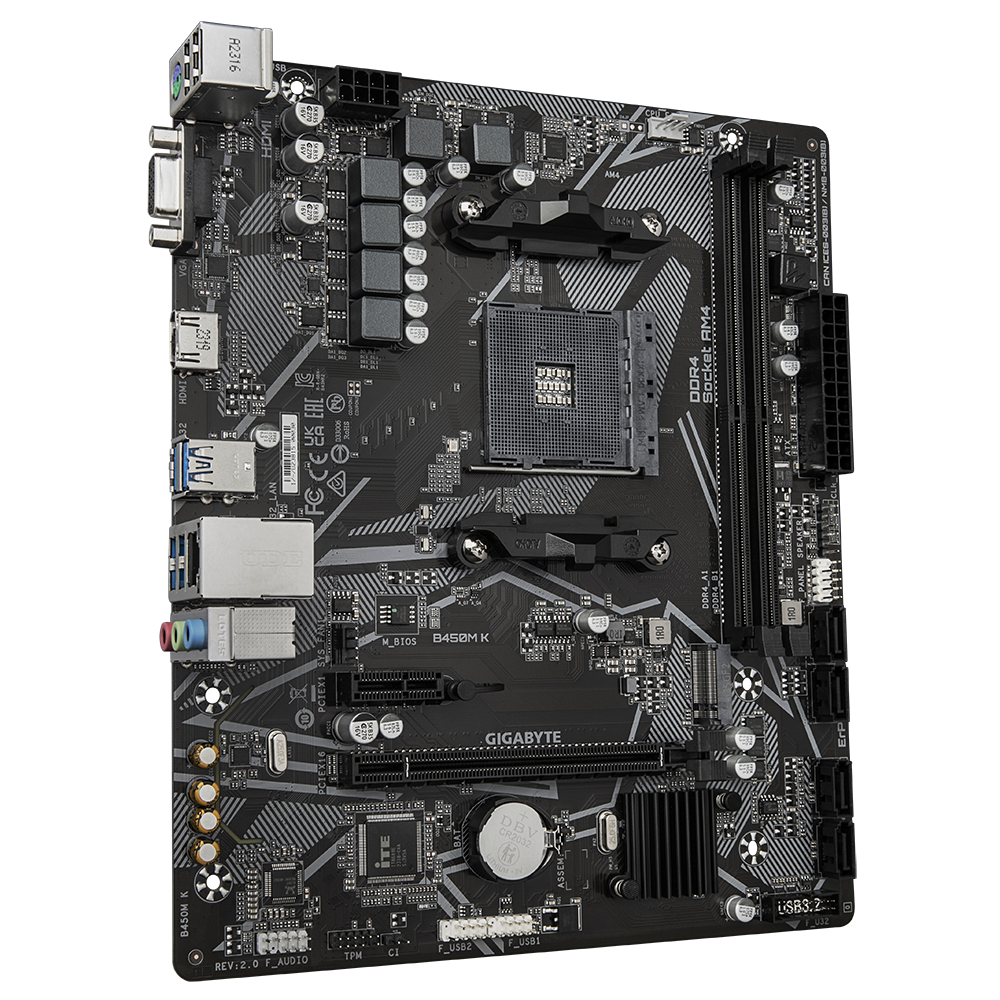

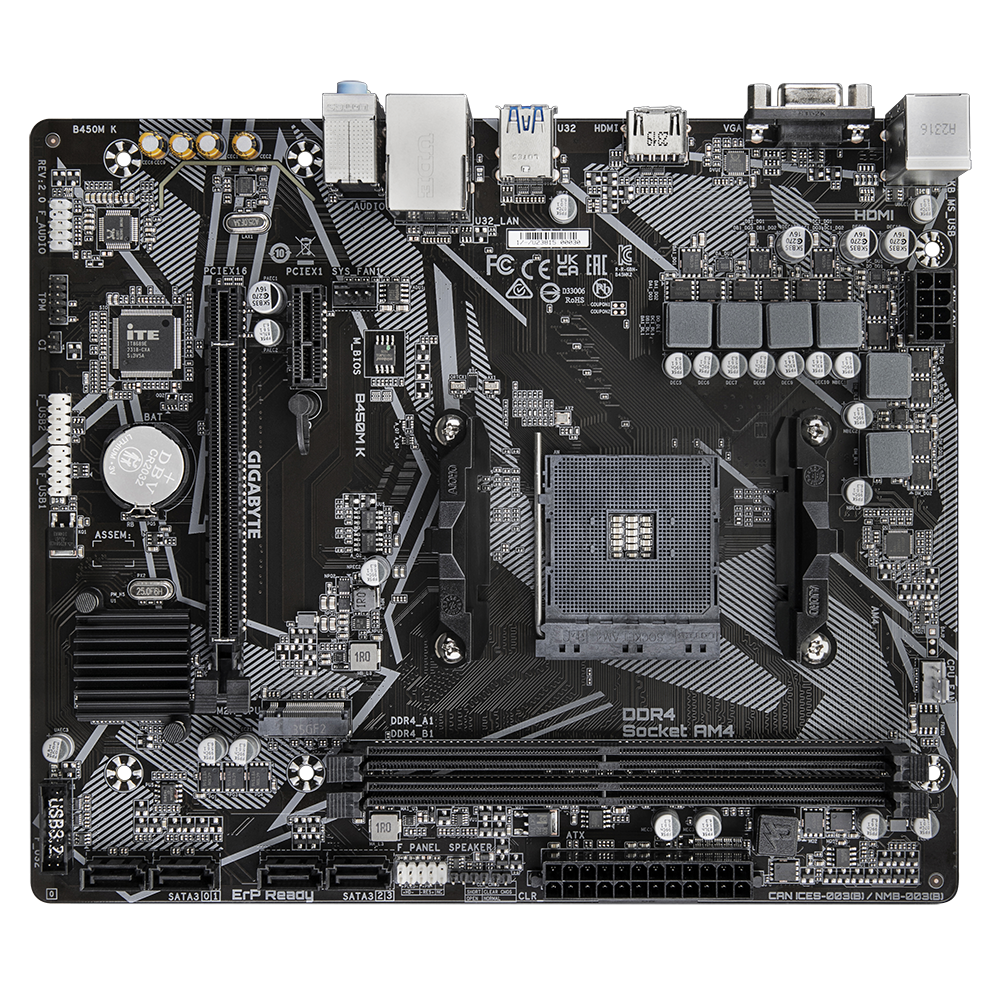

Gigabyte B450M K Motherboard
  • Model:B450M K
  • Supports AMD Ryzen 5000/3000/2000
  • AMD B450, AM4, Micro-ATX Form Factor
  • Dual Channel DDR4, 2 DIMMs
  • PCIe Gen3 M.2, GbE LAN, USB 3.2
  • 3 Years Warranty from Gigabyte
₹ 5,650
Next Day Dispatch
1
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics - Integrated Graphics Processor
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Onboard Graphics - Integrated Graphics Processor
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Onboard Graphics
Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel (* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots - CPU
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Expansion Slots - Chipset
1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
Storage Interface - CPU
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Storage Interface - Chipset
4 x SATA 6Gb/s connectors
Storage Interface
Support for RAID 0, RAID 1, and RAID 10
USB - CPU
4 x USB 3.2 Gen 1 ports on the back panel
USB - Chipset
2 x USB 3.2 Gen 1 ports available through the internal USB header
USB - Chipset
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Internal I/O Connectors
1 x speaker header
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
1 x chassis intrusion header

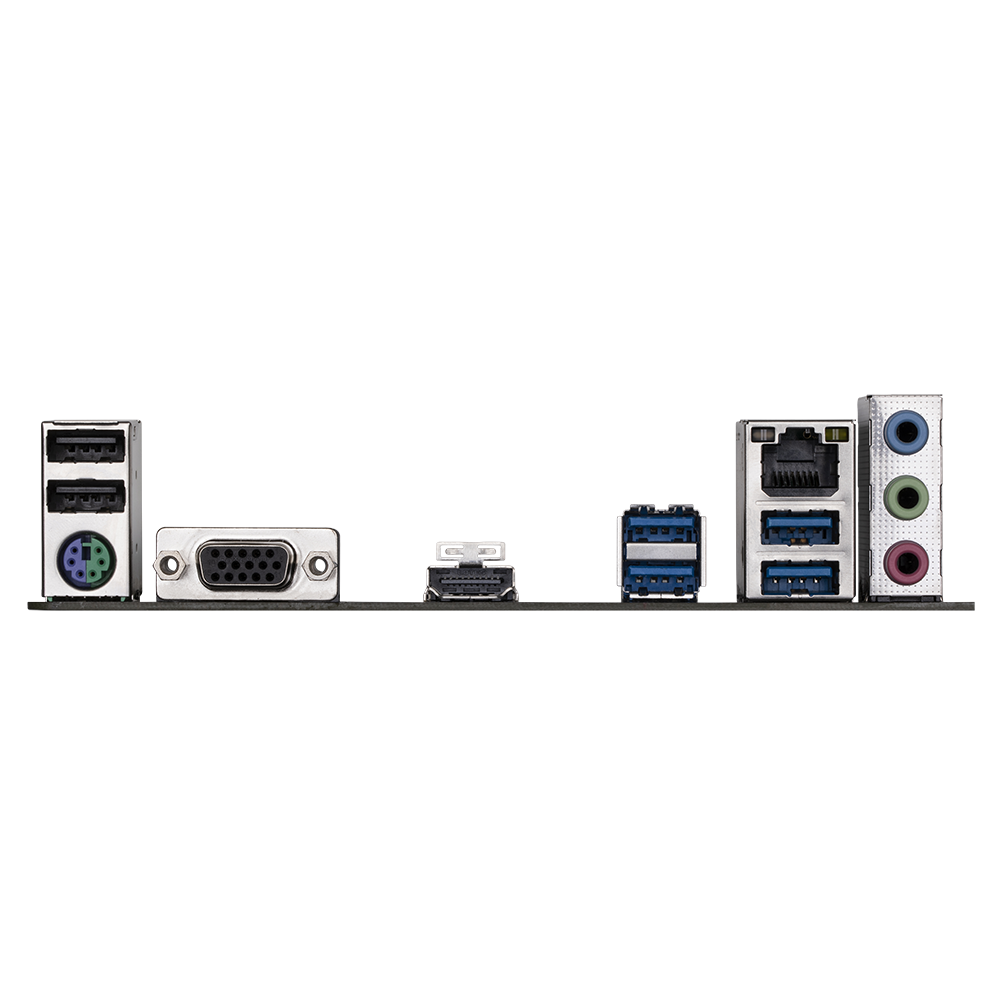

Back Panel Connectors
1 x PS/2 keyboard/mouse port
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
4 x USB 3.2 Gen 1 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control (* Whether the fan speed control function is supported will depend on the fan you install.)
BIOS
1 x 128 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center (* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)
Unique Features
@BIOS
Unique Features
EasyTune
Unique Features
Smart Backup
Unique Features
System Information Viewer
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Operating System
Support for Windows 7 64-bit (* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.)
Form Factor
Form Factor Š Micro ATX Form Factor; 23.3cm x 19.8cm
