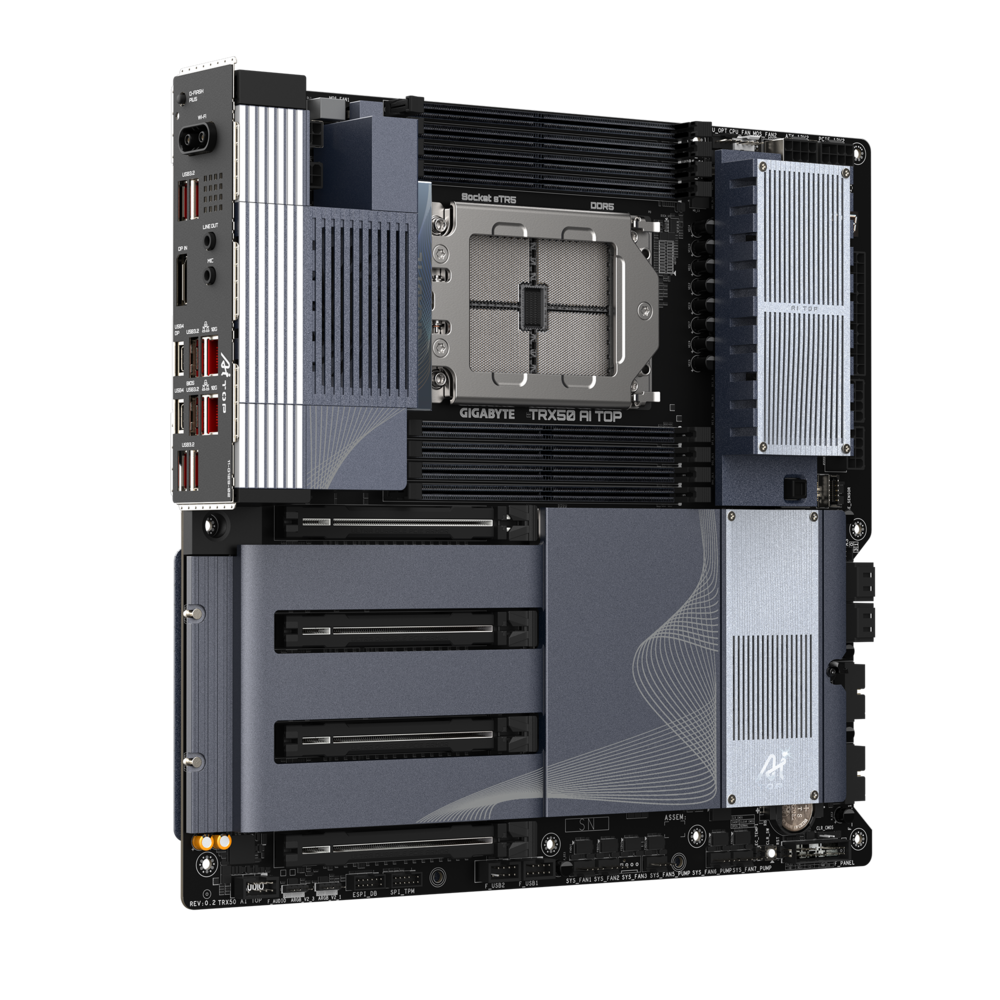

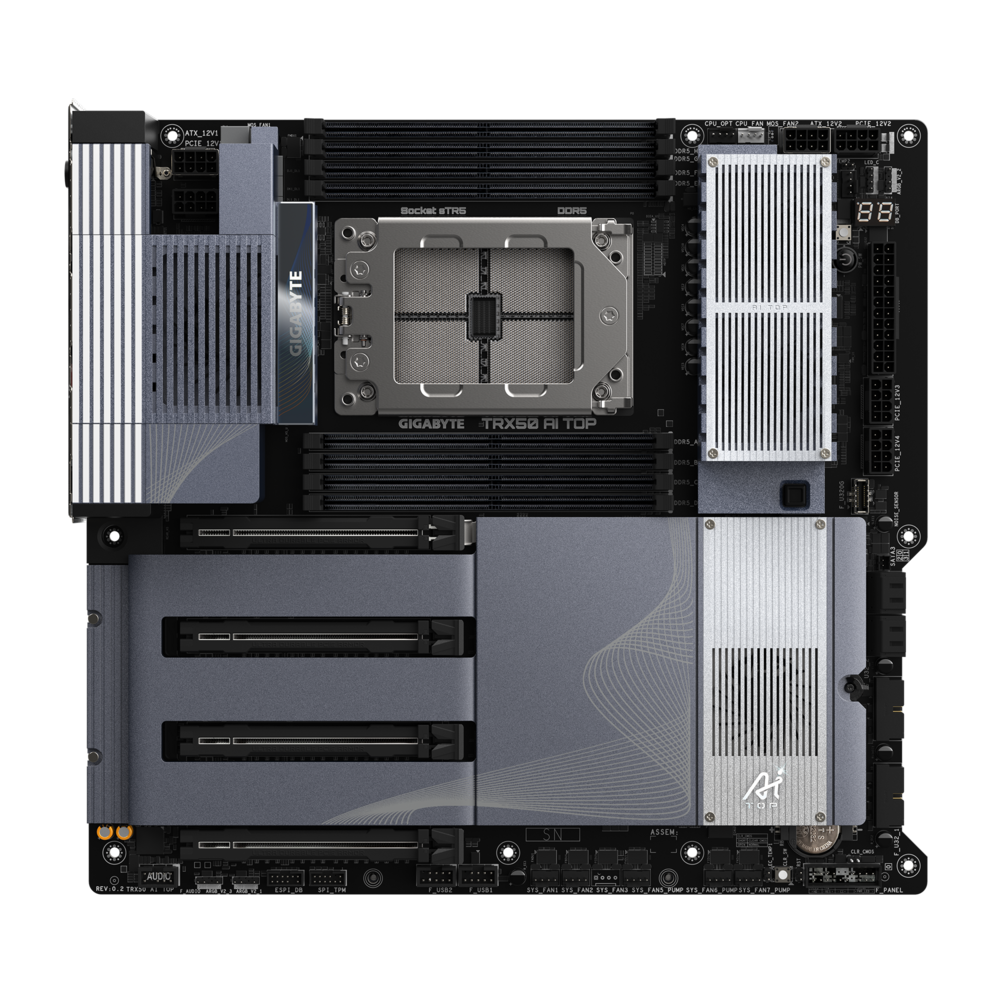

Gigabyte TRX50 AI TOP Motherboard
  • Model:TRX50 AI TOP
  • Supports AMD Ryzen Threadripper 7000 CPUs
  • AMD TRX50 chipset, sTR5 socket, EATX Form Factor
  • 8x DDR5 ECC R-DIMM, up to 2TB Memory
  • 4x PCIe 5.0 x16, WiFi 7, Dual 10GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 1,02,100
Next Day Dispatch
1
CPU
AMD Socket sTR5, support for:AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/AMD Ryzen™ Threadripper™ 9000 Series Processors/AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/AMD Ryzen™ Threadripper™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD TRX50
Memory
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)8 x DDR5 DIMM sockets supporting up to 2 TB of system memory- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture- AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architectureSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
Realtek® ALC4080 CODEC (rear panel audio)- Support for DTS:X® Ultra- High Definition Audio- 2-channelRealtek® ALC897 CODEC (front panel audio)
LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode- AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support PCIe 5.0 x16 mode(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode- AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x16 mode
Storage Interface
3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x4/x2 SSD- AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x4/x2 SSD1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x4/x2 SSD* The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 9000/7000 Series Processors.4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0 and RAID 1 support for SATA storage devices
USB
CPU:- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+Intel® USB4® controller:- 2 x USB4® USB Type-C® ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports available through the internal USB headersChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors4 x PCIe power connectors1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers4 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x power button1 x Clear CMOS button1 x reset button1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumper

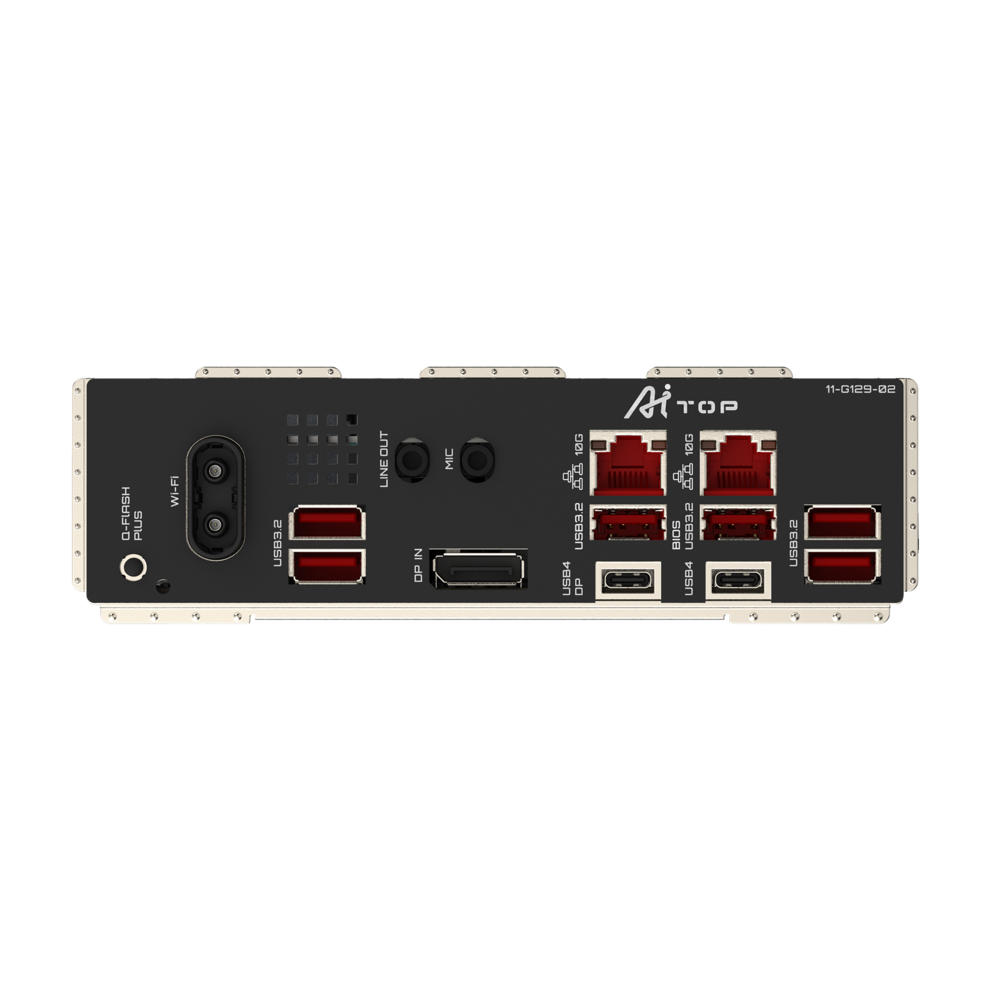

Back Panel Connectors
1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x DisplayPort In port1 x USB4® USB Type-C® port (DisplayPort)1 x USB4® USB Type-C® port6 x USB 3.2 Gen 2 Type-A ports (red)2 x RJ-45 port2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Ubuntu 24.04 LTS
Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm
