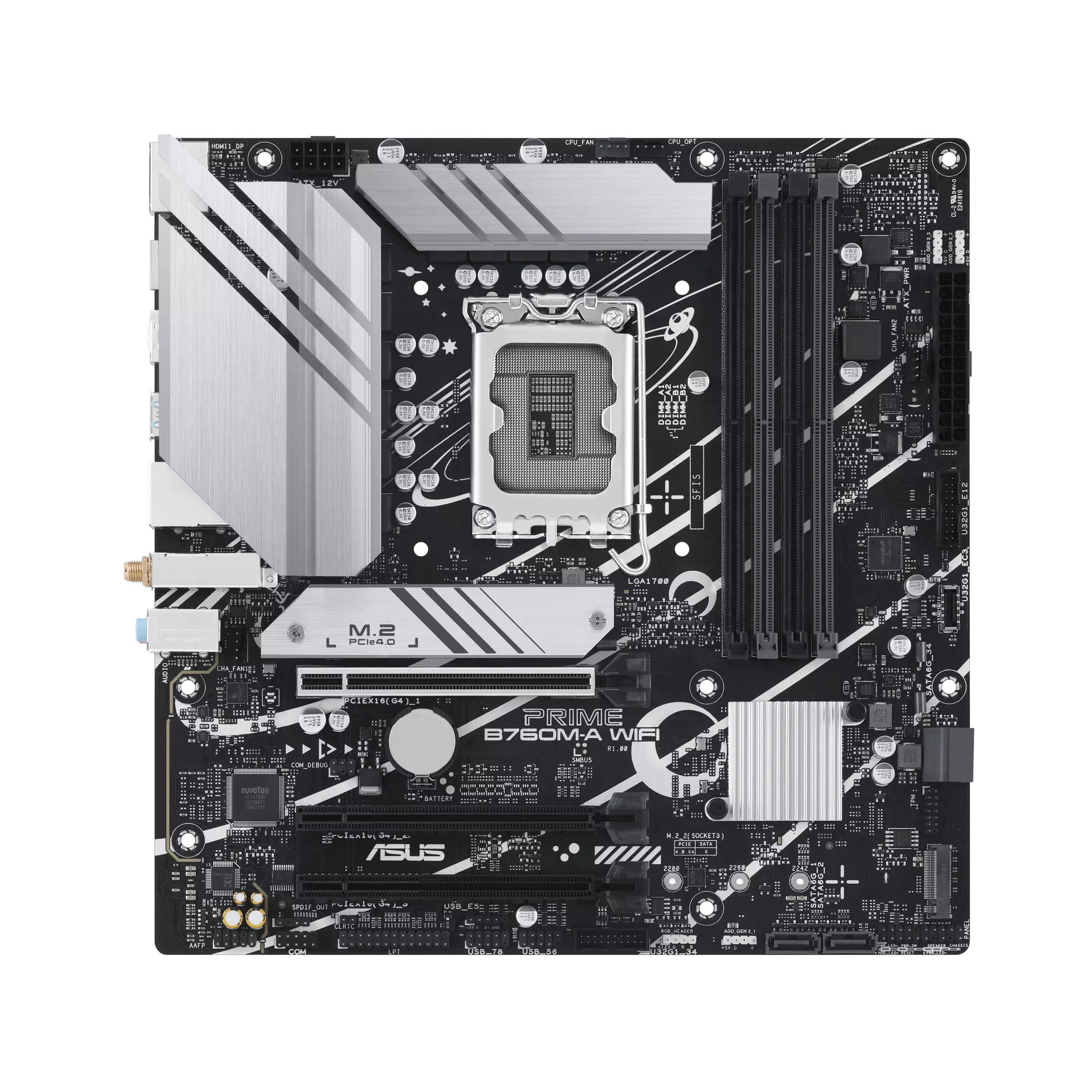

ASUS PRIME B760M-A WIFI Motherboard
  • Model:PRIME B760M-A WIFI
  • Supports 13th & 12th Gen Intel Core processors
  • Intel B760 chipset, LGA 1700 socket, mATX
  • DDR5 memory support, dual channel
  • WiFi 6, PCIe 4.0, two M.2, USB 3.2 Gen 2
  • 3 Years Warranty from ASUS
₹ 15,200
Next Day Dispatch
1
Model
PRIME B760M-A WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
CPU - Intel® Turbo Boost Technology
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Notes
*Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Memory - Channel Architecture
Dual Channel Memory Architecture
Memory - Intel® Extreme Memory Profile (XMP)
Supports Intel® Extreme Memory Profile (XMP)
Memory - OptiMem
OptiMem II
Memory Notes
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 2 x HDMI™ ports***
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI™ 2.1.
Expansion Slots (Intel® Core™ Processors 14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Expansion Slots (Intel® B760 Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
Expansion Slots Notes
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage - Total
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Storage (Intel® Core™ Processors 14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (Intel® B760 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Storage Notes
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2*
Wireless & Bluetooth Note
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB - Rear
2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A)
USB - Front
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Audio Notes
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI™ ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors - Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power related
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Internal I/O Connectors - Storage related
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Special Features - ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O
Special Features - ASUS Q-Design
- Q-DIMM - Q-LED Core - Q-Slot
Special Features - ASUS Thermal Solution
- M.2 heatsink - VRM heatsink design
Special Features - ASUS EZ DIY
- ProCool
Special Features - Aura Sync
- Aura RGB header - Addressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Deluxe (60 Days Free Trial) WinRAR
Software Features - UEFI BIOS
ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD
Accessories - Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
