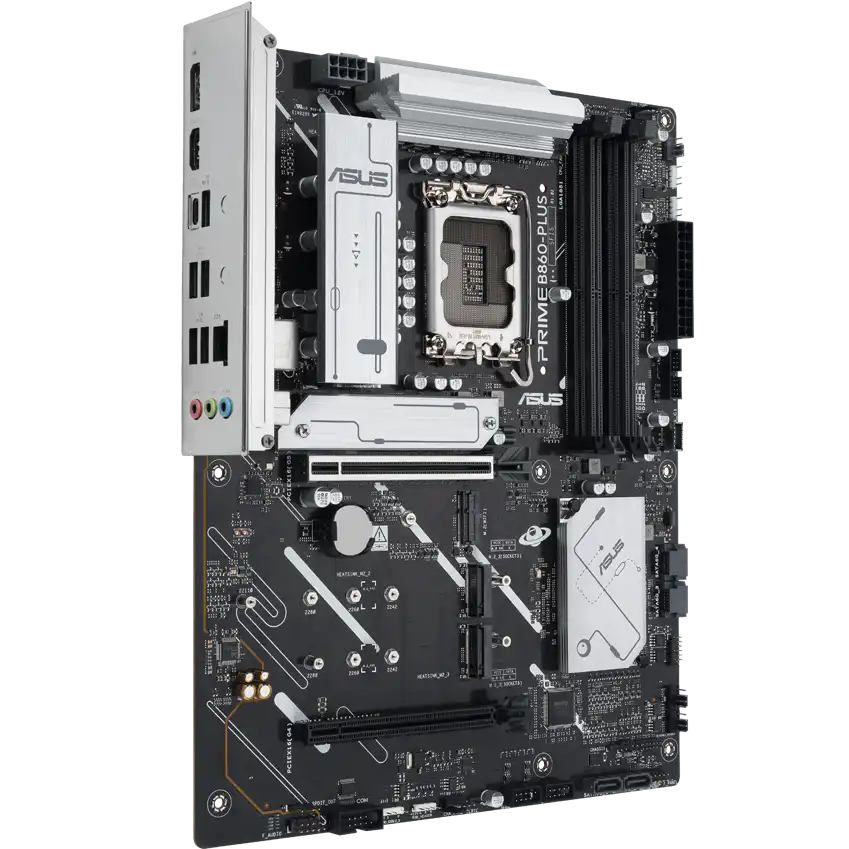

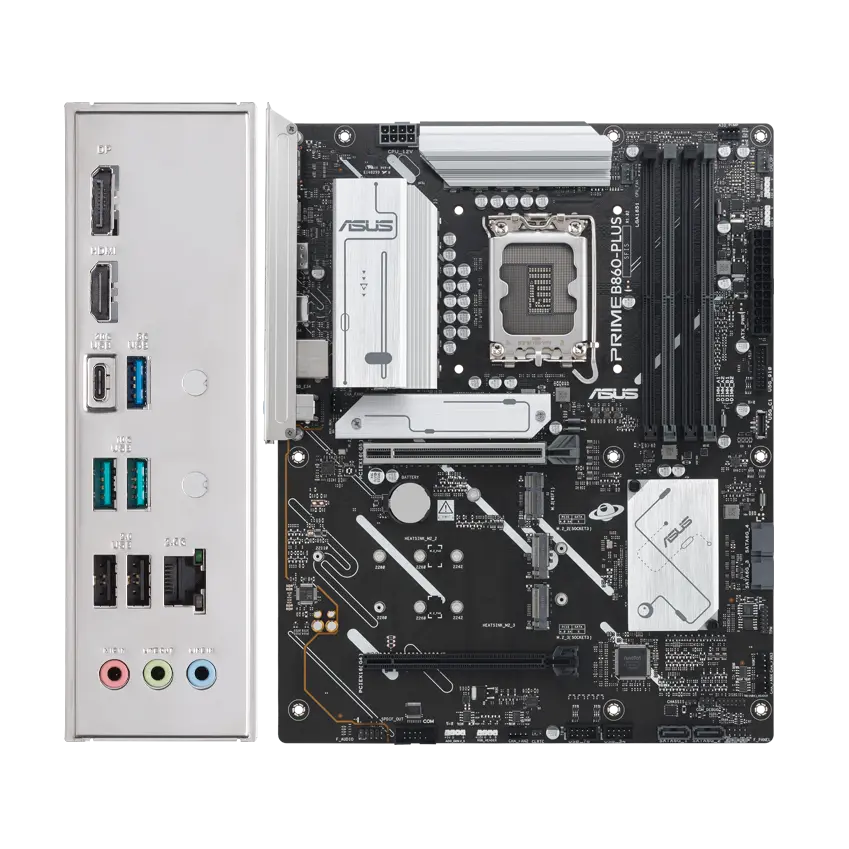

ASUS PRIME B860-PLUS-CSM Motherboard
  • Model:PRIME B860-PLUS-CSM
  • Supports Intel Core Ultra processors
  • Intel B860 chipset, LGA1851 socket, ATX form
  • DDR5 memory, dual channel support
  • PCIe 5.0, USB-C, 2.5Gb Ethernet, 3x M.2 slots
  • 3 Years Warranty from ASUS
₹ 17,000
Next Day Dispatch
1
Model
PRIME B860-PLUS-CSM
CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
CPU Technologies Supported
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® B860 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile
ASUS Enhanced Memory Profile III (AEMP III)
Graphics Output
1 x DisplayPort**
Graphics Output
1 x HDMI™ port***
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot (Intel® Core™ Ultra Processors (Series 2)*)
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode) (Intel® B860 Chipset)
Storage (Total Supported)
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (CPU)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) (Intel® Core™ Ultra Processors (Series 2)*)
Storage (Chipset)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) (Intel® B860 Chipset)
Storage (Chipset)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) (Intel® B860 Chipset)
Storage (SATA)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
Ethernet Features
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
Rear USB Ports
1 x USB 20Gbps port (1 x USB Type-C®)
Rear USB Ports
2 x USB 10Gbps ports (2 x Type-A)
Rear USB Ports
1 x USB 5Gbps port (1 x Type-A)
Rear USB Ports
2x USB 2.0 ports (2 x Type-A)
Front USB Ports
1 x USB 5Gbps port (1 x USB Type-C®)
Front USB Ports
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
Front USB Ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Playback
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
Back Panel I/O Ports
1 x USB 5Gbps port (1 x Type-A)
Back Panel I/O Ports
2 x USB 2.0 ports (2 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Realtek 2.5Gb Ethernet port
Back Panel I/O Ports
3 x Audio jacks
Internal I/O Connectors (Fan/Cooling)
1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power)
1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector
Internal I/O Connectors (Storage)
3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 header support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin Front System Panel header, 1 x Thunderbolt™ (USB4®) header
Special Features (ASUS 5X PROTECTION III)
DIGI+ VRM (Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O
Special Features (ASUS Q-Design)
Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
Special Features (ASUS Thermal Solution)
Flexible M.2 heatsink, VRM heatsink design
Special Features (ASUS EZ DIY)
ProCool, Pre-mounted I/O shield
Special Features (Aura Sync)
Aura RGB header, Addressable Gen 2 headers
Software Features (ASUS Exclusive Software)
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, ASUS AI Advisor, ASUS DriverHub, ASUS CPU-Z, Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Screw package for M.2 Key E
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows 11  (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
