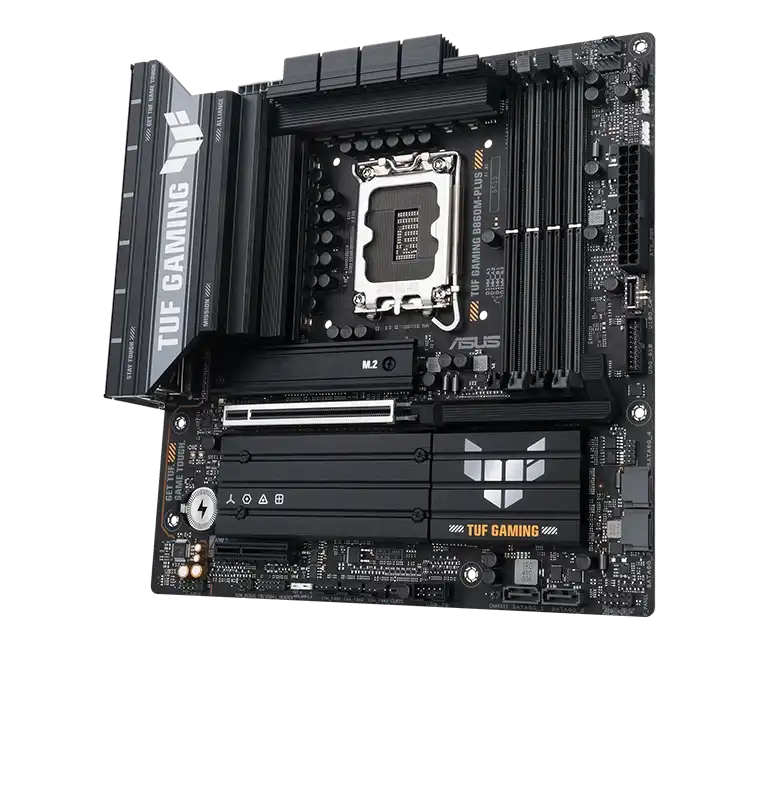

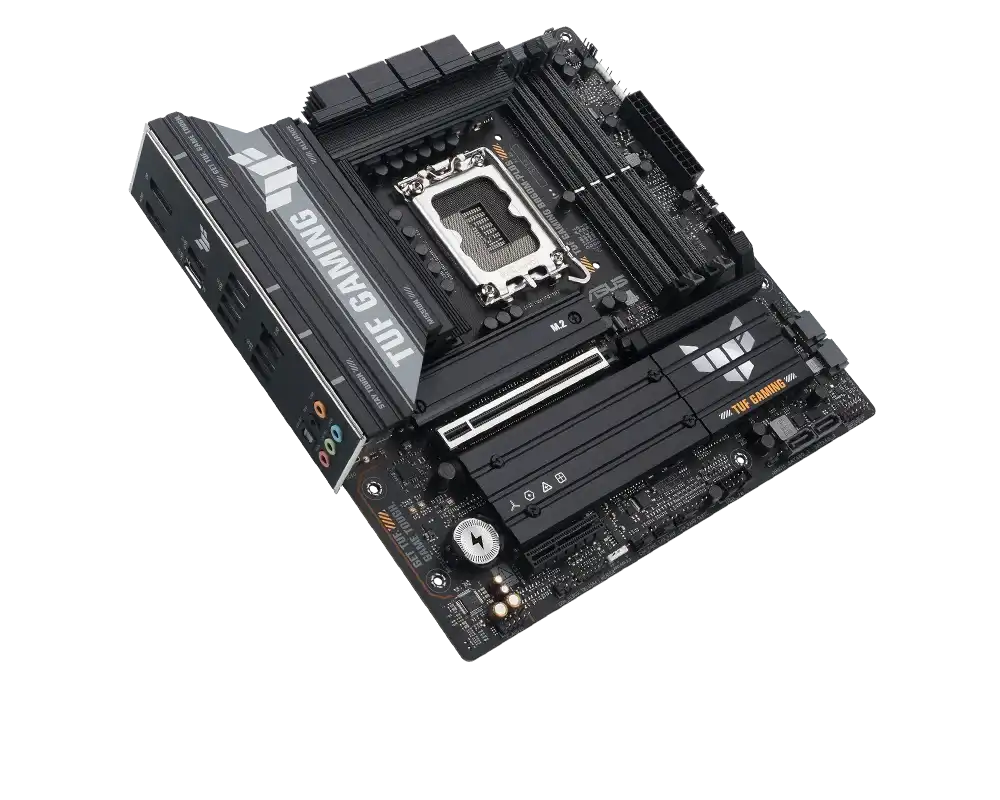

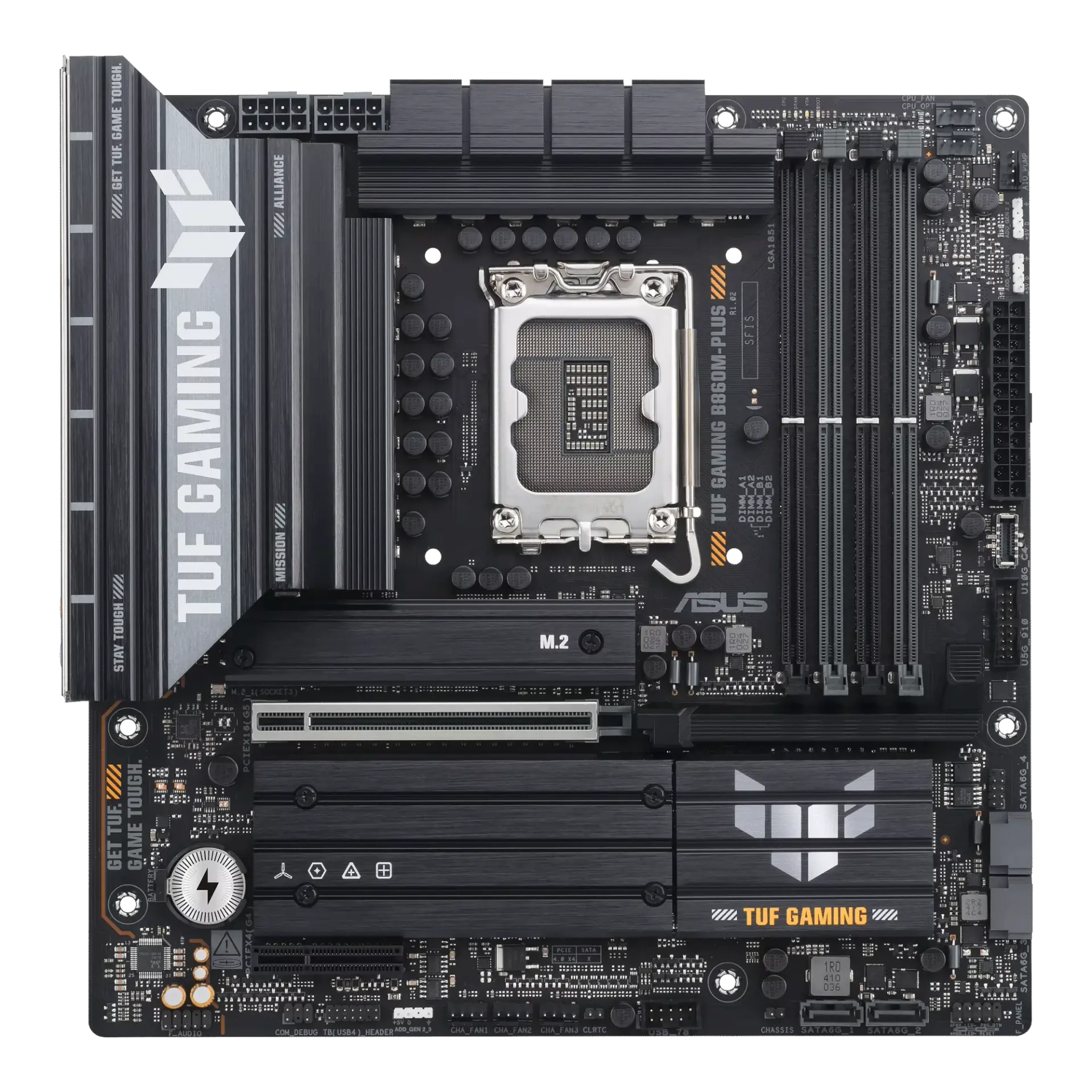

ASUS TUF GAMING B860M-PLUS Motherboard
  • Model:TUF GAMING B860M-PLUS
  • Supports Intel Core Ultra 200 Series processors
  • Intel B860 chipset, LGA 1700 socket, Micro-ATX
  • 4 x DDR5 DIMMs, dual channel, up to 8800+ MT/s
  • PCIe 5.0, USB 20Gbps Type-C, 2.5Gb Ethernet
  • 3 Years Warranty from ASUS
₹ 21,100
Next Day Dispatch
1
Model
TUF GAMING B860M-PLUS
CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Memory
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory
Dual Channel Memory Architecture
Memory
DIMM Fit
Memory
Supports Intel® Extreme Memory Profile (XMP) memory module
Memory
ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
1 x DisplayPort**
Graphics
1 x HDMI™ port***
Graphics
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
Expansion Slots (Intel® CoreTM Ultra Processors(Series 2)*)
1 x PCIe 5.0 x16 slot
Expansion Slots (Intel® B860 Chipset)
1 x PCIe 4.0 x4 slot
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (Intel® CoreTM Ultra Processors(Series 2)*)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Storage (Intel® B860 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (Intel® B860 Chipset)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
Ethernet
TUF LANGuard
USB (Rear USB - Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
USB (Rear USB - Total 8 ports)
2 x USB 10Gbps port (2 x Type-A)
USB (Rear USB - Total 8 ports)
4 x USB 5Gbps ports (4 x Type-A)
USB (Rear USB - Total 8 ports)
1 x USB 2.0 ports (1 x Type-A)
USB (Front USB - Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
USB (Front USB - Total 8 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
USB (Front USB - Total 8 ports)
1 x USB 2.0 headers support 2 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Audio Features
Rear optical S/PDIF out port
Audio Features
Premium audio capacitors
Audio Features
Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Back Panel I/O Ports
2 x USB 10Gbps port (2 x Type-A)
Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
Back Panel I/O Ports
1 x USB 2.0 port (1 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Realtek 2.5Gb Ethernet port
Back Panel I/O Ports
5 x Audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU Fan header
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin AIO Pump header
Internal I/O Connectors (Fan and Cooling related)
3 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power related)
1 x 24-pin Main Power connector
Internal I/O Connectors (Power related)
2 x 8-pin +12V Power connectors
Internal I/O Connectors (Storage related)
3 x M.2 slots (Key M)
Internal I/O Connectors (Storage related)
4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 10Gbps connector (supports USB Type-C® )
Internal I/O Connectors (USB)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Internal I/O Connectors (USB)
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen 2 headers
Internal I/O Connectors (Miscellaneous)
1 x Clear CMOS header
Internal I/O Connectors (Miscellaneous)
1 x Chassis Intrusion header
Internal I/O Connectors (Miscellaneous)
1 x Front panel audio header (F_AUDIO)
Internal I/O Connectors (Miscellaneous)
1 x 10-1 pin Front System Panel header
Internal I/O Connectors (Miscellaneous)
1 x Thunderbolt™ (USB4®) header
Special Features (ASUS TUF PROTECTION)
DIGI+ VRM (- Digital power design with DrMOS)
Special Features (ASUS TUF PROTECTION)
ESD Guards
Special Features (ASUS TUF PROTECTION)
TUF LANGuard
Special Features (ASUS TUF PROTECTION)
Overvoltage Protection
Special Features (ASUS TUF PROTECTION)
SafeSlot
Special Features (ASUS TUF PROTECTION)
Stainless-Steel Back I/O
Special Features (ASUS Q-Design)
M.2 Q-Latch
Special Features (ASUS Q-Design)
PCIe Slot Q-Release
Special Features (ASUS Q-Design)
Q-Dashboard
Special Features (ASUS Q-Design)
Q-DIMM
Special Features (ASUS Q-Design)
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Special Features (ASUS Thermal Solution)
M.2 heatsinks
Special Features (ASUS Thermal Solution)
VRM heatsink design
Special Features (ASUS EZ DIY)
CPU Socket lever protector
Special Features (ASUS EZ DIY)
ProCool
Special Features (ASUS EZ DIY)
Pre-mounted I/O shield
Special Features (ASUS EZ DIY)
SafeDIMM
Special Features (AURA Sync)
Addressable Gen 2 headers
Software Features (ASUS Exclusive Software)
Armoury Crate
Software Features (ASUS Exclusive Software)
AURA Creator
Software Features (ASUS Exclusive Software)
AURA Sync
Software Features (ASUS Exclusive Software)
Fan Xpert 2+
Software Features (ASUS Exclusive Software)
Power Saving
Software Features (ASUS Exclusive Software)
ASUS DriverHub
Software Features (ASUS Exclusive Software)
TurboV Core
Software Features (ASUS Exclusive Software)
TUF GAMING CPU-Z
Software Features (ASUS Exclusive Software)
DTS Audio Processing
Software Features (ASUS Exclusive Software)
Norton 360 for Gamers (60 Days Free Trial)
Software Features (ASUS Exclusive Software)
WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
ASUS EZ DIY
Software Features (UEFI BIOS)
ASUS CrashFree BIOS 3
Software Features (UEFI BIOS)
ASUS EZ Flash
Software Features (UEFI BIOS)
ASUS UEFI BIOS EZ Mode
Software Features (UEFI BIOS)
ASUS MyHotkey
Software Features
NPU Boost
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
2 x M.2 Rubber Packages
Accessories (Miscellaneous)
1 x TUF Gaming sticker
Accessories (Miscellaneous)
1 x Screw package for M.2 SSD
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor
Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
