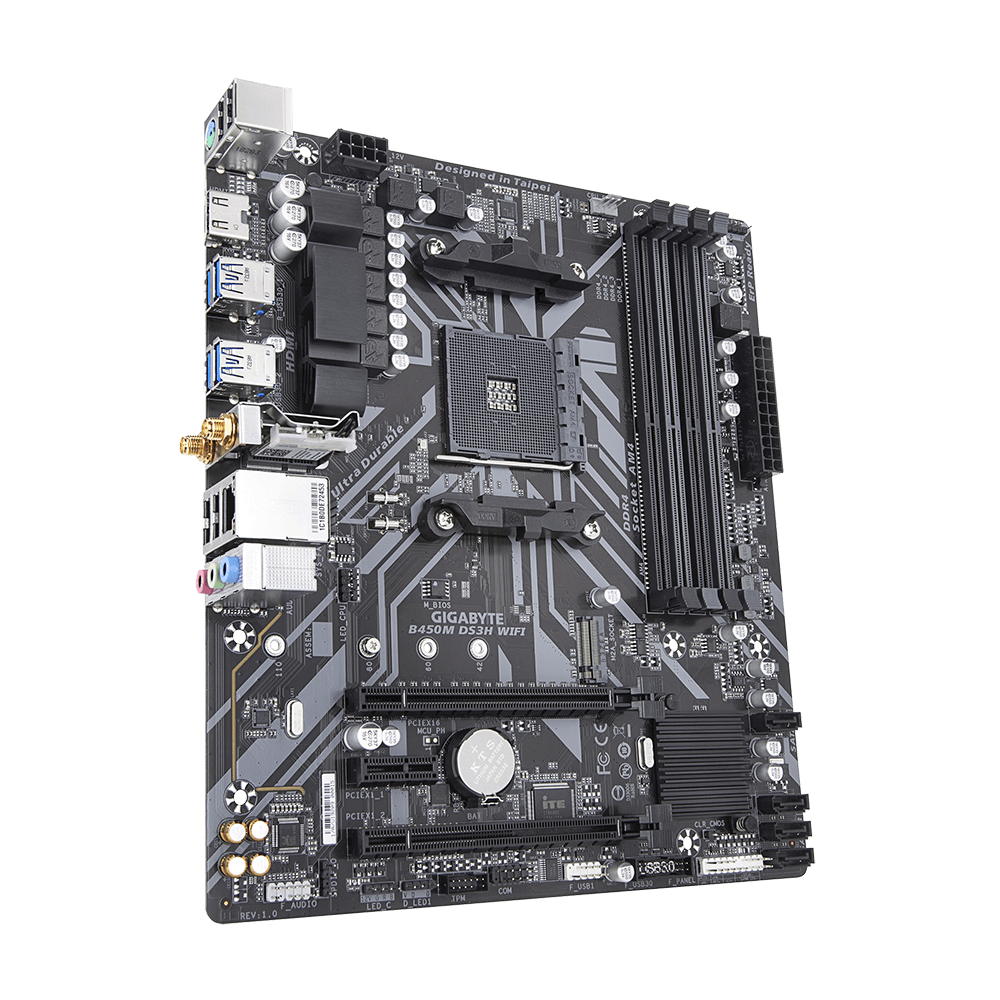

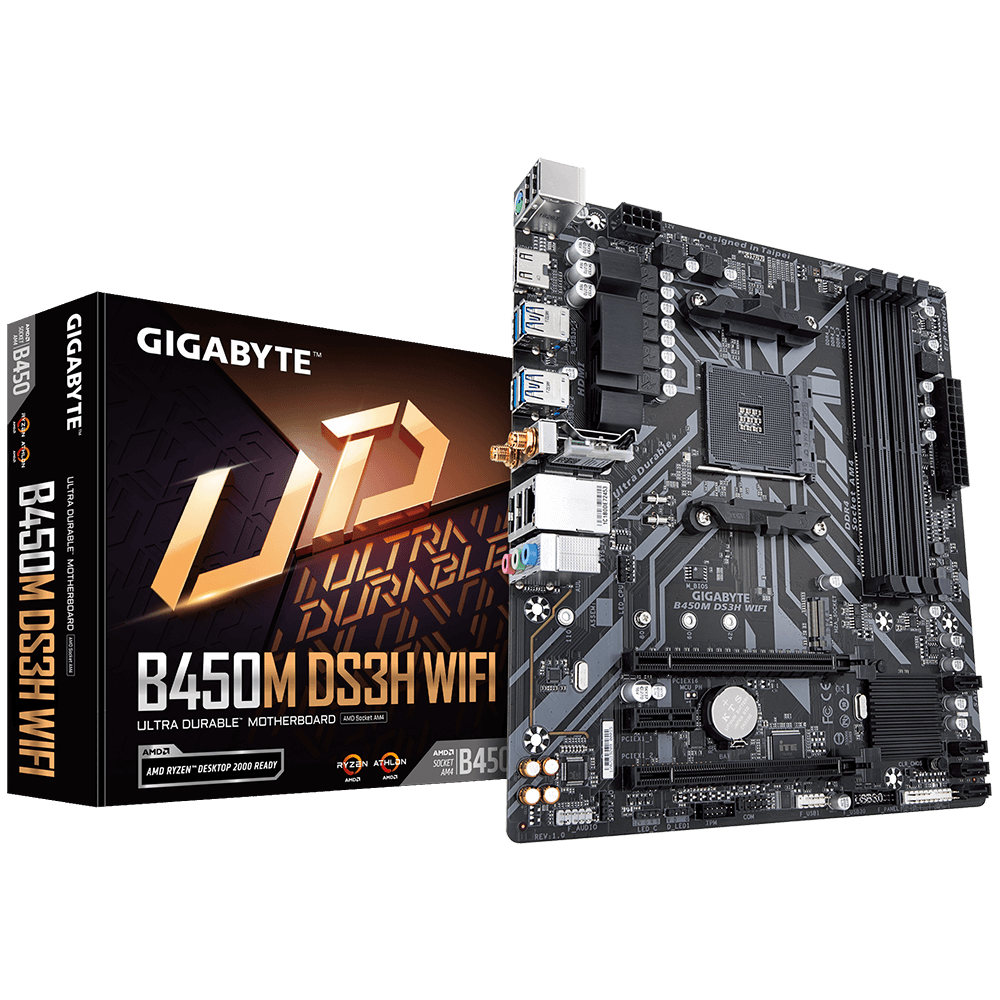

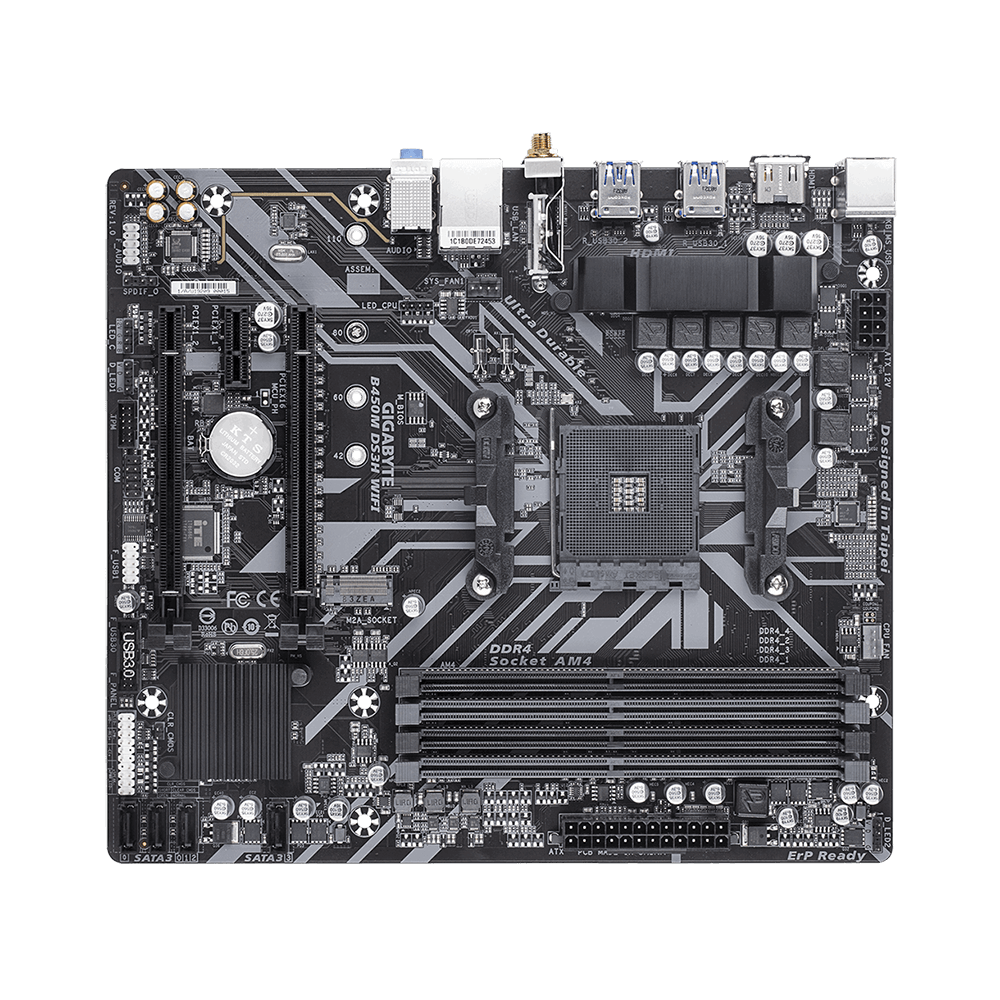

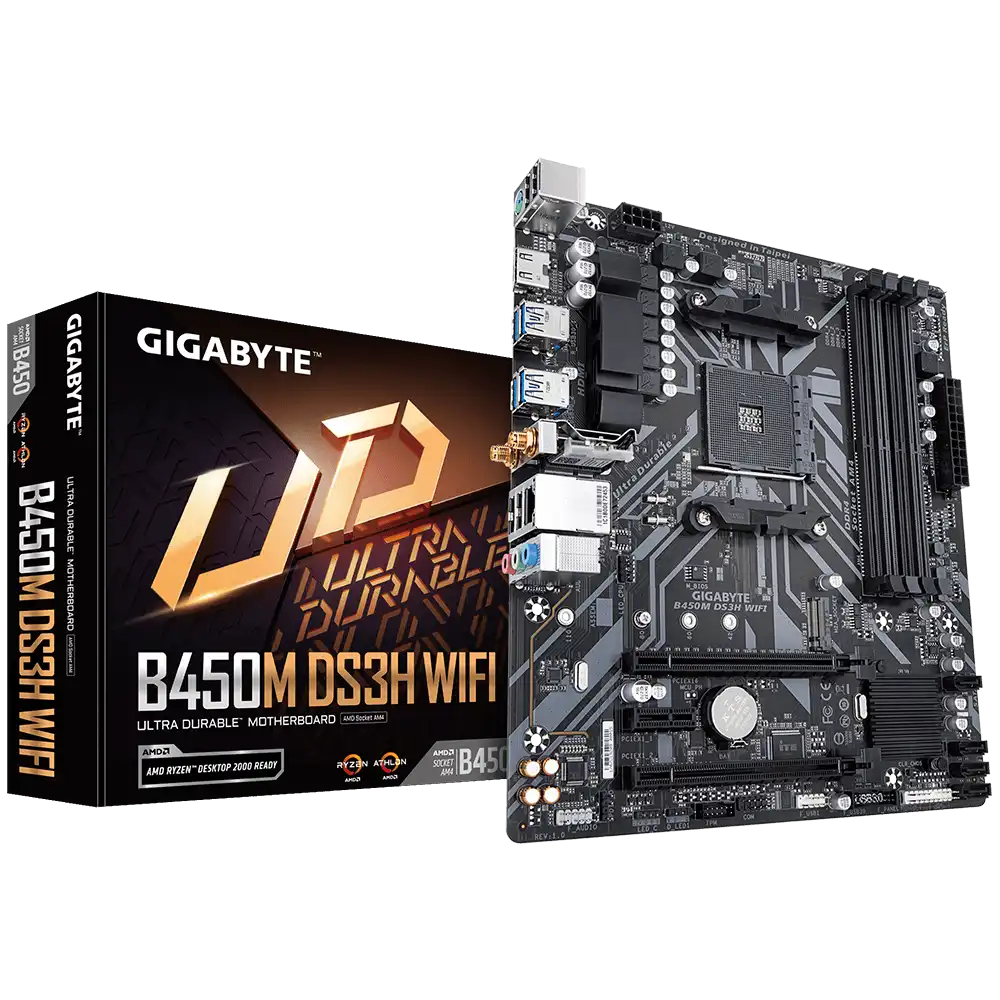

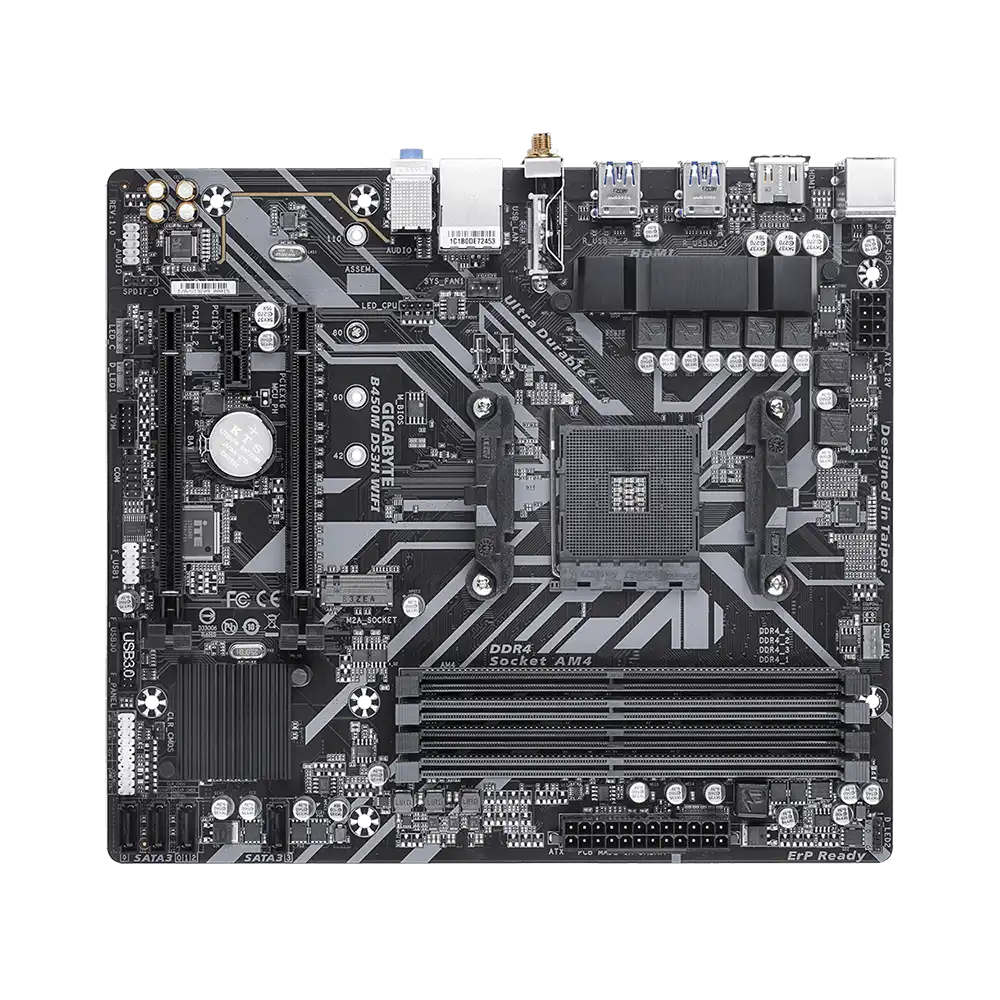

Gigabyte B450M DS3H WIFI Motherboard
  • Model:B450M DS3H WIFI
  • Supports AMD Ryzen & Athlon processors
  • AMD B450 chipset, AM4 socket, Micro-ATX
  • Dual Channel DDR4, 4 DIMMs supported
  • PCIe Gen3, M.2, Intel WiFi 802.11ac
  • 3 Years Warranty from Gigabyte
₹ 7,900
Next Day Dispatch
1
CPU
AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Memory
Dual channel memory architecture
Memory
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics - Integrated Graphics Processor
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note)
Onboard Graphics - Maximum shared memory
16 GB
Onboard Graphics - Note
Actual support may vary by CPU.
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi RTL8821CE
Wireless Communication module
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
Wireless Communication module
BLUETOOTH 5.0
Wireless Communication module
Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Expansion Slots
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
Expansion Slots
1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
Expansion Slots - Note
Actual support may vary by CPU.
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
Storage Interface
4 x SATA 6Gb/s connectors
Storage Interface
Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB (CPU)
4 x USB 3.1 Gen 1 ports on the back panel
USB (Chipset)
2 x USB 3.1 Gen 1 ports available through the internal USB header
USB (Chipset)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x S/PDIF Out header
Internal I/O Connectors
1 x CPU cooler LED strip/RGB LED strip header
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
2 x addressable LED strip headers
Internal I/O Connectors
1 x USB 3.1 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x Clear CMOS jumper

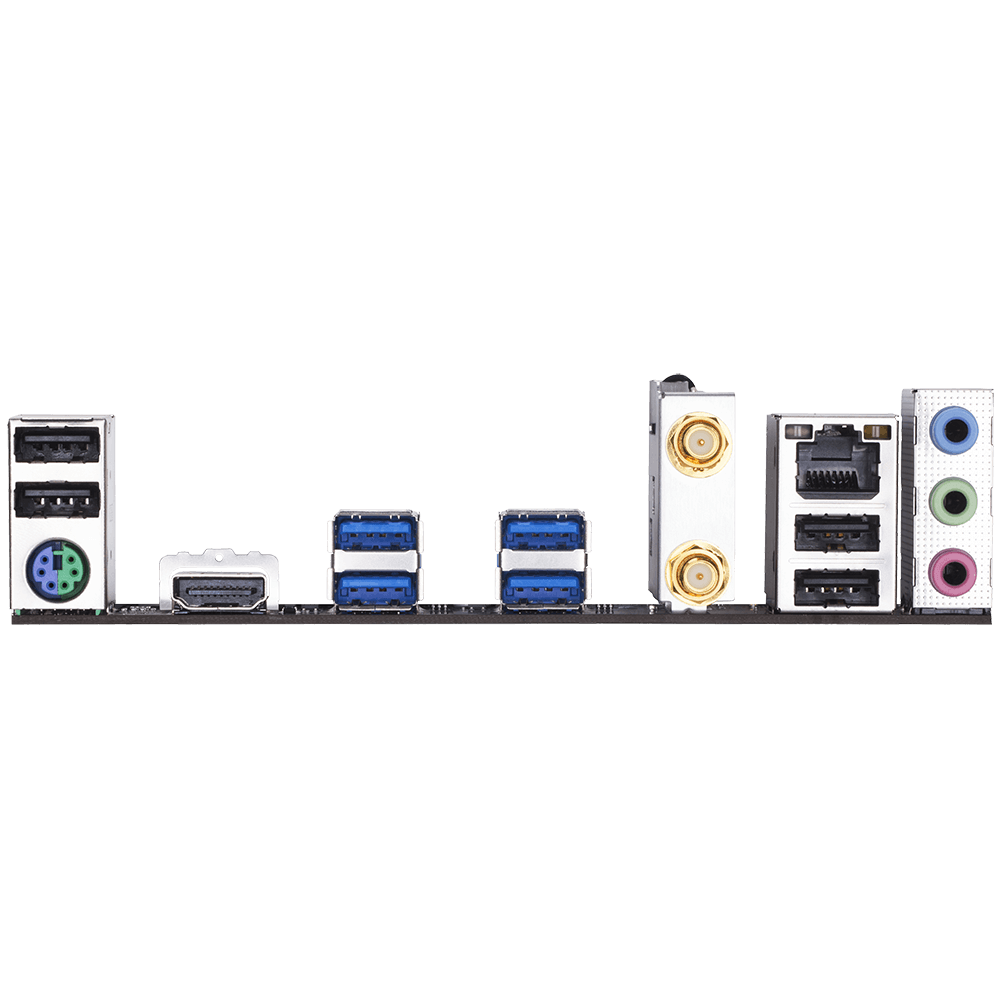

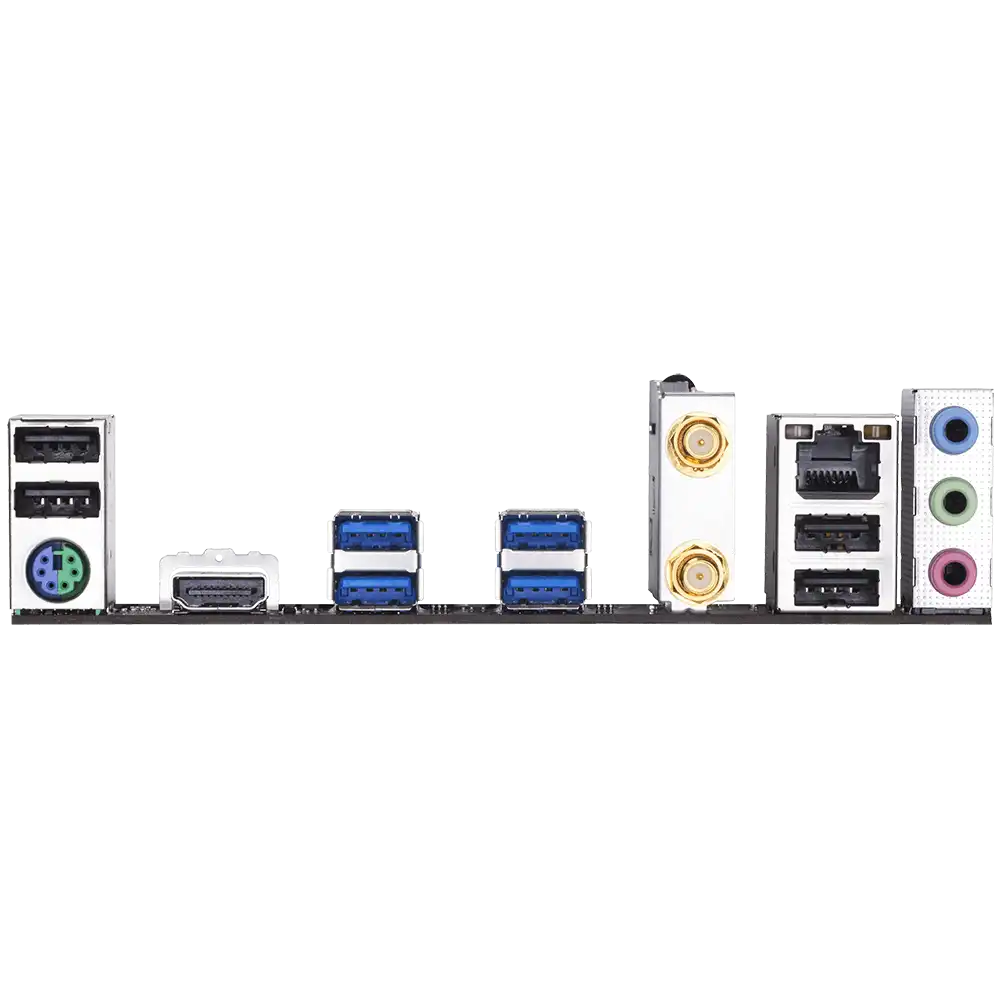

Back Panel Connectors
1 x PS/2 keyboard/mouse port
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
4 x USB 3.1 Gen 1 ports
Back Panel Connectors
4 x USB 2.0/1.1 ports
Back Panel Connectors
2 x SMA antenna connectors (1T1R)
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Overheating warning
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
cFosSpeed
Operating System
Support for Windows 10 64-bit
Operating System
Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
