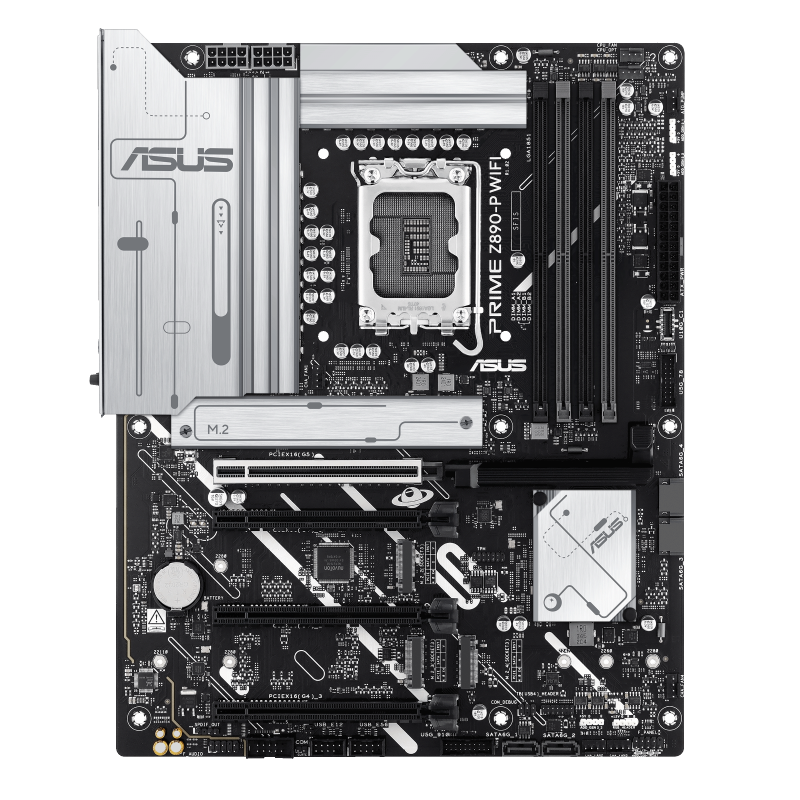

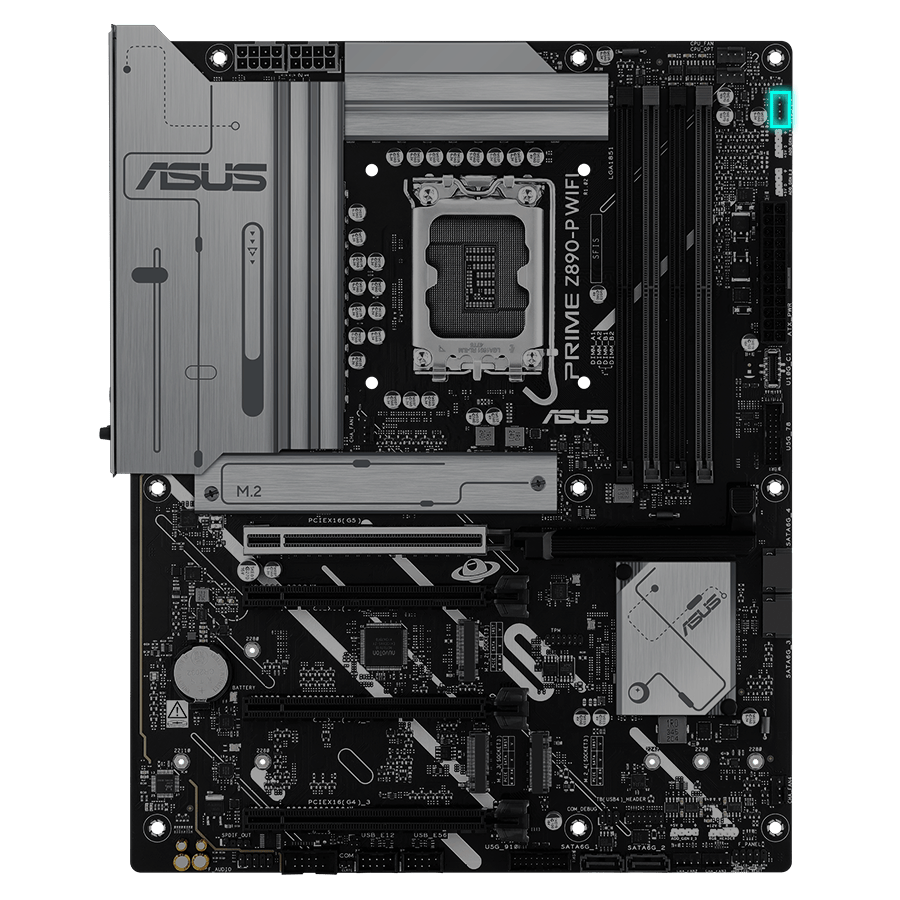

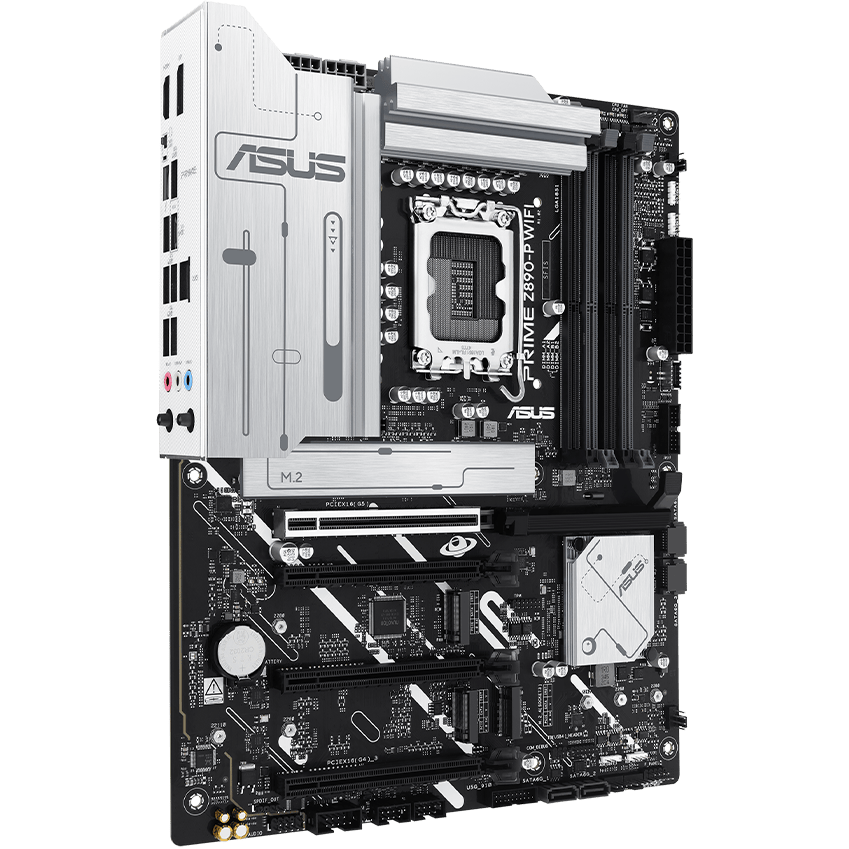

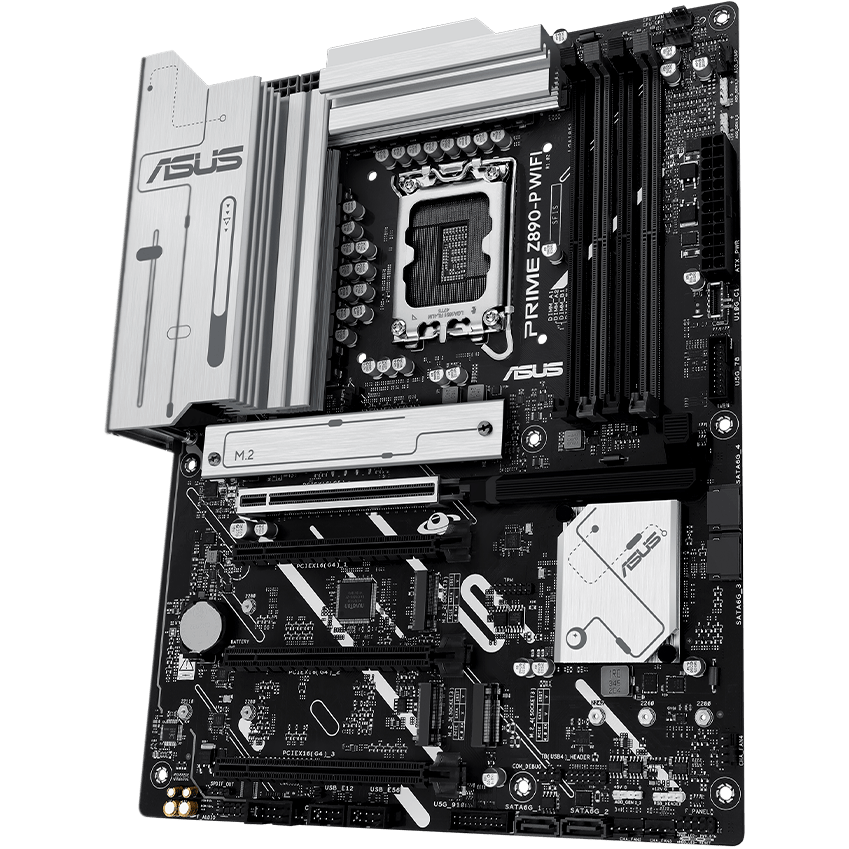

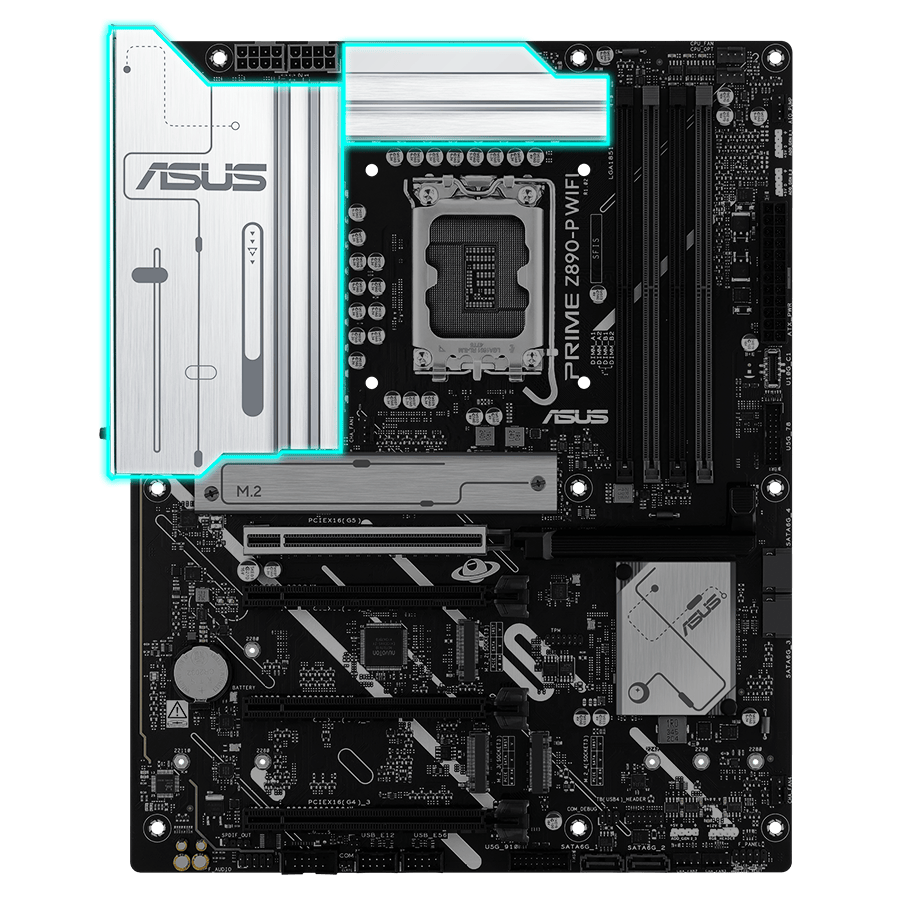

ASUS PRIME Z890-P WIFI-CSM Motherboard
  • Model:PRIME Z890-P WIFI-CSM
  • Supports Intel Core Ultra Processors (LGA1851)
  • Intel Z890 chipset, ATX form factor
  • 4 DIMM slots, DDR5 dual-channel support
  • PCIe 5.0 x16, WiFi 7, Thunderbolt 4, USB-C
  • 3 Years Warranty from ASUS
₹ 25,050
Next Day Dispatch
1
Model
PRIME Z890-P WIFI-CSM
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU Features
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Note
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU Note
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z890 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Memory Profile
ASUS Enhanced Memory Profile III(AEMPIII)
Memory Note
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Memory Note
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
Graphics
1 x HDMITM port***
Graphics
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
Graphics Note
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Graphics Note
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Graphics Note
*** Supports 4K@60Hz as specified in HDMI 2.1.
Graphics Note
**** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
Graphics Note
**** In DP alt mode, supports up to UHBR20.
Graphics Note
***** VGA resolution support depends on processors' or graphic cards' resolution.
Graphics Note
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (Intel® Core™ Ultra Processors (Series 2))
1 x PCIe 5.0 x16 slot
Expansion Slots (Intel® Z890 Chipset)
2 x PCIe 4.0 x16 slots (support x4 mode)
Expansion Slots (Intel® Z890 Chipset)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Expansion Slot Note
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Expansion Slot Note
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (Intel® Core™ Ultra Processors (Series 2))
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
Storage (Intel® Core™ Ultra Processors (Series 2))
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage (Intel® Z890 Chipset)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Intel® Z890 Chipset)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Storage (Intel® Z890 Chipset)
4 x SATA 6Gb/s ports
Storage Note
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
1 x Realtek 2.5Gb Ethernet
LAN Features
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
Wireless
2x2 Wi-Fi 7 (802.11be)
Wireless
Supports 2.4/5/6GHz frequency band**
Wireless
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth
Bluetooth® v5.4***
Wireless Note
*Wi-Fi features may vary depending on the operating system
Wireless Note
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Wireless Note
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
Wireless Note
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Bluetooth Note
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
Rear USB (Total 8 ports)
1 x USB 10Gbps port (1 x Type-A)
Rear USB (Total 8 ports)
2 x USB 5Gbps ports (2 x Type-A)
Rear USB (Total 8 ports)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
Front USB (Total 9 ports)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
Front USB (Total 9 ports)
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
USB Note
* USB Type-C® power delivery output: max. 5V/3A
USB Note
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
USB Note
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Audio Features
Premium audio capacitors
Audio Features
Dedicated audio PCB layers
Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

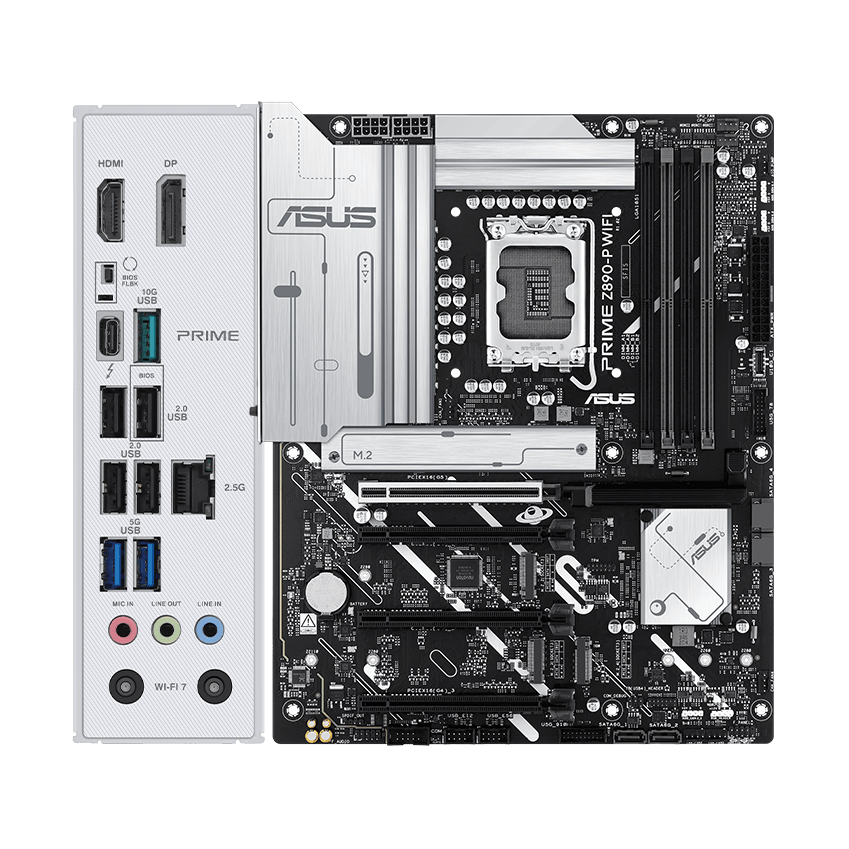

Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C® port
Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A)
Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
Back Panel I/O Ports
4 x USB 2.0 ports (4 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMITM port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Realtek 2.5Gb Ethernet port
Back Panel I/O Ports
3 x Audio jacks
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU Fan header
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin AIO Pump header
Internal I/O Connectors (Fan and Cooling related)
4 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power related)
1 x 24-pin Main Power connector
Internal I/O Connectors (Power related)
2 x 8-pin +12V CPU Power connector
Internal I/O Connectors (Storage related)
4 x M.2 slots (Key M)
Internal I/O Connectors (Storage related)
4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 10Gbps connector (supports USB Type-C®)
Internal I/O Connectors (USB)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
Internal I/O Connectors (USB)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen2 headers
Internal I/O Connectors (Miscellaneous)
1 x Aura RGB header
Internal I/O Connectors (Miscellaneous)
1 x Clear CMOS header
Internal I/O Connectors (Miscellaneous)
1 x COM Port header
Internal I/O Connectors (Miscellaneous)
1 x Front Panel Audio header (F_AUDIO)
Internal I/O Connectors (Miscellaneous)
1 x S/PDIF Out header
Internal I/O Connectors (Miscellaneous)
1 x SPI TPM header (14-1pin)
Internal I/O Connectors (Miscellaneous)
1 x 10-1 pin Front Panel System header
Internal I/O Connectors (Miscellaneous)
1 x Thunderbolt™ (USB4®) header
Special Features (ASUS 5X PROTECTION III)
DIGI+ VRM (- Digital power design with DrMOS)
Special Features (ASUS 5X PROTECTION III)
LANGuard
Special Features (ASUS 5X PROTECTION III)
Overvoltage Protection
Special Features (ASUS 5X PROTECTION III)
SafeSlot
Special Features (ASUS 5X PROTECTION III)
Stainless-Steel Back I/O
Special Features (ASUS Q-Design)
M.2 Q-Latch
Special Features (ASUS Q-Design)
PCIe Slot Q-Release
Special Features (ASUS Q-Design)
Q-Antenna
Special Features (ASUS Q-Design)
Q-Dashboard
Special Features (ASUS Q-Design)
Q-DIMM
Special Features (ASUS Q-Design)
Q-LED Core
Special Features (ASUS Q-Design)
Q-Slot
Special Features (ASUS Thermal Solution)
M.2 heatsink
Special Features (ASUS Thermal Solution)
VRM heatsink design
Special Features (ASUS EZ DIY)
BIOS FlashBack™ button
Special Features (ASUS EZ DIY)
BIOS FlashBack™ LED
Special Features (ASUS EZ DIY)
ProCool
Special Features (ASUS EZ DIY)
Pre-mounted I/O shield
Special Features (Aura Sync)
Aura RGB header
Special Features (Aura Sync)
Addressable Gen2 headers
Software Features (ASUS Exclusive Software)
Armoury Crate
Software Features (ASUS Exclusive Software)
Aura Creator
Software Features (ASUS Exclusive Software)
Aura Sync
Software Features (ASUS Exclusive Software)
Fan Xpert 4 (with AI Cooling II)
Software Features (ASUS Exclusive Software)
Power Saving
Software Features (ASUS Exclusive Software)
ASUS DriverHub
Software Features (ASUS Exclusive Software)
ASUS GlideX
Software Features (ASUS Exclusive Software)
ASUS CPU-Z
Software Features (ASUS Exclusive Software)
TurboV Core
Software Features (ASUS Exclusive Software)
Norton 360 Deluxe (60 Days Free Trial)
Software Features (ASUS Exclusive Software)
WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
ASUS EZ DIY
Software Features (UEFI BIOS)
ASUS CrashFree BIOS 3
Software Features (UEFI BIOS)
ASUS EZ Flash
Software Features (UEFI BIOS)
ASUS UEFI BIOS EZ Mode
Software Features (UEFI BIOS)
ASUS MyHotkey
Software Features (UEFI BIOS)
NPU Boost (Intel K-series Processors only)
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x ASUS WiFi Q-Antenna
Accessories (Miscellaneous)
1 x M.2 rubber package
Accessories (Miscellaneous)
2 x Screw packages for M.2 SSD
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
