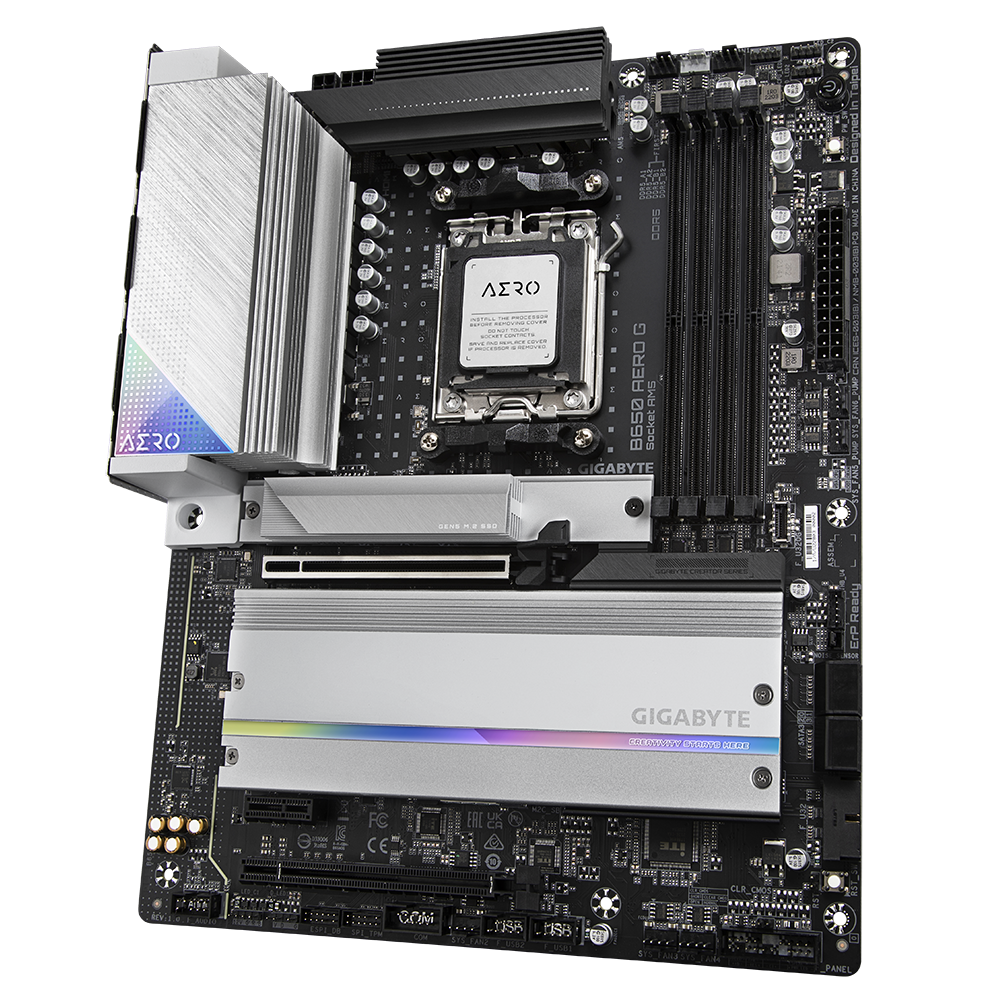

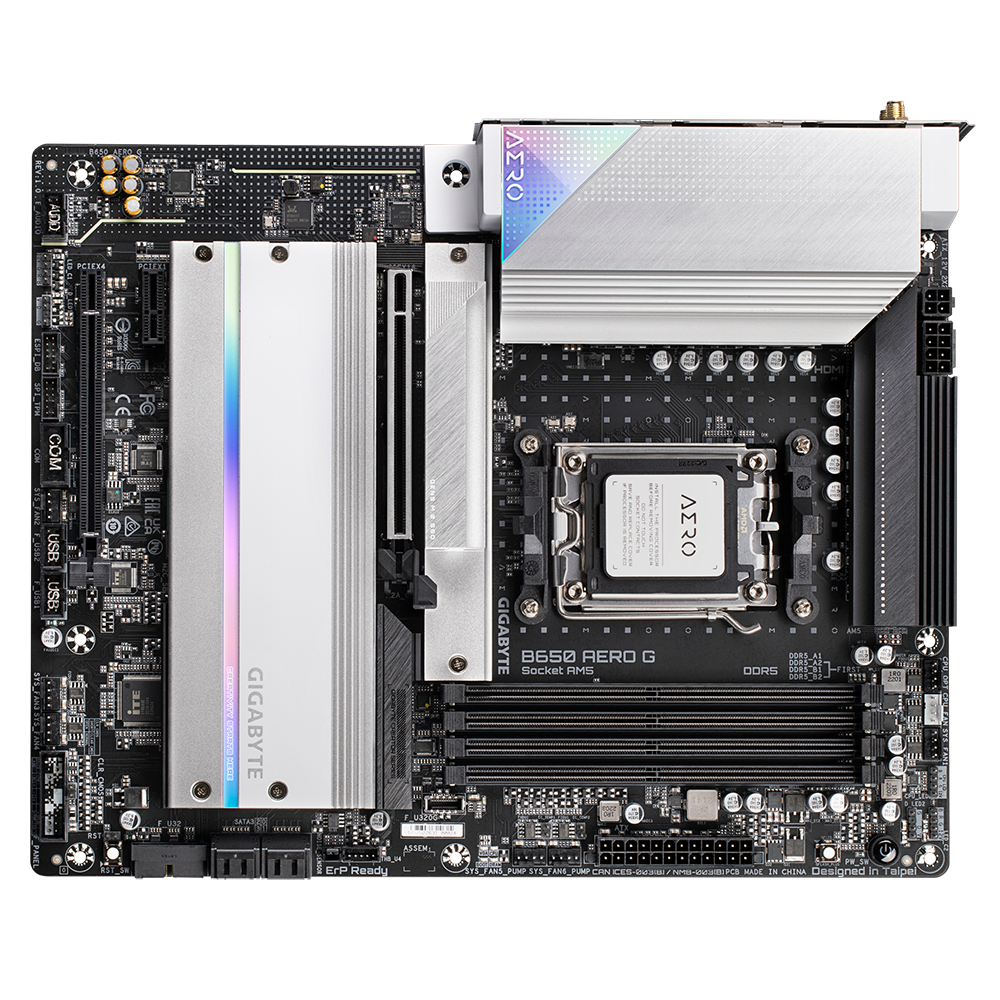

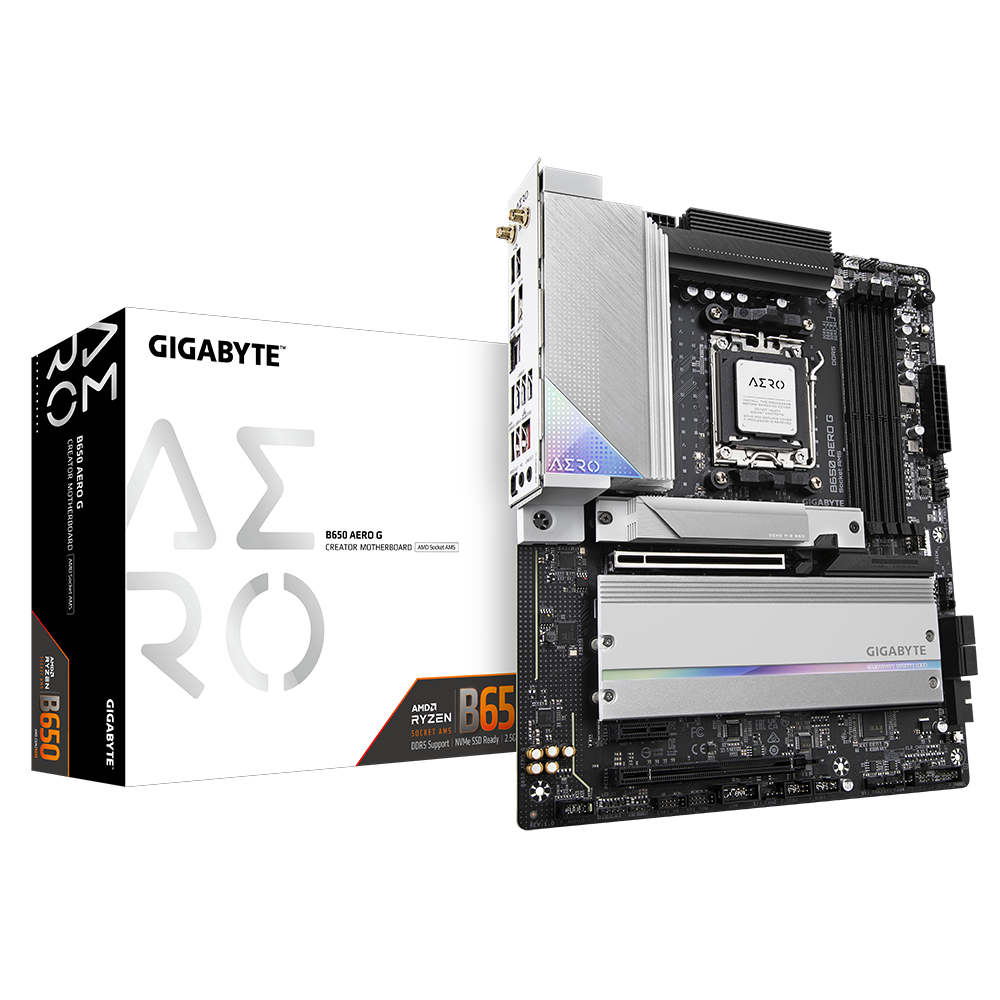

Gigabyte B650 AERO G Motherboard
  • Model:B650 AERO G
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650 chipset, Socket AM5, ATX form factor
  • Dual channel DDR5, 4x DIMM slots
  • PCIe 5.0, WiFi 6E, USB 20Gbps, VisionLINK
  • 3 Years Warranty from Gigabyte
₹ 26,500
Next Day Dispatch
1
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory Support
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Memory Slots
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory Architecture
Dual channel memory architecture
DIMM Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Profile Support
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Memory Note
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Integrated Graphics Processor - USB Type-C® Port
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Integrated Graphics Processor - USB Type-C® Note1
Support for drawing tablets and 20V@3A of power delivery.
Integrated Graphics Processor - USB Type-C® Note2
Support for DisplayPort 1.4 version.
Integrated Graphics Processor - HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Integrated Graphics Processor - HDMI Note1
Support for HDMI 2.1 version and HDCP 2.3.
Integrated Graphics Processor - HDMI Note2
Support native HDMI 2.1 TMDS compatible ports.
Graphics Note
(Graphics specifications may vary depending on CPU or graphics card support.)
Audio Codec
Realtek® ALC1220-VB CODEC
Audio Codec Note
The back panel line out jack supports DSD audio.
High Definition Audio
High Definition Audio
Audio Channels
2/4/5.1/7.1-channel
Audio Channels Note
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
S/PDIF Out
Support for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Module
AMD Wi-Fi 6E RZ616 (MT7922A22M)
Wireless Standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth
BLUETOOTH 5.2
Wireless Speed
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Wireless Note
(Actual data rate may vary depending on environment and equipment.)
Expansion Slot 1
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slot 1 Note
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slot 2
Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slot 2 Note
The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Expansion Slot 3
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
M.2 Slot 1
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
M.2 Slot 2
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
M.2 Slot 3
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
SATA
4 x SATA 6Gb/s connectors
RAID (NVMe SSD)
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID (SATA)
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (CPU)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB (CPU + USB 2.0 Hub)
2 x USB 2.0/1.1 ports on the back panel
USB (Chipset)
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 4 x USB 2.0/1.1 ports available through the internal USB headers
USB (Chipset+USB 3.2 Gen 1 Hub)
4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 1 x THB_U4 add-in card connector; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 2 x temperature sensor headers; 1 x Clear CMOS jumper

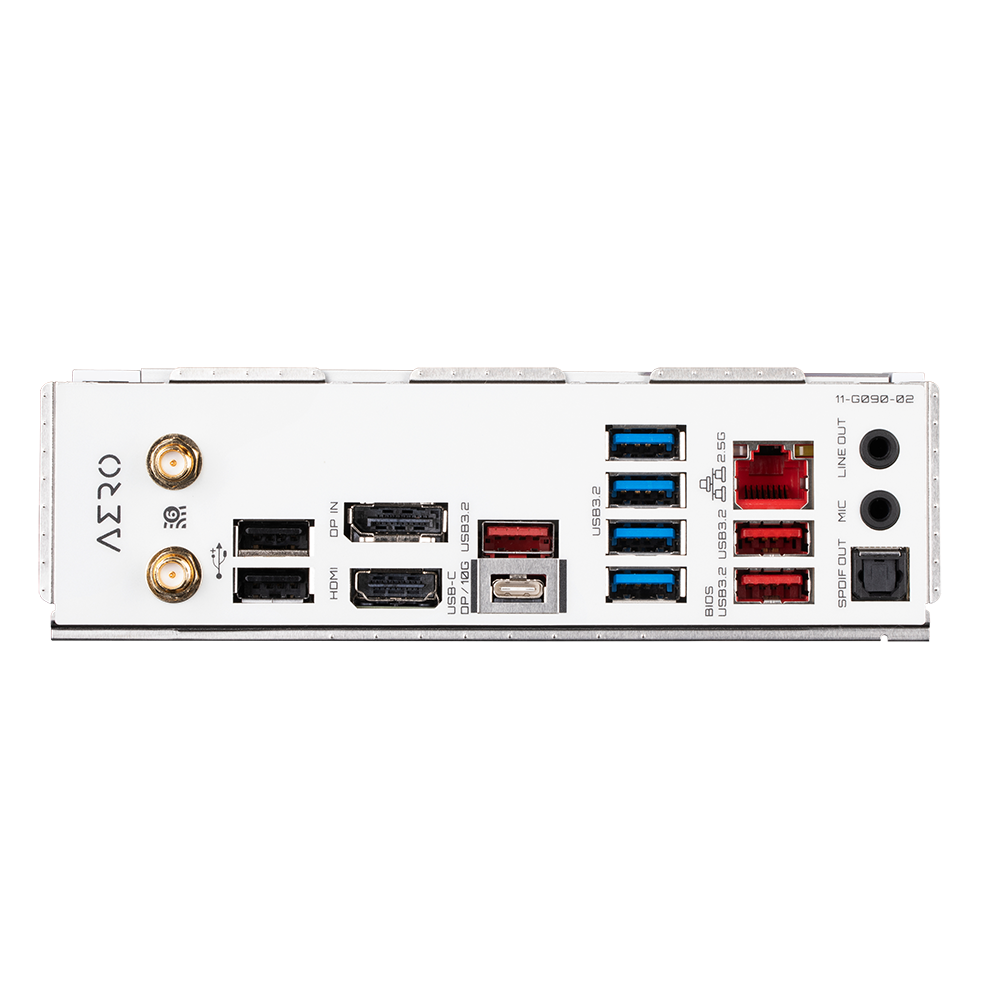

Back Panel Connectors
2 x SMA antenna connectors (2T2R); 2 x USB 2.0/1.1 ports; 1 x DisplayPort In port; 1 x HDMI port; 3 x USB 3.2 Gen 2 Type-A ports (red); 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support; 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 2 x audio jacks; 1 x optical S/PDIF Out connector
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control; Noise detection
H/W Monitoring Note
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Unique Features Note
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software
Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System
Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
