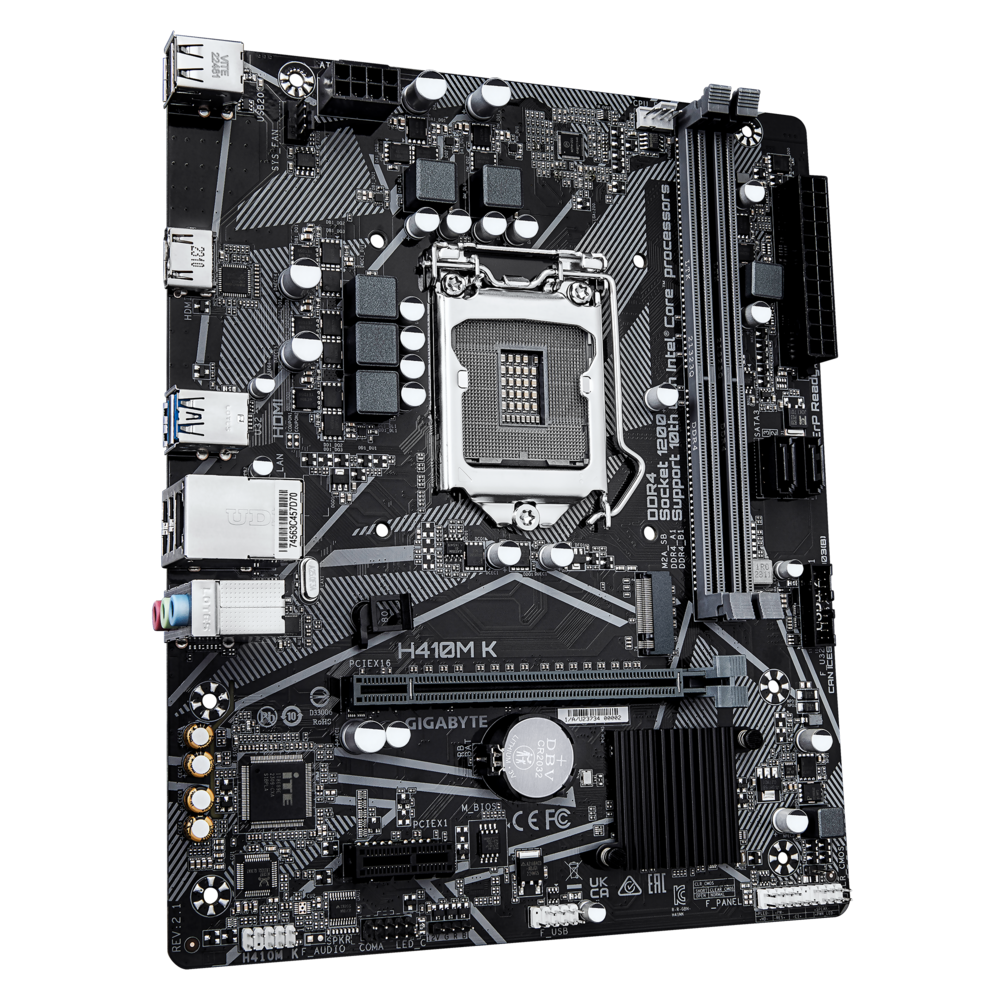

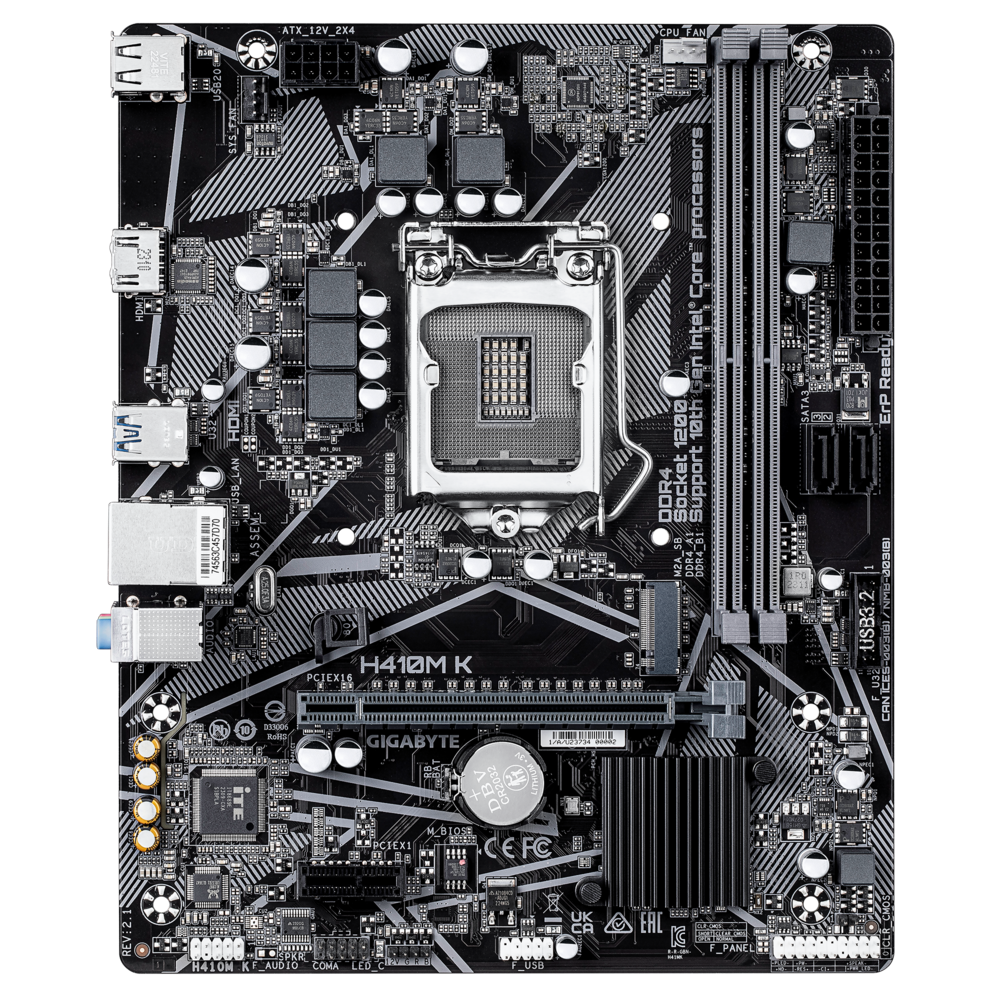

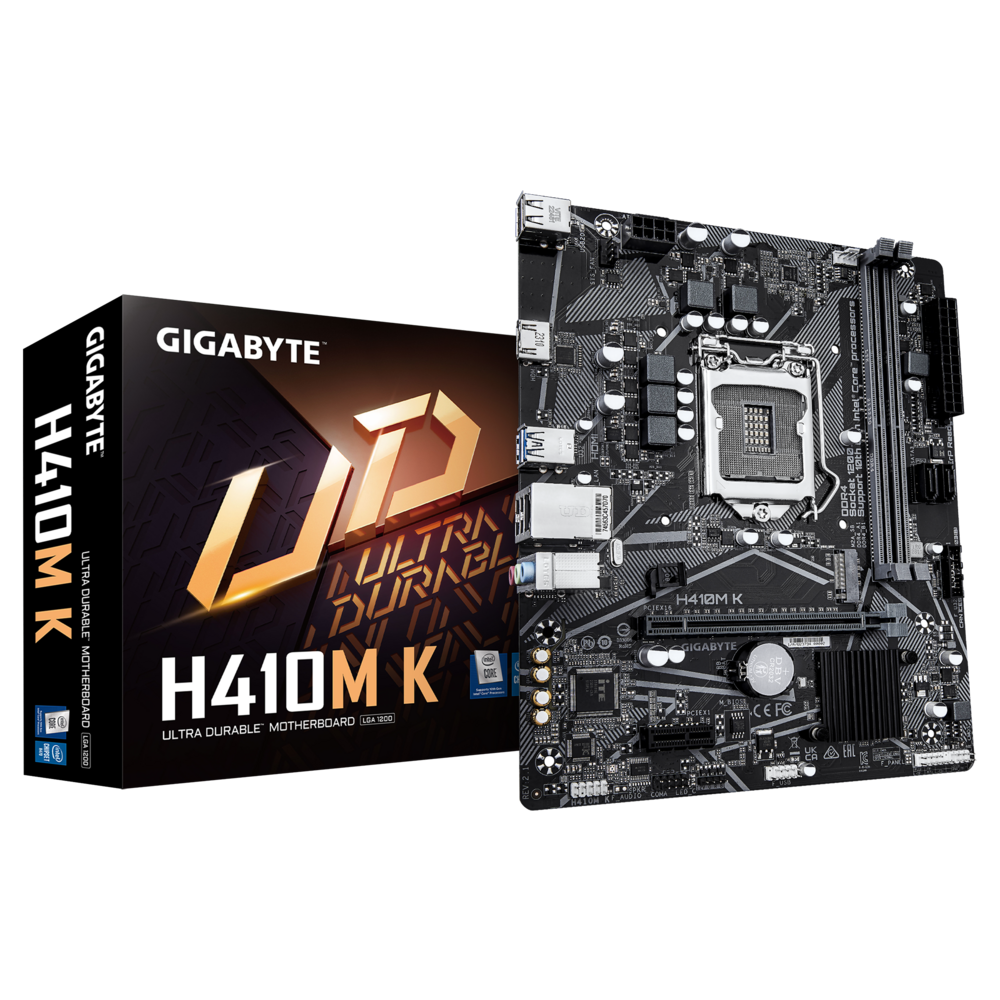

Gigabyte H410M K Motherboard

  • Model:H410M K
  • Supports Intel 10th Gen Core CPUs
  • Intel H410 chipset, LGA 1200, Micro-ATX form factor
  • Dual Channel DDR4 memory support
  • NVMe PCIe Gen3 x4 M.2, GbE LAN, Smart Fan 5
  • 3 Years Warranty from Gigabyte
₹ 5,650
Out Of Stock
1
CPU
LGA1200 package:- 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)
Chipset
Intel® Q470 Express Chipset
Memory
10th Generation Intel® Core™ i9/i7 Processors:- Support for DDR4 2933/2666/2400/2133 MT/s memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® Processors:- Support for DDR4 2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)- 2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devices* Supported with an additional PCIe to M.2 NVMe SSD adapter card.RAID 0, RAID 1, and RAID5 support for SATA storage devices
USB
Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x RGB LED strip header1 x M.2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x serial port header1 x Clear CMOS jumper

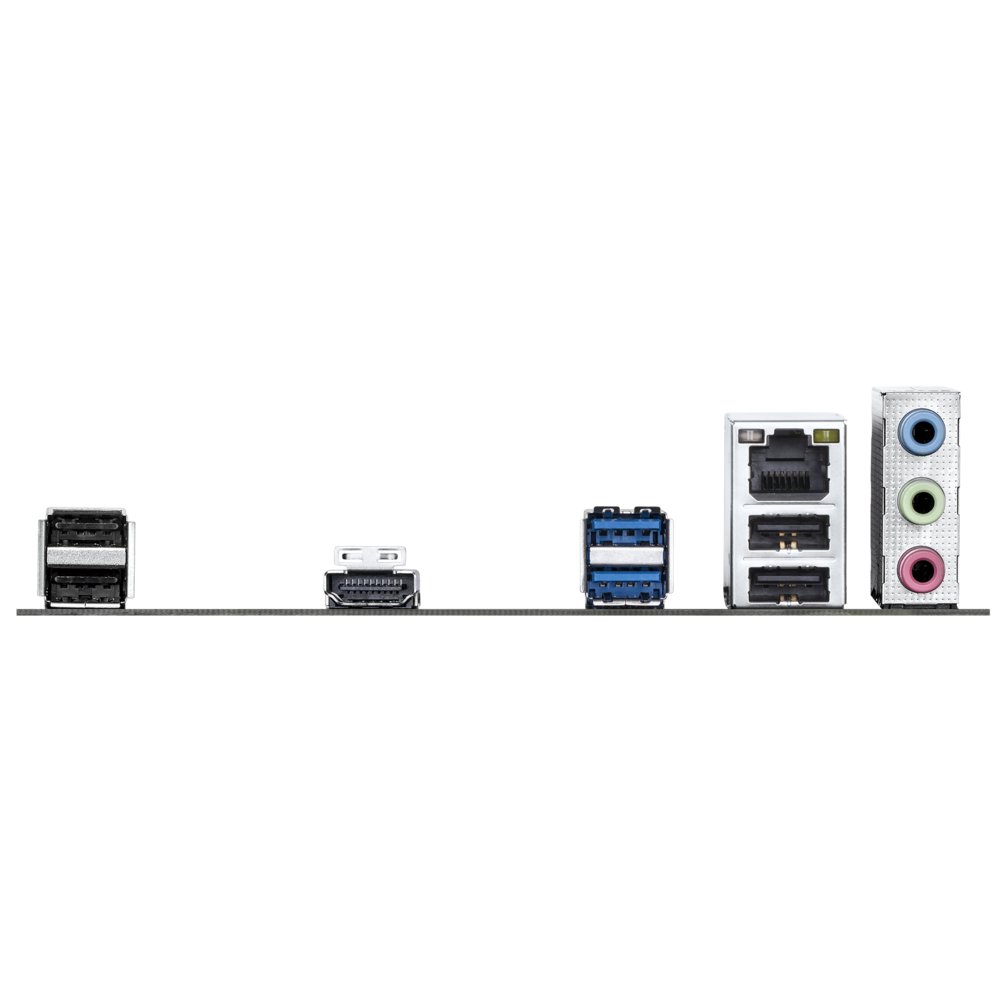

Back Panel Connectors
1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- Ambient LED- EasyTune- Smart Backup- System Information ViewerSupport for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm![](https://www.gigabyte.com/FileUpload/global/Other/11/Photo/hdmi_logo.png)* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
