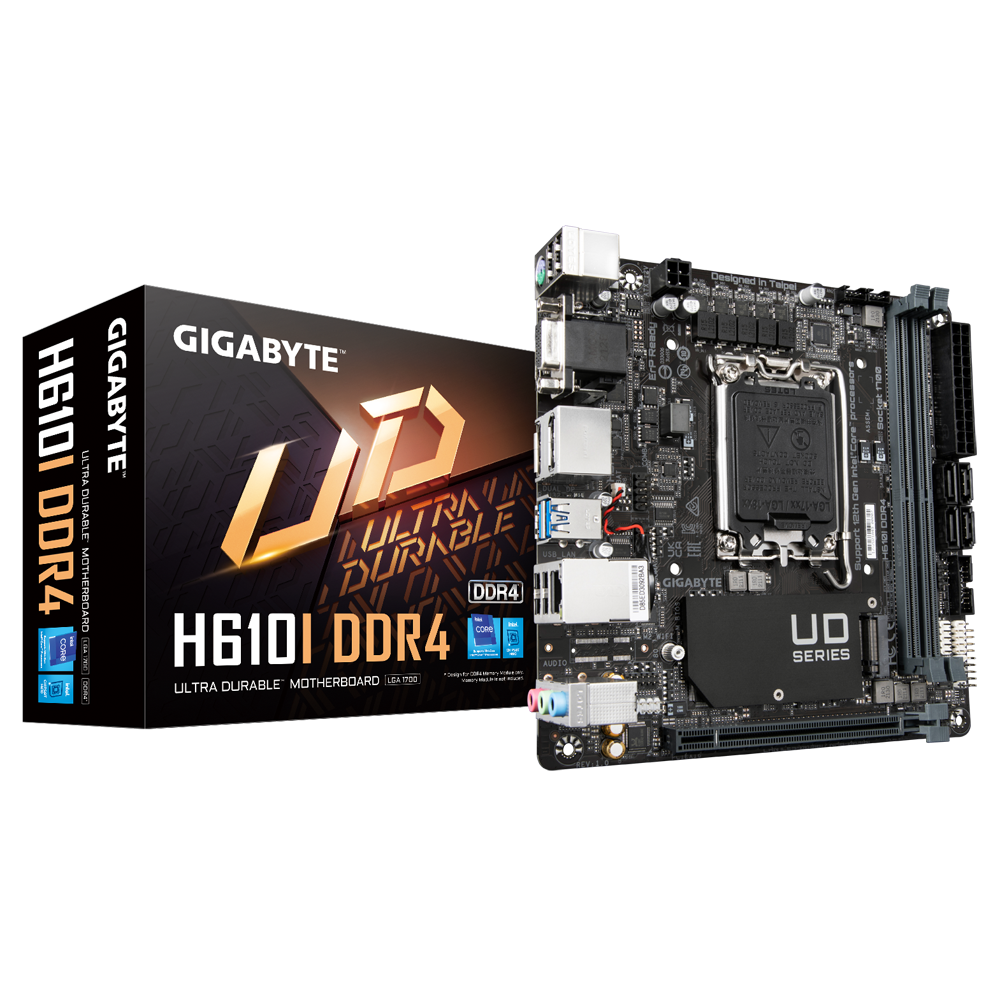

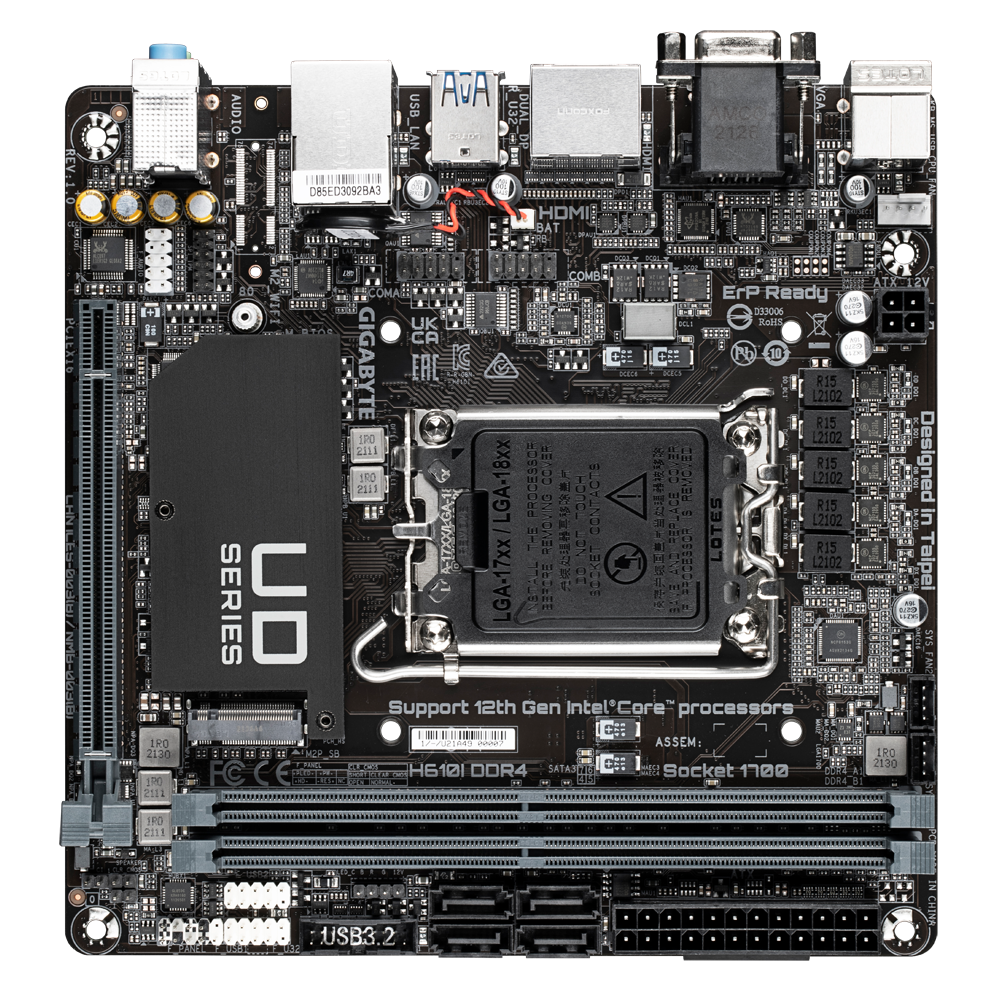

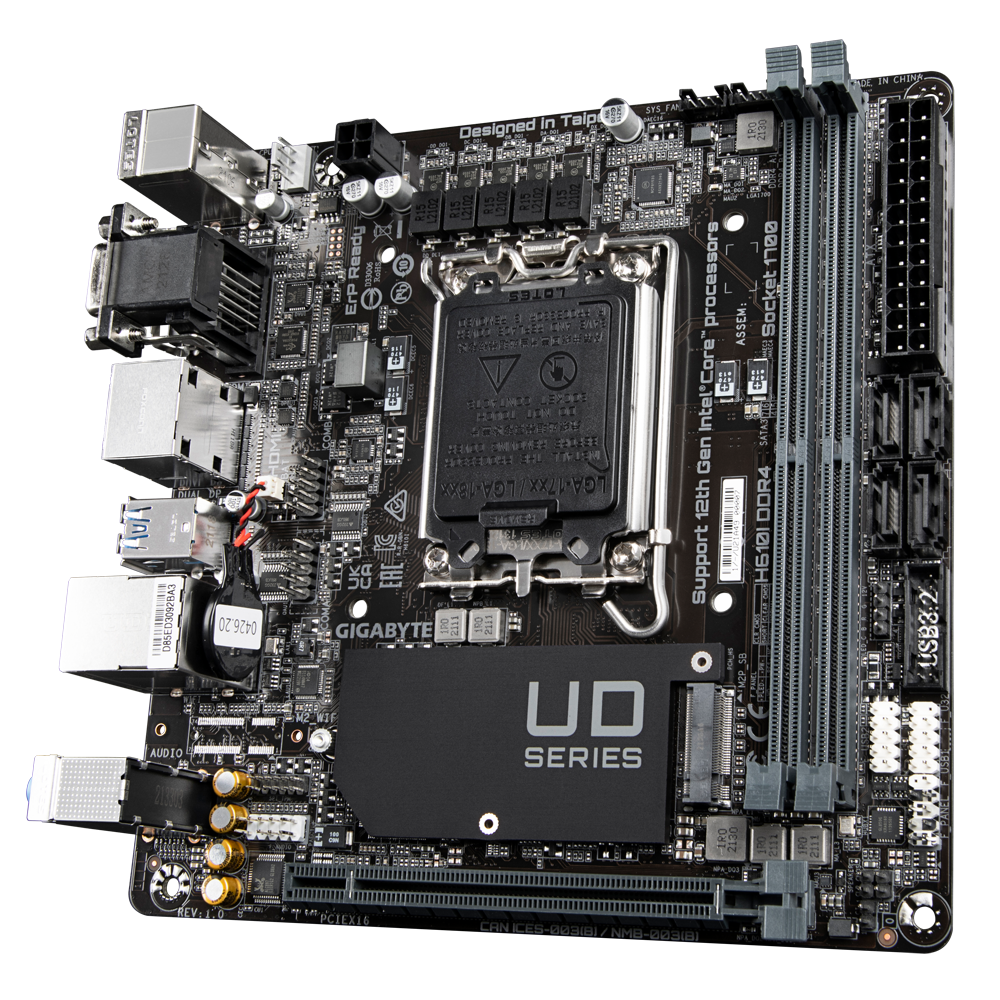

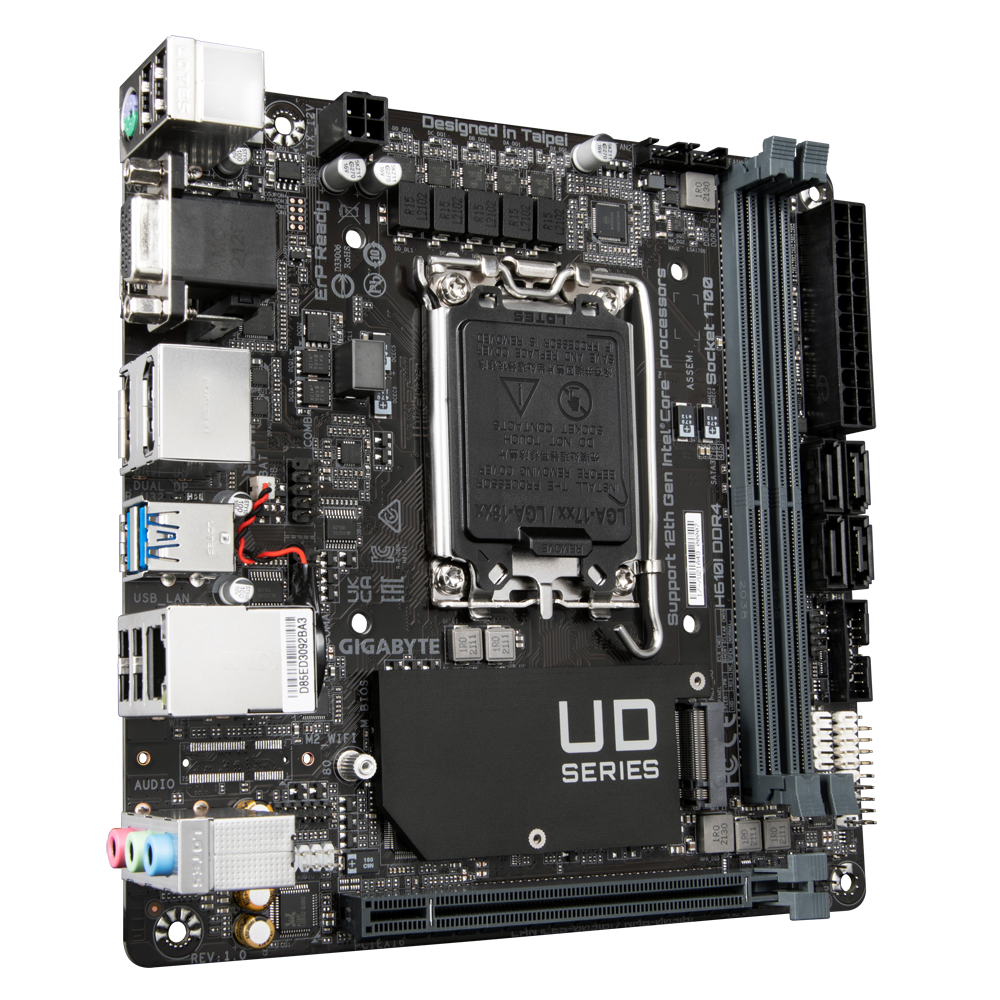

Gigabyte H610I DDR4 Motherboard
  • Model:H610I DDR4
  • Supports Intel Core 12th and 13th Gen CPUs
  • Intel H610 chipset, LGA 1700, Mini-ITX Form Factor
  • Dual Channel DDR4, 2 DIMMs support up to 64GB
  • PCIe 4.0 x16, M.2 NVMe slot, Intel GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 9,900
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
CPU
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
* Support for HDMI 2.1 version and HDCP 2.3.
Onboard Graphics
** Support native HDMI 2.1 TMDS compatible ports
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
* Support for DisplayPort 1.2 version and HDCP 2.3.
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
* Support for DisplayPort 1.2 version.
Onboard Graphics
Support for up to 3 displays at the same time
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Intel® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16
Expansion Slots
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
Storage Interface
4 x SATA 6Gb/s connectors
USB (Chipset)
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB (Chipset)
4 x USB 2.0/1.1 ports on the back panel
USB (Chipset+USB 2.0 Hub)
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 4-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
2 x system fan headers
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
2 x serial port headers
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
1 x chassis intrusion header

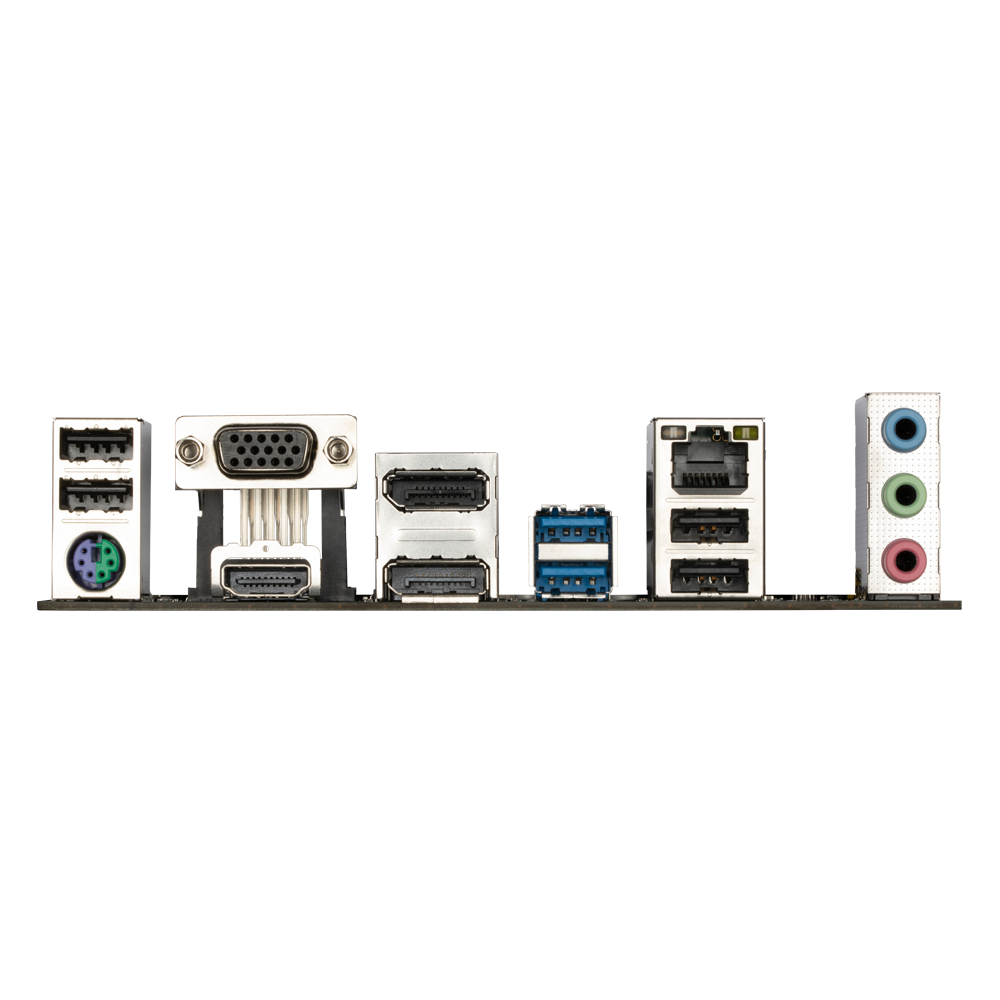

Back Panel Connectors
1 x PS/2 keyboard/mouse port
Back Panel Connectors
2 x USB 3.2 Gen 1 ports
Back Panel Connectors
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
2 x DisplayPorts
Back Panel Connectors
1 x HDMI 2.0 port
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Unique Features
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
@BIOS
Unique Features
EasyTune
Unique Features
Ambient LED
Unique Features
Smart Backup
Unique Features
System Information Viewer
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
