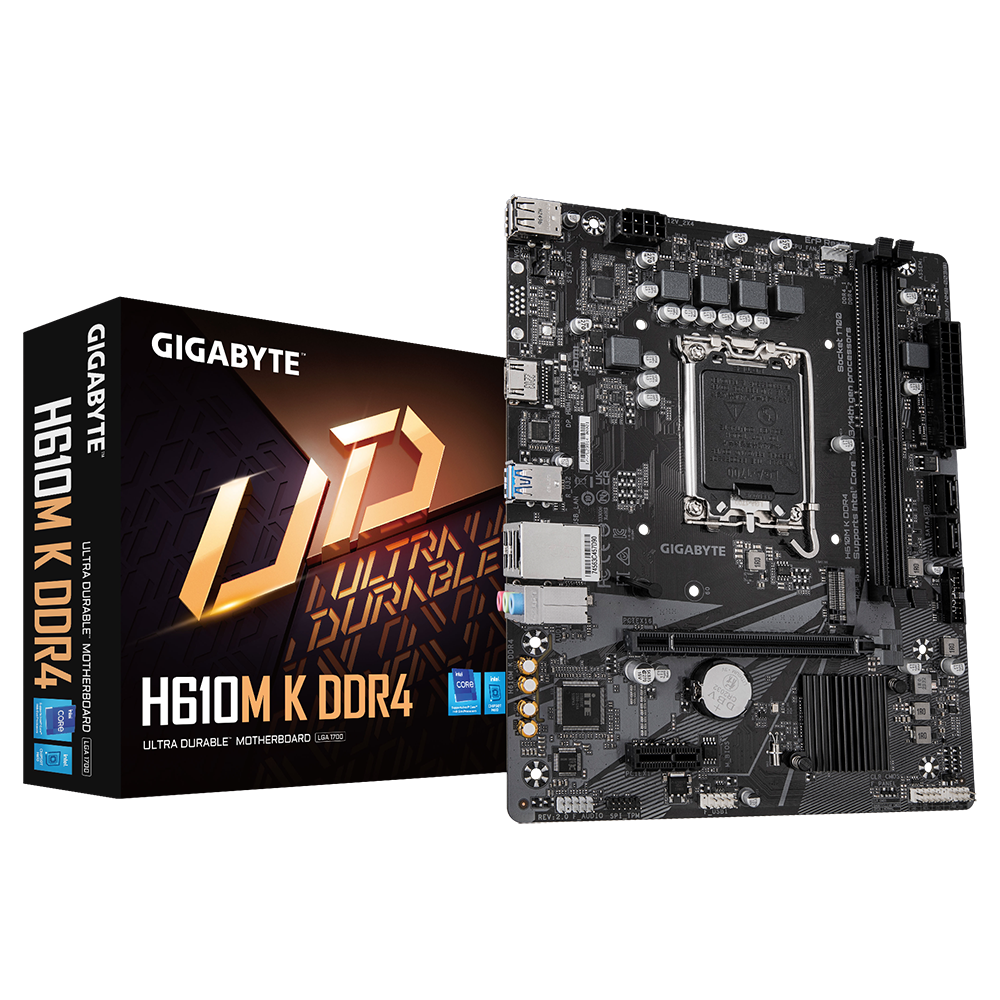

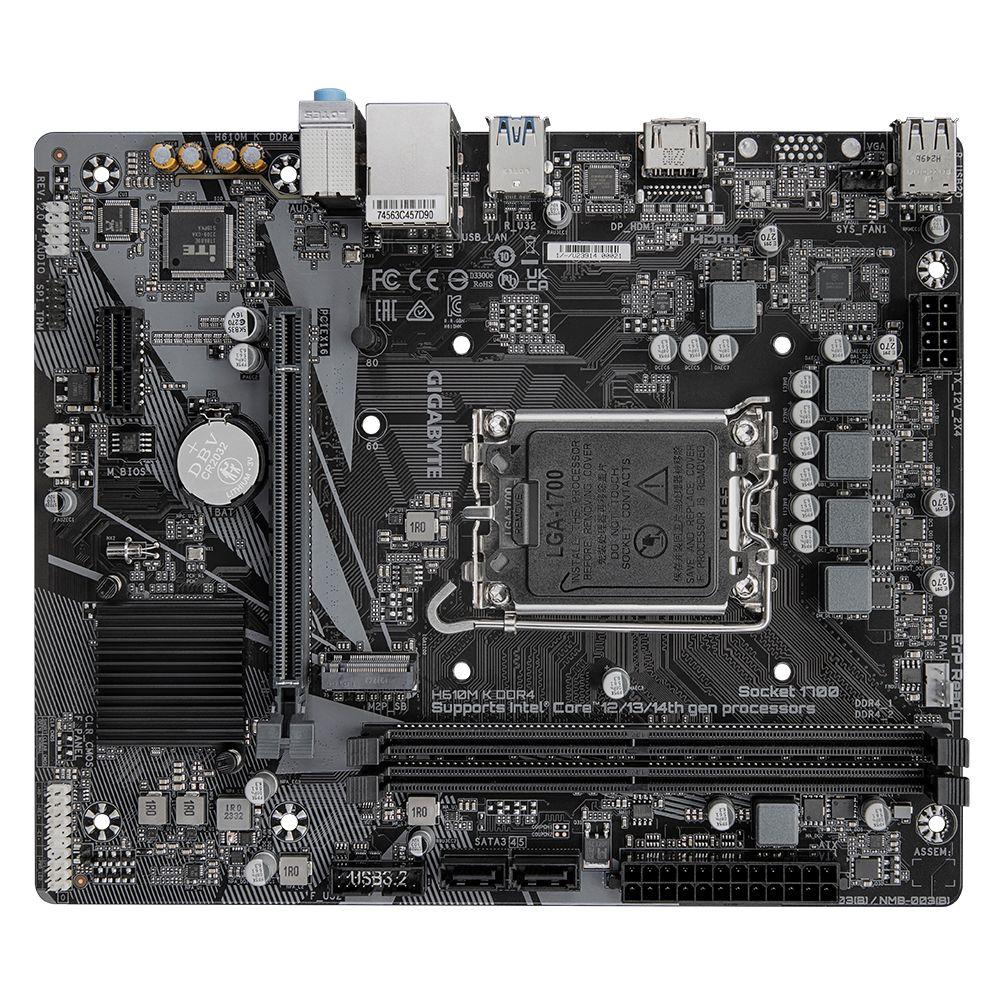

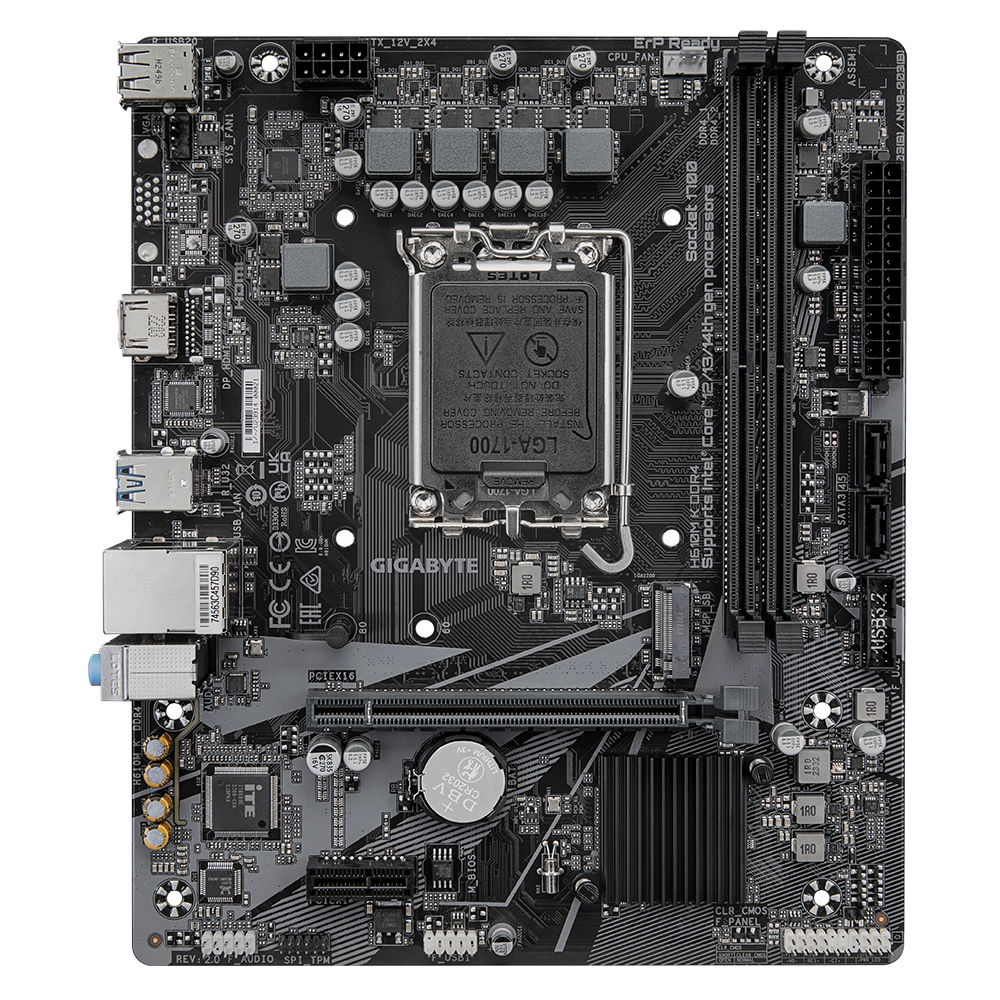

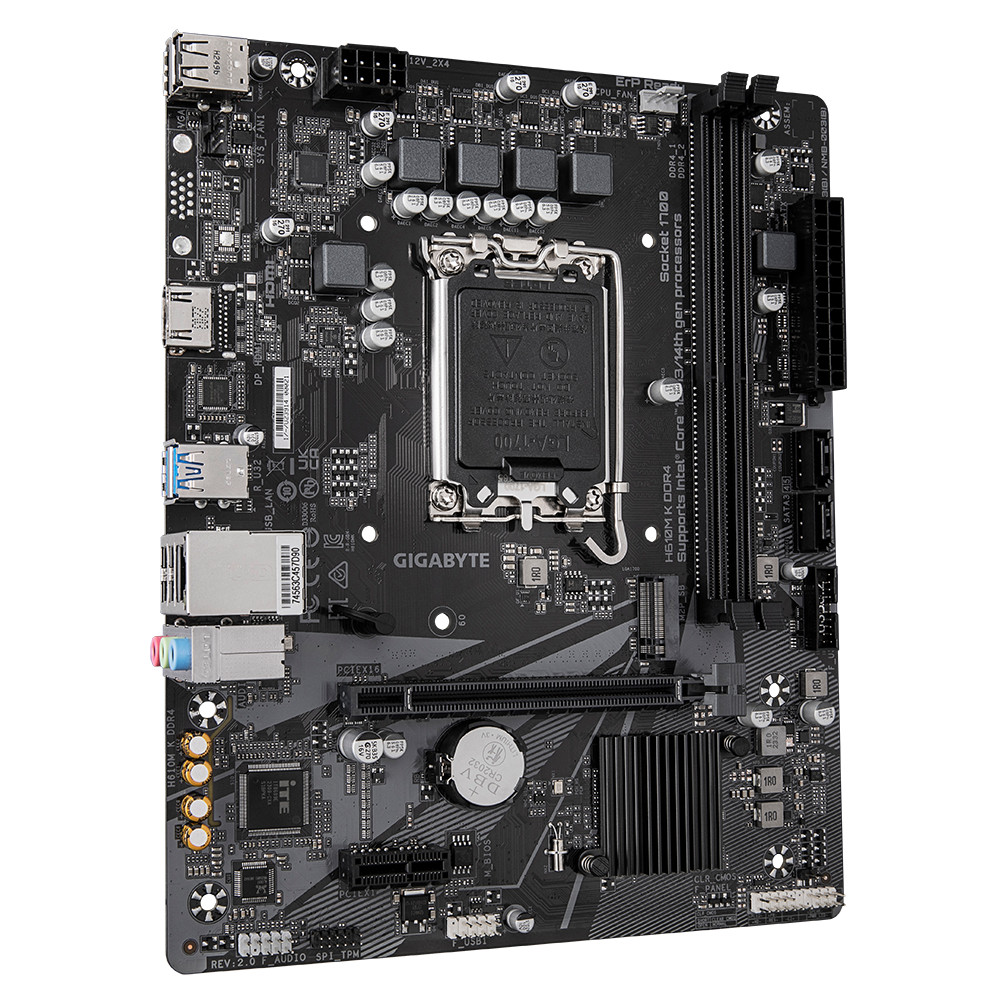

Gigabyte H610M K DDR4 Motherboard
  • Model:H610M K DDR4
  • Supports Intel Core 12th/13th Gen CPUs
  • Intel H610, LGA 1700, Micro-ATX Form Factor
  • Dual Channel DDR4, 2 DIMMs
  • PCIe 4.0, M.2 NVMe, GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 6,100
Next Day Dispatch
1
CPU
LGA1700 socket: Support for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules * Support for non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules * Refer to "Memory Support List" on GIGABYTE's website for more information.
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1080@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 1.4 version and HDCP 2.3 * Actual support may vary by CPU
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x1 slots
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2280/2260/2242 SATA & PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB
Chipset: 2 x USB 3.2 Gen 1 ports (2 ports on the back panel) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x speaker header
Back Panel Connectors
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan fail warning
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software
Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 19.5cm
