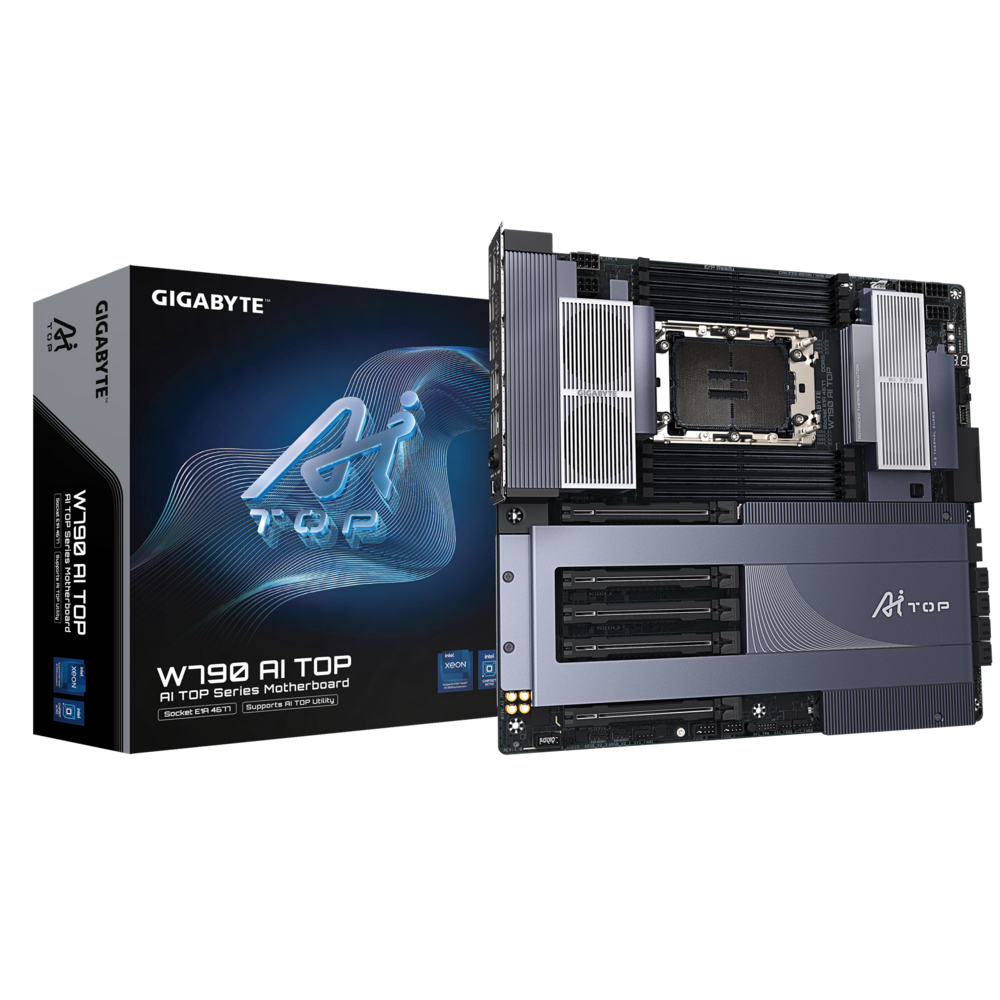

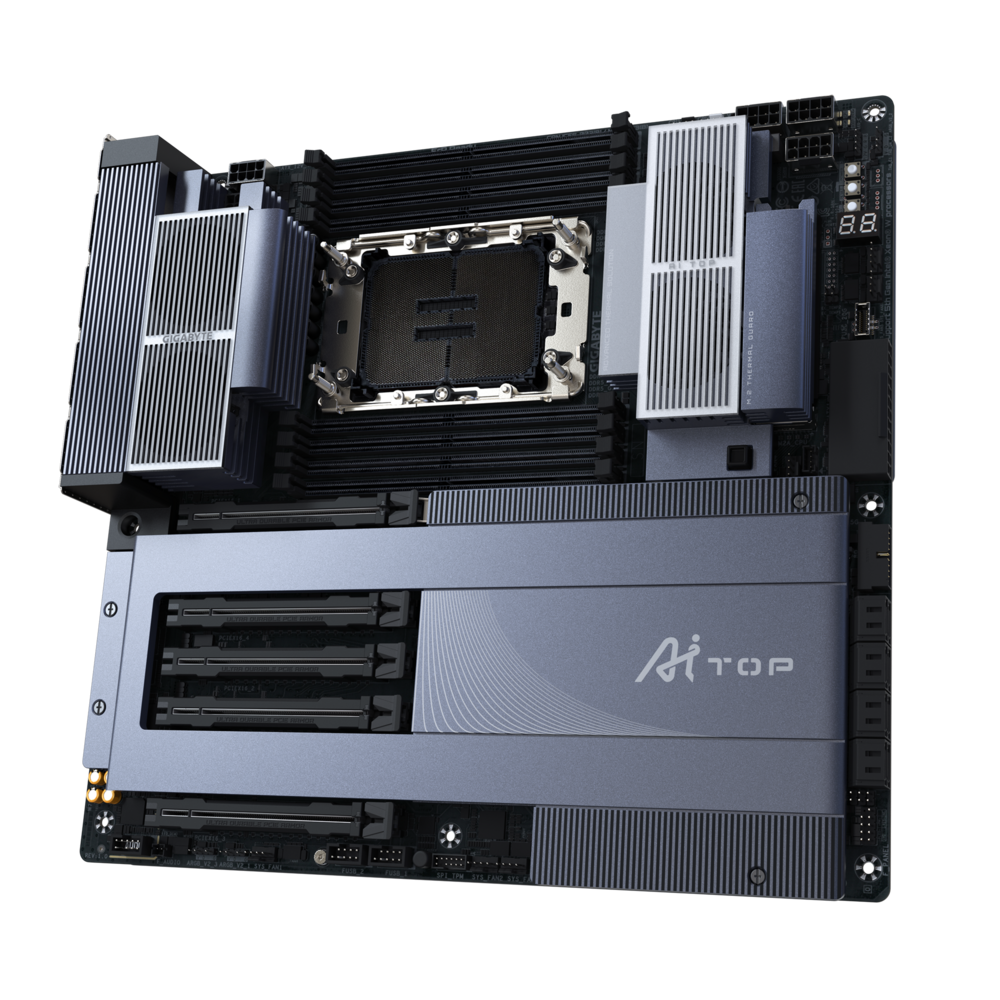

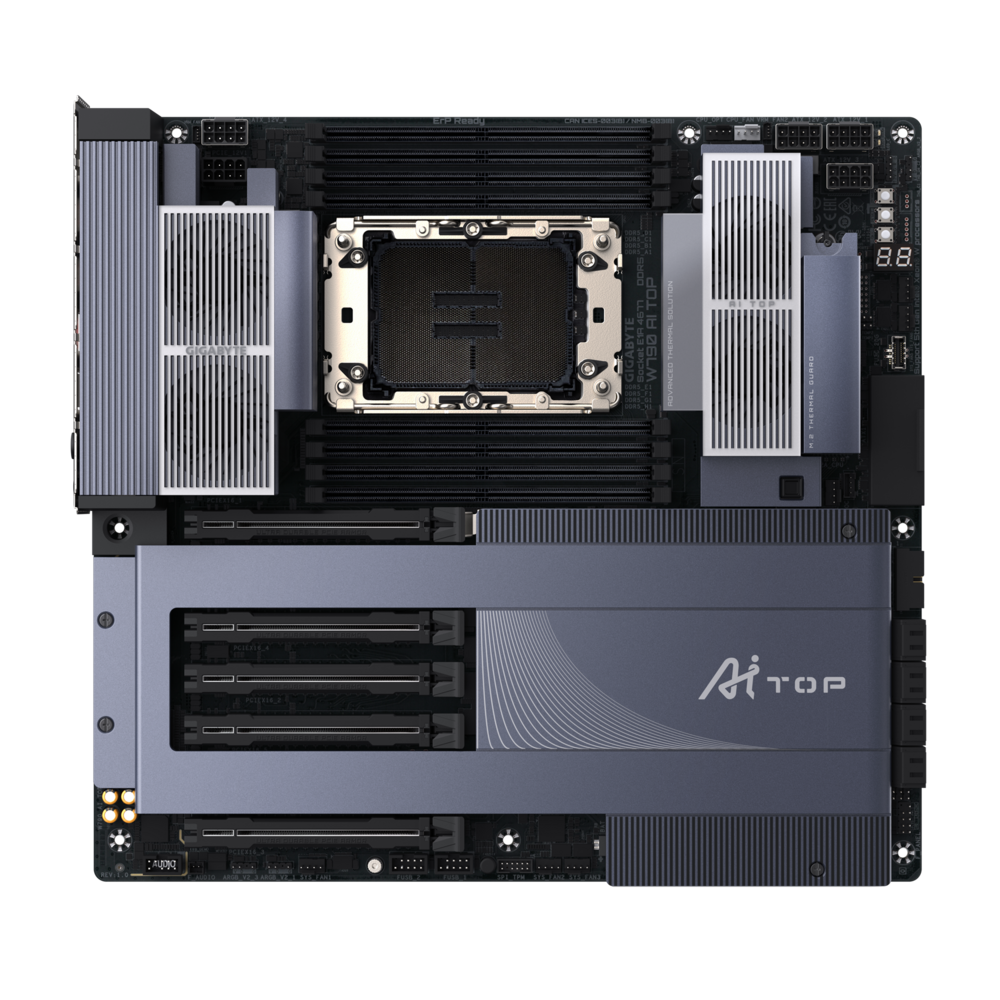

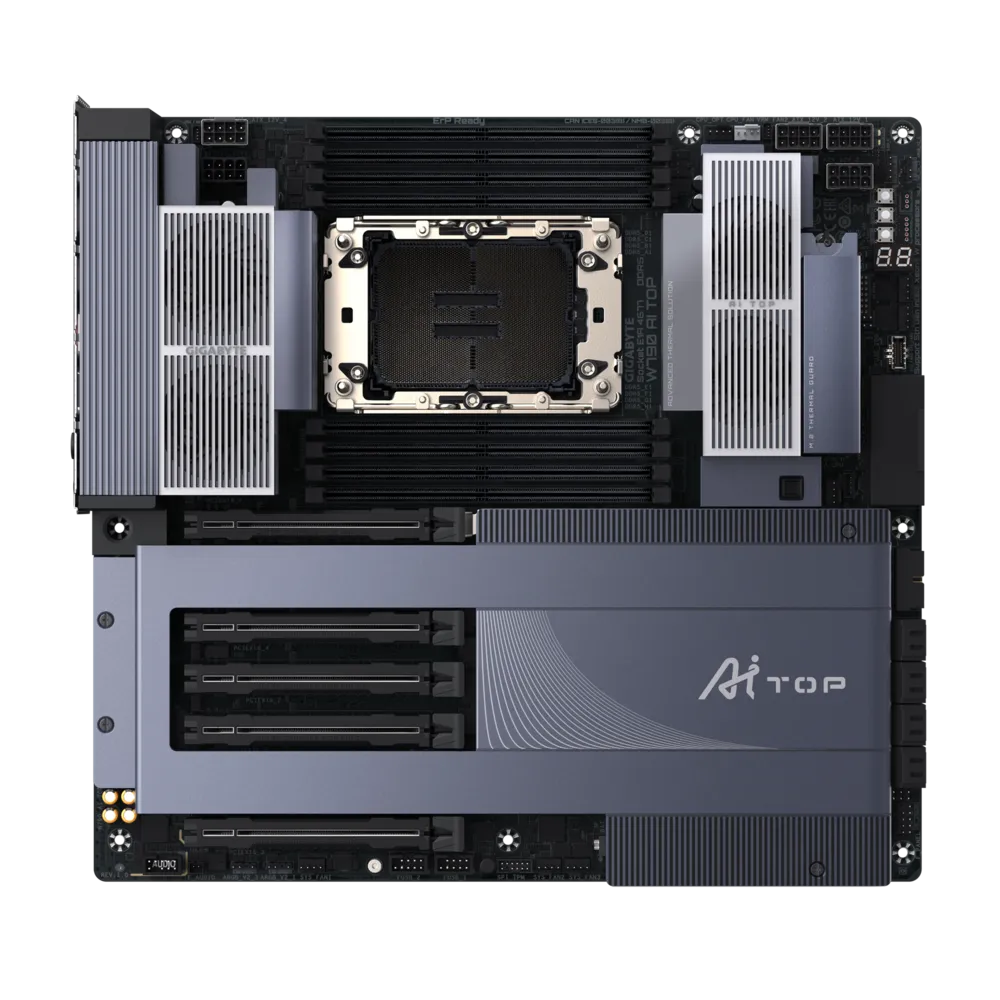

Gigabyte W790 AI TOP Motherboard
  • Model:W790 AI TOP
  • Supports 5th Gen Intel® Xeon® W processors
  • Intel W790, LGA 4677, ATX Form Factor
  • DDR5 8-Channel ECC R-DIMMs, up to 2TB
  • 5x PCIe 5.0 x16 slots, WiFi 7, Dual 10GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 95,150
Next Day Dispatch
1
CPU
LGA4677 socket: Support for Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)
Chipset
Intel® W790 Express Chipset
Memory
Support for 5600(O.C.) / 4800 MHz memory modules8 x DDR5 DIMM sockets- Intel® Xeon® W-3500/W-3400 Series Processors support 8-Channel memory architecture- Intel® Xeon® W-2500/W-2400 Series Processors support 4-Channel memory architecture* The DDR5_C1, DDR5_D1, DDR5_G1, and DDR5_H1 sockets become unavailable when an Intel® Xeon® W-2500/W-2400 series processor is used.Support for DDR5 ECC Registered memory modules and up to 2 TB of system memory- RDIMM-3DS memory supports up to 256 GB per DIMM- RDIMM memory supports up to 64 GB per DIMMSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
LAN
Intel® X710-AT2 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)* Wake On LAN not supported
Wireless Communication module
Intel® Wi-Fi 7 BE200NGW- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wake On LAN not supported* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots
CPU:- 5 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16* The PCIEX16_4 and PCIEX16_5 slots become unavailable when an Intel® Xeon® W-2500/W-2400 series processor is used.* The PCI Express x16 slots support only graphics cards or NVMe SSDs. For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
Storage Interface
CPU:- 4 x M.2 connectors (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU, M2C_CPU, M2D_CPU)* The M2C_CPU and M2D_CPU connectors become unavailable when an Intel® Xeon® W-2500/W-2400 series processor is used.Chipset:- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2E_SB, M2F_SB)- 8 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset+Intel® Thunderbolt™ 4 Controller:- 2 x USB4® USB Type-C® ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector4 x 8-pin ATX 12V power connectors1 x PCIe power connector1 x CPU fan header1 x CPU fan/water cooling pump header6 x system fan headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header6 x M.2 Socket 3 connectors8 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x Q-Flash Plus button1 x speaker header1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumper1 x Intel® VROC Upgrade Key header

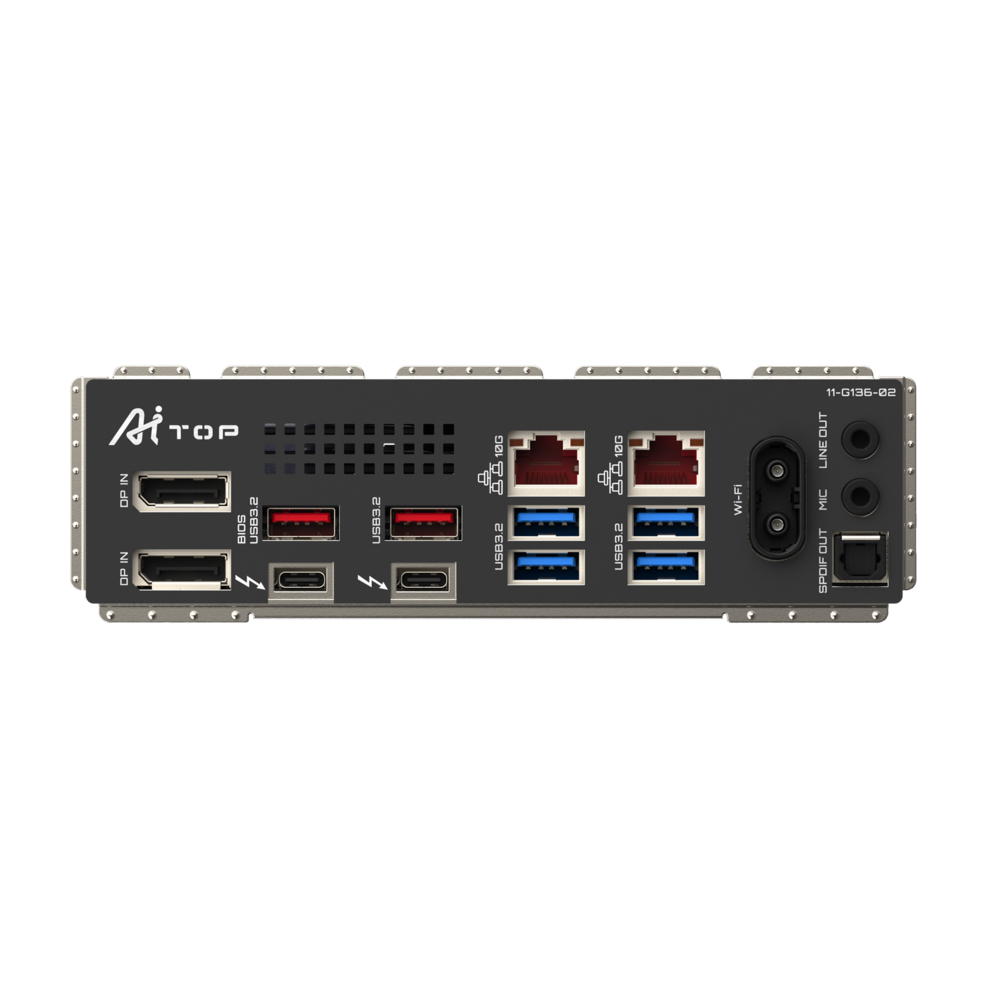

Back Panel Connectors
2 x DisplayPort In ports2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)2 x antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 512 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm
