Gigabyte X870I AORUS PRO ICE Motherboard
  • Model:X870I AORUS PRO ICE
  • Supports AMD Ryzen 9000/8000/7000 CPUs
  • AMD X870 chipset, AM5 socket, Mini-ITX form factor
  • Dual channel DDR5, 2 DIMMs supported
  • PCIe 5.0, WiFi 7, USB4 Type-C connectivity
  • 3 Years Warranty from Gigabyte
₹ 33,350
Next Day Dispatch
1
CPU
AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset
AMD X870
Memory Type
Dual Channel DDR5, 2 x DIMMs with AMD EXPO™ Memory Module Support
Memory Performance
Supports up to 8800 MT/s (OC); check QVL for details
Supported Profiles
AMD EXPO™
Custom SPD Profiles
2 custom SPD profiles, backup & transferable
PCIe Slots
1 x PCIe 5.0 x16 (PCIe UD Slot X)
M.2 Slots
2 x M.2 slots: 1 x PCIe 5.0 x4 (front), 1 x PCIe 4.0 x4 (back)
M.2 EZ-Latch
EZ-Latch Plus & EZ-Latch Click (quick release/screwless design)
SATA Connectors
2 x SATA3 (6Gb/s)

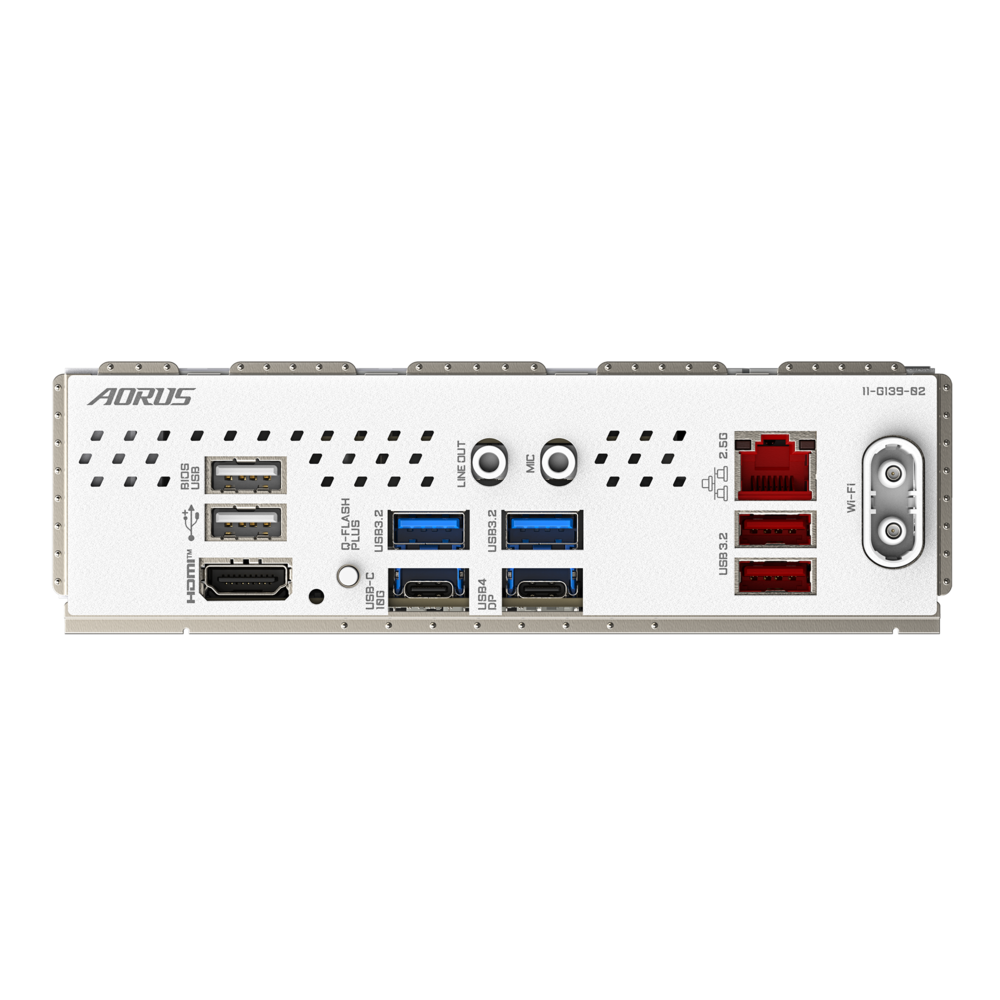

USB Ports (Rear)
1 x USB4 Type-C (40Gb/s with DP-Alt), 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2, 2 x USB 2.0, 1 x HDMI
USB Internal
1 x Front USB-C 10Gb/s
LAN
2.5GbE LAN
Wireless
Wi-Fi 7 with Directional Ultra-high Gain Antenna, WIFI EZ-Plug
Audio
Realtek ALC4080 HD Audio, Audiophile Grade Capacitors, DTS : X® Ultra support
RGB
1 x RGB LED Header, 2 x ARGB LED Headers (ARGB GEN2 supported), RGB Fusion supported
BIOS Features
Multi-Theme UI, AIO Fan Control, Q-Flash Auto Scan, Direct-to-BIOS, Safe Mode, DRAM Install Optimization Indicator, Quick Access Function, Power Monitor
Debug
EZ-Debug Zone, Centralized debug LEDs and controls
Fan Headers
Total 3 x PWM/DC Fan Headers, supports up to 24W per fan header, supports slope and stair fan curves
VRM Design
8+2+1 Digital VRM (8 x VCore SPS 110A, 2 x SOC SPS 80A, 1 x MISC MXL 30A)
VRM Thermal
VRM Thermal Armor Advanced, Full-metal heatsink, 12 W/mK thermal pad, integrated IO shield
Thermal Guard
M.2 Thermal Guard Ext. for 1 x M.2 slot
Cooling Features
Smart Fan 6, 7 adjustable control points, fan stop/curve EZ tuning, manual input, fan profile to BIOS
PCB
10-Layer Server-grade PCB, 2X Copper Enhancement, 56% Lower Dissipation Factor
Memory Enhancement
Shielded Memory Routing, Daisy-Chained Routing, Advanced PCB
Power Connectors
24-pin ATX Power Connector, 8-pin CPU with UD Solid Pin
PCIe Latch
Pcie EZ-Latch Plus (quick release for graphics card), M.2 EZ-Latch Click/Plus (screwless design)
Ultra Durable
PCIe UD Slot X, 10X load-bearing strength, single-piece design with backplate, zinc alloy EMI shielding, inner lining rubber strip
Software
GIGABYTE Control Center (GCC), HWiNFO co-branded OSD
Other Features
Q-Flash Plus, Q-Flash Auto Scan, BIOS update without CPU/RAM/GPU, Multi-key, RGB switch
Protection Features
OTP (Over Temp Protection), OCP (Over Current Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection)
Dimensions
Mini-ITX form factor
Included Accessories

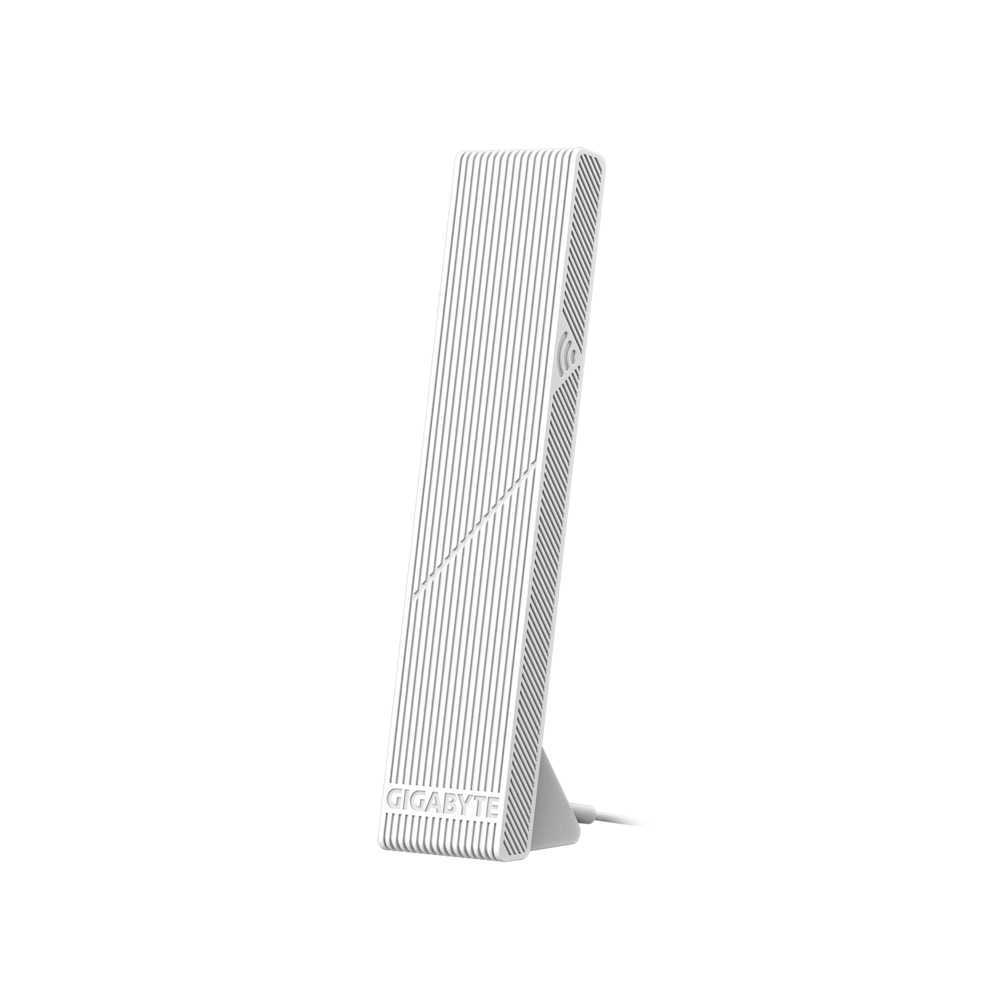

Directional Ultra-high Gain Antenna, Magnetic Base
Color
ICE (white)
