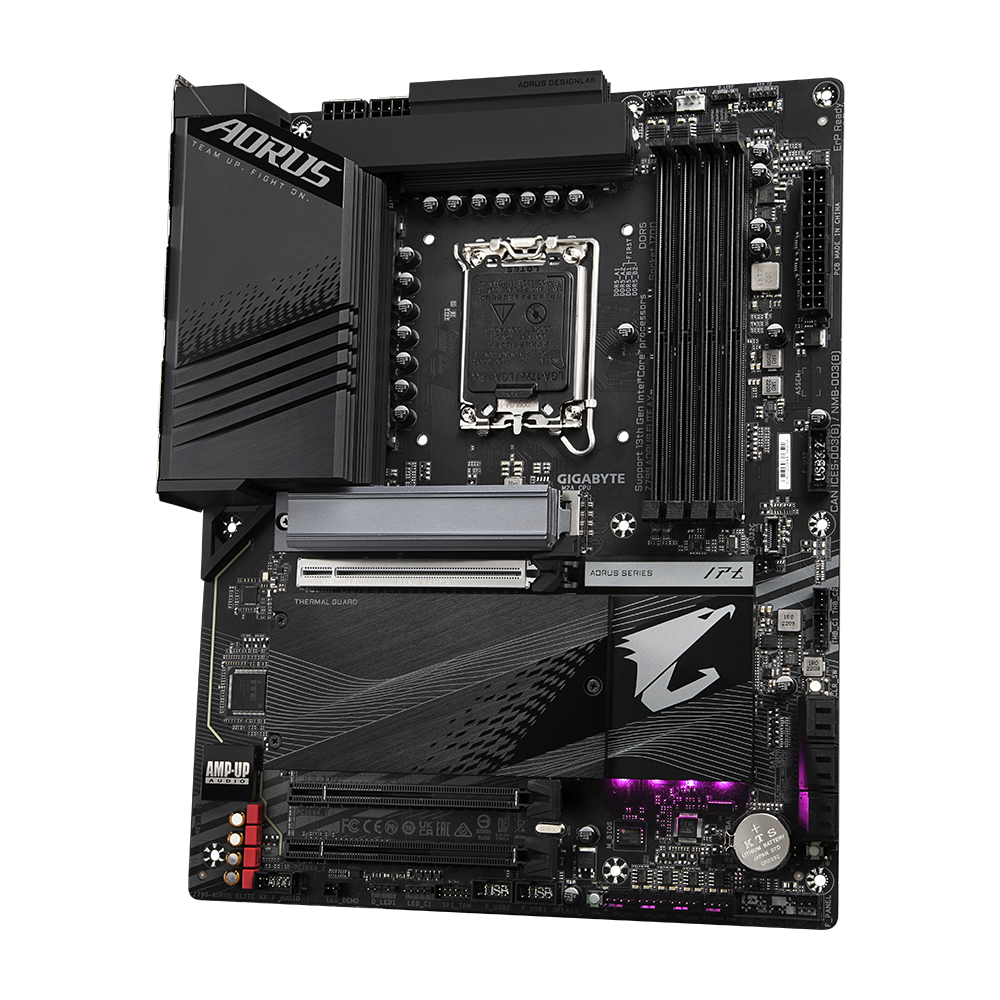

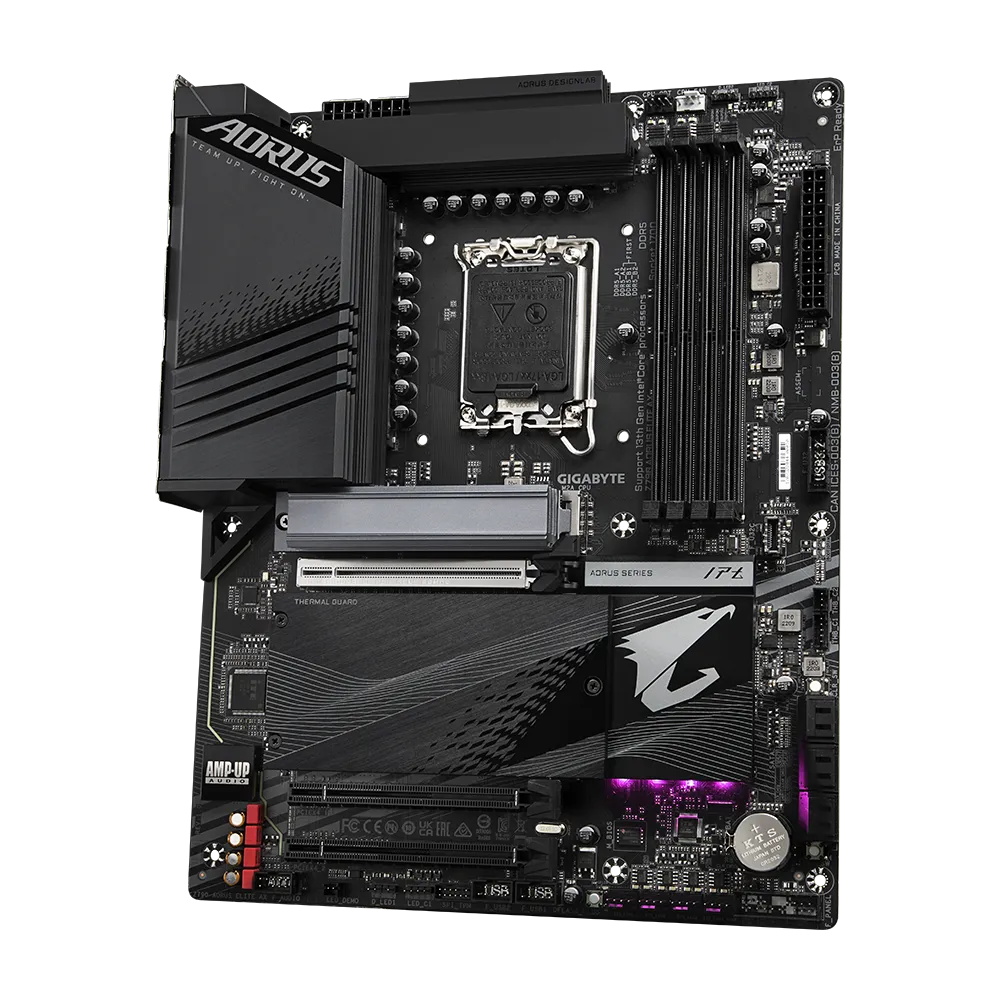

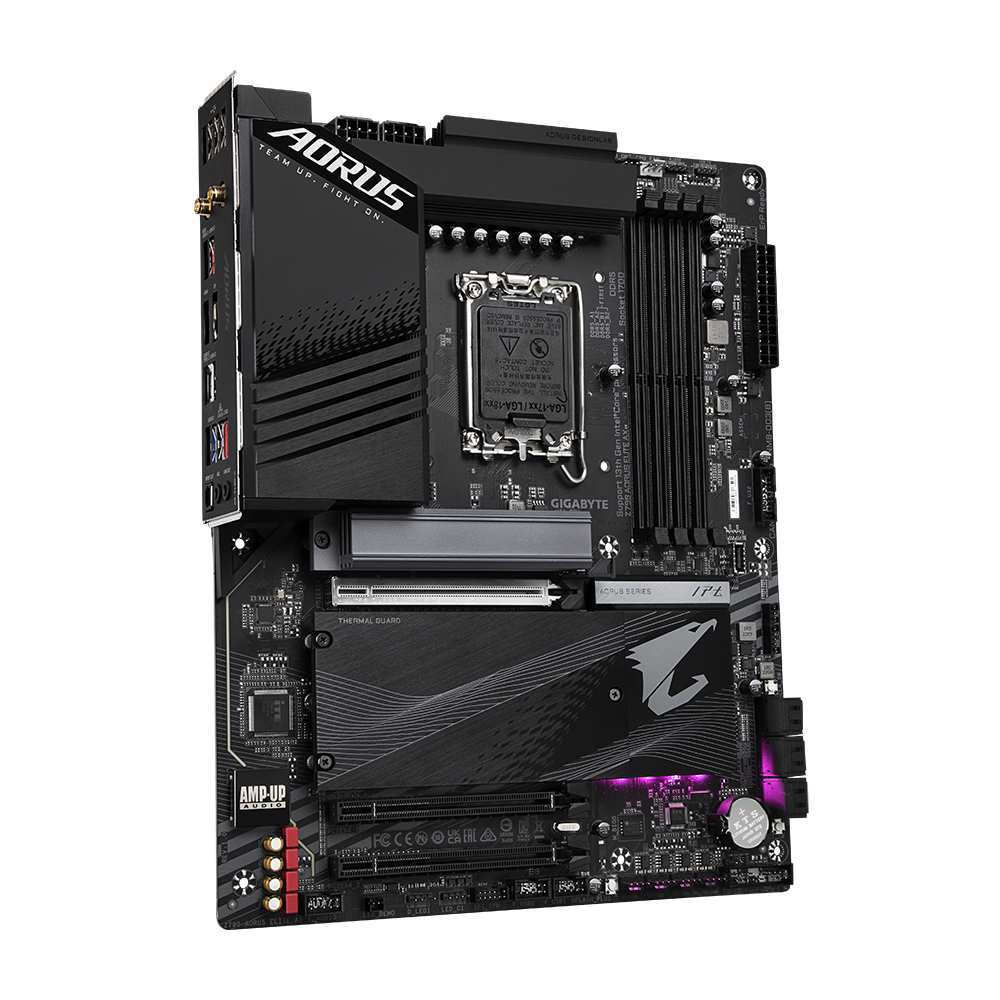

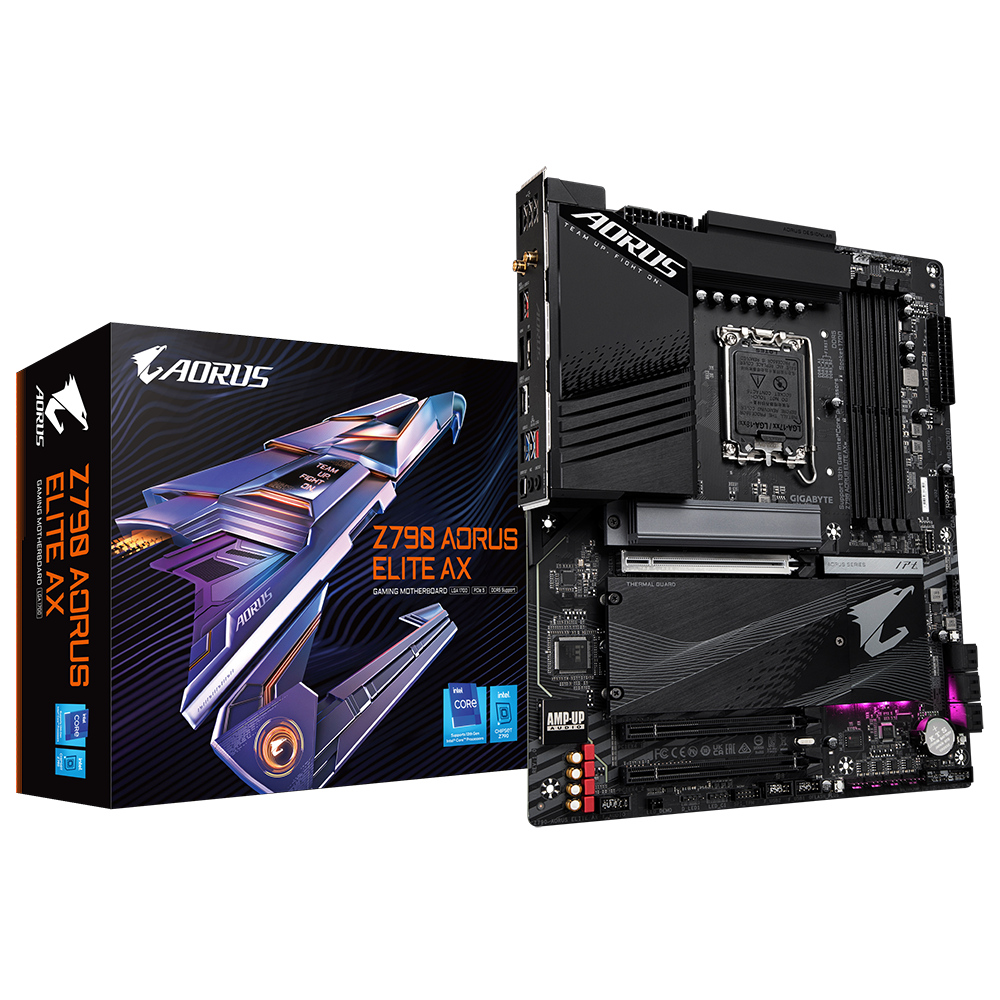

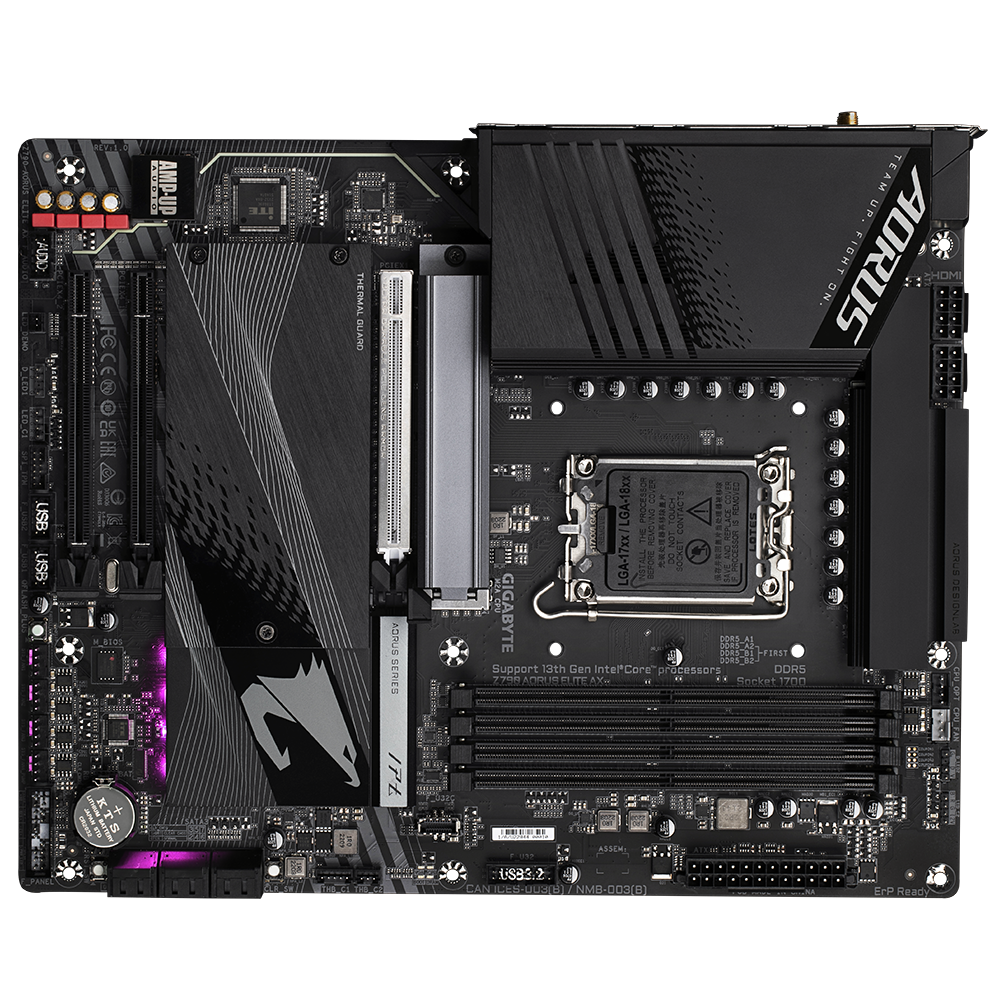

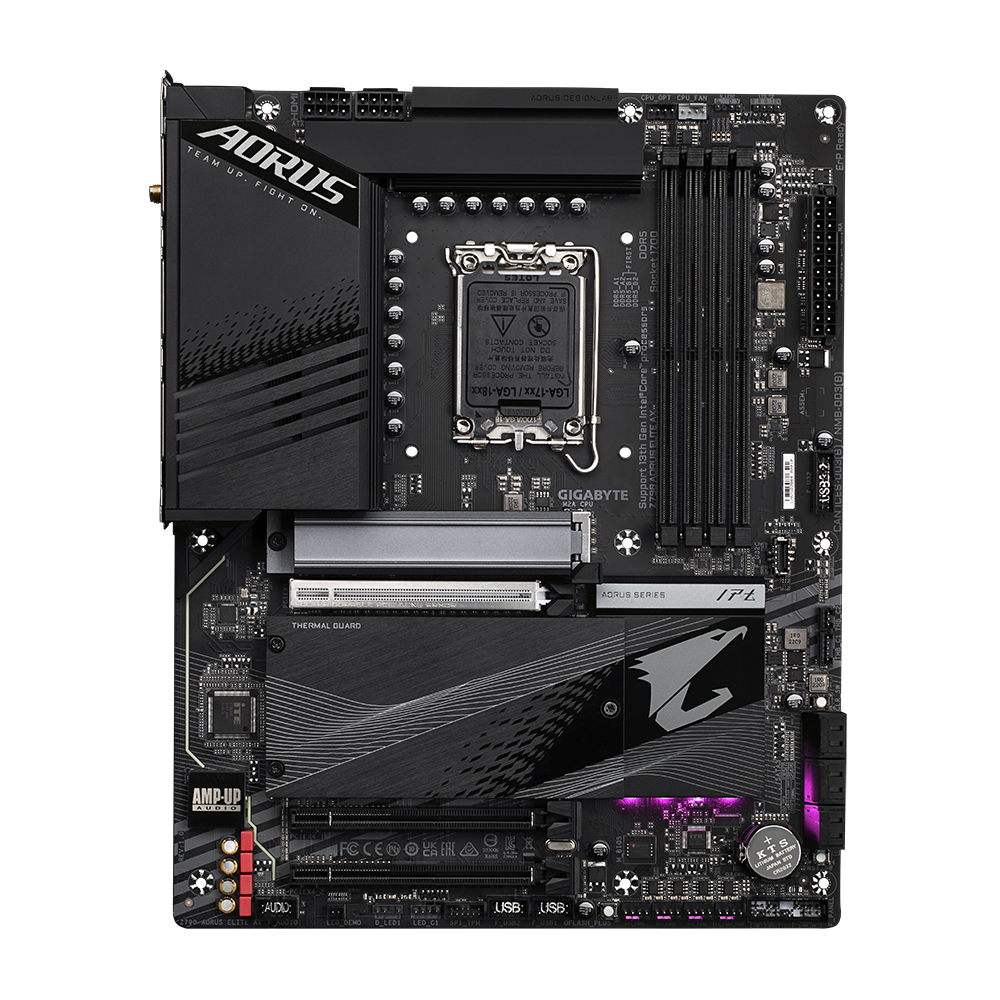

Gigabyte Z790 AORUS ELITE AX Motherboard
  • Model:Z790 AORUS ELITE AX
  • Supports Intel 13th and 12th Gen CPUs
  • Intel Z790 chipset, LGA 1700, ATX Form Factor
  • Dual Channel DDR5 memory support
  • PCIe 5.0, WiFi 6E, USB-C connectivity
  • 3 Years Warranty from Gigabyte
₹ 29,450
Next Day Dispatch
1
CPU
LGA1700 socket: Support for 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset
Intel® Z790 Express Chipset
Memory
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC, un-buffered memory Support for Extreme Memory Profile (XMP) memory modules
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX211 Supports 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz frequency bands BLUETOOTH 5.3
Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (The PCIEX16 slot supports PCIe 5.0 x16, keep in mind actual support depends on CPU)
Storage Interface
1 x M.2 connector (Socket 3, M key, Type 22110/2280/2260/2242, PCIe 4.0 x4/x2 SSD support) 2 x M.2 connectors (Socket 3, M key, Type 2280/2260/2242, PCIe 4.0 x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, Type 2280/2260/2242, PCIe 3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors
RAID
Supports RAID 0, RAID 1, RAID 5, and RAID 10
USB
Rear: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Internal: 1 x USB Type-C® port, with USB 3.2 Gen 2 support (available through the internal USB header) 2 x USB 3.2 Gen 1 headers supporting 4 ports 2 x USB 2.0/1.1 headers supporting 4 ports
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x CPU fan header 2 x system fan headers 2 x pump headers 1 x front panel header 1 x front audio header 1 x USB Type-C® header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x RGB LED strip header 2 x addressable LED strip headers 1 x Q-Flash Plus button

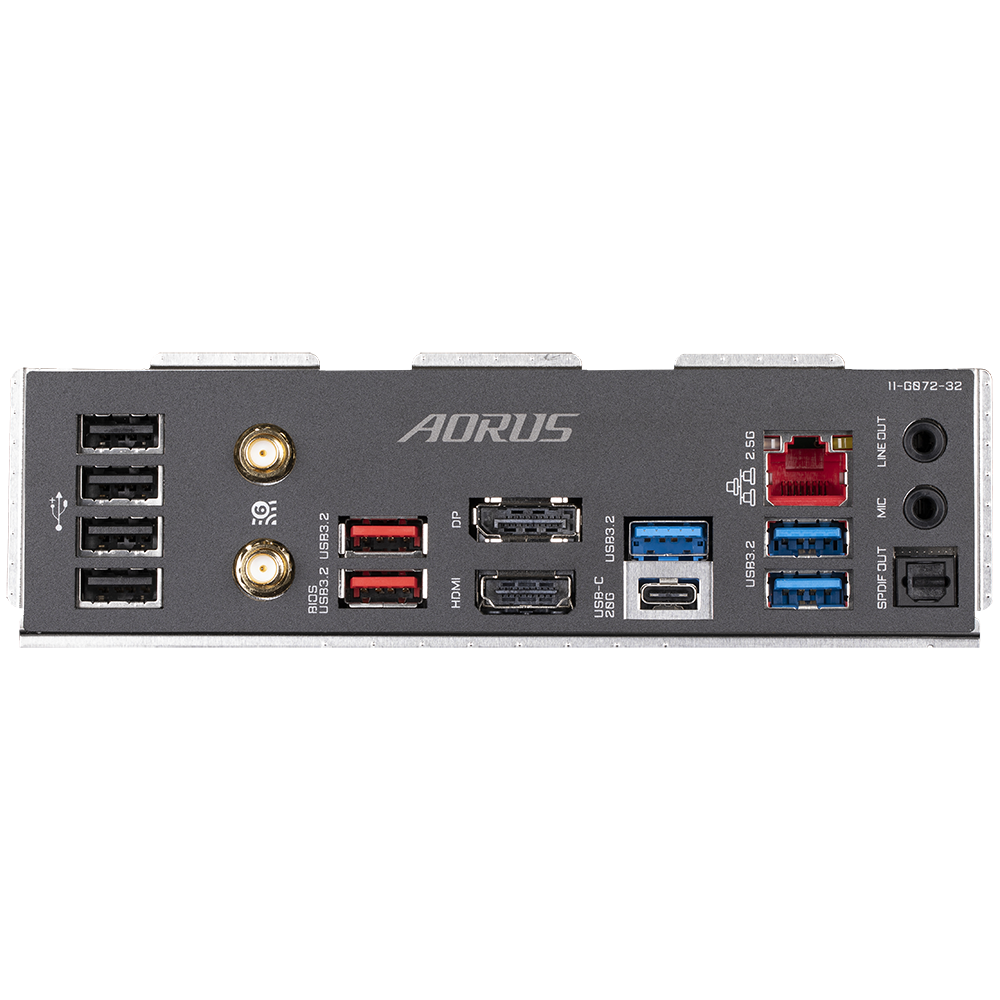

Back Panel Connectors
1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors 1 x optical S/PDIF Out connector 5 x audio jacks
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
