MSI RTX 5070 Ti Graphics Cards

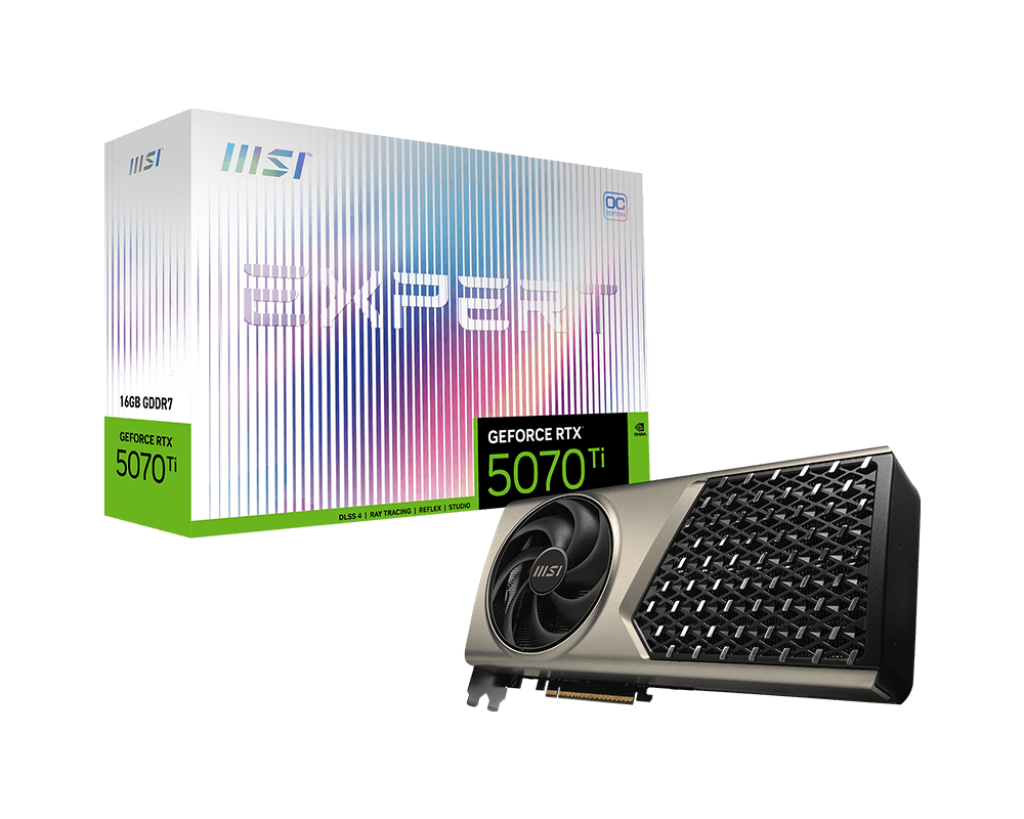

The MSI RTX 5070 Ti cards here all use NVIDIA's Blackwell-based GeForce RTX 5070 Ti with 16 GB of video memory, ray tracing and DLSS 4. They differ in cooler, size and finish, from the compact 288 mm INSPIRE 3X OC and 303 mm VENTUS 3X OC and SHADOW 3X OC, through the 319 mm EXPERT OC and the 338 mm GAMING TRIO OC (also in WHITE and OC PLUS versions), to the 357 mm VANGUARD SOC. MSI covers them with a 3 year warranty.

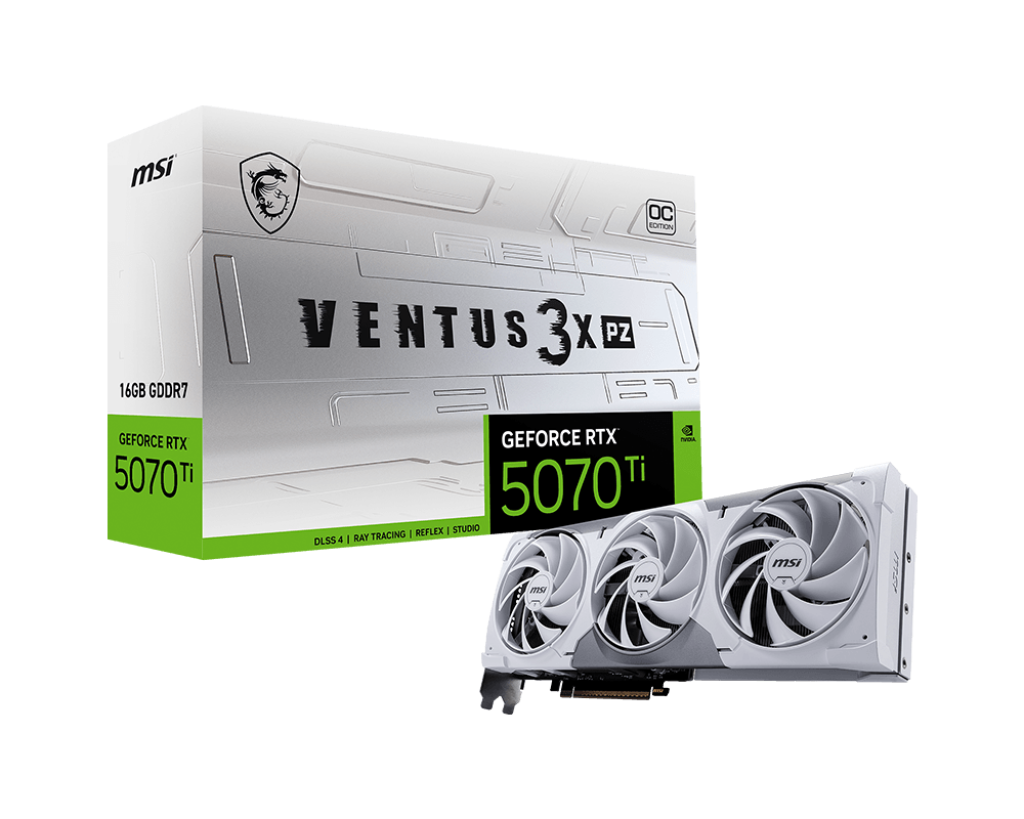

Because the GPU is the same on every card, choose mainly by fit and looks. Check your cabinet's GPU clearance first: the INSPIRE 3X models suit tighter cases, the VENTUS and SHADOW cards are 49 mm thick, and the VANGUARD SOC needs 66 mm and the most length. The VENTUS 3X PZ OC places its power connector at the rear for MSI Project Zero back-connect builds. The GAMING TRIO OC WHITE is for all-white builds. Every model is rated at 300 W, uses a single 16-pin power connector and lists a 750 W power supply. The RTX 5070 Ti is aimed at high refresh rate 1440p gaming and 4K with DLSS.

Frequently asked questions

What power supply does an MSI RTX 5070 Ti need? MSI recommends a 750 W unit for these cards, with a 16-pin connector or the adapter supplied with the card.

Will these cards work in a PCIe 4.0 motherboard? Yes. They are PCIe 5.0 cards but run in PCIe 4.0 and 3.0 x16 slots, with little loss in games on PCIe 4.0.

Which MSI RTX 5070 Ti fits a smaller case? The INSPIRE 3X OC and INSPIRE 3X OC PLUS are the shortest here at 288 mm.
