- Model:VCNRTX2000ADA-PB
- 16GB GDDR6 memory with ECC
- 2,816 CUDA cores, Ada Lovelace architecture
- 4x Mini DisplayPort 1.4a, PCIe 4.0 x8
- 70W, dual slot, 2.7" H x 6.6" L
- 3 Years Warranty from PNY
Overview
The NVIDIA RTX 2000 Ada Generation brings the cutting-edge Ada Lovelace architecture to professionals using compact workstations or full-sized towers, offering faster performance and advanced features with up to 16GB of GPU memory. With its powerful low-profile, dual-slot form factor, you can do your life's work on a wide range of systems and free from limitations.
Based on the Ada Lovelace architecture, the RTX 2000 Ada Generation delivers up to 1.5X the single-precision floating-point throughput compared to the previous generation. Third-generation RT Cores provide up to 1.7X faster ray tracing performance, while fourth-generation Tensor Cores support the new FP8 data format for inference with up to 1.8X higher throughput for tensor matrix operations.
The card features 16GB of GDDR6 memory with ECC support for uncompromised computing accuracy and reliability in mission-critical applications. It supports PCIe Gen 4, which doubles the bandwidth of PCIe Gen3 to 31.5 GB/sec for x8 connections, improving data transfer speeds for data-intensive tasks such as AI, data science, and creating 3D models from large datasets.
The RTX 2000 is built for manufacturing design, AECO visualization, digital signage, media and entertainment, and other professional workflows requiring real-time ray tracing, AI-assisted content creation, and high-performance graphics.
- NVIDIA Ada Lovelace Architecture
- 2,816 CUDA Cores with 1.5X FP32 throughput improvement
- Third-Generation RT Cores with 1.7X faster ray tracing
- Fourth-Generation Tensor Cores with FP8 support
- 16GB GDDR6 memory with ECC

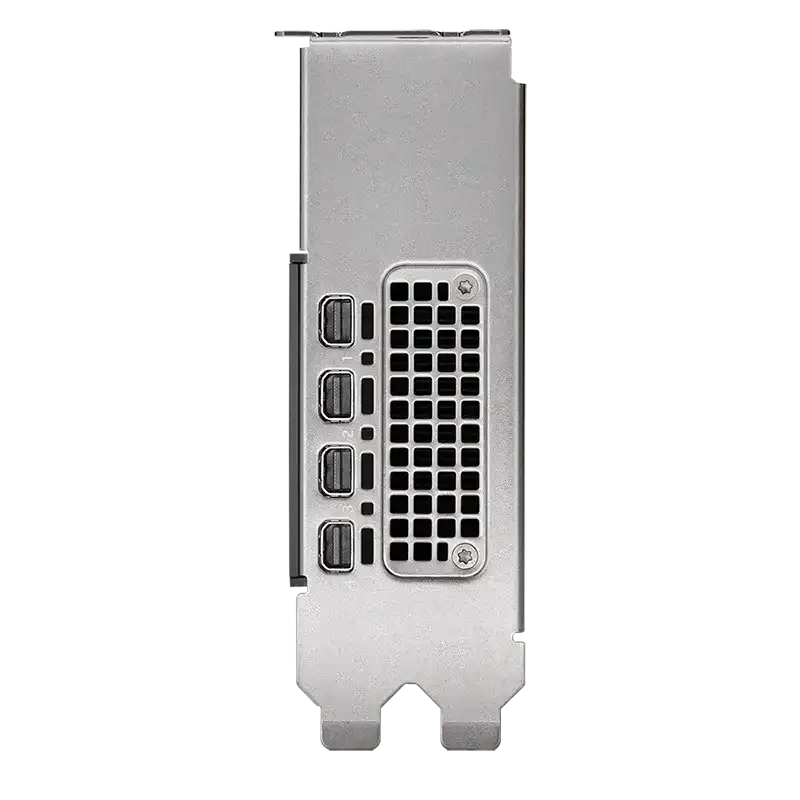

- 4x Mini DisplayPort 1.4a
- PCIe 4.0 x8 interface
- 70W power consumption
- Dual-slot form factor
- NVIDIA RTX Experience and RTX Desktop Manager software
Specifications
- GPU memory
- 16GB GDDR6
- Memory interface
- 128-bit
- Memory bandwidth
- 224 GB/s
- Error-correcting code (ECC)
- Yes
- NVIDIA Ada Lovelace architecture-based CUDA Cores
- 2,816
- NVIDIA fourth-generation Tensor Cores
- 88
- NVIDIA third-generation RT Cores
- 22
- Single-precision performance
- 12.0 TFLOPS2
- RT Core performance
- 27.7 TFLOPS2
- Tensor performance
- 191.9 TFLOPS3
- System interface
- PCIe 4.0 x 84
- Power consumption
- Total board power: 70W
- Thermal solution
- Active
- Form factor
- 2.7”H x 6.6”L, Dual Slot
- Display connectors
- 4x Mini DisplayPort 1.4a
- Encode/decode engines
- 1x encode, 1x decode(+AV1 encode and decode)
- VR-ready
- Yes
- Graphics APIs
- DirectX 12, Shader Model 6.6, OpenGL 4.65, Vulkan 1.35
- Compute APIs
- CUDA 11.6, OpenCL 3.0, DirectCompute
Warranty
3 Years manufacturer warranty from PNY. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
