- Model:VCNRTX2000ADAS-LLP
- 16GB GDDR6 memory with ECC
- 2,816 CUDA cores, NVIDIA Ada Lovelace architecture
- 4x Mini DisplayPort 1.4a, PCIe 4.0 x8
- 50W, single slot, 2.7" H x 6.6" L
- 3 Years Warranty from PNY
Overview

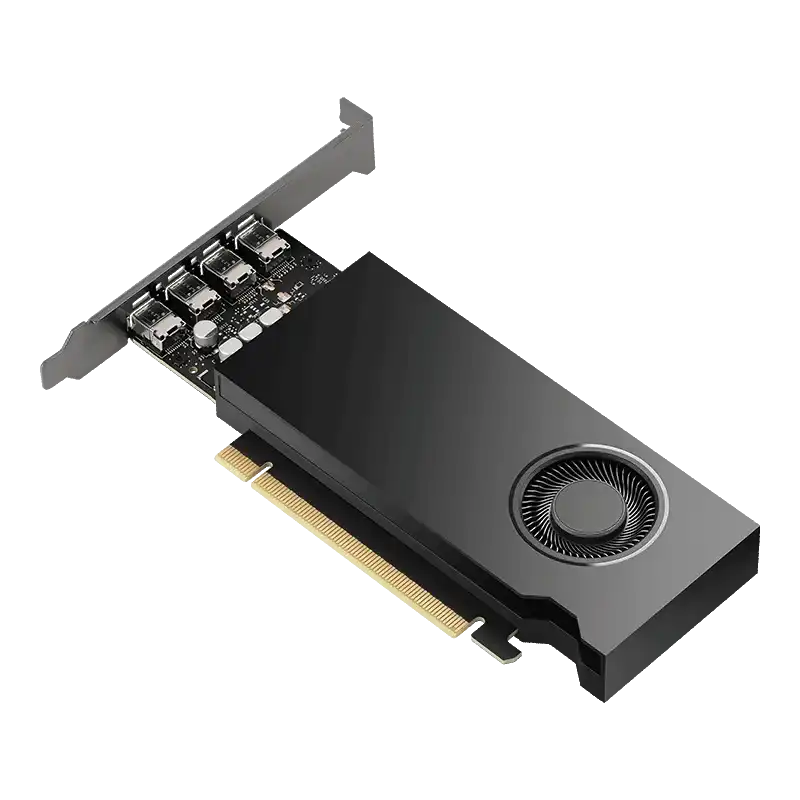

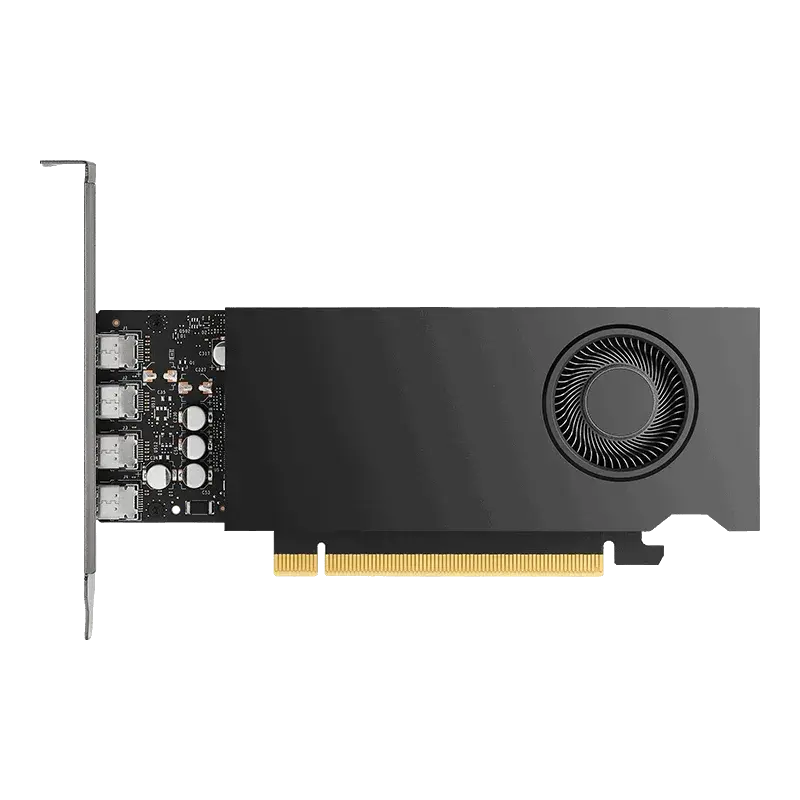

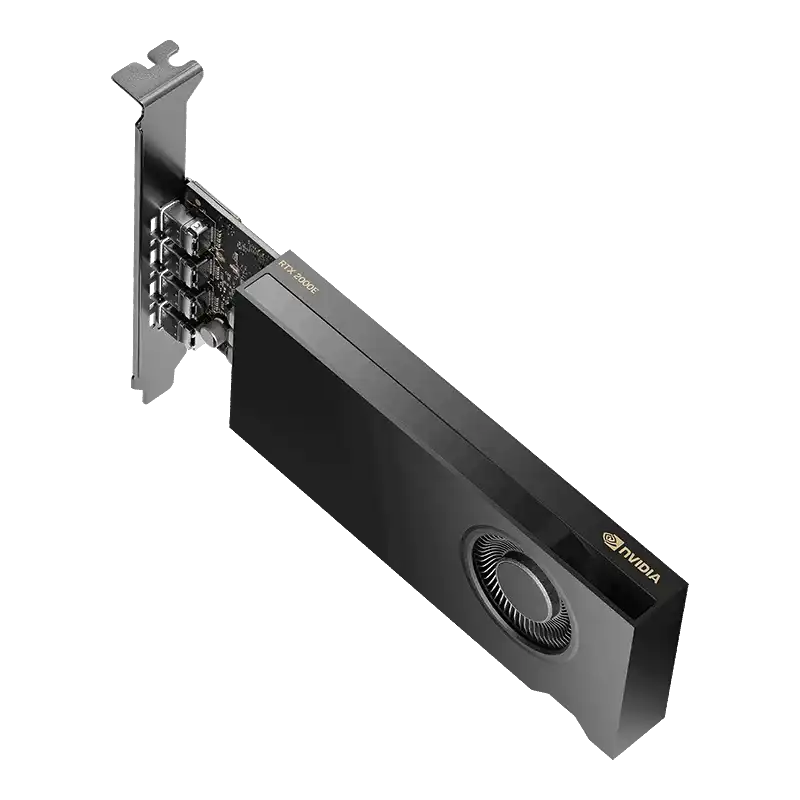

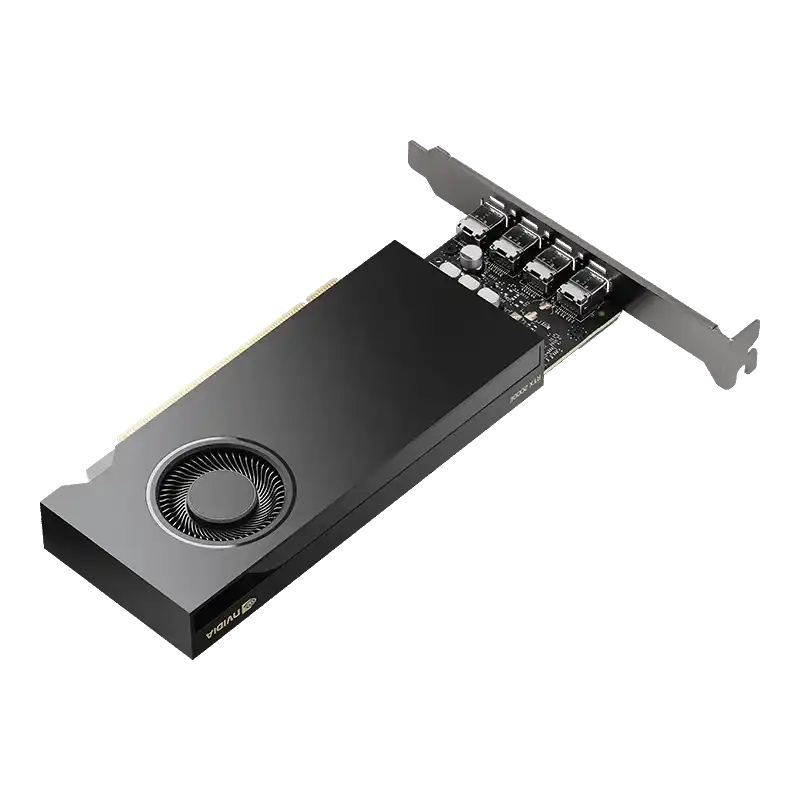

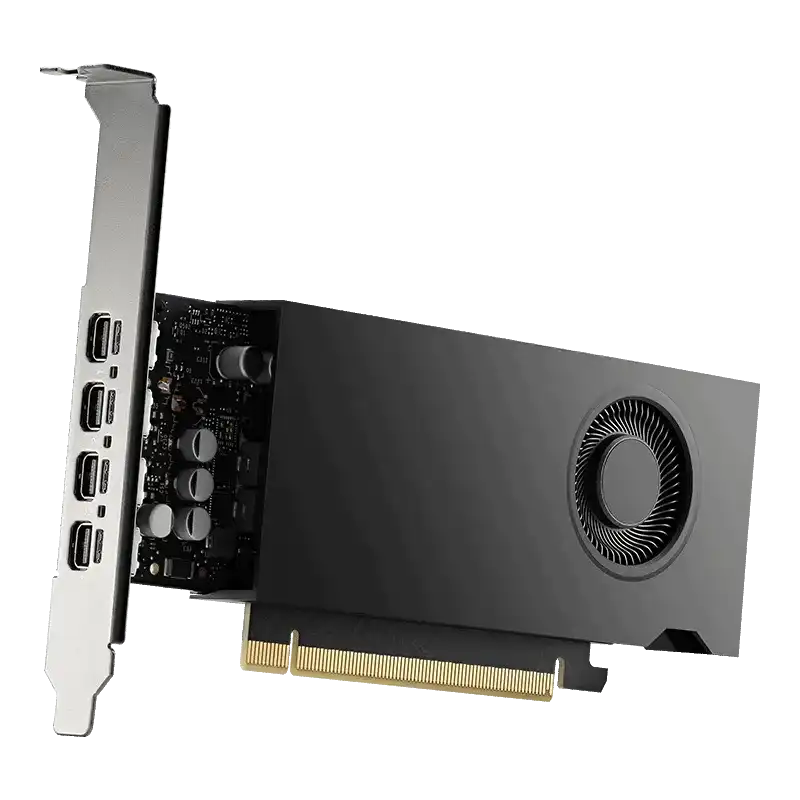

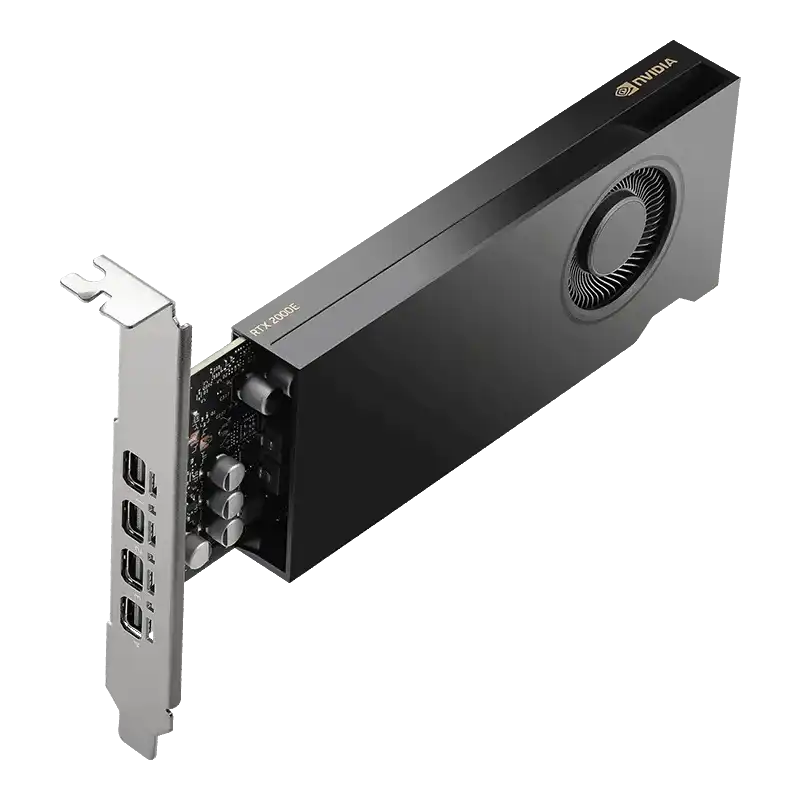

The NVIDIA RTX 2000E Ada Generation is a powerful, low-profile, single-slot professional graphics card purpose-built for demanding embedded and edge computing applications. Based on the NVIDIA Ada Lovelace architecture, it delivers hardware-accelerated real-time ray tracing, AI-accelerated compute, and high-performance graphics to creative professionals and engineers in a compact form factor.
The card combines 2,816 CUDA cores, 88 fourth-generation Tensor Cores, and 22 third-generation RT cores with 16GB GDDR6 graphics memory with error correction code (ECC) support. It supports four Mini DisplayPort 1.4a connectors for driving multiple high-resolution displays, including up to four 5K monitors at 60Hz or dual 8K displays at 60Hz per card.
Designed for healthcare, architecture, engineering, construction, manufacturing, and media and entertainment workflows, the RTX 2000E delivers incredible performance and power efficiency while meeting the highest quality and reliability standards. It is part of the PNY Long Life Program and backed by a global team of support specialists.
- NVIDIA Ada Lovelace Architecture with 2,816 CUDA cores
- 16GB GDDR6 memory with ECC support
- 22 third-generation RT cores for ray tracing
- 88 fourth-generation Tensor cores for AI workloads

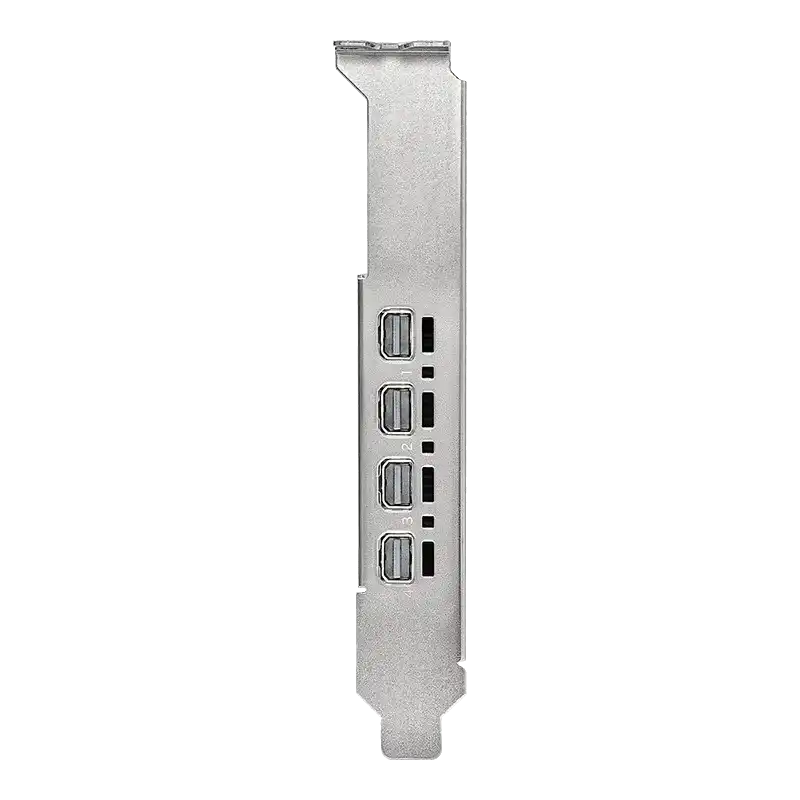

- 4x Mini DisplayPort 1.4a connectors
- PCIe 4.0 x8 interface
- 50W maximum power consumption
- Single-slot, low-profile form factor
- NVIDIA RTX IO and NVIDIA Mosaic technology support
- AV1 encode and decode support
Specifications
- Product
- NVIDIA RTX 2000E Ada Generation
- PNY Part Number
- VCNRTX2000ADAS-LLP
- Architecture
- NVIDIA Ada Lovelace Architecture
- CUDA Cores
- 2,816
- Tensor Cores
- 88
- RT Cores
- 22
- Single Precision Performance
- 8.9 TFLOPS
- RT Core Performance
- 20.5 TFLOPS
- Tensor (AI) Performance
- 71 AI TOPS | 71 TFLOPS
- GPU Memory
- 16 GB GDDR6 with ECC
- Memory Interface
- 128-bit
- Memory Bandwidth
- 224 GB/sec
- Display Connectors
- 4x Mini DisplayPort 1.4a
- Display Adapter
- (1x) NVIDIA Certified Latching mDP to DP adapter included
- NVENC | NVDEC
- 1x | 1x (+AV1 Encode and decode)
- System Interface
- PCI Express 4.0 x8
- NVLink
- Not Supported
- Form Factor
- 2.7" H x 6.6" L, Single Slot
- Thermal Solution
- Active Fan
- Maximum Power Consumption
- 50 W
- Graphics APIs
- DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3
- Compute APIs
- CUDA 11.6, OpenCL 3.0, DirectCompute
