- Model:VCNRTX4500ADASYNC-PB
- 24GB GDDR6 memory with ECC
- 7,680 CUDA cores, NVIDIA Ada Lovelace architecture
- 4x DisplayPort 1.4a, PCIe 4.0 x16
- 210W, dual slot, blower active fan
- 3 Years Warranty from PNY
Overview
The NVIDIA RTX 4500 Ada Generation, built on the ultra-efficient NVIDIA Ada Lovelace architecture, combines 60 third-generation RT Cores, 240 fourth-generation Tensor Cores, and 7,680 CUDA cores with 24GB of graphics memory to deliver fast ray tracing and AI-powered graphics. This professional workstation card is designed for industries embracing accelerated computing and AI across design, engineering, entertainment, and healthcare.

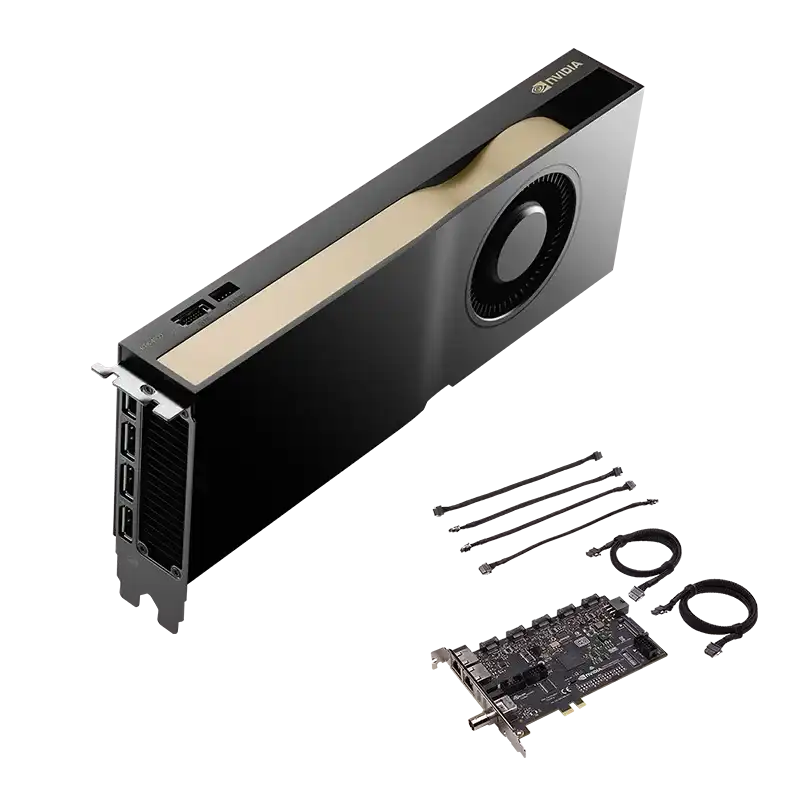

The RTX 4500 Ada features dual-slot, power-efficient design with 210W maximum power consumption, fitting into a wide range of workstation chassis. With four DisplayPort 1.4a connectors and support for multiple 8K monitors, it enables massive immersive environments for CAVE, video walls, and location-based entertainment deployments. The bundled NVIDIA Quadro Sync II board synchronizes up to 4 RTX 4500 boards for 16 synchronized displays per Sync II, and with two Sync II cards per system, up to 8 NVIDIA RTX 4500 GPUs per chassis for a total of 32 synchronized displays per system.
The card delivers significant performance improvements for graphics workflows such as 3D modeling and compute workloads such as CAE. Third-generation RT Cores provide up to 2X the throughput of the previous generation with the ability to run ray tracing with either shading or denoising capabilities concurrently. Fourth-generation Tensor Cores provide up to 4X faster AI training performance than the previous generation with FP16 precision, and support for the new FP8 data format for inference provides more than 4X faster performance than the previous generation.
Use cases include manufacturing design visualization and collaborative design reviews, media and entertainment broadcast graphics synchronization and virtual sets, AECO design and BIM workflows with immersive environments, visual simulation with 360-degree field of view, and digital signage with large display walls.
- NVIDIA Ada Lovelace Architecture with 7,680 CUDA cores
- 24GB GDDR6 memory with ECC and 432 GB/s bandwidth
- 60 third-generation RT Cores for ray tracing
- 240 fourth-generation Tensor Cores for AI acceleration
- Four DisplayPort 1.4a connectors with multi-display support
- PCIe Gen 4 x16 with 31.5 GB/s bandwidth
- 210W power consumption, dual-slot form factor
- NVIDIA Quadro Sync II compatibility for synchronized displays
- 2x video encode and 2x decode engines with AV1 support
- NVIDIA DLSS 3.0 and RTX Broadcast Engine support
Specifications
- Category
- Relative speedup (X)
- RTX A4500
- 1.0
- RTX 4500 Ada Generation
- 1.4
- Category
- Relative speedup (4K energy composite score)
- RTX 44500
- 0.97
- RTX 4500 Ada Generation
- 1.6
- Category
- Rendering (relative speedup, 1080p resolution, scene sol subtext render time, seconds)
- RTX A4500
- 1.0
- RTX 4500 Ada Generation
- 1.5
- Category
- Inference (relative speedup, 1.5X)
- RTX A4500
- 1.0
- RTX 4500 Ada Generation
- 1.5
- Category
- CAD
- RTX A4500
- 1.0
- RTX 4500 Ada Generation
- 1.5
- Category
- Performance (frames per second, relative)
- RTX A4500
- 1.0
- RTX 4500 Ada Generation
- 2.7
- PNY Part Numbers
- VCNRTX4500ADA-PB
- PNY Part Numbers
- YVCNRTX4500ADA-KIT
- PNY Part Numbers
- VCNRTX4500ADA-EDU
- PNY Part Numbers
- VCNRTX4500ADA-BLK
- PNY Part Numbers
- VCNRTX4500ADASYNC-PB
- GPU Memory
- 24GB GDDR6
- Memory Interface
- 192 bit
- Memory Bandwidth
- 432GB/s
- Error-Correction Code (ECC)
- Yes
- NVIDIA Ada Lovelace Architecture-Based CUDA Cores
- 7,680
- NVIDIA Fourth-Generation Tensor Cores
- 240
- NVIDIA Third-Generation RT Cores
- 60
- Single-Precision Performance
- 39.6 TFLOPS3
- RT Core Performance
- 91.6 TFLOPS3
- Tensor Performance
- 634.0 TFLOPS4
- System Interface
- PCIe 4.0 x16
- Power Consumption
- Total board power: 210W
- Thermal Solution
- Active
- Form Factor
- 4.4" H x 10.5" L, dual slot
- Display Connectors
- 4x DisplayPort 1.4a5
- Max Simultaneous Displays
- 4x 4096 x 2160 @ 120Hz
- Max Simultaneous Displays
- 4x 5120 x 2880 @ 60Hz
- Max Simultaneous Displays
- 2x 7680 x 4320 @ 60Hz
- Encode/Decode Engines
- 2x encode, 2x decode (+AV1 encode and decode)
- VR Ready
- Yes
- Graphics APIs
- DirectX 12, Shader Model 6.7, OpenGL 4.66, Vulkan 1.36
- Compute APIs
- CUDA 12.2, OpenCL 3.0, DirectCompute
- NVIDIA NVLink™
- No
Warranty
3 Years manufacturer warranty from PNY. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
