- Model:VCNRTX6000ADASYNC-PB
- 48GB GDDR6 memory with ECC
- 18,176 CUDA cores, NVIDIA Ada Lovelace architecture
- 4x DisplayPort 1.4a, PCIe 4.0 x16
- 300W, dual slot, 4.4" H x 10.5" L
- 3 Years Warranty from PNY
Overview
The NVIDIA RTX 6000 Ada Generation is designed to meet the challenges of today's professional workflows. Built on the NVIDIA Ada Lovelace architecture, the RTX 6000 combines 142 third-generation RT Cores, 568 fourth-generation Tensor Cores, and 18,176 CUDA cores with 48GB of GDDR6 graphics memory with ECC to deliver the next generation of AI graphics and petaflop inferencing performance for unprecedented speed-up of rendering, AI, graphics, and compute workloads.
The RTX 6000 Ada features up to 2X faster ray-triangle intersection throughput compared to the previous generation, with enhanced Tensor Cores that accelerate more data types and support Fine-Grained Structured Sparsity. The card supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds for data-intensive tasks like AI and data science.

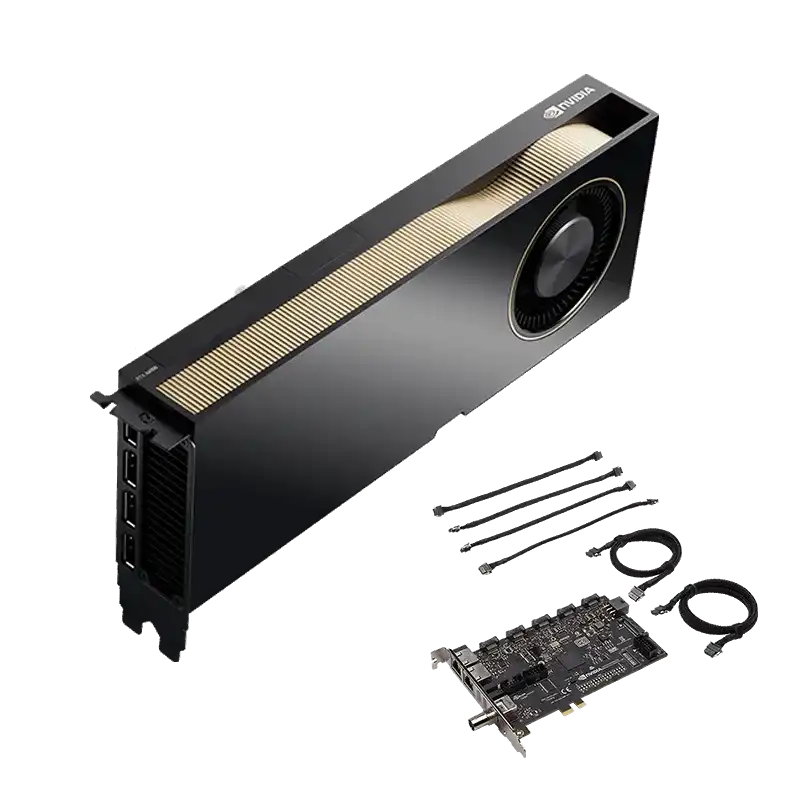

With the included NVIDIA Quadro Sync II board, the RTX 6000 Ada synchronizes up to 4 RTX 6000 Ada boards per card for 16 synchronized displays per Sync II, and with two Sync II cards per system, up to 8 RTX 6000 Ada GPUs per chassis for a total of 32 synchronized displays per system. This makes it ideal for digital signage, manufacturing visualization, media and entertainment, AEC, and visual simulation solutions.
- 18,176 CUDA Cores with NVIDIA Ada Lovelace Architecture
- 48GB GDDR6 memory with ECC
- 142 third-generation RT Cores for ray tracing
- 568 fourth-generation Tensor Cores for AI acceleration

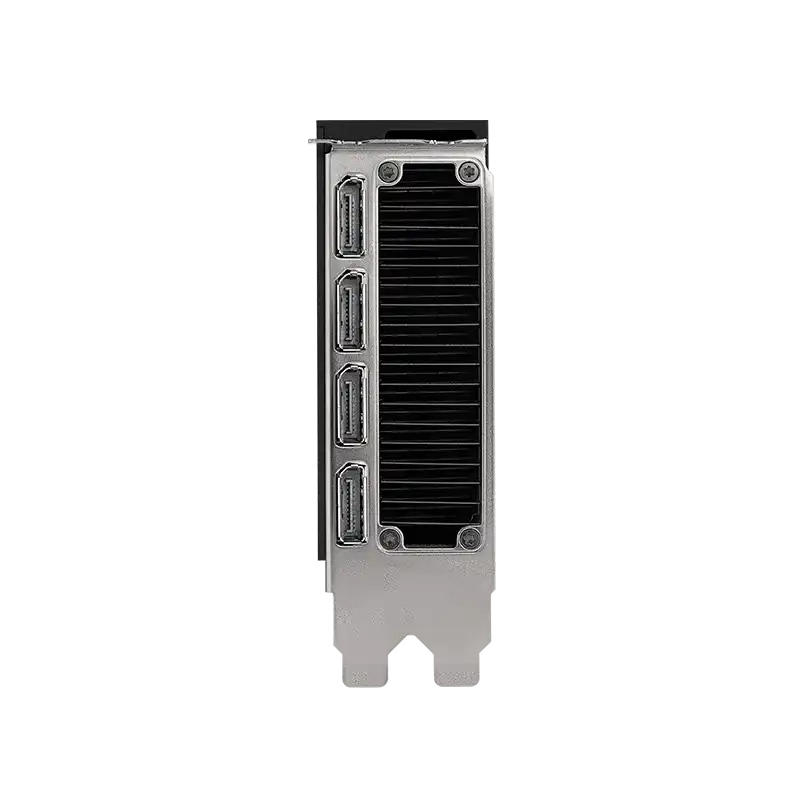

- 4x DisplayPort 1.4a connectors
- PCIe 4.0 x16 interface
- 300W power consumption, dual-slot form factor
- NVIDIA Quadro Sync II compatibility for synchronized displays
- NVIDIA vGPU software support
- Active thermal solution with blower fan
Specifications
- PNY Part Number
- Retail: VCNRTX6000ADA-PBSingle Bulk: VCNRTX6000ADA-SBBulk: VCNRTX6000ADA-BLKEducation: VCNRTX6000ADA-EDU
- GPU memory
- 48GB GDDR6
- Memory interface
- 384-bit
- Memory bandwidth
- 960 GB/s
- Error correction code(ECC)
- Yes
- NVIDIA Ada Lovelace architecture-based CUDA Cores
- 18,176
- NVIDIA third-generation Tensor Cores
- 568
- NVIDIA second-generation RT Cores
- 142
- Single-precision performance
- 91.1 TFLOPS3
- RT Core performance
- 210.6 TFLOPS3
- Tensor performance
- 1457.0 TFLOPS4
- System interface
- PCIe 4.0 x16
- Power consumption
- Total board power:300W
- Thermal solution
- Active
- Form factor
- 4.4"Hx10.5"L, dual slot, full height
- Display connectors
- 4x DisplayPort 1.4a5
- Max simultaneous displays
- >4x4096x2160@120Hz>4x5120x2880@60Hz>2x7680x4320@60Hz
- Power connector
- 1x PCIe CEM5 16-pin
- Encode/decode engines
- 3x encode,3x decode(+AV1 encode and decode)
- VR ready
- Yes
- vGPU software support5
- >NVIDIA vPC/vApps>NVIDIA RTX Virtual Workstation
- vGPU profiles supported
- See theVirtual GPU Licensing Guide
- Graphics APIs
- DirectX 12, Shader Model 6.6, OpenGL 4.66,Vulkan 1.36
- Compute APIs
- CUDA 11.6,OpenCL 3.0,DirectCompute
- NVIDIA NVLink®
- No
Warranty
3 Years manufacturer warranty from PNY. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
