- Model:VCNRTXPRO4000BLP
- 24GB GDDR7 memory with ECC
- 8,960 CUDA cores, NVIDIA Blackwell architecture
- 4x Mini DisplayPort 2.1b, PCIe 5.0 x16
- 70W, dual slot, 2.7" H x 6.6" L
- 3 Years Warranty from PNY
Overview

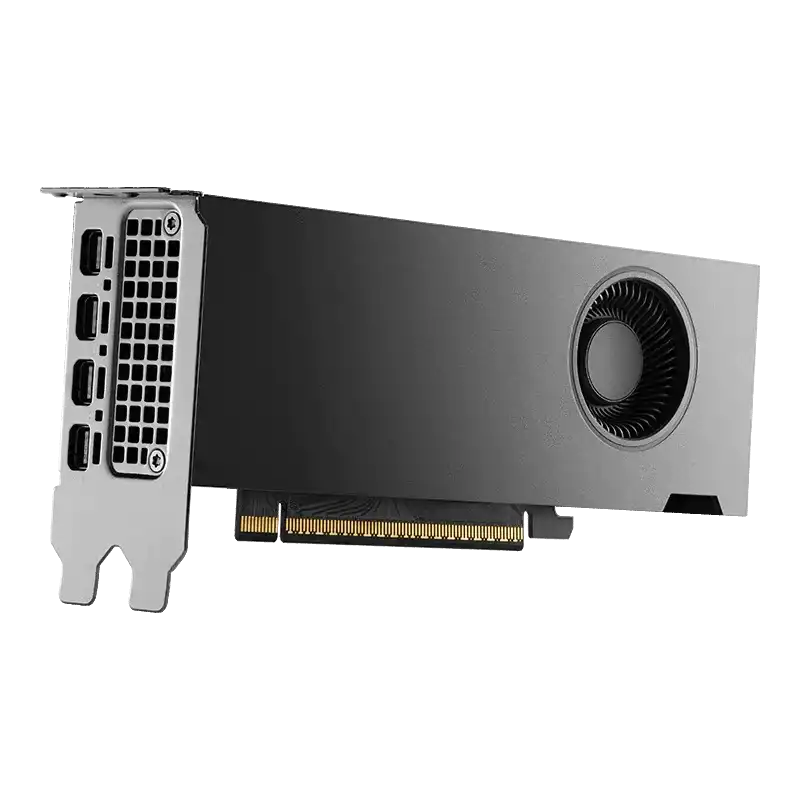

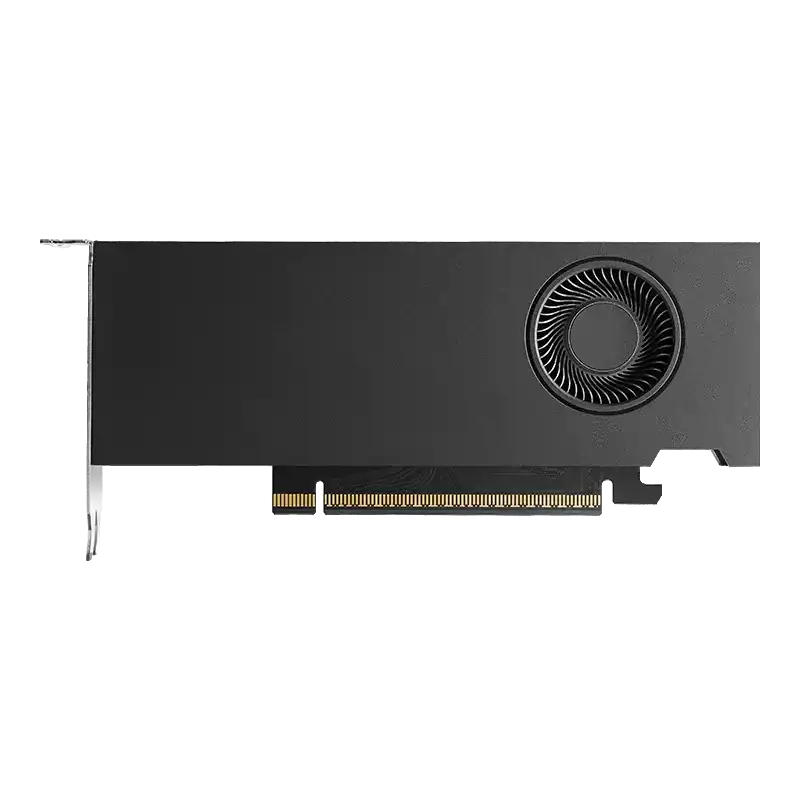

The NVIDIA RTX PRO 4000 Blackwell SFF Edition combines next-generation Tensor Cores, RT Cores, and CUDA cores with 24GB of GDDR7 memory in a compact, low-profile form factor. Engineered for professionals who demand powerful performance in space-constrained environments, it delivers exceptional acceleration for rendering, AI, and graphics workflows.
Built on the NVIDIA Blackwell architecture, the RTX PRO 4000 SFF features fifth-generation Tensor Cores that deliver up to 3X the performance of the previous generation with support for FP4 precision and DLSS 4 multi-frame generation technology. Fourth-generation RT Cores enable up to 2X faster ray-traced rendering, accelerating content creation for media and entertainment, AECO design, and manufacturing prototyping. The card includes 432 GB/s of memory bandwidth and ninth-generation NVENC and sixth-generation NVDEC engines for advanced video encoding and decoding.
With PCIe Gen 5 support and DisplayPort 2.1b connectivity, the RTX PRO 4000 SFF seamlessly integrates into compact workstations, edge devices, and dense rack-mounted systems. It is designed for design studios, engineering firms, financial institutions, and industrial applications requiring AI compute, neural graphics, and unmatched power efficiency in a small form factor.
- NVIDIA Blackwell Architecture
- 24GB GDDR7 memory with ECC
- 8,960 CUDA Cores
- 5th Generation Tensor Cores with FP4 precision support
- 4th Generation RT Cores

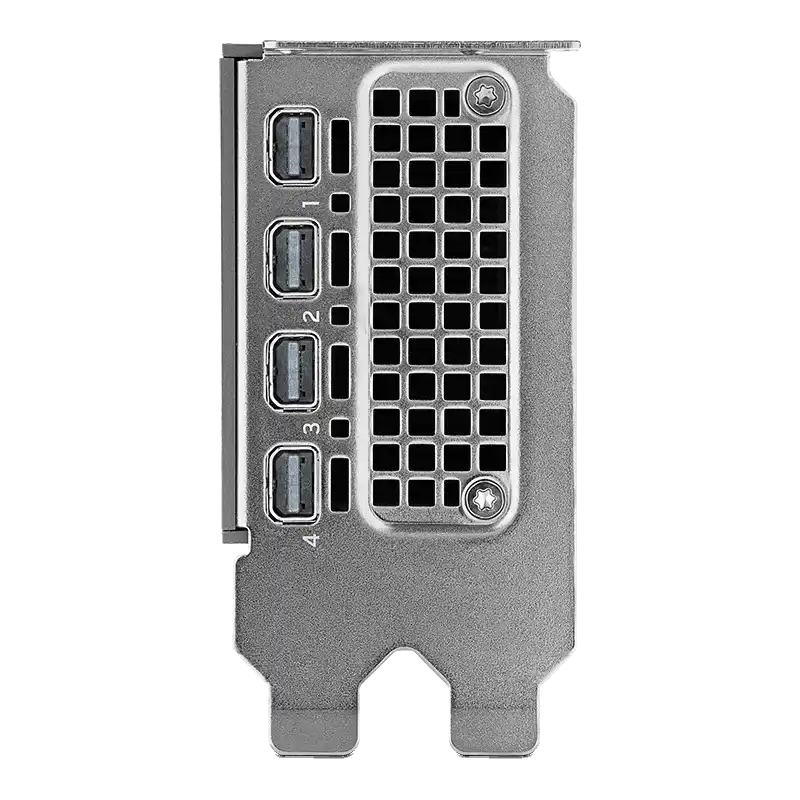

- 4x Mini DisplayPort 2.1b
- PCIe 5.0 x16
- 70W Max Power Consumption
- 9th Gen NVENC and 6th Gen NVDEC engines
- Dual-slot, half-height form factor
Specifications
- GPU architecture
- NVIDIA Blackwell
- NVIDIA®CUDA®Cores
- 8,960
- Tensor Cores
- 5th Generation
- Ray Tracing Cores
- 4th Generation
- GPU memory
- 24 GB GDDR7 with ECC
- Memory interface
- 192 bit
- Memory bandwidth
- 432 GB/s
- System interface
- PCIe 5.0x81
- Display connectors
- 4x Mini DisplayPort 2.1b
- Max simultaneous displays
- >4x3840x2160@165Hz
- Max simultaneous displays
- >2x7680x4320@100Hz
- Video Engines
- 2xNVENC(9th Gen)2xNVDEC(6th Gen)
- Power consumption
- Total board power:70W
- Thermal solution
- Active
- Form factor
- 2.7"x6.6"L, dual slot,half height
- Graphics APIs
- DirectX12, Shader Model6.7,OpenGL4.62,Vulkan1.42
- Compute APIs
- CUDA12.8,OpenCL3.0
Warranty
3 Years manufacturer warranty from PNY. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
