- Model:VCNRTXPRO5000B-PB
- 48GB GDDR7 memory with ECC
- 14,080 CUDA cores, NVIDIA Blackwell architecture
- 4x DisplayPort 2.1b, PCIe 5.0 x16
- 300W, dual slot, 4.4" H x 10.5" L
- 3 Years Warranty from PNY
Overview
The NVIDIA RTX PRO 5000 Blackwell combines the latest RT Cores, Tensor Cores, and CUDA cores with 48GB of GDDR7 graphics memory to provide exceptional desktop performance for designers, engineers, and artists. Built on the NVIDIA Blackwell architecture, this GPU delivers breakthrough AI, ray tracing, and neural rendering technology with massive performance and memory improvements to drive cutting-edge professional creative, design, and engineering workflows.
Equipped with 14,080 CUDA cores, fifth-generation Tensor Cores supporting FP4 precision and DLSS 4 multi-frame generation, and fourth-generation RT Cores delivering up to 2X the performance of the previous generation, the RTX PRO 5000 accelerates AI development, large language model inference, generative AI workflows, high-fidelity simulations, video production, and complex 3D modeling. The card features 1.3 TB/s of memory bandwidth and supports PCIe Gen 5 for double the bandwidth of PCIe Gen 4.
With nine-generation NVENC and sixth-generation NVDEC engines providing support for 4:2:2 encoding and decoding, professionals can streamline video production pipelines and explore high-resolution video workflows. The RTX PRO 5000 supports DisplayPort 2.1 for driving high-resolution displays at up to 8K at 240Hz and 16K at 60Hz, and includes NVIDIA RTX PRO Sync compatibility for synchronizing up to 32 displays from 8 GPUs in a single system.
- NVIDIA Blackwell Architecture
- 48GB GDDR7 with ECC memory
- 14,080 CUDA Cores
- Fifth-Generation Tensor Cores with FP4 precision support
- Fourth-Generation RT Cores

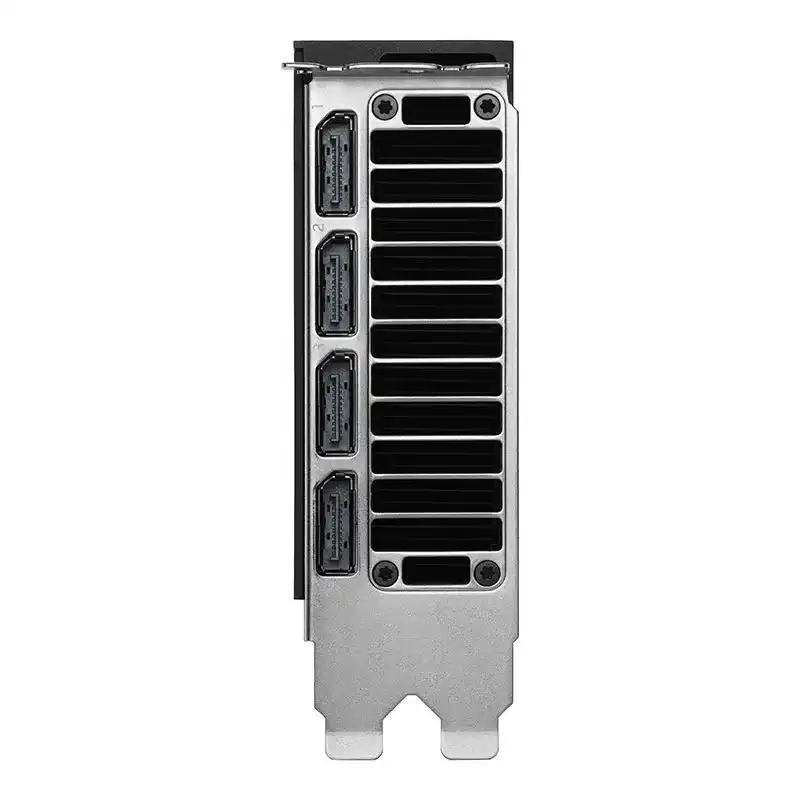

- 4x DisplayPort 2.1b connectors
- PCIe 5.0 x16 interface
- Ninth-gen NVENC and sixth-gen NVDEC engines
- Multi-Instance GPU (MIG) support
- 300W power consumption
Specifications
- PNY Part Number
- VCNRTXPRO5000B-PB
- GPU Architecture
- NVIDIA Blackwell
- NVIDIA® CUDA® Cores
- 14,080
- Tensor Cores
- Fifth generation
- Ray Tracing Cores
- Fourth generation
- GPU Memory
- 48 GB GDDR7 with ECC
- Memory Interface
- 384-bit
- Memory Bandwidth
- 1,344 GB/s
- System Interface
- PCIe 5.0 x16
- Display Connectors
- 4x DisplayPort 2.1b
- Max Simultaneous Displays
- >4x 4,096 x 2,160 @ 120 Hz
- Max Simultaneous Displays
- >4x 5,120 x 2,880 @ 60 Hz
- Max Simultaneous Displays
- >2x 7,680 x 4,320 @ 60 Hz
- Video Engines
- 3x NVENC (ninth gen)
- Video Engines
- 3x NVDEC (sixth gen)
- MIG Support
- >Up to 2x 24 GB
- MIG Support
- >Up to 1x 48 GB
- Power Consumption
- Total board power: 300 W
- Power Connector
- 1x PCIe CEM5 16-pin
- Thermal Solution
- Active
- Form Factor
- 4.4" x 10.5" L, dual slot, full height
- Graphics APIs
- DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.33
- Compute APIs
- CUDA 12.8, OpenCL 3.0, DirectCompute
