- Model:VCNRTXPRO5500B-PB
- 84GB GDDR7 memory with ECC
- 21,760 CUDA cores, NVIDIA Blackwell architecture
- 4x DisplayPort 2.1b, PCIe 5.0 x16
- 600W, dual slot, 4.4" H x 11.1" L
- 3 Years Warranty from PNY
Overview

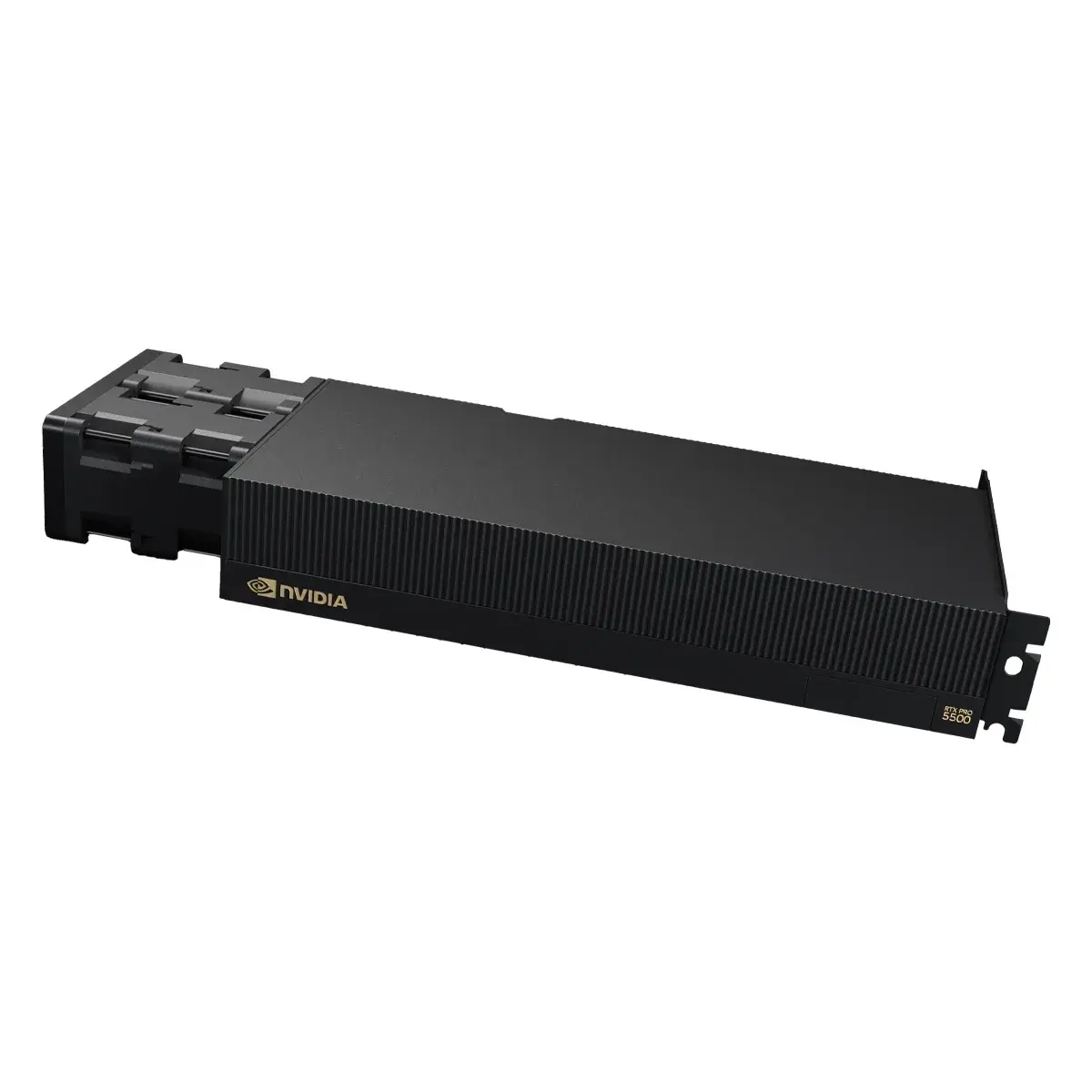

The NVIDIA RTX PRO 5500 Blackwell Workstation Edition accelerates agentic AI, physical AI, simulation, and graphics for teams that need workstation power at scale. With 84 GB of GDDR7 memory and a choice of air- or liquid-cooled thermal solutions, it lets organizations centralize GPUs into IT-managed racks, share them across users, and scale as demand grows.
Built on the NVIDIA Blackwell architecture, the RTX PRO 5500 combines breakthrough AI, ray tracing, and neural graphics technology. It features 21,760 CUDA cores, fifth-generation Tensor Cores that deliver up to 3X the performance of the previous generation with support for FP4 precision and DLSS 4, and fourth-generation RT Cores that accelerate rendering for content creation and design workflows.
The card delivers 84 GB of ultra-fast GDDR7 memory with ECC for handling large datasets and complex AI projects. It includes ninth-generation NVENC engines and sixth-generation NVDEC engines for accelerated video encoding and decoding with 4:2:2 support, making it ideal for professional video applications and multi-stream workflows.
- NVIDIA Blackwell Architecture
- 84 GB GDDR7 with ECC
- 21,760 CUDA Cores
- Fifth-Generation Tensor Cores with FP4 precision support
- Fourth-Generation RT Cores
- 4x DisplayPort 2.1b
- Ninth-Generation NVENC and Sixth-Generation NVDEC Engines
- PCIe 5.0 x16
- 600W Max Power Consumption
- NVIDIA RTX PRO Sync Compatible
Specifications
- PNY Part Number
- VCNRTXPRO5000B-PB
- GPU architecture
- NVIDIA Blackwell
- NVIDIA® CUDA® Cores
- 14,080
- Tensor Cores
- Fifth generation
- Ray Tracing Cores
- Fourth generation
- GPU Memory
- 48 GB GDDR7 with ECC
- Memory Interface
- 384-bit
- Memory Bandwidth
- 1,344 GB/s
- System Interface
- PCIe 5.0 x16
- Display Connectors
- 4x DisplayPort 2.1b
- Max Simultaneous Displays
- >4x 4,096 x 2,160 @ 120 Hz >4x 5,120 x 2,880 @ 60 Hz >2x 7,680 x 4,320 @ 60 Hz
- Video Engines
- 3x NVENC (ninth gen) 3x NVDEC (sixth gen)
- MIG Support
- >Up to 2x 24 GB >Up to 1x 48 GB
- Power Consumption
- Total board power: 300 W
- Power Connector
- 1x PCIe CEM5 16-pin
- Thermal Solution
- Active
- Form Factor
- 4.4" x 10.5" L, dual slot, full height
- Graphics APIs
- DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.33
- Compute APIs
- CUDA 12.8, OpenCL 3.0, DirectCompute
Warranty
3 Years manufacturer warranty from PNY. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
