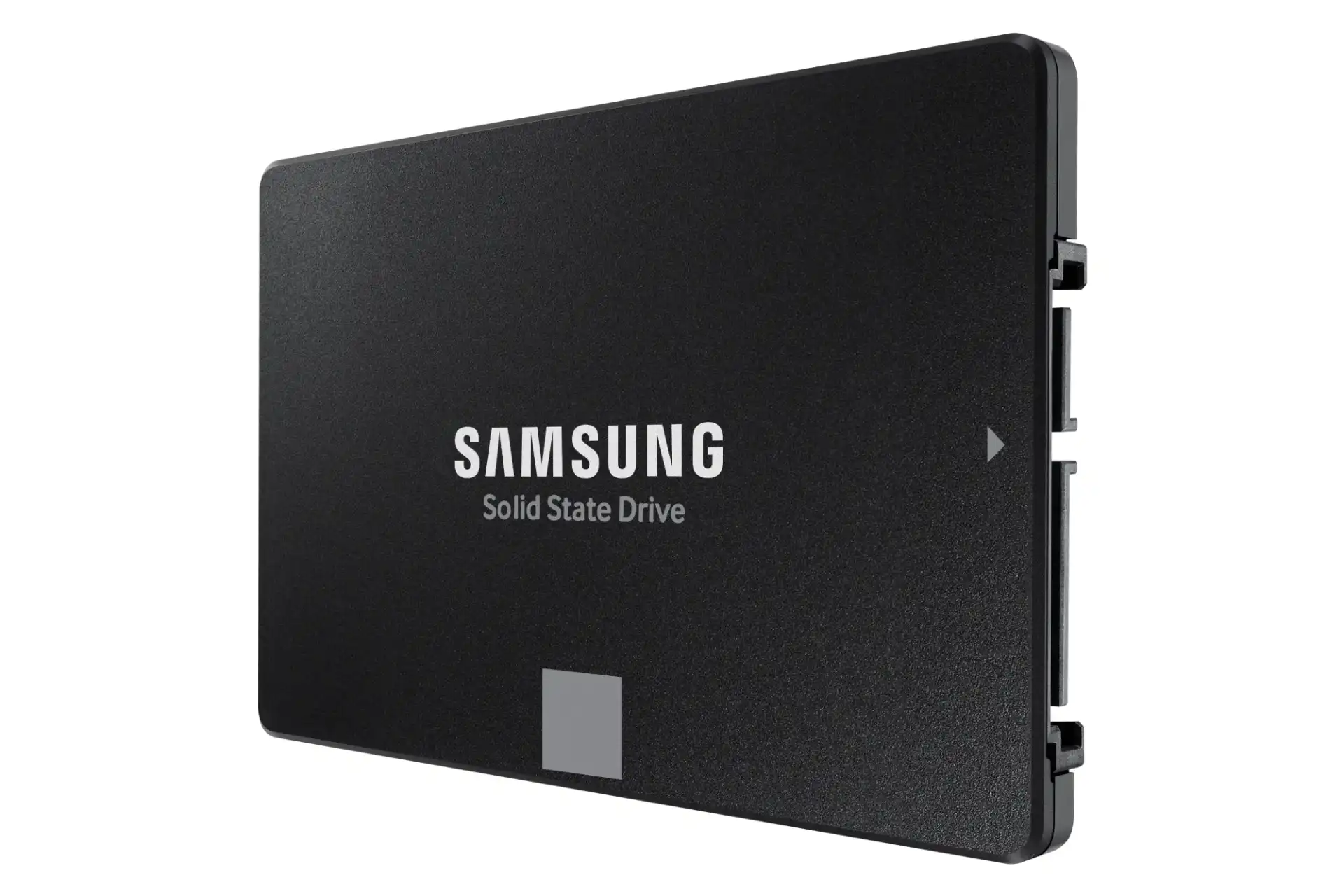

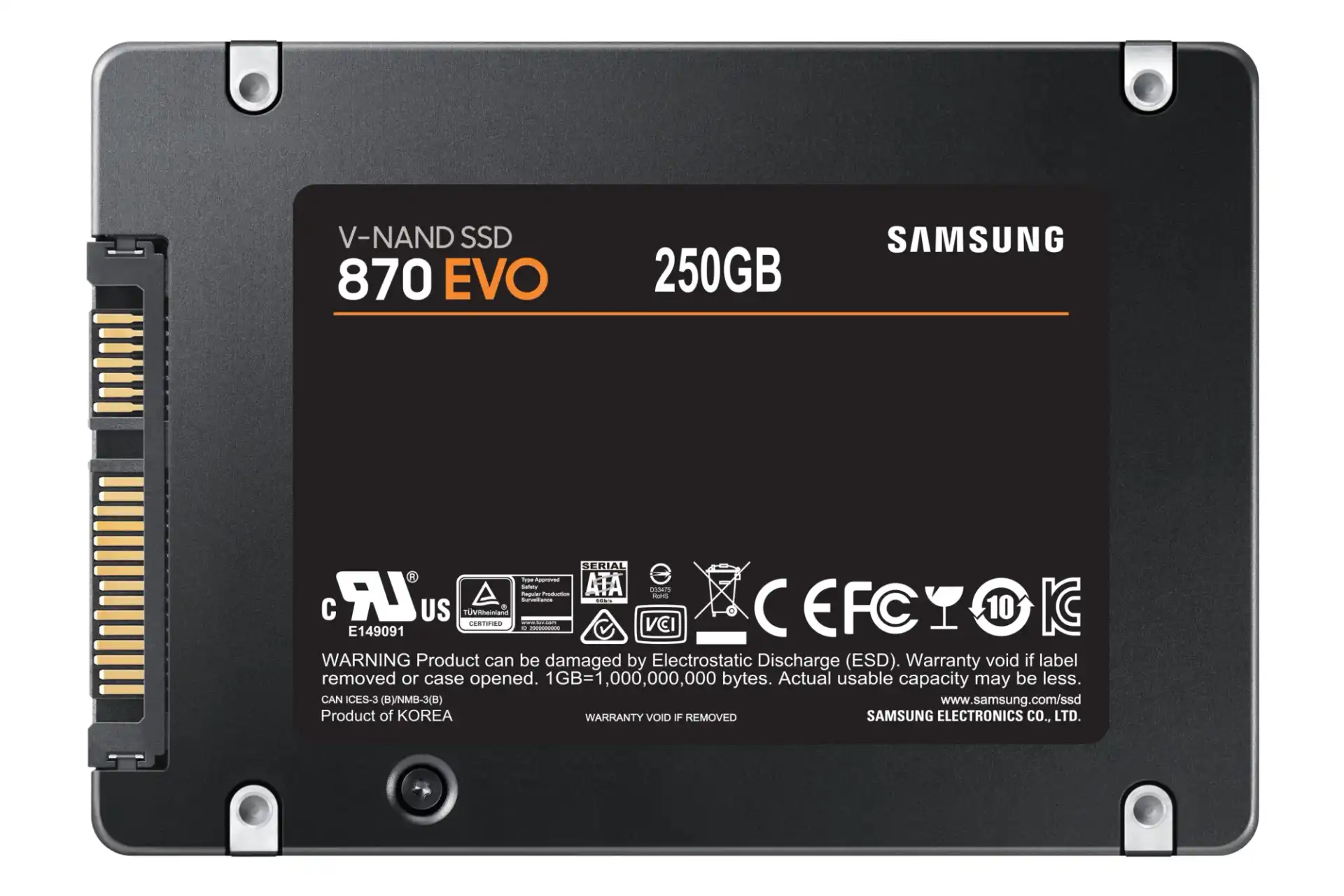

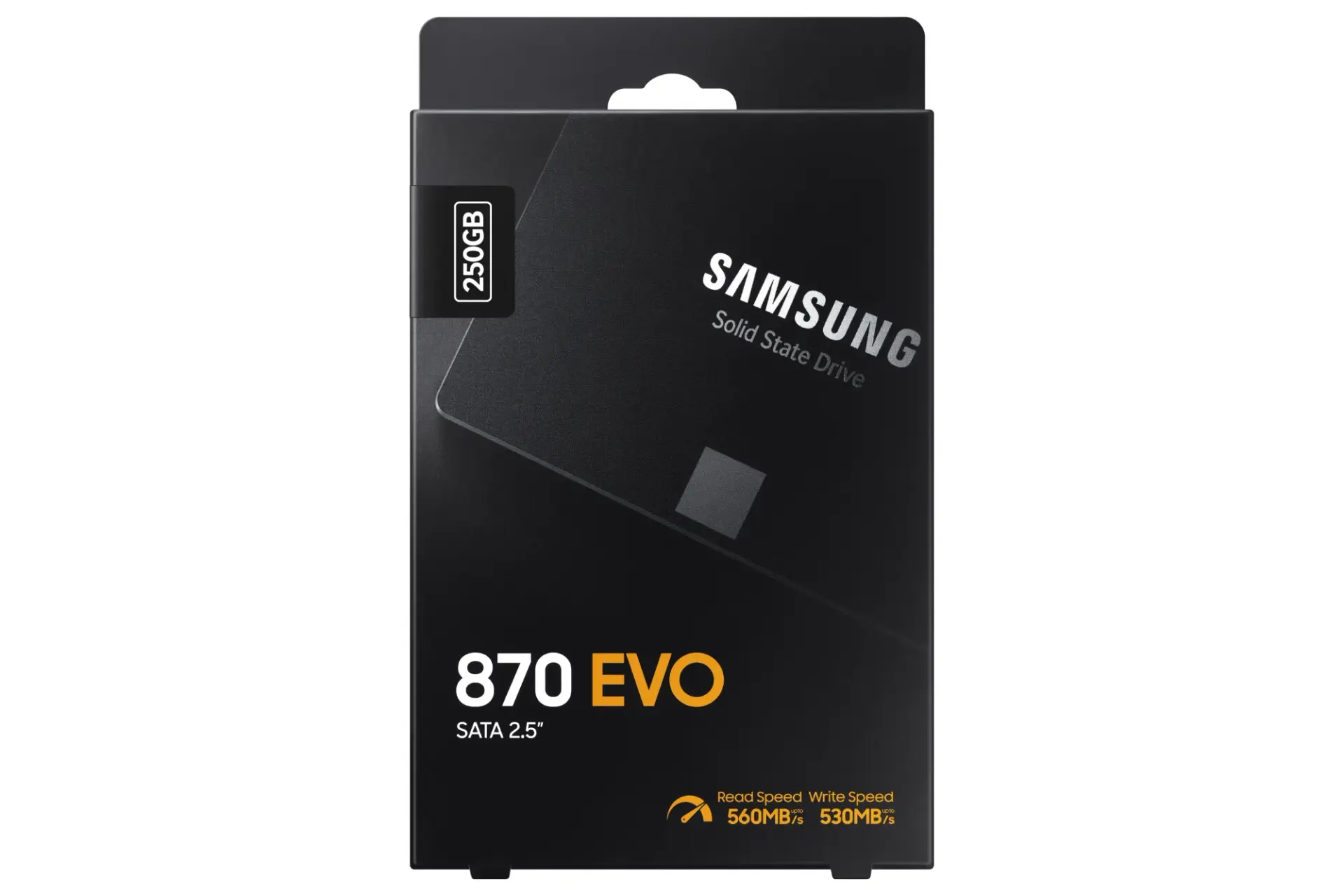

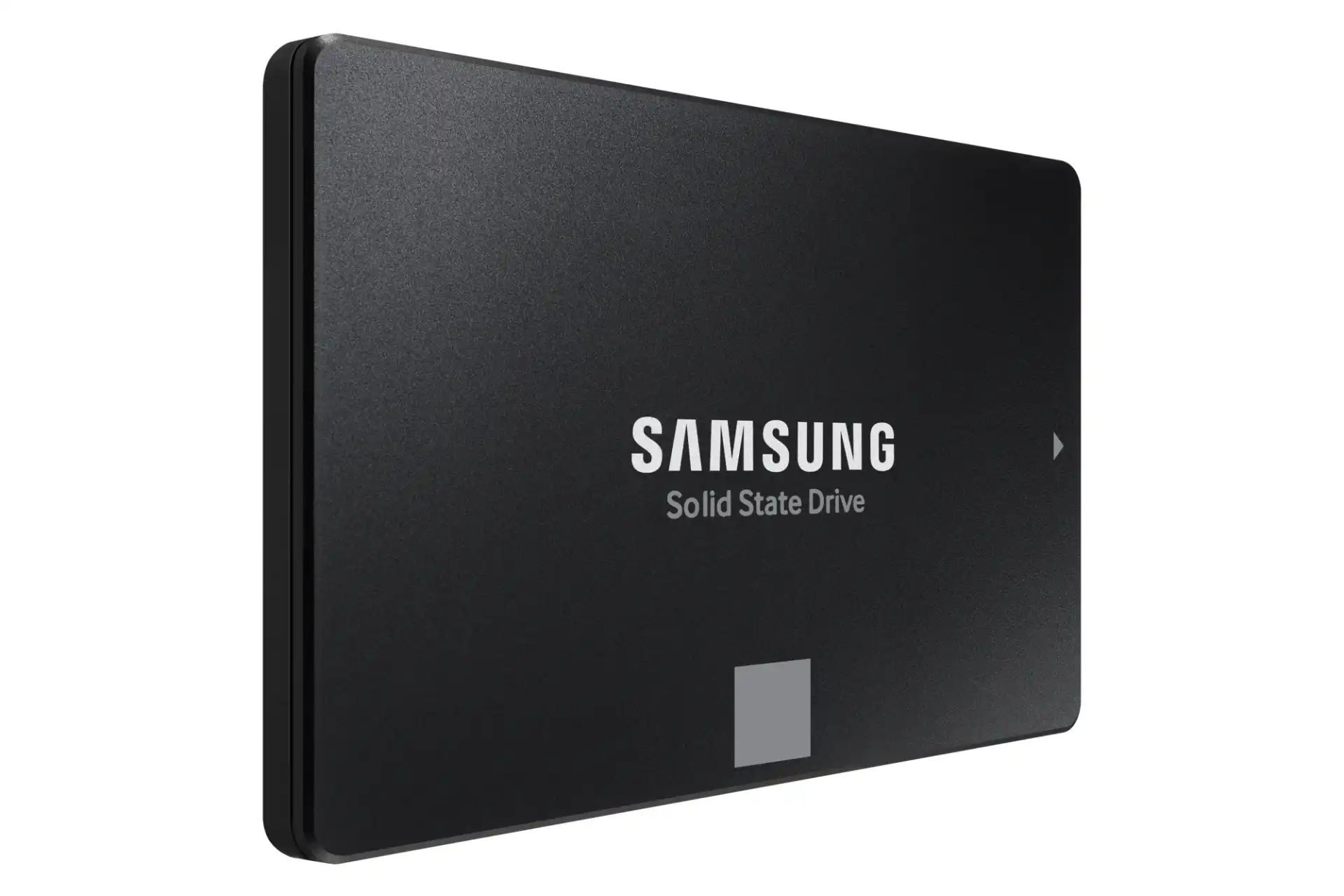

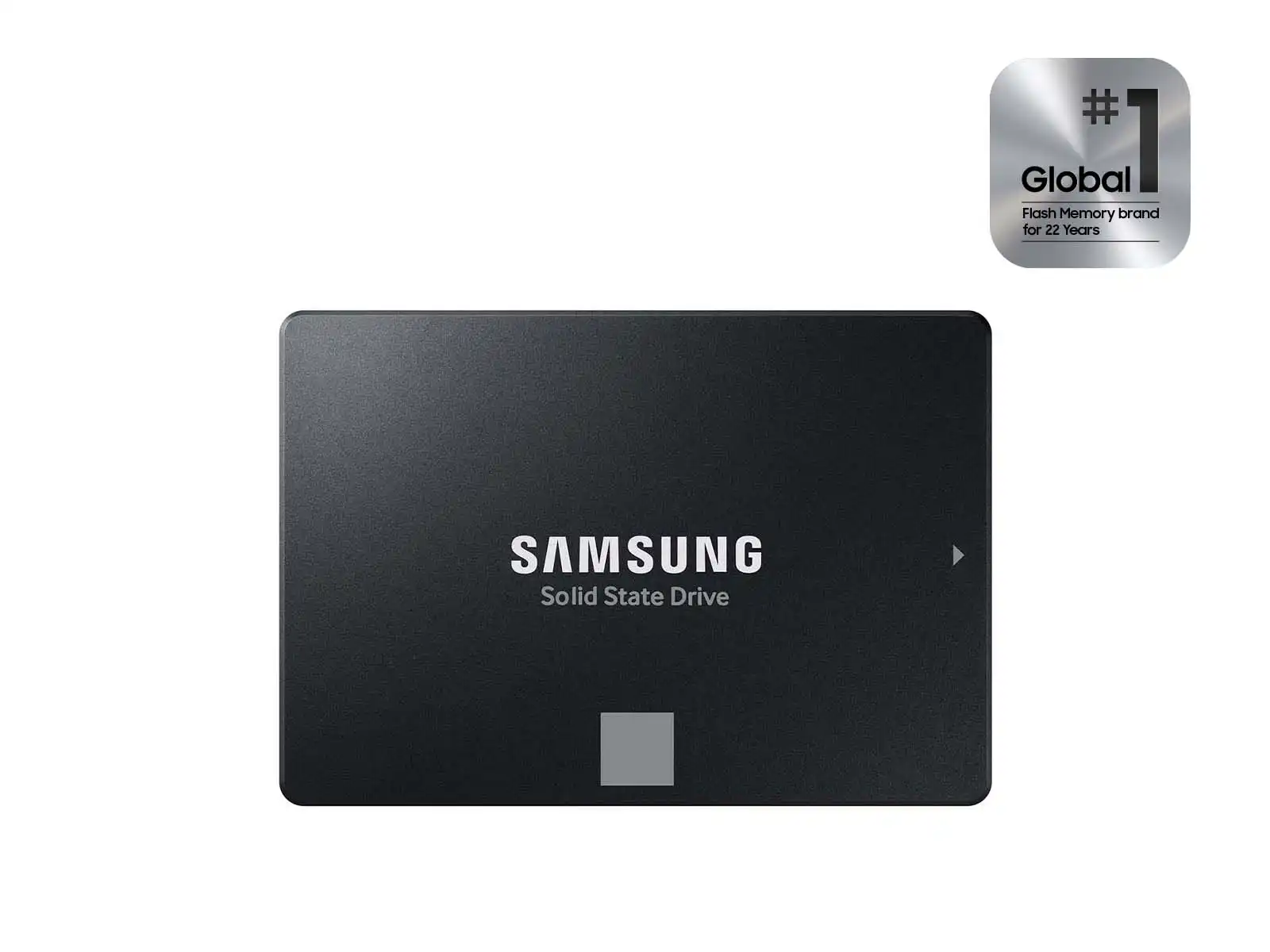

Samsung 870 EVO 250GB SATA 2.5 SSD
- Model:MZ-77E250B/AM
- 250GB Storage Capacity
- SATA III 2.5 Interface
- Read/Write Speeds up to 560/530 MB/s
- V-NAND Technology
- 5 Years Warranty
₹ 6,600
Out Of Stock
1
Specifications
- Application
- Client PCs
- Capacity
- 250 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form Factor
- 2.5 inch
- Interface
- SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Dimension (WxHxD)
- 3.94 × 2.75 × 0.27 in
- Weight
- Approx. 0.10 lb Weight
- Storage Memory
- Samsung V-NAND 3bit MLC
- Controller
- Samsung MKX Controller
- Cache Memory
- Samsung 512 MB Low Power DDR4 SDRAM
- TRIM Support
- TRIM Supported
- S.M.A.R.T Support
- S.M.A.R.T Supported
- GC (Garbage Collection)
- Auto Garbage Collection Algorithm
- Encryption Support
- AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
- WWN Support
- World Wide Name supported
- Device Sleep Mode Support
- Yes
- Sequential Read
- Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
- Sequential Write
- Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD32)
- Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD32)
- Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD1)
- Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD1)
- Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Average Power Consumption (system level)
- Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle)
- Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage
- 5V ± 5% Allowable voltage
- Reliability (MTBF)
- 1.5 Million Hours Reliability (MTBF)
- Operating Temperature
- 0 - 70 ℃ Operating Temperature
- Shock
- 1,500 G & 0.5 ms (Half sine)
- Installation Kit
- Not Available
- Management SW
- Magician Software for SSD management, Data Migration Software for SSD upgrade
Warranty
5 Years manufacturer warranty from Samsung. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
