- Model:ST5000LM000
- 5TB Storage Capacity
- 5400 RPM Speed
- 128MB Cache
- Multi-Tier Caching Technology
- 2 Years Warranty from Seagate
Overview

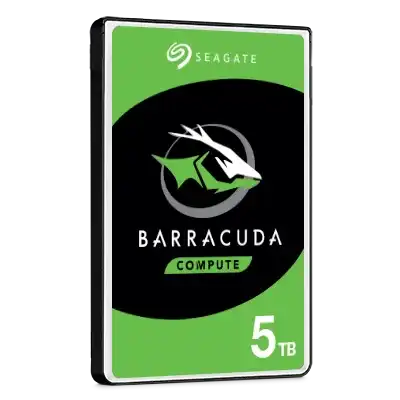

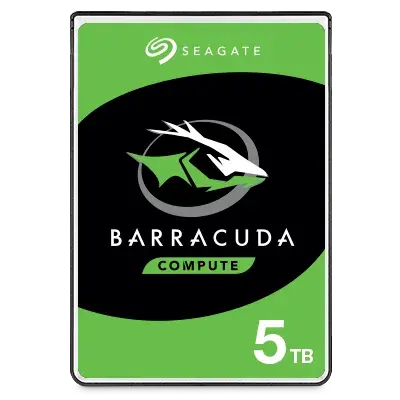

The Seagate BarraCuda 5TB Laptop Hard Drive (ST5000LM000) combines proven reliability, solid performance, and versatile storage capacity in a compact form. Designed for laptops, external enclosures, and small form factor systems, it's available in both 7mm and 15mm heights to fit a wide range of device configurations. Offering up to 5TB of storage, it provides ample space for documents, media, applications, and games.
With 5,400 RPM and a SATA 6Gb/s interface, it delivers responsive performance and fast data transfer speeds of up to 140MB/s. All 2.5-inch hard drives in the BarraCuda family come equipped with advanced multi-tier caching (MTC) technology. By intelligently managing data flow across multiple layers—including high-speed NAND flash, DRAM, and media cache—MTC significantly boosts performance. This smart caching system helps deliver faster load times, quicker application launches, and smoother overall read and write speeds.
Quiet, energy-efficient, and backed by decades of innovation, the BarraCuda 2.5" internal hard drive is a smart choice for reliable everyday computing. Easily migrate and clone your data with the included Seagate DiscWizard software. Rest easy with a two-year limited warranty for long-term confidence and support.
- 5TB storage capacity in a compact 2.5-inch form factor
- 5,400 RPM spindle speed with up to 140MB/s data transfer rate
- Multi-Tier Caching Technology for enhanced performance
- Available in 7mm and 15mm form factors for flexible installation
- SATA 6Gb/s interface for fast connectivity
- Free Seagate DiscWizard cloning software included
- Rescue Data Recovery Services available
- 2 Years Limited Warranty
Specifications
- Standard Model Number
- ST5000LM000
- Bytes per Sector
- 512/4096
- Interface
- SATA 6Gb/s
- Max Sustained Data Rate, OD Read (MB/s)
- Up to 140
- Cache, Multisegmented (MB)
- 128MB
- Recording Technology
- SMR
- Rotational Speed (RPM)
- 5400RPM
- Load/Unload Cycles
- 600,000
- Nonrecoverable Read Errors per Bits Read, Max
- 1 per 10E14
- Warranty, Limited (years)
- 2
- Startup Power (A)
- 1.2
- Operating Mode, Typical (W)
- 1.9/2.1
- Idle Average (W)
- 1.1W
- Operating (drive reported, min)
- 0°C
- Operating (drive reported, max)
- 60°C
- Nonoperating (ambient)
- -40°C – 70°C
- Halogen Free
- Yes
- RoHS Compliance
- Yes
- Height (mm/in, max)
- 15.0mm/0.59in
- Width (mm/in, max)
- 69.85mm/2.750in
- Depth (mm/in, max)
- 100.35mm/3.951in
- Weight (g/lb, typical)
- 190g/0.42lb
- Carton Unit Quantity
- 40
- Cartons per Pallet/Cartons per Layer
- 60/10
- Head-Rest Method
- QuietStepTM Ramp Load
- Shock, Operating: 2ms (Gs)
- 300
- Shock, Nonoperating: 1ms (Gs)
- 650
- Acoustics, Idle, Typical (bels—sound power)
- 2.6bels
- Acoustics, Seek, Typical (bels—sound power)
- 2.7bels
- Multi-Tier Caching TechnologyTM
- Yes
