- Model:ST10000VN000
- 10TB Storage Capacity
- 7200 RPM Speed
- 256MB Cache
- IronWolf Health Management
- 3 Years Warranty from Seagate
Overview

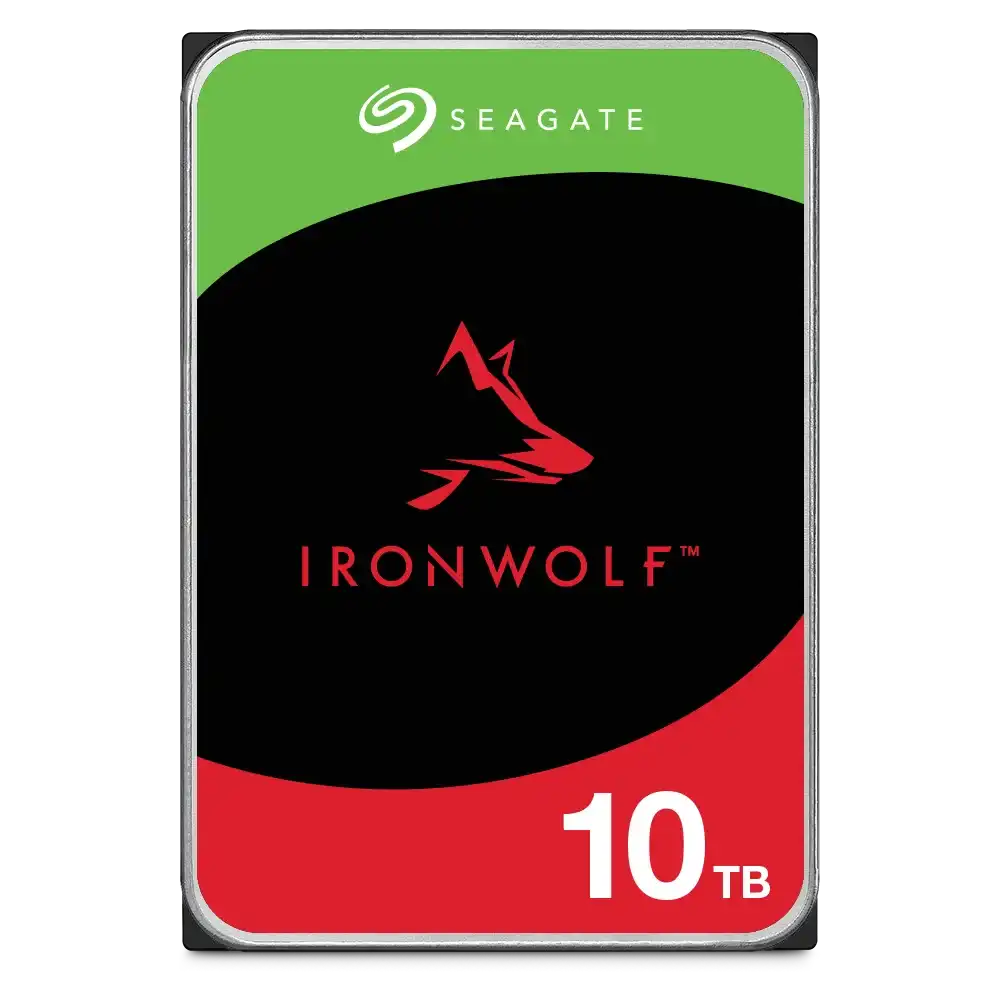

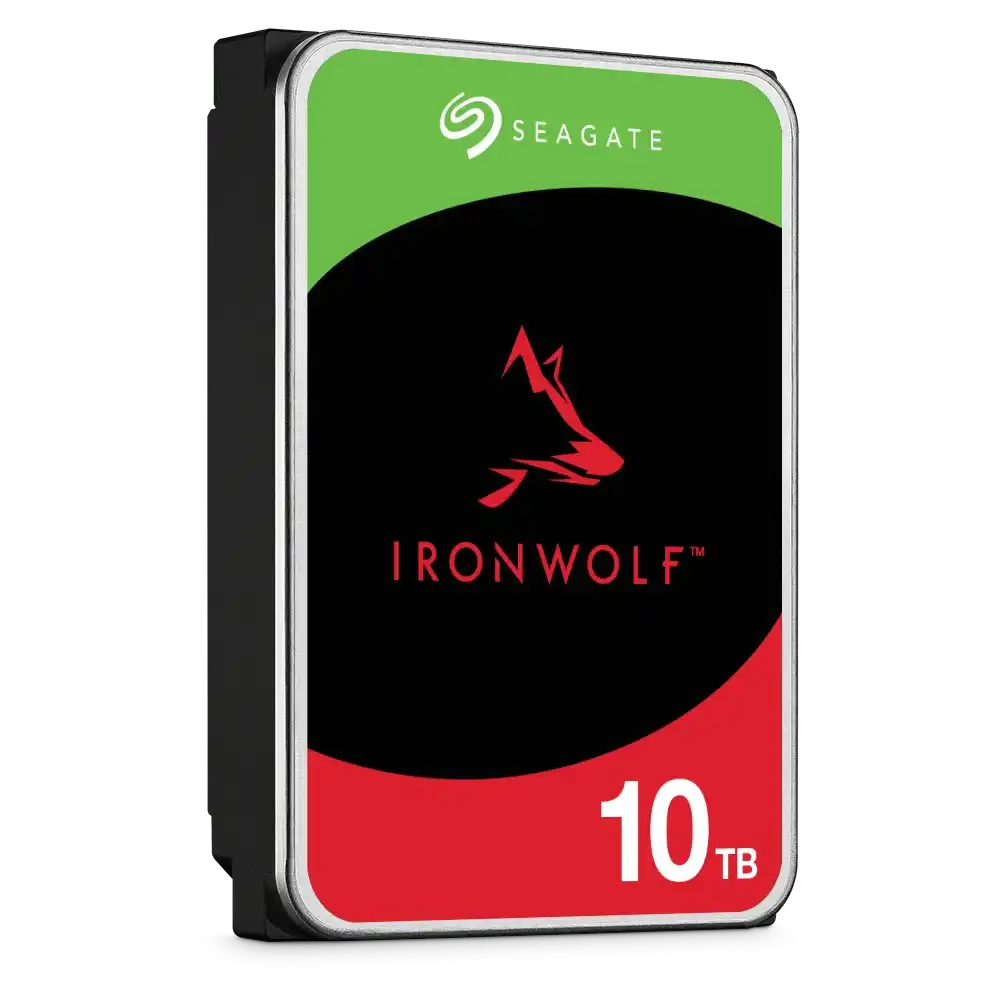

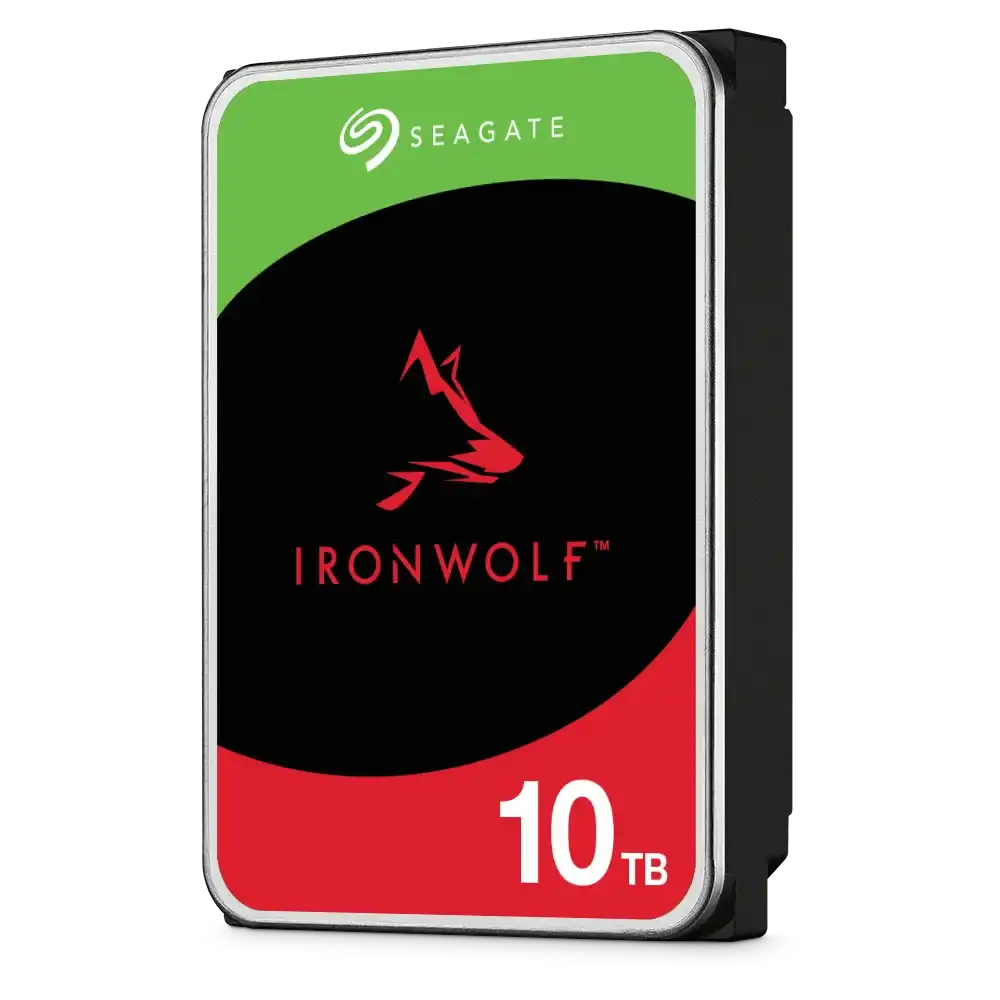

The Seagate IronWolf 10TB NAS Hard Drive (ST10000VN000) is designed for 24×7 reliability, performance, and scalability in multi-bay NAS systems. With capacities up to 16TB, it features AgileArray technology for optimized RAID performance, reduced vibration, and power efficiency. Built with CMR technology and RV sensors, IronWolf NAS drives deliver consistent speeds and durability under heavy workloads.
This drive offers speeds up to 7200 RPM spin speed with high-capacity NAS drives, delivering sustained data rates up to 180MB/s and burst speeds of 6Gb/s. IronWolf Health Management actively monitors drive health when used with compatible NAS systems. It supports workloads up to 180TB per year with optional data recovery services for added protection, and is compatible with one- to eight-bay NAS systems, home media servers, personal cloud storage, small offices, and workstations.
The IronWolf drive is engineered for multi-bay NAS systems with rotational vibration sensors to reduce drive strain and maintain peak performance. It is optimized for power efficiency, reducing energy consumption in always-on NAS environments. Three years of complimentary Rescue Data Recovery Services are included with all IronWolf drives, providing peace of mind with an industry-leading 95% success rate for data recovery after accidental data corruption or drive damage.
- 7200 RPM spindle speed for high-performance NAS operation
- 180MB/s sustained data transfer rate with 6Gb/s burst speeds
- AgileArray technology for optimized RAID performance
- Rotational vibration sensors for reduced drive strain in multi-bay systems
- CMR recording technology for consistent performance
- IronWolf Health Management for proactive drive monitoring
- 180TB per year workload rating
- Three years complimentary Rescue Data Recovery Services
Specifications
- Standard Model Number
- ST10000VN000
- Interface
- SATA 6Gb/s
- Drive Bays Supported
- 1-8 Bays
- Recording Technology
- CMR
- Drive Design (Air or Helium)
- Air
- Workload Rate Limit (WRL)
- 180TB/year
- Rotational Vibration (RV) Sensor
- Yes
- Dual-Plane Balance
- Yes
- Error Recovery Control
- Yes
- Max. Sustained Transfer Rate OD (MB/s)
- 210MB/s
- Spindle Speed (RPM)
- 7200RPM
- Cache (MB)
- 256MB
- Load/Unload Cycles
- 600,000
- Nonrecoverable Read Errors Rate, Max
- 1 per 10E15
- Power-On Hours
- 8760
- Mean Time Between Failures (MTBF, hours)
- 1000000hr
- Rescue Data Recovery Services (years)
- 3
- Warranty, Limited (years)
- 3
- Startup Current, Typical (12V, A)
- 1.8A
- Average Operating Power
- 10.1W
- Idle Power Average (W)
- 7.8W
- Standby Mode/Sleep Mode, Typical (W)
- 1.0W
- Voltage Tolerance, Inc. Noise (5V/12V)
- ± 5% / ± 10%
- Operating Temperature (ambient, min°C)
- 0°C
- Operating Temperature (drive reported, max °C)
- 65°C
- Nonoperating Temperature (ambient, min °C / ma °C)
- -40 / 70
- Shock, Operating/Nonoperating: 2ms (max)
- 70Gs/300Gs
- Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
- 28
- Acoustics, Seek (typical) (dBA)
- 32
- Height (mm/in)
- 26.11mm/1.028in
- Width (mm/in, max)
- 101.85mm/4.010in
- Depth (mm/in, max)
- 146.99mm/5.787in
- Weight (g/lb, typical)
- 720g/1.59lb
- Carton Unit Quantity
- 20
- Cartons per Pallet/Cartons per Layer
- 40/8
