- Model:ST18000NT001
- 18TB Storage Capacity
- 7200 RPM Speed
- 256MB Cache
- IronWolf Health Management
- 5 Years Warranty from Seagate
Overview

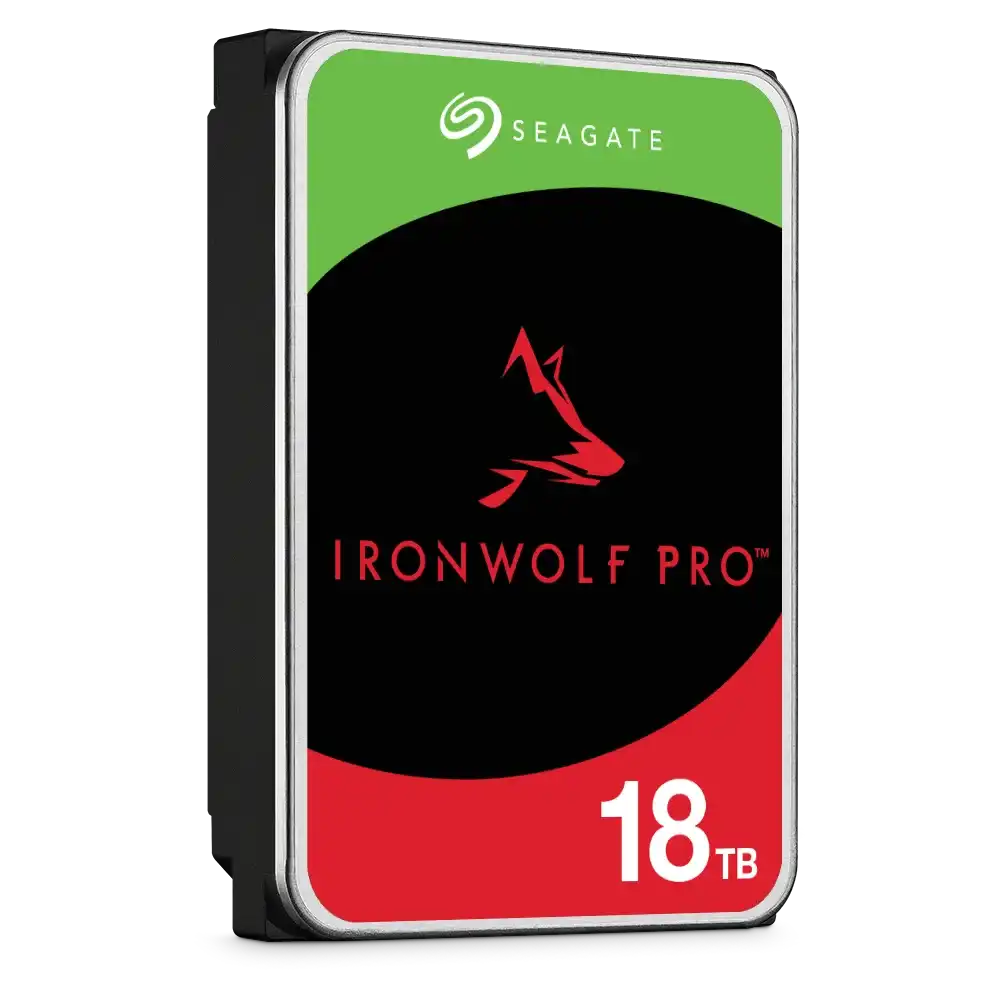

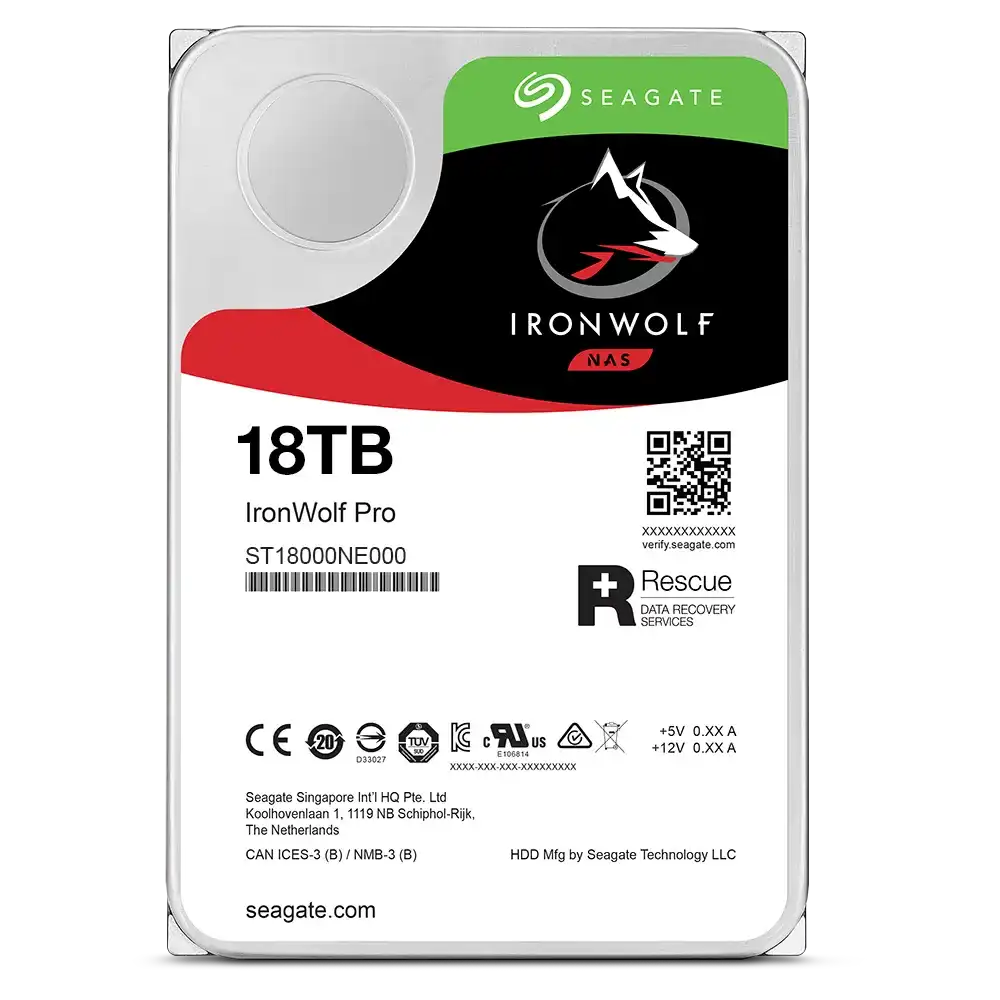

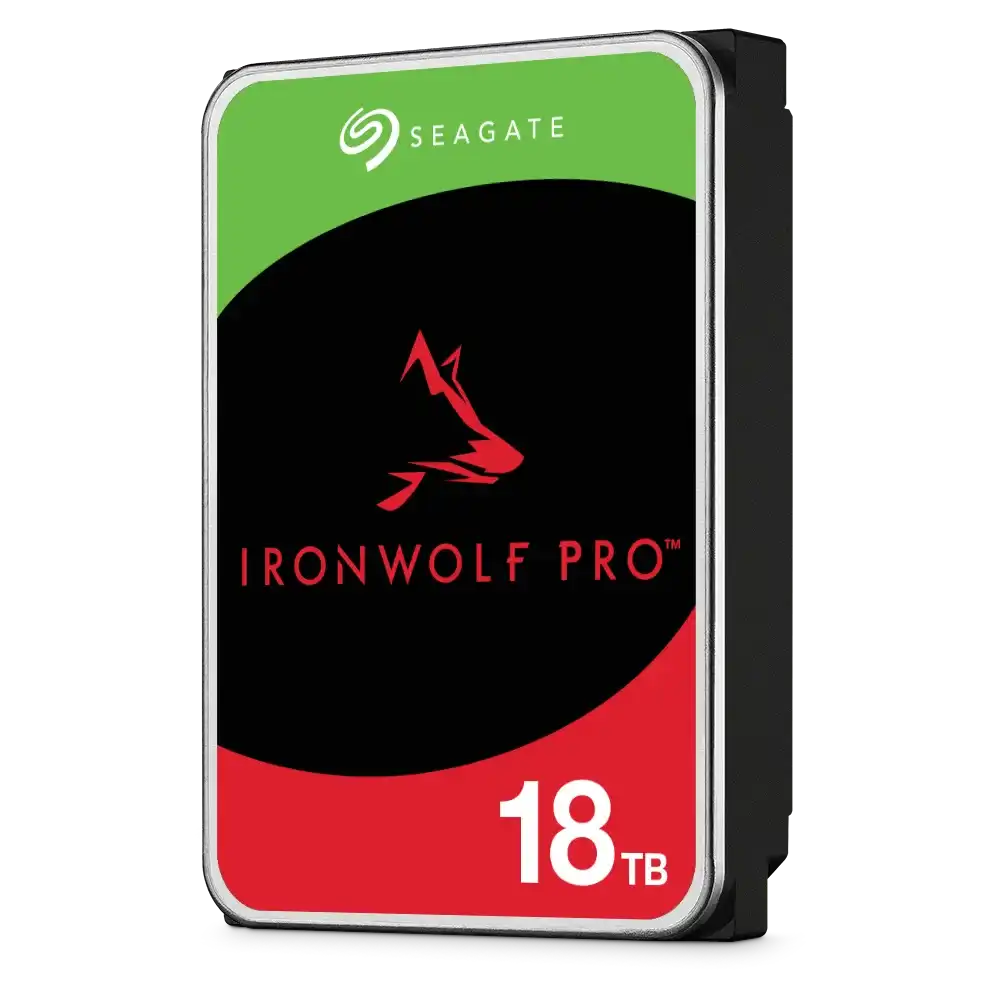

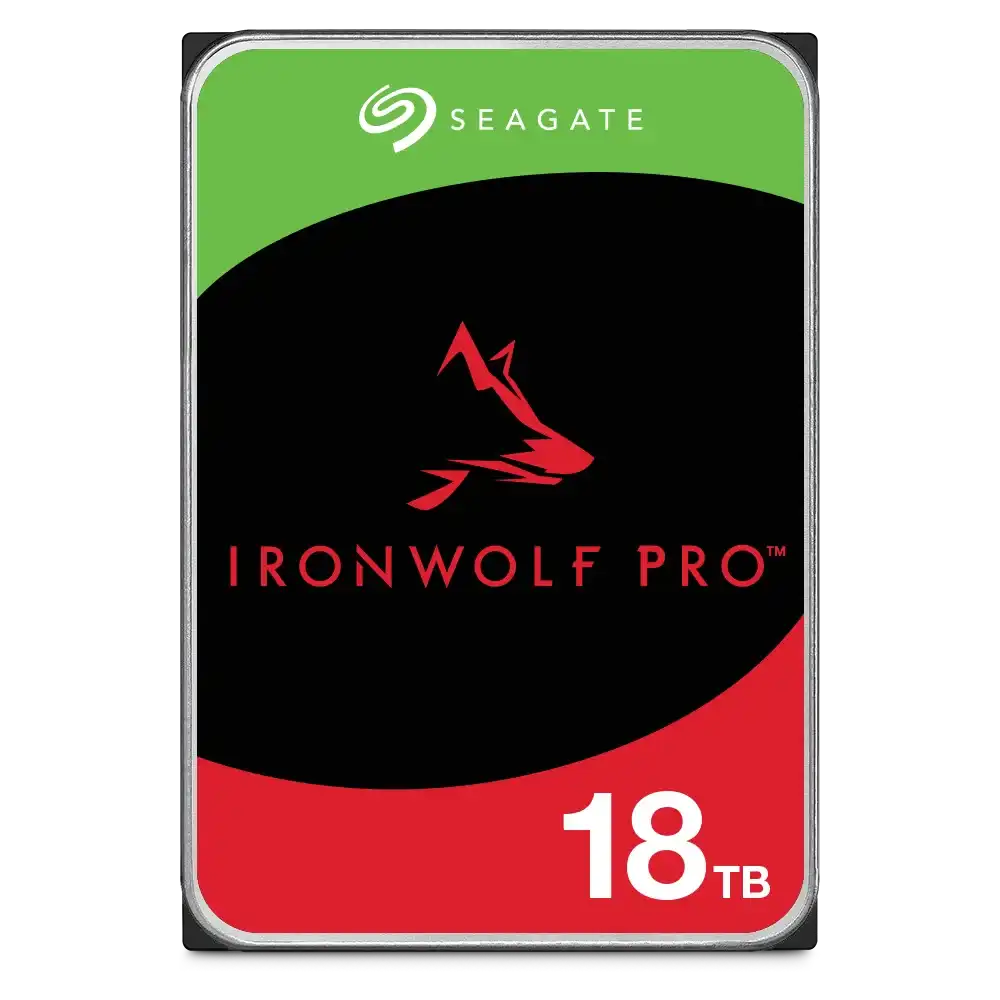

The Seagate IronWolf Pro 18TB NAS Hard Drive (ST18000NT001) is engineered to deliver 24×7 performance, reliability, and dependability in multi-bay, multi-user commercial and enterprise RAID storage solutions. IronWolf Pro drives are designed for unlimited drive bays and feature all-CMR (conventional magnetic recording) technology for consistent, industry-leading performance allowing users to access data anytime, anywhere.
With a class-leading 550TB/year workload rating and 2.5M hours MTBF, the IronWolf Pro 18TB provides unparalleled total cost of ownership. The drive includes a 5-year limited warranty and complimentary 3-year Rescue Data Recovery Services for hassle-free, zero-cost data recovery. IronWolf Health Management helps protect data with prevention, intervention, and recovery recommendations to ensure peak system health.
Optimized for NAS environments, the IronWolf Pro features AgileArray with dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver top RAID performance in multi-bay systems. The drive has been tested by leading NAS providers such as Asustor, QNAP, and UGREEN for compatibility.
- 18TB capacity with CMR technology for reliable 24×7 NAS performance
- 7200 RPM spindle speed with 256MB cache
- 550TB/year workload rating and 2.5M hours MTBF
- AgileArray technology with dual-plane balancing and TLER
- Rotational vibration sensors for multi-bay RAID optimization
- IronWolf Health Management for data protection and system health monitoring
- Complimentary 3-year Rescue Data Recovery Services
- 5-year limited warranty
Specifications
- Standard Model Number
- ST18000NT001
- Bytes per Sector
- 512E
- Interface
- SATA 60b/s
- SATA Transfer Rates Supported (Gb/s)
- 6.0, 3.0, 1.5
- Max Sustained Data Rate, OD Read (MB/s)
- 285
- Cache, Multisegmented (MB)
- 256MB
- Recording Technology
- CMR
- Rotational Speed (RPM)
- 7200RPM
- Nonrecoverable Read Errors per Bits Read, Max
- 1 per 10E15
- Power-On Hours (per year)
- 8760
- Workload Rate Limit (TB/Year)
- 550
- Drive Bays Supported
- Unlimited
- Startup Power (A)
- 2.0A
- Drive Design (Air or Helium)
- Helium
- Operating Mode, Typical (W)
- 7.5W
- Idle Average (W)
- 5.0
- Standby Mode/Sleep Mode, Typical (W)
- 1.0
- Power Supply Requirements
- +12 V and +5 V
- Operating Temperature (ambient, min℃)
- 0℃
- Operating Temperature (drive reported, max℃)
- 65℃
- Nonoperating Temperature (ambient, min℃)
- -40℃
- Nonoperating Temperature (ambient, max℃)
- 70℃
- Mean Time Between Failures (MTBF, hours)
- 2500000 hrs
- Limited Warranty (years)
- 5
- Rescue Data Recovery Services (years)
- 3
- Rotational Vibration (RV) Sensors
- Yes
- Rotational Vibration @ 10-1500 Hz (rad/s)
- 12.5
- Vibration, Nonoperating: 10Hz to 500Hz (Grms)
- 2.27
Warranty
5 Years manufacturer warranty from Seagate. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
