- Model:ST22000NT001
- 22TB Storage Capacity
- 7200 RPM Speed
- 512MB Cache
- IronWolf Health Management
- 5 Years Warranty from Seagate
Overview

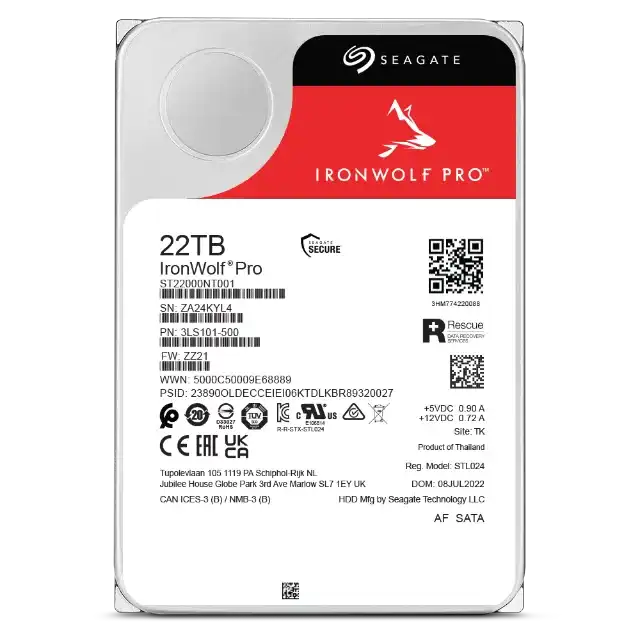

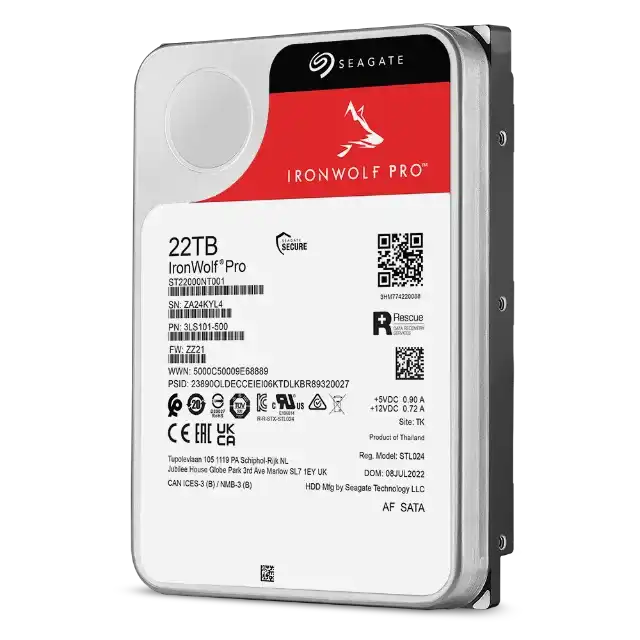

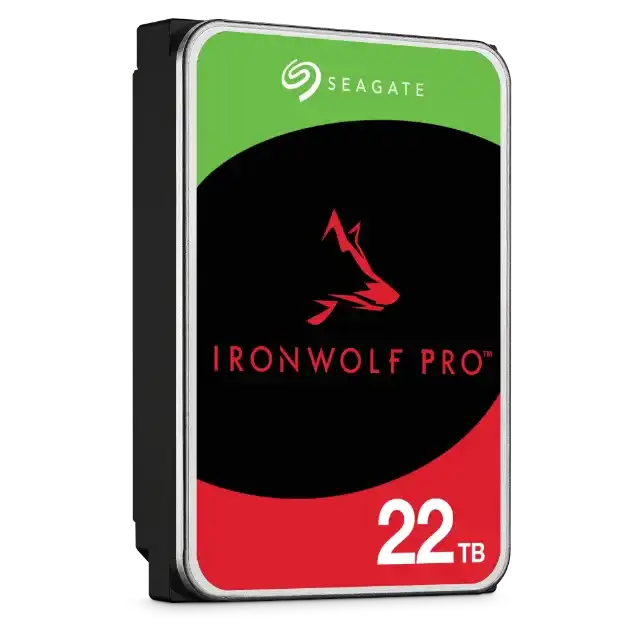

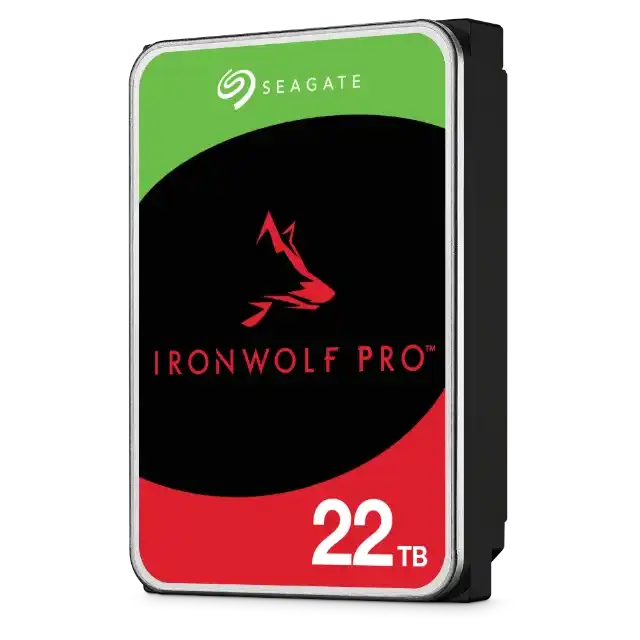

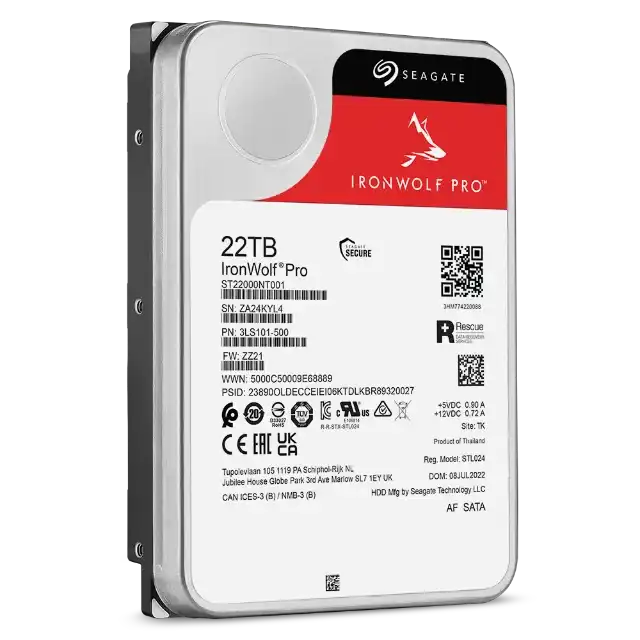

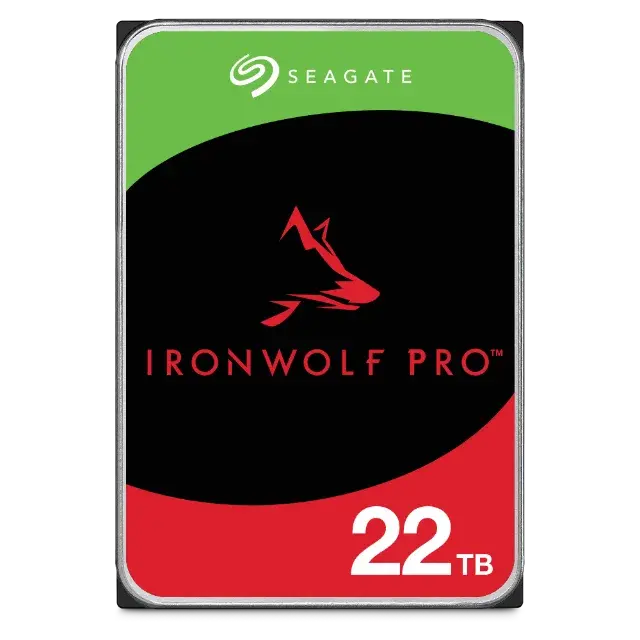

The Seagate IronWolf Pro 22TB NAS Hard Drive (ST22000NT001) is engineered to deliver 24×7 performance, reliability, and dependability in multi-bay, multi-user commercial and enterprise RAID storage solutions. IronWolf Pro drives are optimized for NAS environments with AgileArray technology featuring dual-plane balancing and time-limited error recovery to deliver top RAID performance in multi-bay systems.
This drive features all-CMR (conventional magnetic recording) technology for consistent, industry-leading performance. With a 550TB/year workload rating and 2.5M hours MTBF, it provides unparalleled total cost of ownership. The 22TB capacity comes with rotational vibration sensors for vibration tolerance and consistent performance in multi-bay environments, plus IronWolf Health Management to help protect data with prevention, intervention, and recovery recommendations.
Peace of mind is included with complimentary three-year Rescue Data Recovery Services featuring an industry-leading 95% success rate in secure in-house facilities. The drive is compatible with leading NAS providers such as Asustor, QNAP, and UGREEN.
- All-CMR portfolio for consistent 24×7 NAS performance
- 550TB/year workload rating for commercial and enterprise use
- 2.5M hours MTBF and 5-year limited warranty
- AgileArray with dual-plane balancing and time-limited error recovery
- Rotational vibration sensors for multi-bay environments
- IronWolf Health Management for data protection
- Complimentary 3-year Rescue Data Recovery Services
- SATA 6Gb/s interface
Specifications
- Standard Model Number
- ST22000NT001
- Bytes per Sector
- 512E
- Interface
- SATA 60b/s
- SATA Transfer Rates Supported (Gb/s)
- 6.0, 3.0, 1.5
- Max Sustained Data Rate, OD Read (MB/s)
- 285
- Cache, Multisegmented (MB)
- 512MB
- Recording Technology
- CMR
- Rotational Speed (RPM)
- 7200RPM
- Nonrecoverable Read Errors per Bits Read, Max
- 1 per 10E15
- Power-On Hours (per year)
- 8760
- Warranty, Limited (years)
- 5
- Workload Rate Limit (TB/Year)
- 550
- Drive Bays Supported
- Unlimited
- Startup Power (A)
- 2.0A
- Drive Design (Air or Helium)
- Helium
- Operating Mode, Typical (W)
- 7.9W
- Idle Average (W)
- 6.0W
- Standby Mode/Sleep Mode, Typical (W)
- 1.2W
- Power Supply Requirements
- +12 V and +5 V
- Operating Temperature (ambient, min °C)
- 0℃
- Operating Temperature (drive reported, max °C)
- 65℃
- Nonoperating Temperature (ambient, min °C)
- -40℃
- Nonoperating Temperature (ambient, max °C)
- 70℃
- Mean Time Between Failures (MTBF, hours)
- 2500000 hrs
- Rotational Vibration (RV) Sensors
- Yes
- Rotational Vibration @ 10-1500 Hz (rad/s)
- 12.5
- Vibration, Nonoperating: 10Hz to 500Hz (Grms)
- 2.27
- Rescue Data Recovery Services (years)
- 3
Warranty
5 Years manufacturer warranty from Seagate. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
