- Model:ST28000NT000
- 28TB Storage Capacity
- 7200 RPM Speed
- 512MB Cache
- IronWolf Health Management
- 5 Years Warranty from Seagate
Overview

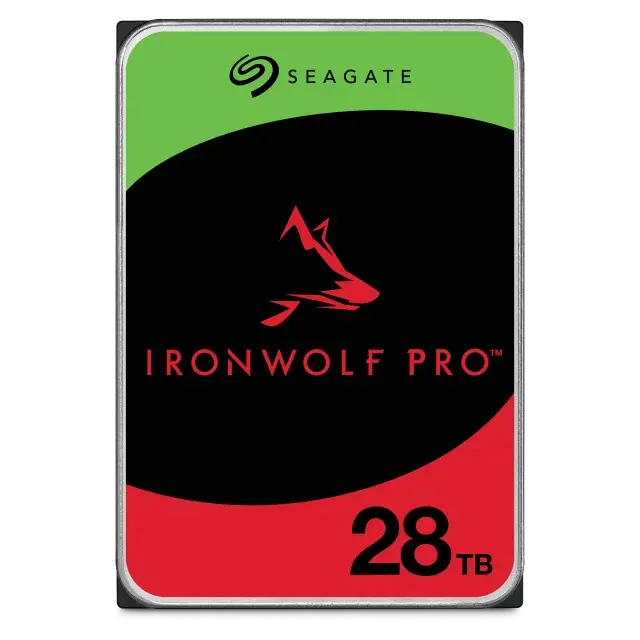

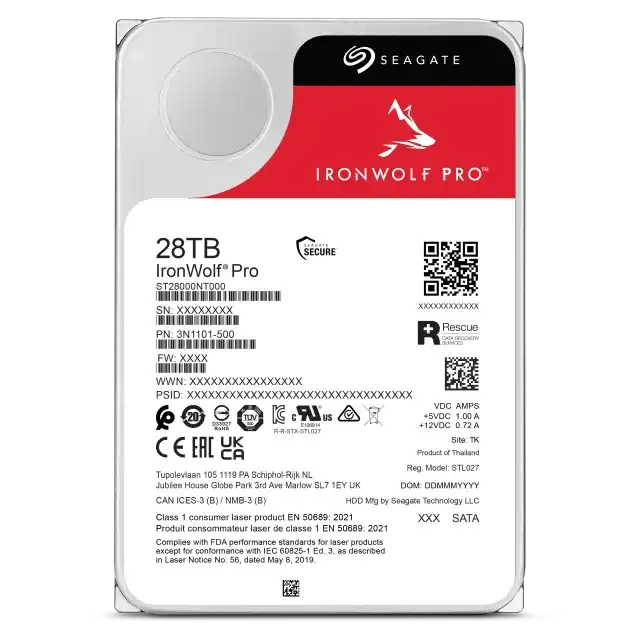

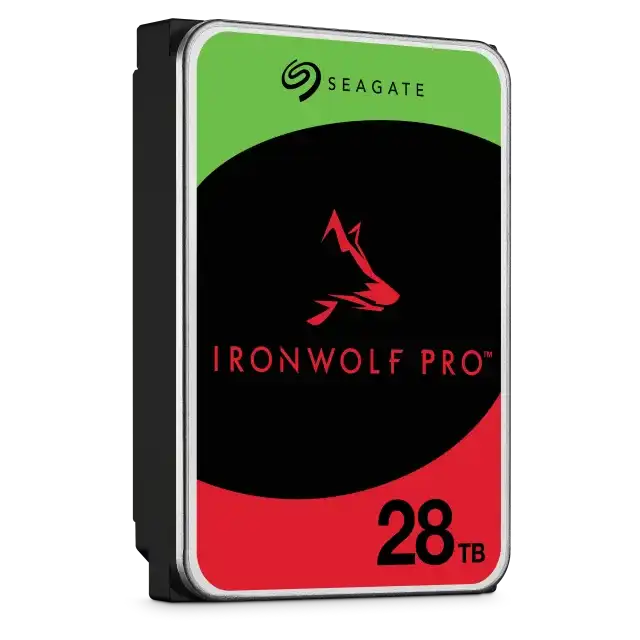

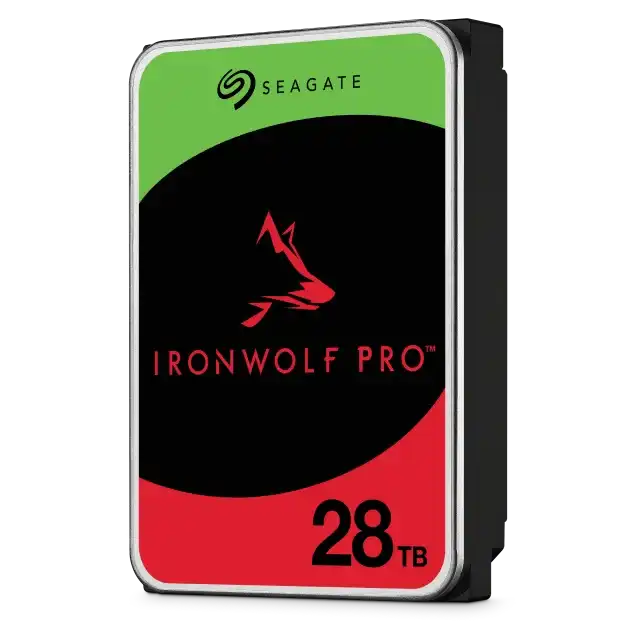

The Seagate IronWolf Pro 28TB NAS Hard Drive (ST28000NT000) is engineered to deliver 24×7 performance, reliability, and dependability in multi-bay, multi-user commercial and enterprise RAID storage solutions. IronWolf Pro drives are optimized for NAS environments with AgileArray technology featuring dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver top RAID performance in multi-bay systems.
With a class-leading 550TB/year workload rating and 2.5M hours MTBF, this drive provides unparalleled total cost of ownership. All-CMR (conventional magnetic recording) technology enables consistent, industry-leading performance allowing users to access data anytime, anywhere. The drive includes complimentary three-year Rescue Data Recovery Services with an industry-leading 95% success rate, and IronWolf Health Management to help protect data with prevention, intervention, and recovery recommendations for peak system health.
- 28TB capacity with all-CMR technology for consistent 24×7 NAS performance
- 7200 RPM spindle speed with 512MB cache
- 550TB/year workload rating and 2.5M hours MTBF
- AgileArray with dual-plane balancing and rotational vibration sensors
- IronWolf Health Management for data protection and system health monitoring
- Complimentary 3-year Rescue Data Recovery Services
- 5-year limited warranty
- Helium-filled drive design for optimized performance
Specifications
- Bytes per Sector
- 512E
- Interface
- SATA 6Gb/s
- SATA Transfer Rates Supported (Gb/s)
- 6.0,3.0,1.5
- Max Sustained Data Rate, OD Read (MB/s)
- 270
- Cache, Multisegmented (MB)
- 512MB
- Recording Technology
- CMR
- Rotational Speed (RPM)
- 7200RPM
- Nonrecoverable Read Errors per Bits Read, Max
- 1per10E15
- Power-On Hours (per year)
- 8760
- Warranty, Limited (years)
- 5
- Workload Rate Limit (TB/Year)
- 550TB/year
- Drive Bays Supported
- Unlimited
- Startup Power (A)
- 2.0A
- Drive Design (Air or Helium)
- Helium
- Operating Mode, Typical (W)
- 8.3W
- Idle Average (W)
- 6.8W
- Standby Mode/Sleep Mode, Typical (W)
- 1.2W
- Power Supply Requirements
- +12V and +5V
- Mean Time Between Failures (MTBF, hours)
- 2500000hr
- Rotational Vibration (RV) Sensors
- Yes
- Height (mm/in, max)
- 26.11mm/1.028in
- Width (mm/in, max)
- 101.85mm/4.01in
- Depth (mm/in, max)
- 146.99mm/5.787in
- Shock, Operating: 2ms (Gs)
- 30/30Gs
- Shock, Nonoperating: 1ms (Gs)
- 200
- Weight (g/lb, typical)
- 695g/1.53lb
- Rotational Vibration @ 10-1500 Hz (rad/s)
- 12.5
- Carton Unit Quantity
- 20
- Rescue Data Recovery Services (years)
- 3
- Cartons per Pallet/Cartons per Layer
- 40/8
- Vibration, Nonoperating: 10Hz to 500Hz (Grms)
- 2.27
- Operating Temperature (ambient, min℃)
- 10℃
- Operating Temperature (drive reported, max℃)
- 60℃
- Nonoperating Temperature (ambient, min℃)
- -40℃
- Nonoperating Temperature (ambient, max℃)
- 70℃
- Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
- 28
- Acoustics, Seek (typical) (dBA)
- 32
Warranty
5 Years manufacturer warranty from Seagate. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
