- Model:ST30000NT011
- 30TB Storage Capacity
- 7200 RPM Speed
- 512MB Cache
- IronWolf Health Management
- 5 Years Warranty from Seagate
Overview

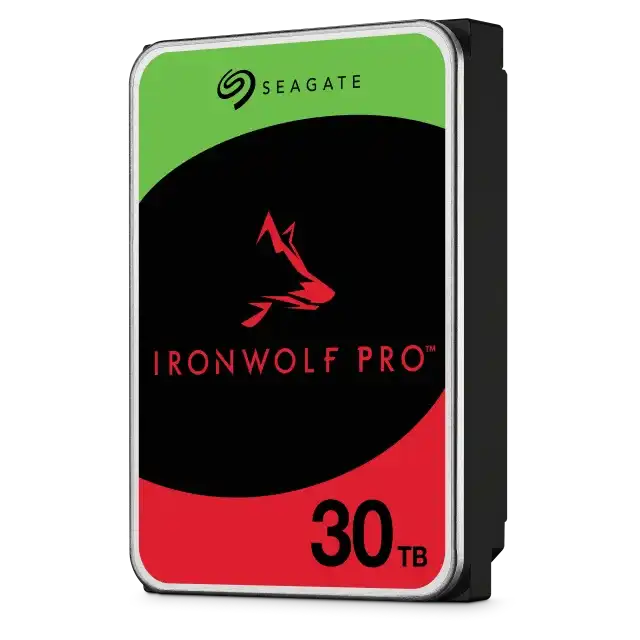

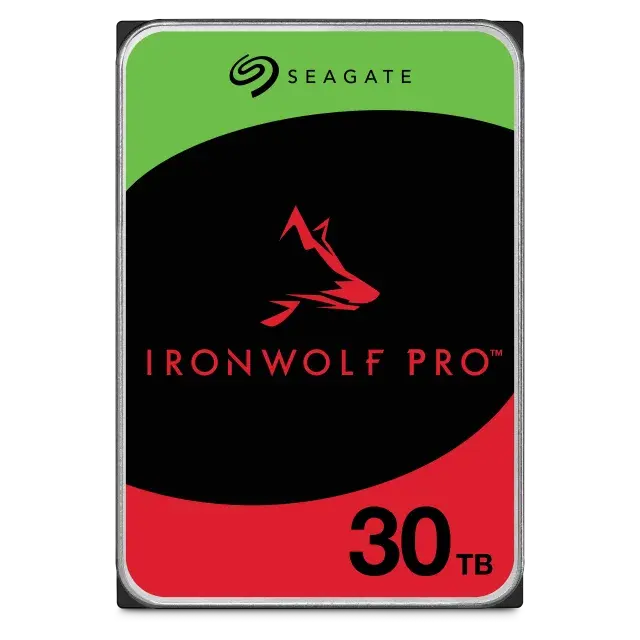

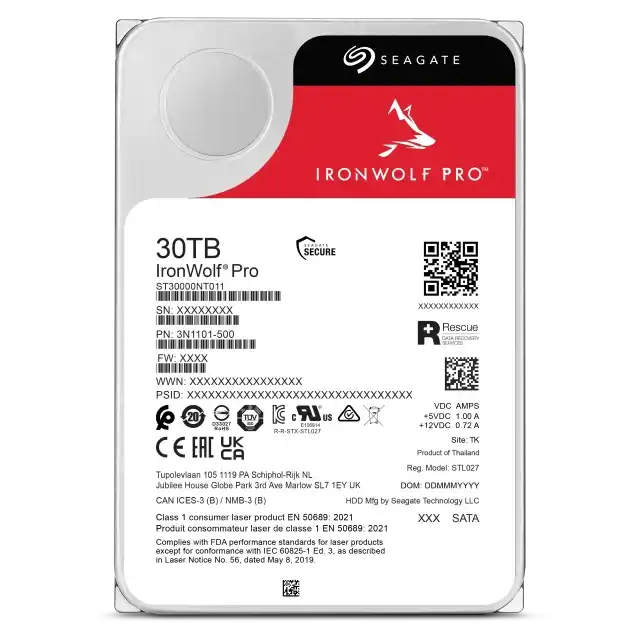

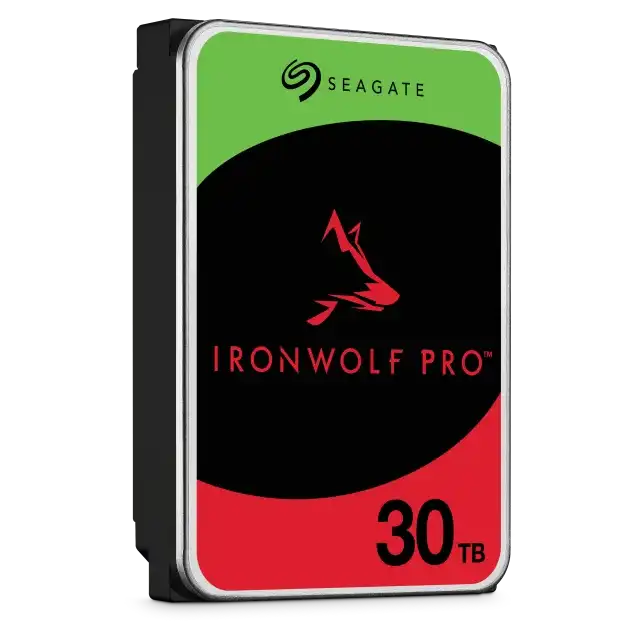

The Seagate IronWolf Pro 30TB NAS Hard Drive (ST30000NT011) is engineered to deliver 24×7 performance, reliability, and dependability in multi-bay, multi-user commercial and enterprise RAID storage solutions. Total peace of mind with five-year limited warranty, complimentary three-year Rescue Data Recovery Services, and IronWolf Health Management.
All-CMR (conventional magnetic recording) portfolio enables consistent, industry-leading 24×7 performance allowing users to access data anytime, anywhere. With up to 550TB/year workload rating, 2.5M hours MTBF, and 5-year limited warranty, IronWolf Pro delivers unparalleled total cost of ownership (TCO).
AgileArray with dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors deliver top RAID performance in multi-bay environments. IronWolf Health Management helps protect data with prevention, intervention, and recovery recommendations to ensure peak system health. Complimentary 3 year Rescue Data Recovery Services provide a hassle-free, zero-cost data recovery experience with an industry-leading 95% success rate.
- 30TB Storage Capacity
- 7200 RPM Spindle Speed
- 512MB Cache Memory
- All-CMR Technology for Consistent Performance
- 550TB/Year Workload Rating
- 2.5M Hours MTBF
- AgileArray with Dual-Plane Balancing
- IronWolf Health Management
- Rotational Vibration Sensors
- Complimentary 3-Year Rescue Data Recovery Services
Specifications
- Bytes per Sector
- 512E
- Interface
- SATA 6Gb/s
- SATA Transfer Rates Supported (Gb/s)
- 6.0,3.0,1.5
- Max Sustained Data Rate, OD Read (MB/s)
- 275
- Cache, Multisegmented (MB)
- 512MB
- Recording Technology
- CMR
- Rotational Speed (RPM)
- 7200RPM
- Nonrecoverable Read Errors per Bits Read, Max
- 1per10E15
- Power-On Hours (per year)
- 8760
- Warranty, Limited (years)
- 5
- Workload Rate Limit (TB/Year)
- 550TB/year
- Drive Bays Supported
- Unlimited
- Startup Power (A)
- 2.0A
- Drive Design (Air or Helium)
- Helium
- Operating Mode, Typical (W)
- 8.3W
- Idle Average (W)
- 6.8W
- Standby Mode/Sleep Mode, Typical (W)
- 1.2W
- Power Supply Requirements
- +12V and +5V
- Mean Time Between Failures (MTBF, hours)
- 2500000hr
- Rotational Vibration (RV) Sensors
- Yes
- Rotational Vibration @ 10-1500 Hz (rad/s)
- 12.5
- Height (mm/in, max)
- 26.11mm/1.028in
- Width (mm/in, max)
- 101.85mm/4.01in
- Depth (mm/in, max)
- 146.99mm/5.787in
- Shock, Operating: 2ms (Gs)
- 30/30Gs
- Shock, Nonoperating: 1ms (Gs)
- 200
- Weight (g/lb, typical)
- 695g/1.53lb
- Vibration, Nonoperating: 10Hz to 500Hz (Grms)
- 2.27
- Rescue Data Recovery Services (years)
- 3
- Cartons per Pallet/Cartons per Layer
- 40/8
- Operating Temperature (ambient, min℃)
- 10℃
- Operating Temperature (drive reported, max℃)
- 60℃
- Nonoperating Temperature (ambient, min℃)
- -40℃
- Nonoperating Temperature (ambient, max℃)
- 70℃
- Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
- 28
- Acoustics, Seek (typical) (dBA)
- 32
- Carton Unit Quantity
- 20
Warranty
5 Years manufacturer warranty from Seagate. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
