- Model:ST6000VX009
- 6TB Storage Capacity
- 3.5-inch Surveillance Hard Drive
- 256MB Cache
- Supports Up To 64 HD Cameras
- 3 Years Warranty from Seagate
Overview

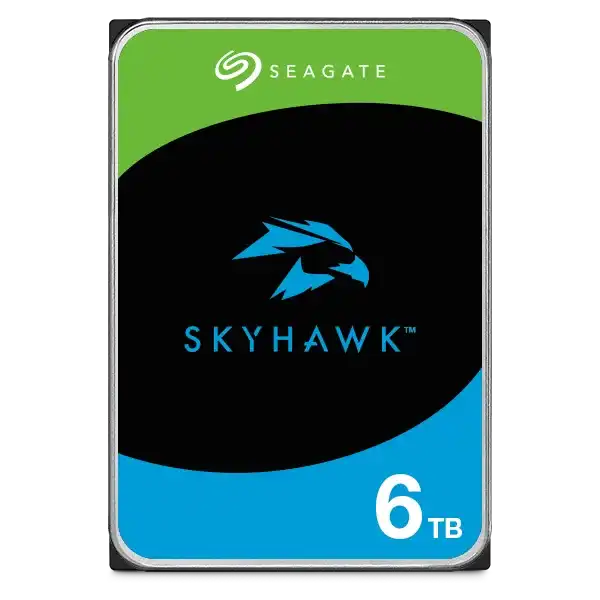

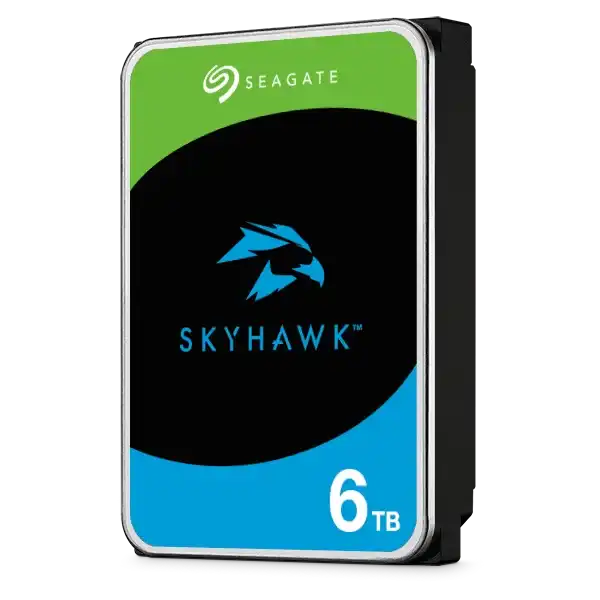

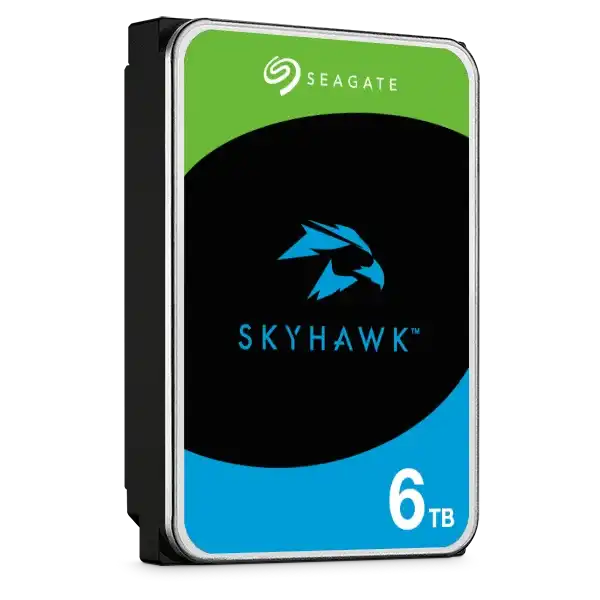

The Seagate SkyHawk 6TB (ST6000VX009) surveillance hard drive is optimized for 24/7 video recording environments, handling intense workloads with ease and reliability. This hard drive embodies cutting-edge technology specifically designed for the evolving demands of modern surveillance systems. Efficient power and Seagate's Health Management System ensures ultra-reliable performance.
SkyHawk drives support up to 180TB of data per year, with features like built-in rotational vibration (RV) sensors to maintain performance even in multi-bay systems. This ensures scalable and flexible surveillance setups. Built for video DVR and NVR security camera systems, SkyHawk delivers video-optimized storage that ensures crisp, clear surveillance footage, managing 64 HD cameras streaming simultaneously without dropping a single frame.
Equipped with ImagePerfect firmware, the drive maintains peak performance in multi-drive environments. Efficient power consumption means lower heat emissions and enhanced reliability. With SkyHawk Health Management, monitoring drive health is straightforward. The drive offers 1 million hours MTBF, backed by a comprehensive three-year warranty and three-year in-house Rescue Data Recovery Services.
- 6TB storage capacity optimized for surveillance workloads
- Supports up to 64 HD camera streams simultaneously
- 180TB per year workload rating
- Built-in rotational vibration (RV) sensors for multi-bay systems
- ImagePerfect firmware for seamless video capture
- SkyHawk Health Management System
- 1 million hours MTBF reliability
- Three-year Rescue Data Recovery Services included
Specifications
- Standard Model Number
- ST6000VX009
- Interface
- SATA 6Gb/s
- Recording Technology
- CMR
- Drive Design (Air or Helium)
- Air
- Drive Bays Supported
- Up to 16
- Cameras Supported
- Up to 64
- RV Sensors
- Yes
- Max Sustained Transfer Rate OD (MB/s)
- 180MB/s
- Cache, Multisegmented (MB)
- 256MB
- Tarnish Resistant
- Yes
- Load/Unload Cycles
- 600,000
- Nonrecoverable Read Errors per Bits Read, Max
- 1 per 10E14
- Power-On Hours (per year)
- 8760
- Workload Rate Limit (TB/Year)
- 180
- Mean Time Between Failures (MTBF, hours)
- 1000000hr
- Warranty, Limited (years)
- 3
- Rescue Data Recovery Services (years)
- 3
- Startup Current, Typical (12V, A)
- 1.8A
- Operating Mode, Typical (W)
- 5.3W
- Idle Average (W)
- 3.4W
- Standby Mode/Sleep Mode, Typical (W)
- 0.25W
- Voltage Tolerance, Inc. Noise (5V)
- ±5%
- Voltage Tolerance, Inc. Noise (12V)
- ±10%
- Operating (ambient, min°C)
- 0°C
- Operating (drive reported, max°C)
- 65°C
- Nonoperating (ambient, min°C)
- -40°C
- Height (mm/in, max)
- 26.1mm/1.028in
- Width (mm/in, max)
- 101.6mm/4.00in
Warranty
3 Years manufacturer warranty from Seagate. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
