- Model:HAS5320-24T
- 24TB Storage Capacity
- 7200 RPM Speed
- Up to 309 MB/s Sustained Transfer
- 2.5M Hours MTBF, 550TB/Year Workload
- 5 Years Warranty from Synology
Overview

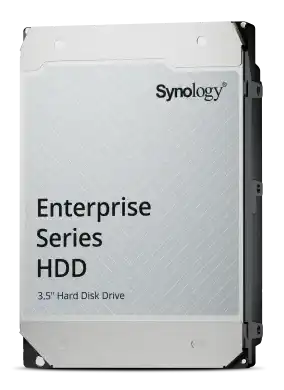

The Synology HAS5320 Enterprise 24TB SAS NAS Hard Drive (HAS5320-24T) operates at 7,200 RPM with a SAS 12 Gb/s interface, delivering up to 309 MB/s sustained data transfer speed. This Enterprise Series 3.5" SAS HDD is engineered for top performance and reliability in Synology systems.
Unmatched integration with DSM and Synology hardware enable HAS5300 SAS hard drives to reliably deliver class-leading performance in enterprise deployments. HAS5300 drives have passed 200,000 hours of rigorous testing on Synology hardware, feature a 2.5M-hour MTBF, and are covered by Synology's 5-year limited warranty. The HAS5300 series drives leverage the low-latency SAS protocol. When paired with high-performance and highly scalable Synology HD, SA, or UC series solutions, they ensure that mission-critical workloads always have access to dependable and fast storage.
Built on two decades of storage expertise, Synology HAS5300 are optimized for critical workloads that matter, providing 8% faster sequential read speeds compared to similar-class and capacity drives. Synology Enterprise Series SAS drives undergo over 1,000 stress test cycles and more than 200,000 hours of cumulative testing to ensure maximum reliability. A 2.5 million-hour MTBF, support for up to 550 TB per year workloads, and persistent write cache technology come together to safeguard data integrity. Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.
- 2.5 Million Hours MTBF for enterprise-grade reliability
- 550 TB/Year workload rating for demanding environments
- Up to 309 MB/s sustained data transfer speed
- 8% faster sequential read speeds vs. similar-class drives
- 19% faster drive repair in Synology NAS systems
- Low-latency SAS 12 Gb/s protocol for mission-critical workloads
- One-click firmware updates through DSM
- 5-year limited warranty with technical support
Specifications
- Capacity
- 24 TB
- Form Factor
- 3.5"
- Interface
- SAS 12 Gb/s
- Rotational Speed
- 7,200 rpm
- Maximum Sustained Data Transfer Speed (Typ.)
- 309 MB/s
- Warranty
- 5 Years
- Notes
- The warranty period starts from the purchase date as stated on your purchase receipt. <a href="https://www.synology.com/en-global/company/legal/warranty">(Learn more)</a>
- Active Idle (Typ.)
- 4.83 W
- Random Read / Write (4KB Q1) (Typ.)
- 8.57 W
- Notes
- Power consumption may differ according to configurations and platforms.
- Operating
- 5°C to 60°C (41°F to 140°F)
- Non-operating
- -40°C to 70°C (-40°F to 158°F)
Warranty
5 Years manufacturer warranty from Synology. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
